Bottom-up design of Ca2+ channels from defined selectivity filter geometry

Nature volume 648, pages 468–476 (2025)Cite this article

Subjects

Abstract

Native ion channels play key roles in biological systems, and engineered versions are widely used as chemogenetic tools and in sensing devices1,2. Protein design has been harnessed to generate pore-containing transmembrane proteins, but the design of selectivity filters with precise arrangements of amino acid side chains specific for a target ion, a crucial feature of native ion channels3, has been constrained by the lack of methods for placing the metal-coordinating residues with atomic-level precision. Here we describe a bottom-up RFdiffusion-based approach to construct Ca2+ channels from defined selectivity filter residue geometries, and use this approach to design symmetric oligomeric channels with Ca2+ selectivity filters having different coordination numbers and different geometries at the entrance of a wider pore buttressed by multiple transmembrane helices. The designed channel proteins assemble into homogeneous pore-containing particles and, for both tetrameric and hexameric ion-coordinating configurations, patch-clamp experiments show that the designed channels have higher conductances for Ca2+ than for Na+ and other divalent ions (Sr2+ and Mg2+) that are eliminated after mutation of selectivity filter residues. Cryogenic electron microscopy indicates that the design method has high accuracy: the structure of the hexameric Ca2+ channel is nearly identical to that of the design model. Our bottom-up design approach now enables the testing of hypotheses relating filter geometry to ion selectivity by direct construction, and provides a roadmap for creating selective ion channels for a wide range of applications.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

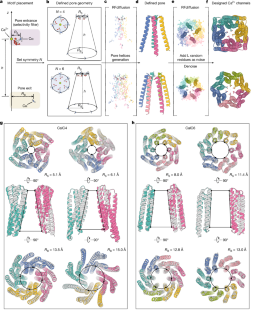

Fig. 1: A general approach for designing Ca2+ channels from selectivity filter geometry.

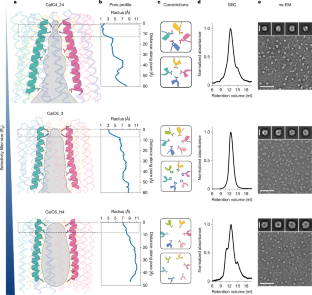

Fig. 2: Biophysical characterization of designed Ca2+ channels.
Fig. 3: Ca2+ conduction by the designed channels.

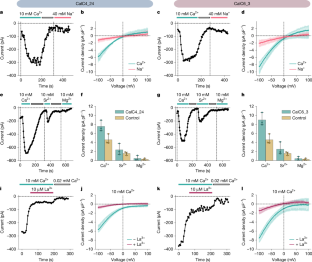

Fig. 4: Ion selectivity of designed Ca2+ channels.

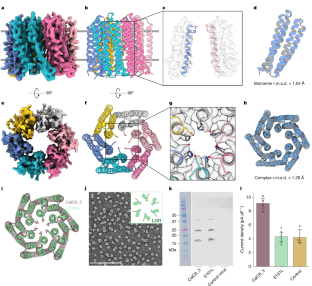

Fig. 5: Determination of selectivity filter geometry and function.
