Facile induction of immune tolerance by an interleukin-2–TGFβ surrogate agonist

Sun, Qinli; Barrett, Alison K.; Ogishi, Masato; Lyu, Huiyun; Jiang, Hua; Liu, Honghui; Zhao, Yang; Rodriguez, Grayson E.; Tao, Pingdong; Obenaus, Matthias; Householder, Karsten D.; Tang, Qizhi; Lanz, Tobias V.; Garcia, K. Christopher

doi:10.1038/s41586-026-10208-0

Download PDF

Article
Open access
Published: 11 March 2026

Facile induction of immune tolerance by an interleukin-2–TGFβ surrogate agonist

Nature (2026)Cite this article

30k Accesses
53 Altmetric
Metrics details

Subjects

Abstract

CD4⁺ regulatory T cells (T_reg cells) are essential for immune tolerance¹. Peripherally induced T_reg cells (pT_reg cells) complement thymic T_reg cells by broadening T_reg cell reactivity in response to a changing antigenic landscape². Although both TGFβ and IL-2 synergistically promote functional pT_reg cell development in vitro^3,4,5,6, their combined roles in inducing pT_reg cell generation in vivo have not been exploited for tolerizing immunotherapy. Here we designed an IL-2–TGFβ ‘surrogate’ co-agonist by creating a single-chain fusion protein between IL-2 and a low-affinity TGFβ mimic agonist derived from a helminth parasite⁷. This IL-2–TGFβ surrogate functions as an AND-gated co-agonist and enabled simultaneous cis-activation of IL-2–STAT5 and TGFβ–SMAD2/3 signalling specifically in T cells that express IL-2 receptors. The IL-2–TGFβ surrogate agonist robustly induced antigen-specific, functional and stable pT_reg cells in vivo within peripheral lymphoid organs in mice immunized with ovalbumin (OVA) and myelin oligodendrocyte glycoprotein (MOG)_35–55. The induced pT_reg cells display an effector-like, actively expanding state with high RORγt expression, enabling efficient migration and suppression of intestinal inflammation. Treatment with this agonist effectively quelled immune activation in mouse models of allergen-induced allergic inflammation and self-antigen-driven autoimmune neuroinflammation, suggesting a strategy for the induction of antigen-specific pT_reg cells in vivo to establish immune tolerance in inflammatory, allergic and autoimmune diseases.

Intricacies of TGF-β signaling in Treg and Th17 cell biology

Article Open access 23 May 2023

A CD25-biased interleukin-2 for autoimmune therapy engineered via a semi-synthetic organism

Article Open access 26 March 2024

Expression of an interleukin-2 partial agonist enhances regulatory T cell persistence and efficacy in mouse autoimmune models

Article Open access 27 May 2025

Main

Naive CD4⁺ T cells require both STAT and SMAD signalling, induced by JAK/STAT cytokines and TGFβ agonists, respectively, to differentiate into specialized subsets^8,9. Regulatory T cells (T_reg cells) are a specialized CD4⁺ T cell subset that maintain immune homeostasis and tolerance¹. Defined by the transcription factor FOXP3 (refs. ^10,11), T_reg cells include thymic T_reg cells (tT_reg cells) that develop in the thymus to enforce self-tolerance, and peripherally induced T_reg cells (pT_reg cells) that arise from mature CD4⁺ T cells after encountering exogenous or altered self antigens^2,12,13. Cytokine ‘third signals’ govern pT_reg cell differentiation. TGFβ drives FOXP3 induction during pT_reg cell differentiation in vitro through SMAD2 and SMAD3 (SMAD2/3) signalling³. IL-2 promotes pT_reg cell differentiation, functional maturation and expansion through STAT5 activation^4,6,14. Together, these two pathways form the central axis for pT_reg cell generation. Loss of Itgav or Itgb8 in RORγt⁺ antigen-presenting cells (APCs) impairs intestinal pT_reg cell differentiation^{15,16,17,18,19}, highlighting the importance of active TGFβ signalling in vivo. However, the synergistic harnessing of STAT5 and SMAD2/3 signalling for pT_reg cell generation in vivo remains largely unexplored.

In vivo pT_reg cell generation has gained attention because pT_reg cells enforce tolerance to diverse non-self antigens, including commensal microbiota, dietary components, allergens, neoantigens and certain pathogens, making their induction therapeutically promising^12,20. However, this remains challenging because inflammatory cues promote pro-inflammatory CD4⁺ T cell differentiation while impairing pT_reg cell commitment and stability^21,22. Moreover, leveraging TGFβ in vivo remains impractical owing to its pleiotropy (fibrosis and tumour promotion) and unfavourable pharmacokinetic properties²³, unlike IL-2, which has been engineered to preferentially target T_reg cells^24,25.

To address these challenges, we designed a bi-specific molecule that induces IL-2 and TGFβ signals in cis to the same cell by conjugating a low-affinity TGFβ mimic agonist that largely bypasses other cell types, to IL-2, which acts as both a targeting arm and a STAT5 activator. This molecule selectively and simultaneously activates both pathways on IL-2 receptor (IL-2R)-expressing T cells, enabling localized and cell-specific induction of pT_reg cells while minimizing off-target effects. In vivo, it converted up to 80% of ovalbumin (OVA)-specific OT-II and myelin oligodendrocyte glycoprotein (MOG)_35–55-specific 2D2 CD4⁺ T cells into FOXP3⁺ pT_reg cells in secondary lymphoid organs after intraperitoneal administration of OVA and MOG_35–55, respectively. The induced pT_reg cells are highly functional and stable, exhibit high RORγt expression, establish tolerance that protect against allergic and neuroautoimmune inflammation, and attenuate intestinal inflammation. These findings highlight an antigen-specific pT_reg cell induction strategy with therapeutic potential across diverse immune diseases.

Design and characterization of TGM1–IL-2

Our design goal was to activate simultaneous STAT5 and SMAD2/3 signalling in IL-2R-expressing cells. We therefore fused IL-2 to a low-affinity version of TGFβ that is largely functionally inactive on cells that express TGFβ receptor (TGFβR) alone: the fusion protein preferentially acts on IL-2R-expressing T cells, giving the molecule AND-gated activity to activate both pSTAT5 and SMAD2/3 pathways (Fig. 1a). We were inspired by a helminth-derived TGFβ mimic, termed TGFβ mimic 1 (TGM1), that activates TGFβR–SMAD2/3 signalling^7,26,27. TGM1 is an immunoglobulin-domain protein²⁷ that is structurally distinct from mammalian TGFβ (which is a Cys-knot fold²⁸), and has ideal drug-like properties. Full-length TGM1 (TGM1FL) comprises five domains: domains 1–3 bind TGFβR with low affinity, whereas domains 4 and 5 engage the co-receptor CD44 with high affinity^26,27. To generate an IL-2–TGFβ surrogate co-agonist, we fused the low-affinity TGFβ agonist domains 1–3 of TGM1 (referred to hereafter as TGM1) to IL-2 via a flexible GSG linker and added mouse serum albumin (MSA) to improve in vivo half-life (Fig. 1a and Extended Data Fig. 1a). We tested three IL-2 variants: wild-type IL-2 (IL-2(WT)), IL-2(N88D) and IL-2(H9) (Fig. 1b). Relative to IL-2(WT), IL-2(N88D) has reduced affinity for the IL-2 receptor β chain (IL-2Rβ), thereby preferentially stimulating T_reg cells with high CD25 expression²⁴, whereas IL-2(H9) displays enhanced IL-2Rβ affinity and more efficiently activates IL-2Rβ-expressing immune cells²⁹ (Fig. 1b). Incorporation of low-affinity TGM1 enables the fusion proteins to co-activate SMAD2/3 signalling in IL-2R-expressing cells while providing tunable STAT5 activation potency. These molecules displayed ideal biochemical properties and high expression levels in Expi293 cells, and purified by size-exclusion chromatography as monodisperse proteins (Extended Data Fig. 1b and Supplementary Fig. 1).

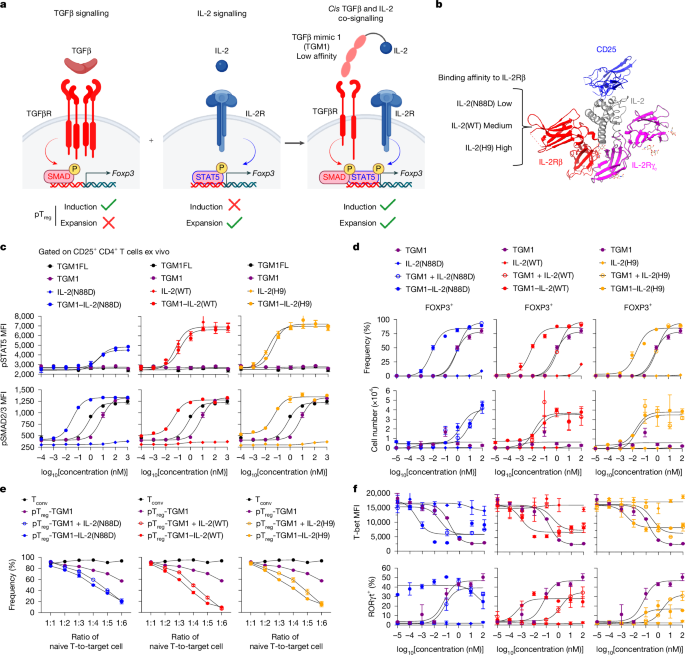

**Fig. 1: Design and functional validation of IL-2–TGFβ co-agonists.**

Signalling assays in primary mouse CD4⁺ T cells demonstrated that TGM1–IL-2 induced phosphorylated STAT5 (pSTAT5) in CD25⁺ cells at levels resembling those induced by the respective IL-2 counterparts, with the N88D variant exhibiting a reduced maximal response (Fig. 1c). Notably, TGM1–IL-2 markedly enhanced SMAD2/3 activation, shifting the phosphorylated SMAD2/3 (pSMAD2/3) dose–response curve leftward by approximately 2.5 logs compared with low-affinity TGM1 alone (Fig. 1c), reflecting increased apparent TGFβR-binding affinity driven by IL-2–IL-2R engagement. Additionally, pSTAT5 and pSMAD2/3 responses were reduced in CD25⁻ CD4⁺ T cells and CD8⁺ T cells (Extended Data Fig. 1c,d), consistent with their low CD25 expression. Moreover, truncation of any of the three domains in TGM1 abolished pSMAD2/3 activation (Extended Data Fig. 1e). These results show that TGM1–IL-2 preserves IL-2 signalling while robustly inducing pSMAD2/3 in CD25⁺ CD4⁺ T cells.

Next, in vitro pT_reg cell differentiation assays using mouse naive CD4⁺ T cells activated with anti-CD3 and anti-CD28 antibodies showed that TGM1–IL-2 markedly enhanced FOXP3⁺ pT_reg cell generation, shifting the FOXP3⁺ dose–response curve leftward by about 2 logs compared with either low-affinity TGM1 alone or the combination of TGM1 and IL-2 (Fig. 1d). TGM1–IL-2 also produced pT_reg cell numbers resembling the combined TGM1 and IL-2 treatment, although TGM1–IL-2(N88D) generated fewer pT_reg cells than the other two variants (Fig. 1d). Truncation of any TGM1 domain reduced pT_reg cell induction (Extended Data Fig. 1f). Consistently, TGM1–IL-2 more efficiently converted mouse CD44⁺FOXP3⁻ CD4⁺ conventional T cells (T_conv cells) and human peripheral blood mononuclear cell (PBMC) CD4⁺ T cells into pT_reg cells (Extended Data Fig. 1g,h). In vitro suppression assays showed that mouse pT_reg cells generated with TGM1–IL-2 potently suppressed naive T cell proliferation and activation, as evidenced by reduced CellTrace Violet (CTV) dilution and decreased CD25 expression (Fig. 1e and Extended Data Fig. 1i). These findings demonstrate that TGM1–IL-2 efficiently drives highly functional pT_reg cell induction in vitro.

TGM1–IL-2 also potently suppressed mouse CD4⁺ T cell activation and effector differentiation in vitro, as shown by left-shifted inhibitory dose–response curves for T-bet, CD25 and CD69 expression and for IFNγ and TNF production compared with either TGM1 alone or the combination of TGM1 and IL-2 (Fig. 1f and Extended Data Fig. 2a,b). TGM1–IL-2 did not induce IL-17A production and, particularly for the wild-type and H9 variants, dampened RORγt induction at high concentrations; it also exerted concentration-dependent effects on CD62L expression (Fig. 1f and Extended Data Fig. 2b,c). Notably, TGM1–IL-2 maintained CD4⁺ T cell numbers resembling the TGM1 plus IL-2 combination (Extended Data Fig. 2d).

In vivo effects of surrogate agonists

Next, we assessed the in vivo tolerability of TGM1–IL-2 and its effects on IL-2R-expressing cells in mice under steady-state conditions (Extended Data Fig. 3a). A 50 pmol dose of TGM1–IL-2 variants or IL-2(N88D) did not notably affect body weight, whereas TGM1, IL-2(WT) and IL-2(H9) caused mild weight loss (Extended Data Fig. 3b,c). TGM1–IL-2 also did not induce appreciable splenomegaly, in contrast to IL-2, which drove marked splenomegaly with spleen volumes positively correlated with IL-2Rβ-binding affinity (Extended Data Fig. 3d,e). Quantification of splenic immune populations showed that IL-2(N88D) efficiently expanded FOXP3⁺ T_reg cells in vivo, reflected by a marked increase in the ratios of T_reg cells to CD4⁺ T cells, CD8⁺ T cells and natural killer (NK) cells, as well as increased numbers, accompanied by an increased fraction of Ki-67⁺ proliferating T_reg cells among total CD4⁺ T cells and within the T_reg cell compartment, whereas TGM1–IL-2(N88D) did not (Extended Data Fig. 3f–h). By contrast, IL-2(WT), and particularly IL-2(H9), increased splenic CD8⁺ T cell and NK cell numbers, as well as the proportions of Ki-67⁺ proliferating and IFNγ-producing cells, whereas the corresponding TGM1–IL-2 showed markedly attenuated effects (Extended Data Fig. 3i–k). Moreover, all three IL-2 variants robustly promoted T_reg cell activation and function, as indicated by elevated expression of activation markers (CD25, ICOS and GITR) and functional molecules (CTLA4 and IL-10) relative to PBS controls, whereas TGM1–IL-2 did not (Extended Data Fig. 4a,b). Under steady-state conditions, most splenic T_reg cells were Helios⁺RORγt⁻, consistent with a predominance of tT_reg cells, and IL-2 further increased Helios⁺ cell proportions whereas TGM1–IL-2 did not (Extended Data Fig. 4c). Both IL-2 and TGM1–IL-2 had minimal effects on CD62L expression (Extended Data Fig. 4d). These findings demonstrate that TGM1 fusion potently antagonizes IL-2–driven expansion and activation of T_reg cells and other IL-2R⁺ T and NK cells under steady-state conditions (Extended Data Fig. 4e).

Surrogate agonists induce pT_reg cells in OVA-immunized mice

Next, we evaluated the capacity of TGM1–IL-2 to induce antigen-specific pT_reg cells in an OVA activation model. First, in vitro OT-II pT_reg cell differentiation assays stimulated with OVA peptide showed that TGM1–IL-2, particularly the wild-type variant, strongly promoted FOXP3⁺ pT_reg cell differentiation at low concentrations, increasing both percentage and numbers of cells (Extended Data Fig. 5a). Furthermore, in in vivo pT_reg cell induction assays in which mice received donor naive OT-II cells and repeated intraperitoneal OVA protein (Fig. 2a), analysis on day 11 showed that all three TGM1–IL-2 variants, particularly the IL-2(WT) fusion, drove robust FOXP3⁺ OT-II pT_reg cell induction, reaching up to about 80% in the mesenteric lymph node (mLN), inguinal lymph node (ILN), and spleen, notably yielding a high proportion of RORγt⁺ pT_reg cells (Fig. 2b,c). By contrast, low-affinity TGM1 induced only about 10% FOXP3⁺ cells, and PBS, IL-2(WT) and IL-2(H9) had minimal effects (Fig. 2b,c). Although IL-2(N88D) generated a substantial FOXP3⁺ population, these cells were predominantly Helios⁺RORγt⁻ (Fig. 2b,c and Extended Data Fig. 5b), probably reflecting expansion of contaminating OT-II tT_reg cells present in the naive donors. Similarly, TGM1–IL-2 substantially increased the FOXP3⁺ T_reg cell fraction among endogenous OVA-specific CD4⁺ T cells in lymph nodes (Extended Data Fig. 5c). Moreover, TGM1–IL-2, especially the wild-type and H9 variants, notably increased OT-II cell numbers and Ki-67⁺ cell fractions relative to PBS controls, whereas IL-2 did not, possibly owing to suppression by expanded tT_reg cells or nutrient competition with other expanded IL-2R⁺ cells (Extended Data Fig. 5d,e). Consequently, TGM1–IL-2, particularly TGM1–IL-2(WT), yielded substantial numbers of total and RORγt⁺ OT-II pT_reg cells (Fig. 2d). These results demonstrate that TGM1–IL-2, especially the wild-type fusion, potently promotes antigen-specific pT_reg cell development in peripheral lymphoid organs of OVA-immunized mice (Extended Data Fig. 4e).

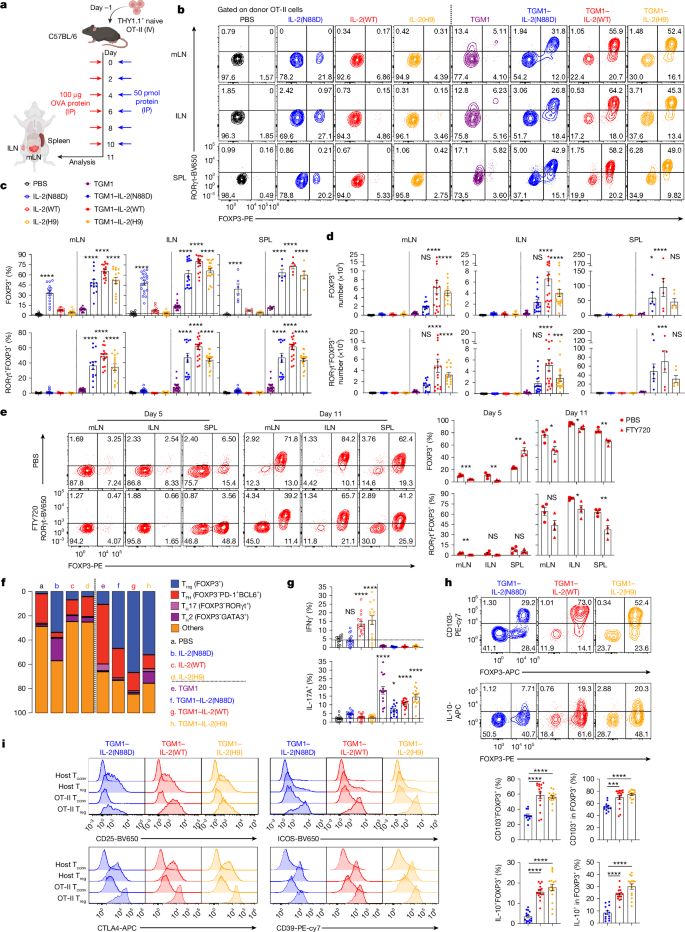

Fig. 2: Effect of IL-2–TGFβ co-agonists on antigen-specific pTreg cell induction and phenotype in OVA-immunized mice. — **Fig. 2: Effect of IL-2–TGFβ co-agonists on antigen-specific pT_reg cell induction and phenotype in OVA-immunized mice.**

We used FTY720 to test whether RORγt⁺ OT-II pT_reg cells induced by TGM1–IL-2(WT) can differentiate locally in distinct lymphoid organs; efficacy was confirmed by a marked reduction in blood CD4⁺ T cells (Extended Data Fig. 5f,g). In FTY720-treated mice, substantial FOXP3⁺ OT-II pT_reg cells co-expressing CD25 and RORγt were present on day 11 in the mLN, ILN and spleen, with frequencies similar to those in PBS controls (Fig. 2e and Extended Data Fig. 5h,i). By contrast, only a small FOXP3⁺ fraction was detected in the mLN and ILN on day 5, whereas the spleen contained a high FOXP3⁺ frequency with low RORγt expression, indicating that RORγt⁺ pT_reg cells were primarily induced between days 5 and 11 (Fig. 2e). FTY720 also markedly reduced both total and pT_reg OT-II cells in the spleen, but not in the mLN and ILN, on day 11 (Extended Data Fig. 5j,k), consistent with blocking egress from lymph nodes but not spleen. These data indicate that RORγt⁺ OT-II pT_reg cells can differentiate independently in the ILN, mLN and spleen. After OT-II pT_reg cell induction by TGM1–IL-2(WT) followed by OVA-supplemented drinking water to promote gut homing, we detected substantial populations of RORγt⁺ OT-II pT_reg cells with low GATA3 expression in Peyer’s patches, small intestine and colon, demonstrated by both frequencies and numbers (Extended Data Fig. 6a–d).

Low-affinity TGM1 increased proportions of CD4⁺ follicular helper T cells (T_FH cells; FOXP3⁻PD-1⁺BCL6⁺) relative to PBS, whereas TGM1–IL-2 slightly reduced this population (Fig. 2f and Extended Data Fig. 6e). IL-2(N88D) and TGM1–IL-2(H9) notably increased type 2 helper CD4⁺ T cell (T_H2 cell; FOXP3⁻GATA3⁺) frequencies, whereas TGM1–IL-2(N88D) and TGM1–IL-2(WT) did not (Fig. 2f). Low-affinity TGM1 also substantially increased IL-17A-producing and FOXP3⁻RORγt⁺ CD4⁺ type 17 helper T cell (T_H17 cell) percentages, whereas TGM1–IL-2 only modestly increased IL-17A⁺ cell proportions (Fig. 2f,g and Extended Data Fig. 6f). By contrast, IL-2 increased IFNγ- and TNF-producing cell frequencies, whereas TGM1–IL-2 strongly reduced them (Fig. 2g and Extended Data Fig. 6f,g). These results indicate that TGM1–IL-2 suppresses CD4⁺ type 1 helper T cell (T_H1 cell) and T_FH cell development while modestly enhancing T_H17 differentiation in OVA-immunized mice.

OT-II pT_reg cells induced by TGM1–IL-2, particularly the wild-type and H9 variants, contained a large fraction of CD103⁺ and IL-10-producing cells and exhibited increased expression of activation markers (CD25, ICOS, CD69 and GITR), suppressive molecules (CTLA4, CD39, TIGIT and CD73) and the chemokine receptor CXCR3, exceeding levels in endogenous T_reg cells (Fig. 2h,i and Extended Data Fig. 6h,i). By contrast, they expressed modest to low levels of NRP1 and CD62L (Extended Data Fig. 6h,i). These findings demonstrate that TGM1–IL-2 induces highly activated, functionally potent pT_reg cells in vivo.

Surrogate co-agonist establishes allergic tolerance

We next tested whether TGM1–IL-2–induced pT_reg cells confer in vivo tolerance in an OVA-induced type 2 airway inflammation model, in which mice were sensitized with aluminium-adjuvanted OVA and then re-challenged intranasally with OVA after OT-II pT_reg cell induction (Fig. 3a). TGM1–IL-2(WT) pretreatment markedly protected against allergic airway inflammation compared with PBS, as evidenced by lower lung inflammation scores, reduced serum total IgE and OVA-specific IgE/IgG1, and decreased infiltration of CD45.2⁺ immune cells (including CD11b⁺ myeloid cells and CD3⁺ T cells) in lung and bronchoalveolar lavage fluid (BALF), with a pronounced reduction in eosinophil frequency and numbers, whereas IL-2(WT) or low-affinity TGM1 provided no meaningful benefit (Fig. 3b–g and Extended Data Fig. 7a,b). Moreover, in TGM1–IL-2(WT)–treated mice, up to 80% of OT-II cells in the lung, lung-draining lymph nodes (LDLNs) and spleen persisted as FOXP3⁺ pT_reg cells, with high absolute numbers (Fig. 3h–k and Extended Data Fig. 7c). Lung-infiltrating OT-II pT_reg cells were predominantly GATA3⁺RORγt⁻, whereas those in LDLN and spleen were mainly GATA3⁻RORγt⁺ (Fig. 3h–j and Extended Data Fig. 7c). LDLNs also contained abundant CD25⁺ and IL-10⁺ OT-II pT_reg cells with high expression of ICOS, CD103 and CD39 (Extended Data Fig. 7d,e). By contrast, mice treated with PBS, IL-2(WT) or low-affinity TGM1 showed few FOXP3⁺ OT-II pT_reg cells, and IL-2(WT) instead increased GATA3⁺FOXP3⁻ T_H2 OT-II cell frequency (Fig. 3h–k and Extended Data Fig. 7c,f).

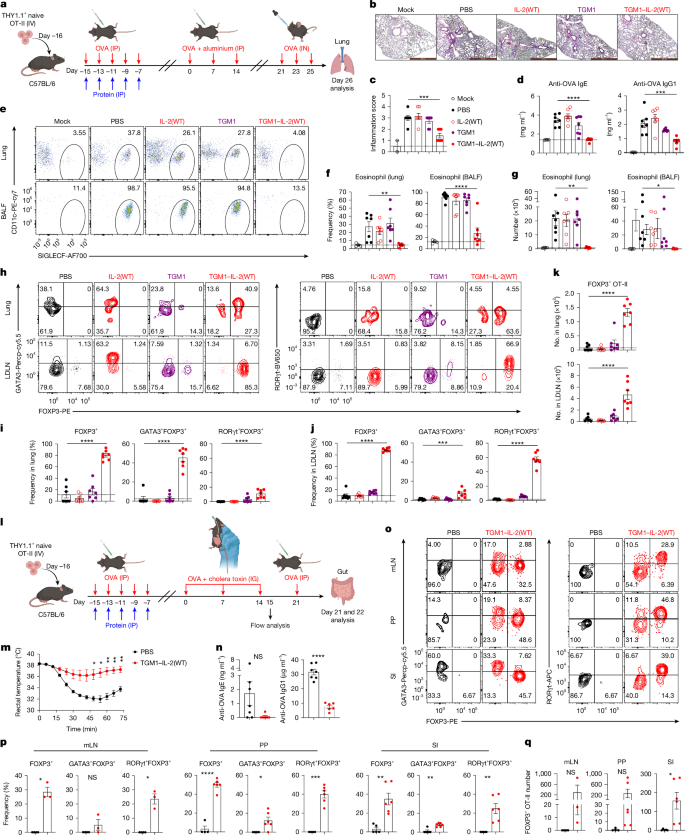

**Fig. 3: IL-2–TGFβ co-agonists establish immune tolerance to suppress OVA-induced allergic inflammation.**

We further evaluated whether TGM1–IL-2 induced tolerance to ameliorate OVA-induced food allergy by sensitizing mice with OVA and cholera toxin after OT-II pT_reg cell induction (Fig. 3l). Compared with PBS controls, TGM1–IL-2(WT) pretreatment led to smaller decreases in rectal temperature and reduced serum OVA-specific IgE and IgG1, indicating attenuated allergic responses (Fig. 3m,n). Notably, in mice pre-treated with TGM1–IL-2(WT), a large proportion of OT-II cells in the mLN, Peyer’s patches and small intestine persisted as FOXP3⁺ pT_reg cells, predominantly RORγt⁺ in both frequency and absolute number, whereas few OT-II pT_reg cells were detected in PBS controls (Fig. 3o–q). These findings demonstrate that TGM1–IL-2 establishes tolerance that suppresses OVA-induced airway inflammation and food allergy, probably by generating stable, functional pT_reg cells.

Surrogate co-agonist suppresses neuroinflammation

We next evaluated TGM1–IL-2 in the MOG_35–55-induced experimental autoimmune encephalomyelitis (EAE) model of neuroinflammation (Fig. 4a). TGM1–IL-2(WT) robustly drove donor MOG_35–55-reactive CD44⁺Ki-67⁺ 2D2 cells to differentiate to FOXP3⁺ pT_reg cells in mLNs, ILNs and spleens, with a substantial fraction expressing RORγt⁺, as indicated by both frequencies and numbers, whereas PBS, IL-2(WT) or TGM1 induced few pT_reg cells (Fig. 4b,c and Extended Data Fig. 8a). These 2D2 pT_reg cells also upregulated activation and functional markers (CD25, ICOS, CTLA4, CD39, CD103 and IL-10) (Extended Data Fig. 8b), indicating that TGM1–IL-2 robustly induces functional 2D2 pT_reg cells in peripheral lymphoid organs of MOG_35–55-immunized mice.

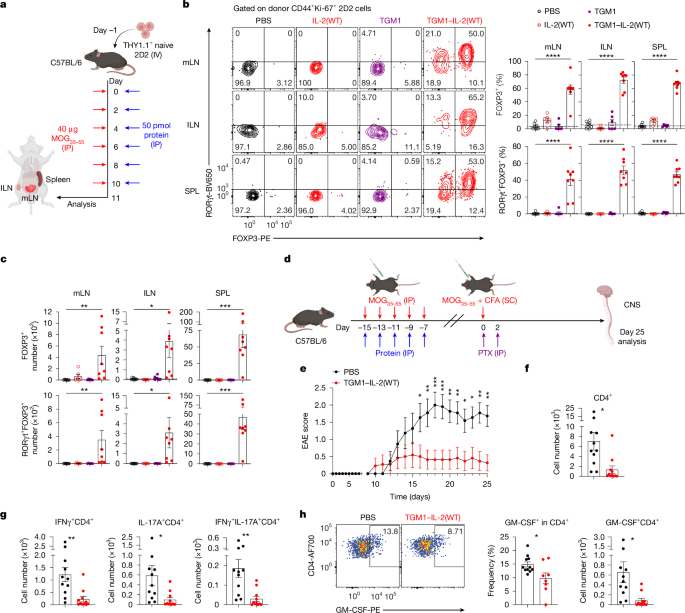

**Fig. 4: IL-2–TGFβ co-agonists establish immune tolerance to suppress MOG-induced EAE.**

Mice pretreated with TGM1–IL-2(WT) showed markedly reduced EAE clinical scores after rechallenging with MOG_35–55 emulsified in complete Freund’s adjuvant (9 out of 11 remained EAE-free), whereas nearly all control mice developed disease (Fig. 4d,e, and Extended Data Fig. 8c). TGM1–IL-2(WT) markedly reduced CD45.2⁺ immune infiltration in the spinal cord, including CD11b⁺CD3⁻ myeloid cells, CD11b⁻CD3⁺ T cells and CD4⁺ T cells, and also decreased IFNγ- and IL-17A-producing CD4⁺ T cell numbers (despite similar frequencies) (Fig. 4f,g, and Extended Data Fig. 8d, e). Moreover, TGM1–IL-2(WT) reduced GM-CSF-producing CD4⁺ T cell percentage and numbers, indicating a decrease in pathogenic T_H17 cells (Fig. 4h). These results demonstrate that TGM1–IL-2 establishes tolerance that protects mice from EAE.

Role of IL-2 in pT_reg cell induction and tolerance

To investigate the contribution of IL-2 signalling in TGM1–IL-2, we generated TGM1–IL-2(DN) by fusing TGM1 to the IL-2 mutant H9-RETR, which increases IL-2Rβ affinity but abolishes common γ-chain binding and thus IL-2R signalling³⁰ (Fig. 5a, Extended Data Fig. 9a and Supplementary Fig. 1). As expected, similar to IL-2(DN), TGM1–IL-2(DN) did not induce pSTAT5, but it triggered pSMAD2/3 with a dose–response curve resembling that of TGM1–IL-2(WT) (Fig. 5b). In vitro, TGM1–IL-2(DN) induced FOXP3⁺ pT_reg cells in a dose-dependent manner similar to TGM1–IL-2(WT), but markedly reduced total CD4⁺ T cell and pT_reg cell numbers and suppressed CD25 and T-bet expression and IFNγ production in CD4⁺ T cells (Fig. 5c and Extended Data Fig. 9b–d). In suppression assays, pT_reg cells generated with TGM1–IL-2(DN) (or TGM1 + IL-2(DN)) were less suppressive than those induced by TGM1–IL-2(WT) (or TGM1 + IL-2(WT)), as shown by reduced inhibition of T_conv cell proliferation (CTV dilution) and higher CD25 expression (Fig. 5d and Extended Data Fig. 9e). These results suggest that IL-2 signalling activated by TGM1–IL-2 is critical for optimal expansion and suppressive function of induced pT_reg cells in vitro.

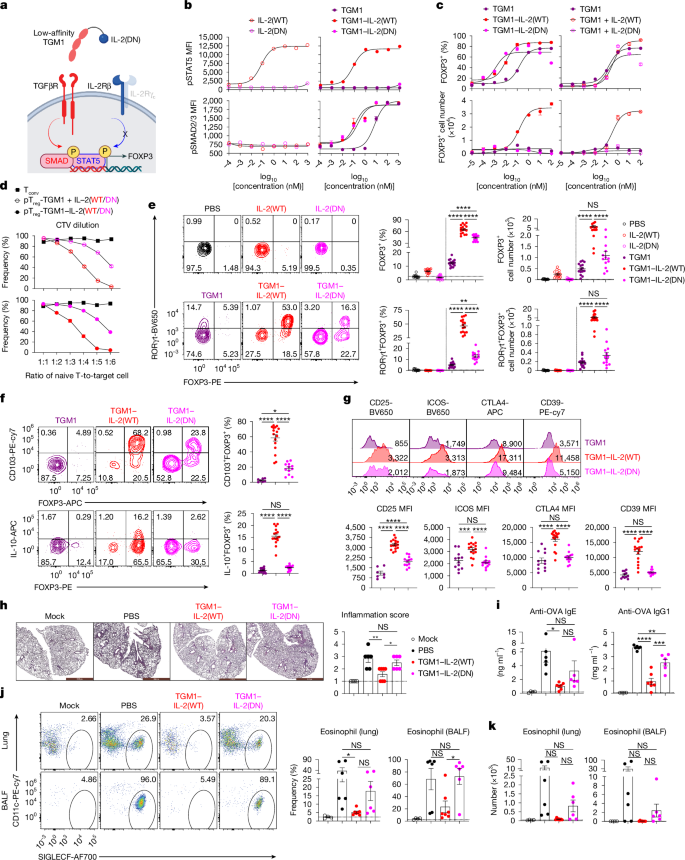

Fig. 5: IL-2–TGFβ co-agonists activate IL-2 signalling to enable optimal pTreg cell development and immune tolerance. — **Fig. 5: IL-2–TGFβ co-agonists activate IL-2 signalling to enable optimal pT_reg cell development and immune tolerance.**

In in vivo OT-II pT_reg cell induction assays, IL-2(DN) and TGM1–IL-2(DN) caused no notable weight loss or splenomegaly (Extended Data Fig. 9f,g). Compared with TGM1–IL-2(WT), TGM1–IL-2(DN) induced a lower fraction of OT-II pT_reg cells in the lymph nodes, particularly RORγt⁺ pT_reg cells; however, relative to low-affinity TGM1, TGM1–IL-2(DN) increased pT_reg cell frequency while reducing T_FH and T_H17 cells (Fig. 5e and Extended Data Fig. 9h). TGM1–IL-2(DN) also markedly decreased OT-II cell numbers and Ki-67⁺ cell proliferation, resulting in fewer total and RORγt⁺ OT-II pT_reg cells, and reduced T-bet expression and IFNγ production in OT-II cells (Fig. 5e and Extended Data Fig. 9i-k). Phenotypically, OT-II pT_reg cells induced by TGM1–IL-2(DN) showed reduced proportions of CD103⁺ and IL-10⁺ cells, lower expression of activation markers (CD25, ICOS and GITR), suppressive molecules (CTLA4, CD39 and CD73) and CXCR3, but increased NRP1 compared with TGM1–IL-2(WT) (Fig. 5f,g and Extended Data Fig. 9l). Notably, TGM1–IL-2(DN) conferred markedly less protection than TGM1–IL-2(WT) in the OVA-induced airway inflammation model, evidenced by higher lung inflammation scores, increased total serum IgE and OVA-specific IgE and IgG1, and greater infiltration of CD45.2⁺ immune cells (including CD11b⁺ myeloid cells and CD3⁺ T cells) in the lung and BALF, with a pronounced increase in eosinophil frequency and numbers (Fig. 5h–k and Extended Data Fig. 9m,n). Consistently, TGM1–IL-2(DN) markedly reduced OT-II pT_reg cell frequency and numbers in the LDLNs, particularly the CD25-expressing and IL-10-producing subsets (Extended Data Fig. 9o). These data show that IL-2 signalling in TGM1–IL-2 is required for optimal pT_reg cell differentiation, expansion and functional maturation in vivo, thereby establishing tolerance.

Transcriptomic profiling of induced pT_reg cells

Next, we performed single-cell RNA sequencing (scRNA-seq) on donor OT-II cells from the OVA-immunized mice treated with PBS, IL-2(WT), TGM1–IL-2(WT) or TGM1–IL-2(DN), together with endogenous Foxp3-GFP⁺ CD4⁺ T cells from PBS or IL-2(N88D) groups as controls (Fig. 6a). Unsupervised dimensionality reduction identified five clusters, in which donor OT-II cells were distributed mainly across clusters 1, 2 and 3 and showed increased expression of TCR signalling genes (Batf, Irf4, Egr1, Ctla4, Icos and Nfkbia), consistent with OVA-driven activation (Fig. 6b–d). Cluster 1 was annotated as a T_conv population, showing minimal Foxp3 expression but high levels of T_conv genes, including markers of T_FH (Bcl6, Tox2, Cxcr5, Il21, Pdcd1 and Slamf6), T_H2 (Gata3 and Il4), T_H1 (Ifng) and naive (Tcf7, Slamf6 and Ccr7) cells; clusters 2 and 3 were annotated as pT_reg cell populations on the basis of enriched expression of pT_reg cell transcription factors (Foxp3 and Rorc), surface molecules (Cd25, Itgae, Nt5e, Entpd1 and Tigit), suppressive cytokines (Il10) and chemokine receptors (Cxcr3, Ccr6, Ccr9 and Cxcr6) (Fig. 6b,d and Extended Data Fig. 10a–d). Cluster 3 was further defined as a proliferative Ki-67⁺ pT_reg cell subset on the basis of high expression of proliferation and cell cycle-associated genes and pathways, along with markedly increased S phase and G2/M phase cell cycle scores (Fig. 6b,d and Extended Data Fig. 10a,e,f). By contrast, endogenous Foxp3-GFP⁺ cells were mainly found in clusters 4 and 5, representing bystander tT_reg cell populations with high expression of Foxp3, Ikzf2, Sell and Nrp1 and transcriptional profiles that were distinct from OT-II pT_reg cell clusters 2 and 3 (Fig. 6b,d and Extended Data Fig. 10g). Cluster 5 was further identified as a proliferative Ki-67⁺ tT_reg cell subset owing to increased expression of proliferation-associated genes (Fig. 6b,d and Extended Data Fig. 10a).

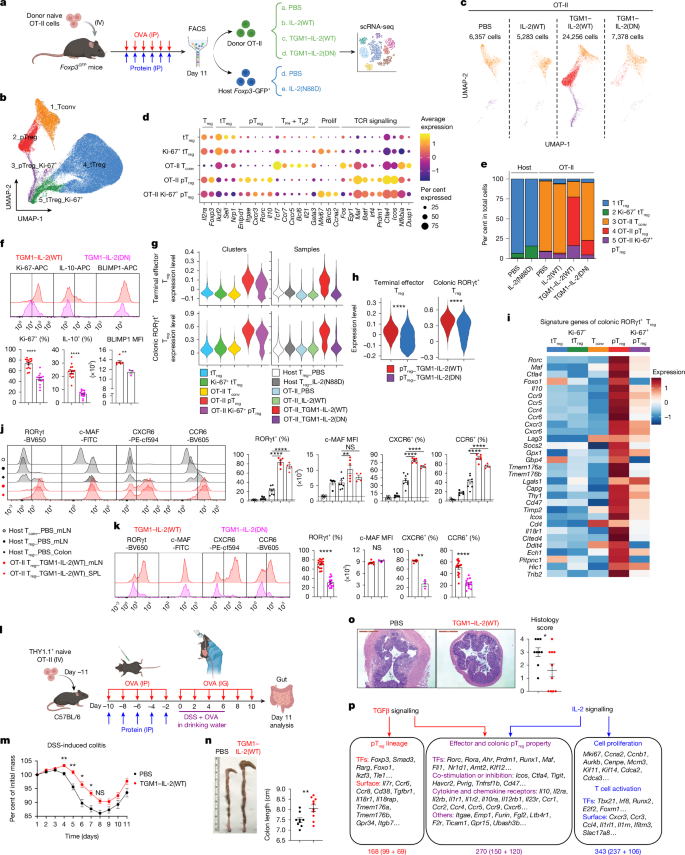

Fig. 6: Transcriptomic profiling of pTreg cells induced by IL-2–TGFβ co-agonists in vivo. — **Fig. 6: Transcriptomic profiling of pT_reg cells induced by IL-2–TGFβ co-agonists in vivo.**

OT-II cells from the PBS and IL-2(WT) groups mapped almost exclusively to the T_conv cluster 1, whereas a substantial fraction from the TGM1–IL-2(WT) and TGM1–IL-2(DN) groups localized to the pT_reg clusters 2 and 3 (Fig. 6b,c,e). Consistently, OT-II cells from both the TGM1–IL-2(WT) and TGM1–IL-2(DN) groups, as well as cells in pT_reg clusters 2 and 3, showed higher expression of a TGFβ signalling gene set (Extended Data Fig. 11a and Supplementary Table 1). Notably, relative to the TGM1–IL-2(WT) group, a substantially smaller fraction of OT-II cells from the TGM1–IL-2(DN) group mapped to cluster 2, with minimal representation in cluster 3 (Fig. 6b,c,e). Consistently, TGM1–IL-2(WT) OT-II cells showed stronger enrichment of IL-2/STAT5-promoted gene sets and a higher proportion of Ki-67⁺ cells than TGM1–IL-2(DN) cells (Fig. 6f, Extended Data Fig. 11a and Supplementary Table 1). Similarly, endogenous Foxp3-GFP⁺ cells from IL-2(N88D)-treated mice were more enriched in the proliferating tT_reg cluster 5 than those from PBS-treated mice (Fig. 6b,e). These results further demonstrate that IL-2 is required for optimal pT_reg differentiation and to drive T_reg proliferation.

Moreover, OT-II cells in the pT_reg and proliferating pT_reg clusters 2 and 3, particularly from the TGM1–IL-2(WT) group, were strongly enriched for activated and terminal effector T_reg gene signatures^31,32, whereas OT-II cells from the TGM1–IL-2(DN) group showed reduced enrichment (Fig. 6g,h, Extended Data Fig. 11b–d and Supplementary Table 1). Consistently, TGM1–IL-2(DN)-induced OT-II pT_reg cells exhibited reduced IL-10 production and BLIMP1 expression compared with those induced by TGM1–IL-2(WT) (Fig. 6f). Moreover, a colonic T_reg cell signature and a RORγt⁺ colonic T_reg cell programme from two independent studies were strongly enriched in OT-II cells from the TGM1–IL-2(WT) group, moderately enriched in the TGM1–IL-2(DN) group, and minimally expressed in endogenous T_reg cells, and were also enriched in pT_reg clusters 2 and 3 (refs. ^33,34) (Fig. 6g,h, Extended Data Fig. 11e,f and Supplementary Table 1). Specifically, these cells expressed higher levels of genes encoding colonic RORγt⁺ T_reg transcription factors (Rorc and Maf), migration molecules (Ccr4, Ccr5, Ccr6 and Cxcr6) and immunoregulatory molecules (Il10, Ctla4, Tmem176a and Lgals1) (Fig. 6i). Consistently, TGM1–IL-2(WT) induced higher protein expression of RORγt, c-MAF, CXCR6 and CCR6 in OT-II pT_reg cells, with levels exceeding those in endogenous colonic T_reg cells (Fig. 6j). However, OT-II cells from the TGM1–IL-2(DN) group, particularly the pT_reg cell subpopulation, exhibited reduced expression of the RORγt⁺ colonic T_reg cell signature and decreased frequencies of RORγt⁺, CXCR6⁺ and CCR6⁺ OT-II pT_reg cells, whereas c-MAF levels remained similar (Fig. 6h,k). We then assessed whether these OT-II pT_reg cells could suppress intestinal inflammation by administering DSS and OVA orally after cell induction (Fig. 6l). Mice pretreated with TGM1–IL-2(WT) exhibited delayed and attenuated weight loss, preserved colon length and reduced histological inflammation scores compared with PBS controls (Fig. 6m–o and Extended Data Fig. 12a). The proportion of IFNγ–producing colonic CD4⁺ T cells decreased, whereas IL-17A–producing cells were unchanged (Extended Data Fig. 12b). Moreover, FOXP3⁺ OT-II cells represented a substantially higher fraction of total CD4⁺ T cells in the small intestine and colon compared with mLNs and Peyer’s patches, and were predominantly RORγt⁺GATA3⁻ (Extended Data Fig. 12c,d). These findings indicate that TGM1–IL-2 programs pT_reg cells with an RORγt⁺ effector, colonic-like phenotype in peripheral lymphoid organs, enhancing migration and suppression of intestinal inflammation.

Transcription factor activity analysis revealed increased FOXP3, SMAD3, RORγt and BLIMP1 activity in pT_reg clusters 2 and 3, with reduced Helios and BCL6 activity (Extended Data Fig. 12e). Finally, an overlap analysis of differentially expressed genes identified 168 TGFβ-induced genes, 343 IL-2-induced genes, and 270 genes that were co-induced by both pathways (Fig. 6p, Extended Data Fig. 12f and Supplementary Table 2). TGFβ uniquely upregulated T_reg cell identity transcription factors (Foxp3, Smad3 and Rarg); IL-2 specifically induced proliferation (Mki67, Ccna2, Ccnb1 and Mcm3) and activation (Tbx21, Irf8, Runx2 and Cxcr3) genes; and coordinated activation of both pathways induced an effector and RORγt⁺ pT_reg programme that included transcription factors (Rorc, Rora, Maf, Prdm1 and Fli1), immunoregulatory molecules (Il10, Ctla4 and Tigit), activation markers (Il2ra, Icos, Havcr2 and Pvrig), migration-related genes (Ccr5, Ccr9, Cxcr6 and Itgae) and other functional mediators (Emp1, Furin, Ltb4r1 and F2r) (Fig. 6p). Similarly, we identified 132 TGFβ-suppressed genes, 548 IL-2-suppressed genes, and 483 genes that were co-suppressed by activation of both pathways (Extended Data Fig. 12f,g and Supplementary Table 3). TGFβ alone suppressed activation (Tbx21, Nr4a2, Il2, Il12rb2, Gzmk and Nkg7) and proliferation genes (Cdca3, Cdca5, Ccnb1, Ccna2 and Cdc25c), opposing IL-2 induced signatures; IL-2 alone suppressed naive and stemness genes (Tcf7, Id3, Ikzf2, Sox4 and Tgfbr3); and combined TGFβ and IL-2 suppressed alternative CD4⁺ T cell lineage programmes, including T_FH (Bcl6, Ascl2 and Il21), T_H1 (Ifng) and T_H2 (Il4) programmes (Extended Data Fig. 12g). Thus, although TGFβ and IL-2 antagonistically regulate proliferation and activation, their coordination together with TCR stimulation robustly drives pT_reg cell differentiation, expansion and functional maturation while suppressing alternative CD4⁺ T cell fates in vivo (Extended Data Fig. 12h).

Discussion

TGFβ is a potent but dangerous and challenging cytokine to harness for therapeutic applications²³, yet modulating T_reg cells is a desirable therapeutic area for TGFβ agonism in autoimmune and inflammatory diseases. Current T_reg cell therapies mainly expand polyclonal tT_reg cells using IL-2 agents, but the expansion is short-lived, tissue-specific precursors remain low, and bystander tT_reg cells lack antigen specificity, limiting efficacy and increasing systemic immunosuppression risk^35,36. As an alternative, antigen-specific pT_reg cells offer targeted control of pathological immune responses while preserving overall immune function³⁷, and our findings advance this paradigm by using a designed IL-2–TGFβ co-agonist to robustly induce these cells in vivo. This agonist also suppresses T_H1 and T_FH cell differentiation, providing dual immunosuppression by inducing pTreg cells and inhibiting pro-inflammatory subsets. Although the helminth-derived TGM1 component in this co-agonist (D1–D3) has a foreign origin, we observed no loss of exposure in vivo, but anti-drug antibodies could still limit its use in humans. TGM1 is composed of tandem immunoglobulin domains resembling variable heavy chain (V_HH) fragments, so a more human-tolerable drug-like TGFβ mimic could be built from tandem V_HH domains, which have been shown to act as surrogate cytokine agonists³⁸.

RORγt⁺ APCs have been implicated in inducing food antigen and microbiota-driven pT_reg cells in the gut^{15,16,17,18,19,39,40,41,42}. Unlike oral antigen administration, intraperitoneal antigens plus TGM1–IL-2 efficiently induces pT_reg cells systemically, including in lymphoid organs that are distant from the gut, suggesting that it is likely to provide sufficient in vivo inductive signals without requiring RORγt⁺ APCs. Additionally, the instability of pT_reg cells limits their therapeutic use, but in vivo TGM1–IL-2-induced pT_reg cells persist and remain functionally stable after multiple antigen re-challenges in disease, suggesting that coordinated IL-2 and TGFβ signalling may also be sufficient to generate durable pT_reg cells without co-factors (such as retinoic acid or vitamin C)^43,44. T_reg cell development is governed by a transcriptional network involving FOXP3, RORγt and BLIMP1 that integrates TGFβ and IL-2 signals to ensure appropriate T_reg cell differentiation and function after antigen stimulation⁴⁵. This T_reg programming framework may provide a platform to reprogram other CD4⁺ T cell lineage commitments using bi-specific agonists that pair distinct cytokine-STAT programmes with TGFβ–SMAD2/3 signalling to induce lineage-specific transcription factors.

Methods

Mice

Six-to-eight-week-old female and male C57BL/6 J mice (IMSR_JAX:000664), as well as other strains, were purchased from The Jackson Laboratory. OT-II (IMSR_JAX:004194) and Thy1.1 (IMSR_JAX:000406) mice were crossed to generate OT-II Thy1.1 mice. Foxp3-GFP mice (IMSR_JAX:006772) were crossed with OT-II Thy1.1 mice. 2D2 mice (IMSR_JAX:006912) were crossed with Thy1.1 mice. All animals were housed in AAALAC-accredited facilities. Sample sizes were not predetermined but are reported with each result, and randomization was performed across littermates.

Flow cytometry

The following antibodies were purchased from BioLegend: mouse CD45.2 (109839), CD3 (100206), CD4 (100453, 100430, 100428, 100451), CD8 (100706), NK1.1 (156506), TCRvα2 (127806, 127822), TCRvα3.2 (135404), Thy1.1 (202528, 202522), CTLA4 (106310), CD62L (104453), CD25 (102012, 102022, 102047, 102038), CD44 (103026, 103032), SIGLECF (155534), CD73 (127215), ICOS (313550), CD69 (104530), CD11b (101259), CXCR3 (126514), CD39 (143806), NRP1 (145218), CD11c (117318), CD103 (110910), GITR (126316), CXCR6 (151117), CCR6 (129819), IL-17A (506928), GM-CSF (505406), IFNγ (505832, 505826), IL-10 (505034, 505026, 505034), BLIMP1 (150008), Helios (137214), Ki-67 (151212, 652406), TNFα (506346); human CD3 (317324), CD4 (980806) and FOXP3 (320126). The following antibodies were purchased from BD Biosciences: mouse BCL6 (562401), RORγt (564722, 562682, 562683), SMAD2 (pS465/pS467)/SMAD3 (pS423/pS425) (562696) and STAT5 (pY694) (612599). The following antibodies and reagents were purchased from Invitrogen: mouse PD-1 (48-9985-82), FOXP3 (12-5773-82, 17-5773-82, 404-5773-82), T-bet (25-5825-82), c-MAF (53-9855-82), GATA3 (46-9966-42) and Fixable Viability Dye (65-0865-18). PE- and Brilliant Violet 421-labelled I-A^b OVA_328–337 tetramers (HAAHAEINEA) were provided by the NIH Tetramer Core Facility.

For surface marker staining, live cells were incubated with antibodies and viability dye in PBS at 4 °C for 1 h. Dead cells were excluded on the basis of viability dye staining. For I-A^b OVA_328–337 tetramer staining, live cells were first incubated with tetramers in PBS at 37 °C for 1 h, followed by surface antibody and viability dye staining. For transcription factor and cytokine staining, cells were fixed and permeabilized using the FOXP3/Transcription Factor Staining Buffer Set (00-5521-00, Invitrogen), followed by intracellular staining at room temperature for 2 h. Prior to cytokine staining, cells were stimulated with Cell Stimulation Cocktail (00-4970-03, Invitrogen) and Protein Transport Inhibitor Cocktail (00-4980-03, Invitrogen) at 37 °C for 5 h. For pSMAD2/3 and pSTAT5 staining, freshly isolated T cells were stimulated ex vivo with the indicated proteins for 25 min, then were immediately fixed with Cytofix Fixation Buffer (554655, BD) and permeabilized using Phosflow Perm Buffer III (558050, BD). Cells were resuspended in PBS and analysed on CytoFLEX flow cytometer (Beckman Coulter). Data analysis was performed using FlowJo software v.10.10.0.

Protein production

Recombinant proteins were cloned into the pD649 mammalian expression vector (ATUM), which includes a haemagglutinin (HA) secretion signal peptide, an N-terminal MSA fusion, and a C-terminal 6×His tag. Expression constructs were transfected into Expi293F cells using the Expi293 Expression System (Gibco). After 3–4 days of culture, proteins were purified from supernatants by Ni-NTA Agarose (Qiagen), followed by size-exclusion chromatography using a Superdex 200 column in ÄKTA chromatography system (Cytiva). Endotoxin was removed using the Proteus NoEndo HC Spin Column Kit (VivaProducts), and levels were confirmed to be acceptable using the Pierce Chromogenic Endotoxin Quant Kit (Thermo Fisher Scientific). Final protein preparations were formulated and concentrated in sterile PBS, flash-frozen in liquid nitrogen, and stored at −80 °C until use.

CD4⁺ T cell isolation and in vitro differentiation

Mouse lymph nodes and spleens were collected and mechanically dissociated to obtain single-cell suspensions. Red blood cells were lysed using ACK lysis buffer (A10492-01, Gibco), followed by magnetic isolation of CD4⁺ T cells using the EasySep Mouse CD4⁺ T Cell Isolation Kit (19852, STEMCELL). Naive CD4⁺ T cells (CD4⁺CD44⁻CD25⁻Foxp3-GFP⁻) and activated CD4⁺ T_conv cells (CD4⁺CD44⁺CD25⁻Foxp3-GFP⁻) were subsequently sorted using a Sony SH800S Cell Sorter. The purity of the sorted populations was consistently greater than 99%. Human CD4⁺ T cells were isolated from frozen PBMCs using the EasySep Human CD4⁺ T Cell Isolation Kit (17952, STEMCELL). Complete medium was prepared using RPMI 1640 with GlutaMAX supplement (Gibco, 61870036) and supplemented with 10% fetal bovine serum (Gibco, A5256701), 10 mM HEPES (Gibco, 15630080), 1% sodium pyruvate (Gibco, 11360070), 1% penicillin–streptomycin (Gibco, 15140122) and 0.1% 2-mercaptoethanol (Gibco, 21985023).

For the in vitro mouse CD4⁺ T cell differentiation assay, naive CD4⁺ T cells were plated at 0.75 × 10⁶ cells per ml in flat-bottom 96-well plates pre-coated overnight with 5 μg ml⁻¹ InVivoMAb anti-mouse CD3 (Bio X Cell, BE0002) and 5 μg ml⁻¹ InVivoMAb anti-mouse CD28 (Bio X Cell, BE0015-1). For OT-II cell differentiation, mouse splenocytes were plated at 1.5 × 10⁶ cells per ml in flat-bottom 96-well plates and stimulated with 0.05 μg ml⁻¹ OVA_323–339 peptide (GenScript, RP10610). For human CD4⁺ T cell differentiation, CD4⁺ T cells were plated at 0.75 × 10⁶ cells per ml in flat-bottom 96-well plates pre-coated overnight with InVivoMAb anti-human CD3 (Bio X Cell, BE0001-2) and 5 μg ml⁻¹ InVivoMAb anti-human CD28 (Bio X Cell, BE0248). Recombinant proteins were added at the indicated concentrations at the start of the culture, and cells were incubated at 37 °C for ~4 days.

In vitro suppression assay

Thy1.1⁺ mouse naive CD4⁺ T cells were labelled with CellTrace Violet Cell Proliferation Dye (Invitrogen, C34571) and plated at 0.1 × 10⁶ cells per well in flat-bottom 96-well plates pre-coated with 5 μg ml⁻¹ anti-CD3 and 5 μg ml⁻¹ anti-CD28 antibodies. Thy1.1⁻ mouse T_conv cells or in vitro–differentiated pT_reg cells generated with 1 nM proteins were added at the indicated ratios. Thy1.1⁺ cells were analysed after 48 h of co-culture.

Naive OT-II cell transfer and OVA administration

One million sorted Thy1.1⁺ naive OT-II cells were adoptively transferred into Thy1.1⁻ C57BL/6 recipient mice via retro-orbital intravenous injection. Starting one day post-transfer, mice were administered 100 μg OVA protein (A5503, Sigma-Aldrich) along with 50 pmol of the indicated proteins via intraperitoneal injection every other day, for a total of six injections. On day 11, mLN, ILN, and spleens were collected for analysis. For FTY720 treatment, 20 µg FTY720·HCl (ENZO Life Sciences) was dissolved in 100 µl of 5% DMSO in PBS and administered via intraperitoneal injection daily from day 0 to day 10, for a total of 11 doses.

OVA-induced airway inflammation model

One million sorted Thy1.1⁺ naive OT-II cells were adoptively transferred into Thy1.1⁻ C57BL/6 recipient mice, followed by five intraperitoneal injections of 100 μg OVA protein combined with 50 pmol of the indicated proteins. One week after the final injection, mice received three weekly intraperitoneal injections of 100 μg OVA protein formulated in 150 μl Alhydrogel adjuvant (2%; InvivoGen, vac-alu-50). One week after the last adjuvant injection, mice were administered three intranasal doses of 100 μg OVA protein every other day. Tissues were collected and analysed one day after the final intranasal dose.

OVA-induced food allergy model

One million sorted Thy1.1⁺ naive OT-II cells were adoptively transferred into Thy1.1⁻ C57BL/6 recipient mice, followed by five intraperitoneal injections of 100 μg OVA protein combined with 50 pmol of the indicated proteins. One week after the final injection, mice received three weekly oral gavages of 5 mg OVA protein together with 10 µg cholera toxin (C8052, Sigma-Aldrich). Donor OT-II cells in the gut were analysed one day after the last gavage. One week later, mice were challenged with 200 µg OVA protein via intraperitoneal injection. Rectal temperature was recorded immediately thereafter every 5–10 min for 75 min using a Type J/K/T thermocouple thermometer (Kent Scientific), and serum was collected one day later for analysis.

Naive 2D2 cell transfer and MOG_35–55 administration

Three million sorted Thy1.1⁺ naive CD44⁻CD25⁻ 2D2 cells were adoptively transferred into female Thy1.1⁻ C57BL/6 recipient mice via retro-orbital intravenous injection. Beginning one day after transfer, mice received 40 µg MOG_35–55 peptide (Genemed Synthesis) together with 50 pmol of the indicated proteins by intraperitoneal injection every other day, for a total of six doses. On day 11, mLN, ILN and spleens were collected for analysis.

MOG_35–55-induced EAE model

Female mice were administered 40 µg MOG_35–55 peptide together with 50 pmol of the indicated proteins every other day for a total of five doses. One week later, mice were immunized subcutaneously with 100 µg MOG_35–55 peptide per mouse in incomplete Freund’s adjuvant (BD Biosciences) containing 200 µg Mycobacterium tuberculosis per mouse (BD Biosciences), injected at the axilla of both sides. Concurrently, 400 ng pertussis toxin per mouse (PTX, List Labs) was administered intraperitoneally, with a second dose given 48 h later. Mouse body weight and clinical signs of disease were recorded daily and scored according to the following scale: 1, tail paralysed; 1.5, mild hind limb weakness; 2, moderate/typical hind limb weakness; 2.5, severe hind limb weakness without paralysis; 3, one or both hind limbs paralysed, front limbs fully functional; 3.5, both hind limbs paralysed, front limbs/paws weak but not paralysed; 4, front limb paralysis; 5, moribund or deceased. Tissues were collected and analysed on day 25.

DSS-induced colitis model

Two million sorted Thy1.1⁺ naive OT-II cells were adoptively transferred into Thy1.1⁻ C57BL/6 recipient mice via retro-orbital intravenous injection. Beginning one day after transfer, mice received 100 µg OVA protein together with 50 pmol of the indicated proteins by intraperitoneal injection every other day, for a total of five doses. Two days later, the mice were given drinking water containing 2.5% DSS (colitis grade, 36,000–50,000; MP Biomedicals) supplemented with 2.5 mg ml⁻¹ OVA protein. Simultaneously, mice were administered 5 mg OVA protein via oral gavage every other day for a total of six doses. After six days, the DSS- and OVA-supplemented water was replaced with regular drinking water. Mouse body weight was recorded daily throughout the experiment, and tissues were collected and analysed at the endpoint.

Isolation of immune cells from tissues

Mice were euthanized after completion of the respective treatments. BALF was collected by flushing the lungs three times with 0.75 ml of PBS via a catheter inserted into the trachea. For lymphocyte isolation from the lung, tissues were mechanically dissociated using the plunger of a 1 ml syringe and filtered through 70-μm cell strainers to obtain single-cell suspensions. For lymphocyte isolation from the lamina propria, Peyer’s patches in the small and large intestines were first removed. The intestines were then opened longitudinally, cut into ~2-cm pieces, and incubated in 5 mM EDTA (15575020, Invitrogen) with 1 mM DTT (R0861, Thermo Fisher Scientific) at 37 °C for 30 min to remove epithelial cells. Tissues were then minced and digested in DNase I (40 µg ml⁻¹; Roche) and collagenase D (0.5 mg ml⁻¹; Roche) at 37 °C for 30 min with shaking to generate single-cell suspensions, which were filtered through 70-μm cell strainers. For lymphocyte isolation from the spinal cord, mice were first perfused, and the collected spinal cords were mechanically dissociated using the plunger of a 1 ml syringe and passed through 70-μm cell strainers to obtain single-cell suspensions. The resulting cells were subjected to density gradient centrifugation using a 40%/70% Percoll (Cytiva) gradient. Immune cells located at the interface between the two Percoll layers were collected and processed for flow cytometry analysis.

ELISA

Blood samples were centrifuged at 3,000g, and serum was collected from the supernatant. Immunoglobulin levels were measured using ELISA kits: total IgE (ELISA MAX Standard Set Mouse IgE; BioLegend, 432401), OVA-specific IgE (LEGEND MAX Mouse OVA-Specific IgE ELISA Kit; BioLegend, 439807) and OVA-specific IgG1 (Mouse Anti-OVA IgG1 Antibody Assay Kit; Chondrex, 3013).

Histology

Lung tissues from perfused mice and colon tissues were fixed in 10% neutral buffered formalin (Sigma-Aldrich, HT501128) and submitted to S. Avolicino for paraffin embedding, sectioning, and haematoxylin and eosin staining. Slides were imaged on a Leica DM2000 microscope, and histopathology was evaluated in a blinded manner. Lung inflammation was scored on the basis of the extent of peribronchial and perivascular cellular infiltration: 0, no infiltrates; 1, a few inflammatory cells; 2, a one-cell-thick ring of inflammatory cells; 3, a 2–3-cell-thick ring; 4, a 4–5-cell-thick ring; 5, a ring >5 cells thick. Colon inflammation was scored as follows: 0, no evidence of inflammation; 1, low-level inflammation with scattered infiltrating mononuclear cells (1–2 foci); 2, moderate inflammation with multiple foci; 3, high-level inflammation with increased vascular density and marked wall thickening; 4, severe inflammation with transmural leukocyte infiltration and loss of goblet cells.

scRNA-seq

Donor OT-II cells and endogenous Foxp3-GFP⁺ CD4⁺ T cells were sorted from the mLNs of the respective treatment groups on day 11 and submitted to MedGenome for library preparation and RNA sequencing. The FASTQ files were processed using Cell Ranger v.9.0.0. The gene expression matrix was processed and analysed using Seurat (v.5.1.0)⁴⁶. For quality control, we excluded cells that contained fewer than 500 read counts for genes or fewer than 200 genes detected (minimal cutoff), or more than 50,000 read counts for genes or more than 6,500 genes detected (maximum cutoff). We also excluded cells in which more than 20% of transcripts were derived from mitochondrial RNA. These QC filters left 190,728 cells. Graph-based unsupervised clustering was employed to identify clusters representing minor contaminant cells other than T cells, such as neurons (expressing Cntn1, Dscam and Pde7b) and B cells (expressing Igkc, Ms4a1 and Cd79a). These minor clusters were excluded from subsequent analyses, leaving 180,038 cells. UMAP embedding was computed with 10 principal components, with n.neighbors being 20 and min.dist being 0.1. Differential expression analysis between groups was performed using Wilcoxon’s rank sum test implemented in Seurat’s FindMarkers function. Gene set enrichment analysis⁴⁷ was performed using the log₂FC ranking of differentially expressed genes using fgsea. Human hallmark gene sets were retrieved from MSigDB. The signature scores were calculated using Seurat’s AddModuleScore function. To calculate cell cycle score, we used the CellCycleScoring function in Seurat. Built-in human gene sets for the S and G2M phases in Seurat were converted into mouse homologues and used to calculate S and G2M scores. Transcription factor activity inference was conducted using pySCENIC with default parameter settings⁴⁸. To identify differentially expressed genes from public bulk RNA-seq datasets for computing gene set signature scores, bulk RNA-seq FASTQ files were aligned to the GENCODE VM25 (mm10) reference genome using Rsubread⁴⁹, and gene expression was quantified with featureCounts⁵⁰. Differential expression analysis was performed using DESeq2 (ref. ⁵¹). Pathway analysis was performed using Metascape⁵².

Statistical analysis

Statistical analyses were performed using GraphPad Prism 10. Differences were considered statistically significant at P < 0.05, with significance denoted as follows: *P < 0.05, **P < 0.01, ***P < 0.001 and ****P < 0.0001. Detailed statistical information, including sample sizes, numbers of independent experiments, and the statistical tests used, is provided in the corresponding figure legends.

Ethics statement

All experimental mouse procedures were approved by the Stanford University Institutional Animal Care and Use Committee (IACUC; protocol IDs 32279 and 34708) and conducted in accordance with institutional guidelines. Blood for PBMC isolation from healthy donors was provided by the Stanford Blood Center, which also obtained ethical approval for the donors.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

The raw and processed scRNA-seq data have been deposited in the Gene Expression Omnibus (GEO) under accession GSE315102 (aligned to the mm10 mouse reference genome). Source data are provided with this paper.

Code availability

The R code used to analyse the scRNA-seq data has been deposited on Zenodo (https://doi.org/10.5281/zenodo.18166788)⁵³.
