Mapping isoforms and regulatory mechanisms from spatial transcriptomics data with SPLISOSM

Nature Biotechnology (2026)Cite this article

15k Accesses
35 Altmetric
Metrics details

Subjects

Abstract

Transcript diversity including splicing and alternative 3′ end usage is crucial for cellular identity and adaptation, yet its spatial coordination remains poorly understood. Here we present SPLISOSM (spatial isoform statistical modeling), a method for detecting isoform-resolution patterns from spatial transcriptomics data. SPLISOSM uses multivariate testing with nonparametric kernels to account for spot-level and isoform-level dependencies, achieving high statistical power on sparse data. In the mouse brain, we identify over 1,000 spatially variable transcript diversity events, primarily in synaptic signaling pathways linked to neuropsychiatric disorders, and uncover both known and previously unknown regulatory relationships with region-specific RNA binding proteins. We further show that these patterns are evolutionarily conserved between mouse and human prefrontal cortex. Analysis of human glioblastoma highlights pervasive transcript diversity in antigen presentation and adhesion genes associated with specific microenvironmental conditions. Together, we present a comprehensive spatial splicing analysis in the brain under normal and neoplastic conditions.

Transcriptome-scale spatial gene expression in the human dorsolateral prefrontal cortex

Article 08 February 2021

Single-cell long-read sequencing-based mapping reveals specialized splicing patterns in developing and adult mouse and human brain

Article Open access 09 April 2024

Alternative splicing across the C. elegans nervous system

Article Open access 16 May 2025

Main

Almost all human genes undergo orchestrated pre-messenger RNA (pre-mRNA) processing with precise spatiotemporal regulation^1,2. The brain exhibits particularly high transcript diversity³, where region-specific expression of RNA binding proteins (RBPs) drives specialized local transcript landscapes that control neurogenesis^4,5 and synaptic plasticity^6,7. Disruption of this delicate regulatory balance contributes to numerous neurological disorders^8,9,10 and cancer progression^11,12,13. Despite its critical importance, our understanding of how RNA isoforms are spatially organized within tissues remains limited.

Modern spatial transcriptomics (ST) platforms naturally provide some isoform-specific information, whether through 3′ fragments in short-read (SR) approaches^14,15,16, full-length transcripts in long-read sequencing^17,18 or exon probes in imaging-based platforms^19,20 (Fig. 1a). Despite this, most ST analysis pipelines aggregate expression at the gene level, discarding rich transcript information. Few computational approaches^21,22,23 detect spatial patterns in isoform distribution, creating a notable gap in our understanding of the molecular complexity and its regulation in shaping tissue architecture.

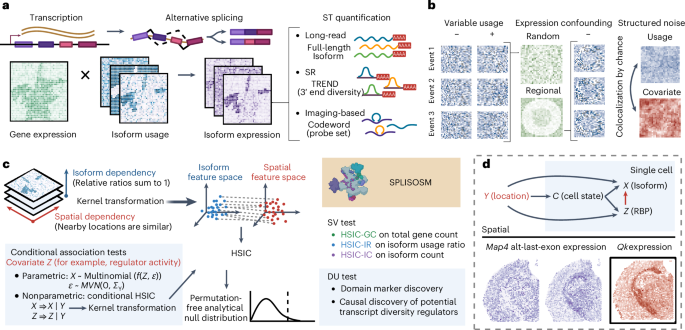

**Fig. 1: A computational toolbox for spatial isoform pattern discovery.**

Analyzing spatial isoform patterns presents several formidable challenges (Fig. 1b). First, isoforms from the same gene are interdependent, with expression constrained by total transcribed pre-mRNAs. This multivariate and compositional nature invalidates standard statistical approaches designed for gene expression analysis. Early attempts either inappropriately treated isoforms as independent¹⁸ or relied on oversimplified univariate metrics^21,22, substantially compromising statistical power (Supplementary Note). Second, data sparsity—already problematic in ST—is exacerbated at the isoform level when gene counts are subdivided across multiple transcripts. Regional expression variation can lead to zero total unique molecular identifier (UMI) counts at many locations, making isoform ratios undefined. Even when detected, these ratios frequently appear binary despite representing continuous biological preferences^24,25, complicating operations such as log-ratio transformations. Common workarounds such as pseudo-counts introduce additional biases that distort relationships between observations²⁶. Finally, spatial autocorrelation violates the independent observation assumptions fundamental to most differential association tests, generating false positives from spurious associations that merely reflect mutual dependence on spatial coordinates.

To address these challenges, we present SPLISOSM (spatial isoform statistical modeling), a method for analyzing isoform usage in ST data. Across multiple datasets of adult mouse and human brain, we identify thousands of genes with spatially variable processing. To uncover regulatory mechanisms, we test for conditional association between isoform ratios and potential regulators such as RBPs, confirming known connections and discovering region-specific regulation. Finally, we extend our analysis to glioblastoma cohorts, revealing how transcript diversity is shaped by both normal brain architecture and disease-specific alterations in the tumor microenvironment.

Results

Designing isoform-level SV and association tests

Spatial gene variability arises from both cell-type distribution patterns and location-specific variation within cell types. While several methods exist for identifying spatially variably expressed (SVE) genes^{27,28,29,30,31}, they prioritize different spatial patterns, resulting in limited consensus³². Moreover, these approaches cannot be easily adapted for multivariate isoform analysis due to their reliance on specific model assumptions (Supplementary Note). Drawing on nonparametric statistics’ effectiveness in modeling total expression from sparse ST data³⁰, we reformulated spatial variability (SV) detection and differential usage (DU) analysis as multivariate independence testing. Specifically, SPLISOSM transforms isoform compositions, spatial coordinates and other covariates of interest into feature spaces, capturing their complex relationships through the kernel-based Hilbert–Schmidt independence criterion (HSIC)^33,34 (Fig. 1c). Significant patterns are identified by comparing against the null hypothesis that a gene’s isoform preference is independent of either spatial locations or a given covariate such as RBP expression (Methods).

Our approach introduces two key technical innovations: first, we mathematically prove that all low-rank approximations of kernel tests—including those in SPARK-X³⁰—inevitably sacrifice statistical power (Theorem 1 in Supplementary Note). This insight led us to develop enhanced spatial kernels³⁵ using spectral graph theory that prioritize signals by their spatial frequency, limiting power losses to high-frequency fluctuations representing noise when processing large-scale data. Second, we established a framework for sparse isoform data with a new compositional kernel that handles undefined ratios (Theorem 2 in Supplementary Note), optimizing efficiency while maintaining test validity through a mean replacement strategy that uses all spatial observations.

Based on these theoretical advances, SPLISOSM implements three complementary SV tests: HSIC-GC for total gene expression, HSIC-IR for isoform usage ratios and HSIC-IC for isoform counts. For genes showing SV in isoform preference, we apply conditional DU tests to identify potential RBP regulators (Methods). Using SV, SPLISOSM enables cell-type-agnostic discovery (Fig. 1d), complementing existing single-cell isoform studies^36,37,38 while offering unique advantages in contexts where cell typing is challenging, such as in tumor microenvironments.

SPLISOSM yields well-calibrated P values in simulation

We first validated SPLISOSM through simulations reflecting both gene expression and isoform preference variation (Fig. 2a and Methods). Our SV tests target distinct biological signals with well-calibrated statistics (Fig. 2b). Among them, HSIC-IR correctly identified spatial patterns in isoform usage while ignoring changes in total gene expression (scenario 4 versus 5). The modified linear kernel with mean replacement provided optimal power without introducing artifacts (Supplementary Fig. 1a,b). Complementarily, HSIC-IC detected both isoform usage (scenario 1 versus 3) and gene expression spatial variation (scenario 1 versus 4). We also observed improvements in the gene-level HSIC-GC compared to SPARK-X through the optimized spatial kernel (scenarios 4–6), validating our theoretical predictions.

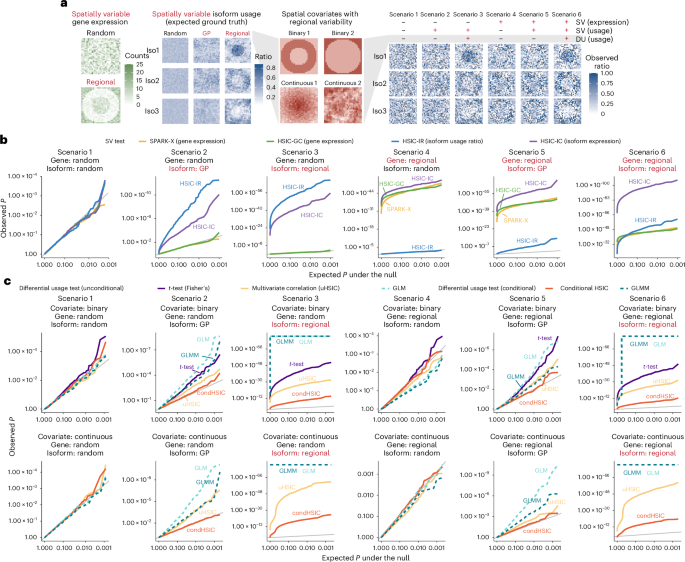

**Fig. 2: SPLISOSM produces well-calibrated and permutation-free P values in simulation.**

For association analysis, we focus on the challenge of correlated noise, which creates patterns that falsely align with covariates (scenarios 1 versus 2). Conventional approaches, including discrete t-tests, continuous multivariate correlation and generalized linear models (GLMs), all exhibited considerable P value inflation under spatial confounding (Fig. 2c, scenarios 1 versus 2 and 4 versus 5). SPLISOSM overcomes this limitation by introducing spatial conditioning within existing differential analysis frameworks (Methods). Simulations confirmed that our nonparametric conditional HSIC maintains proper null calibration while preserving sensitivity to subtle covariate effects (Fig. 2c and Supplementary Fig. 1c–e), and that our parametric generalized linear mixed model (GLMM) partially controlled false positives compared to standard GLMs.

Spatial splicing in adult mouse brain targets synaptic and membrane trafficking genes

Recent studies^17,18 have generated spatial isoform maps of postnatal and adult mouse brains by combining 10X Visium spatial barcoding with Oxford Nanopore (ONT) sequencing. While able to resolve full-length transcripts, these long-read ST technologies are limited by throughput and data sparsity, providing a natural testbed to demonstrate SPLISOSM’s utility in biological discovery. We reanalyzed two SiT¹⁸ coronal brain section samples (CBS1, CBS2) from adult mouse (Fig. 3a). SPLISOSM detected 150 spatially variably processed (SVP) genes shared by both replicates (adjusted P < 0.05, Fig. 3b and Supplementary Figs. 2 and 3)—more than double the originally reported 61 genes—without relying on region annotations. Our SV tests demonstrated strong consistency between replicates (Spearman’s ρ of P values = 0.52, 0.39, 0.43 for HSIC-IR, HSIC-GC and HSIC-IC, respectively), while SPARK-X biased toward the sample with higher sequencing coverage (Spearman’s ρ = 0.26). These SVP genes were enriched in membrane trafficking and synaptic signaling (Clta, Cltb, Snap25, Stxbp1, Ap2a1, Atp6v1e1, Napa), with many implicated in neurodegenerative diseases (Fig. 3c). We also observed widespread isoform variability in ribosomal genes (Rps24, Rps6, Rpl13a, Rpl5, Rps9), aligning with previous studies showing cell-type and tissue-specific ribosome composition³⁹. Transcript usage variability alone proved sufficient to define brain regions with comparable spatial resolution to expression-based clusters (Fig. 3d and Methods), and isoform preference could be grouped into region-specific programs by gene-wise clustering (Fig. 3e and Methods).

**Fig. 3: Integrative analysis reveals spatial alternative splicing programs in adult mouse brain enriched for synaptic and membrane trafficking functions.**

At the structural level, SVP genes showed enrichment for exon skipping particularly near the 3′ end, as well as alternative first exons (Fig. 3f,g). To identify potential modulators behind these events, we systematically searched for differential association with spatially variably expressed RBPs, which collectively reproduced major brain compartments (Fig. 3h and Supplementary Fig. 4) and may act through direct binding or as indirect cofactors to drive transcript regional specificity. Top RBPs prioritized in our analysis included well-established neural splicing regulators such as QKI, RBFOX and CELF families and less-studied ones such as ARPP21 (Fig. 3i). To evaluate these relationships, we examined available brain-CLIP datasets⁴⁰, confirming four of nine significant Rbfox3 associations. Although CELF5-specific CLIP data remain unavailable, eight of ten of its associated target genes showed binding by other CELF family members, supporting CELF5’s role as a major neural splicing modulator in adult mouse brain (Fig. 3j).

Among SVP genes, Gnas showed particularly intriguing associations (Fig. 3k). Its exon 3, which is spliced out specifically in midbrain and fiber tracts, generates a hyperactive G-alpha protein driving differentiation defects and myeloid malignancies when included in SRSF2 and U2AF1 mutants⁴¹. Our analysis reveals that RBFOX and CELF families potentially regulate Gnas exon 3 skipping in the brain, raising the possibility that neural RBP dysregulation in nonneural tissues could contribute to disease pathogenesis.

Cross-platform validation of brain transcript variability

The substantial spatial transcript processing identified from long-read data prompted us to examine whether these patterns could be detected across different ST platforms, each recognizing distinct aspects of molecular variation. In addition to alternative splicing (AS), mammalian nervous systems exhibit active alternative polyadenylation (APA)⁴² that generates transcript diversity near the 3′ end (transcriptome 3′ end diversity, TREND⁴³), which can be captured by 3′-based ST sequencing protocols. In a separate 10X Visium sample⁴⁴ of adult mouse brain, we identified 815 SVP genes with spatially variable TREND usage (adjusted P < 0.01, Fig. 4a,b and Methods). The increased detection power reflected the higher sequencing depth of SR Visium, as confirmed through down-sampling (Supplementary Fig. 5a). Analysis of a near-single-cell Slide-seqV2 dataset of mouse hippocampus¹⁶ revealed similar albeit fewer TREND patterns due to its sparsity (Extended Data Fig. 1a). In total, 95 SVP genes overlapped between long-read and SR datasets despite their technical differences (Extended Data Fig. 2a,b). Furthermore, genes using variable isoforms across space also show significantly higher SV in their 3′ end regions detectable by SR sequencing (Extended Data Fig. 2c and Supplementary Fig. 6), suggesting coordinated transcript processing across the full transcript length⁴⁵.

**Fig. 4: Spatial 3′ end transcript diversity in adult mouse brain extends beyond alternative polyadenylation and shows functional convergence on signaling pathways.**

To obtain orthogonal validation, we reanalyzed a 10X Xenium Prime 5K dataset⁴⁶ of adult mouse brain with subcellular spatial resolution through multiplexed in situ hybridization (Methods). Although most predesigned Xenium probes do not target sequencing-based variable regions, we observed strong gene-level agreement: 55.6% (20 of 36) of ONT-detected and 39.8% (100 of 251) of SR-detected SVP genes showed significant spatial exon usage variability, both far exceeding the baseline rate of 14.9% (Extended Data Fig. 2d–g). At single-cell resolution, we could pinpoint cellular origins of spatial transcript patterns. For example, Xenium confirmed that Dtnbp1 isoform switching detected by long-read in specific brain regions was driven by distinct neuronal subpopulations: Nptxr⁺/Slc17a7⁺ excitatory neurons in olfactory and hippocampus-CA3 and GABAergic interneurons in isocortex (Extended Data Fig. 3). Similarly, we validated the Zdhhc8 3′ end variation and its isocortex and hippocampus-dentate gyrus specificity (Supplementary Fig. 7).

This cross-platform convergence demonstrates that spatial transcript diversity represents a fundamental organizing principle of brain architecture, detectable across diverse technical approaches (Extended Data Fig. 4 and Supplementary Fig. 8). It also establishes SPLISOSM as a robust and cell-type-agnostic framework for uncovering transcript patterns invisible at gene level from ST data.

Spatial 3′ end transcript diversity in adult mouse brain shows functional convergence on signaling pathways

Although over 80% of spatially variable TREND events mapped to 3′ untranslated regions (UTRs), we found significant localization at junctions and alternative exons (Fig. 4c). Some non-UTR events represented internal poly(A) priming sites, supported by A-rich motif enrichment, allowing us to detect upstream diversity deeper into transcripts. The functional importance of TREND became evident as 25% of events overlapped coding regions. Of seven previously reported protein-altering poly(A) site shifts between neurons and glia⁴⁷, we recapitulated six (Map4, Atp2a2, Cdc42, Klc1, Itsn1, Ptpn2) while providing new insights into their spatial distribution (Fig. 4e and Extended Data Fig. 1b). SVP genes converged on key neural signaling pathways, including glutamatergic and adrenergic synaptic transmission and Rap1, Ca²⁺, cAMP and MAPK cascades (Fig. 4d). We observed additional protein-coding changes in genes involved in diverse cellular functions (Extended Data Fig. 1c), including proteostasis (Hsp90aa1, Hsp90ab1), membrane trafficking and secretion (Septin8, Septin11, Ap1s2, Olfm1, Lgi3) and enzymatic activities (Kalrn, Rexo2, Ppp2r5c). Finally, major brain regions could be defined using TREND preference alone (Fig. 4f and Supplementary Fig. 9), in agreement with our long-read analysis.

To understand the spatial regulation of TREND, we performed association analysis between event usage and RBP expression. Contrary to conventional thinking, SV in core alternative polyadenylation machinery components was insufficient to explain the observed 3′ end diversity patterns (Extended Data Fig. 1d). Instead, neural splicing regulators from our ONT analysis such as QKI, RBFOX and CELF families also emerged as top potential regulators for APA, supporting their central role in shaping the adult mouse brain transcriptome⁴⁸. A prominent RBFOX target is Gnao1, encoding a subunit of the heterotrimeric G proteins. Our analysis uncovered previously unrecognized spatial divergence in Gnao1 last exon usage between cerebral nuclei and fiber tracts versus other brain regions, generating two protein isoforms with different C termini (Fig. 4g). Using public CLIP⁴⁰ and knockout data⁴⁹, we confirmed that RBFOX binds and promotes Gnao1 downstream exon usage. Regional isoform specificity in Gnas and Gnao1 extends to other G proteins (Gnai2, Gnas, Gnal, Gnaq) and G-protein-coupled receptors (Gabbr1, Grm5, Adgrl1), indicating a role of alternative transcript processing in fine-tuning signal transduction for spatially diverse physiological functions.

Our catalog also brought to light self-regulatory mechanisms driving transcript diversity in RBP genes themselves. For instance, the last exon usage of Arpp21 correlated with its total expression (Fig. 4h), consistent with a regulatory model where miR-1l.,28-2, produced from the longer isoform’s second-to-last intron, inhibits Arpp21 expression⁵⁰. We also verified self-regulation in the 3′ UTR of CELF family⁵¹ (Fig. 4i) and discovered additional spatially variable 3′ UTR lengths across RBPs (Elavl2, Elavl3, Qk, Rbfox1, Hnrnpa2b1, Hnrnpk). One particularly intriguing new finding involves Pcbp2, which showed enriched usage of a minor upstream last exon in isocortex and thalamus. This alternative exon encodes a protein variant with an extended disordered C terminus (Extended Data Fig. 1e), whose usage inversely correlated with overall Pcbp2 expression in both mouse brain and across human tissues (Extended Data Fig. 1f). CLIP data⁵² revealed stronger human PCBP2 binding to this minor last exon compared to the canonical one, suggesting selective auto-regulatory feedback contributing to spatial specialization.

RBFOX and partners cooperatively regulate RNA processing

Causal inference from observational studies faces drawbacks from unknown confounding factors. Since SPLISOSM’s differential test captures both direct and indirect associations in the general form, it is not immune to such confounding effects. By comparing spatial RBP associations with perturbation studies in specific cellular environments, we can nevertheless extract meaningful biological insights.

A revealing example is the spatial regulation of Clta isoforms (Extended Data Fig. 5a). Knockout studies demonstrated that RBFOX proteins suppress Clta exon 5 and 6 inclusion in developing motor neurons⁴⁹, yet our spatial test revealed a surprising positive correlation between Rbfox3 expression and the Clta-205 isoform containing these exons. Analysis of exon inclusion in a single-cell neocortex atlas initially confirmed this positive relationship across brain cell types (Extended Data Fig. 5b). The perceived contradiction resolved, however, when examining only neuronal subtypes: within GABAergic and far-projecting glutamatergic neurons, Rbfox3 negatively correlates with exon inclusion, aligning with the knockout results. This context-dependent relationship implies the presence of other cell-type-specific factors, countering RBFOX, that drive up Clta exon 5 usage in neurons. We found several additional genes (Myl6, Cltb, Tln1, Klc1; Supplementary Fig. 10) where RBFOX knockout effects contradicted spatial associations. Supporting our hypothesis, previous experiments have shown that repressive CELF binding can override RBFOX enhancement at MYL6 exon 6 in human T cells⁵³.

To systematically identify potential RBFOX coregulators, we assessed agreement between RBP DU results and spatial coexpression patterns (Extended Data Fig. 5c). The top candidates included RBPs with varying reported RBFOX interactions: CELF family proteins, known to act antagonistically with RBFOX in muscle and heart tissue⁵³; ELAVL2, sharing targets with RBFOX1 in human neurons⁵⁴ and QKI, recently confirmed to affect RBFOX function by minigene assay⁵⁵. Expression of these collaborating RBPs remained stable after RBFOX depletion (Supplementary Fig. 10a), pointing toward direct cooperation rather than cross-regulation feedback. Sequence motif analysis provided further validation, showing significant enrichment of ELAVL, CELF and QKI binding motifs near Rbfox-associated variable exons detected in the ONT data, while KHDRBS3 (a QKI homolog) and ELAVL motifs were enriched near Rbfox-associated TREND regions in SR data (Extended Data Fig. 5d). Consistently, we observed position-dependent overrepresentation of CELF and ELAVL motifs around exons responding to RBFOX triple knockout in the perturbation data⁴⁹, supporting the collaborative regulation between multiple RBPs on the same targets (Extended Data Fig. 5e).

Conserved synaptic gene transcript diversity in human prefrontal cortex

Given the critical role of splicing and APA in brain functions, we hypothesized that spatial transcript diversity patterns would be highly preserved throughout mammalian evolution. To investigate this, we reanalyzed 12 10X Visium samples⁵⁶ from healthy human brain (Fig. 5a and Methods), identifying 861 SVP genes in the dorsolateral prefrontal cortex (DLPFC) (adjusted P < 0.05). Power to detect SV has not yet saturated with respect to sequencing depth (Fig. 5b and Extended Data Fig. 6a), so improved RNA capture per spot would likely reveal additional variable events. When evaluating performance across replicates, SPLISOSM’s expression-based tests (HSIC-GC and HSIC-IC) demonstrated better power and consistency compared to SPARK-X, which was hampered by suboptimal kernel design (Fig. 5c). The HSIC-IR test showed weaker concordance, primarily due to data sparsity and noise, although this improved significantly for genes with higher expression.

**Fig. 5: Evolutionarily conserved transcript diversity in synaptic genes across the human prefrontal cortex.**

Despite these technical limitations, we found strong evidence for cross-species conservation at both individual gene and functional levels. Of the human SVP genes, 178 had mouse homologs that also exhibited SV (Fig. 5d and Extended Data Fig. 6b,c). Moreover, conserved TREND regions displayed significantly higher sequence conservation than invariant regions (Fig. 5e). Functional enrichment analyses in both species highlighted the importance of isoform-level regulation in synaptic signaling and chaperone-mediated autophagy, processes implicated in various neurodegenerative disorders (Fig. 5f and Extended Data Fig. 6d).

The molecular regulation governing spatial isoform diversity also showed remarkable cross-species similarities. MAP4, which organizes microtubules in muscles and neurons, exhibited patterns corresponding to neuronal-versus-glial usage in both species (Fig. 4e and Extended Data Fig. 6e). While PTBP2 was previously identified as a regulator of MAP4 last exon usage in embryonic brain cortex⁴⁷, its limited SV in adult brain suggested the involvement of additional factors in region-specific regulation (Extended Data Fig. 6f). Our DU analyses pointed to RBFOX1, QKI and CELF families as likely cofactors, with CLIP data revealing conserved binding sites supporting this hypothesis (Extended Data Fig. 6g).

SEPTIN8 provides another compelling example of evolutionarily conserved regulation. This gene encodes a GTP-binding protein that polymerizes into filaments essential for cellular architecture. Our spatial analysis revealed a distinct usage of SEPTIN8 upstream last exon, presumably producing a shorter isoform predominating in mouse fiber tracts and human DLPFC white matter (Fig. 5h). This truncated protein lacks the extra C-terminal region that interacts with VAMP2 to facilitate SNARE-complex assembly⁵⁷, which also features a filopodia-inducing motif that enhances dendritic arborization when palmitoylated⁵⁸ (Fig. 5i). The downstream Septin8 last exon is promoted by NOVA2 in mouse motor neurons⁵⁸. Our analysis indicates that NOVA2 likely cooperates with QKI and CELF proteins jointly to achieve the precise spatial patterning in the brain (Fig. 5g).

Microenvironment shapes glioma spatial transcript diversity

The capability to detect patterns without cell-type or region annotations makes SPLISOSM especially valuable for complex tissues with ambiguous cellular states. Glioblastomas are characterized by their infiltrative nature and heterogeneous spatial structures⁵⁹. To explore isoform distributions in this challenging context, we systematically mapped spatial transcript usage across 24 human glioma samples (Fig. 6a and Methods), identifying 306 SVP genes in 11 ONT samples⁶⁰ and 2,828 SVP genes in 13 SR samples⁵⁹ (adjusted P < 0.05, Fig. 6b). The most frequently recurring SR-SVP genes overlapped substantially with those found in healthy brain tissue, reflecting compositional changes of nontumor cells (Fig. 6c and Extended Data Fig. 7a,b). As in healthy brain, approximately 25% of all variable transcript events in glioma had potential implications for protein structure, with alternating exon accounting for much of this variation (Extended Data Fig. 7d). Beyond RNA processing, glioma-specific transcript diversity also emerged from genomic alterations. In one pediatric sample, we detected variable immunoglobulin transcripts resulting from variable–diversity–joining recombination, revealing clonality in B cell infiltration (Extended Data Fig. 7c).

**Fig. 6: ST diversity in human glioma is shaped by microenvironment composition and immune infiltration.**

The importance of immune interactions was further underscored by consistent variability in antigen presentation components across samples, often correlated with immune infiltration patterns (Fig. 6d and Extended Data Fig. 7e–g). This included human leukocyte antigen (HLA) class I (HLA-A, B, C) and class II (HLA-DRA, DRB1, DPB1) genes, whose sequence variation likely stems from both alternative splicing and germline variability^61,62 (Fig. 6e). For nonpolymorphic elements such as B2M and CD74, we found preferential usage of intron-retaining, potentially nonfunctional transcripts in tumor regions (Fig. 6f). While the SR data could not capture identical variability events due to its 3′ end bias, it demonstrated similar functional convergence toward immune-related pathways, particularly in infectious disease response and viral infection pathways (Fig. 6d and Extended Data Fig. 7g).

Furthermore, we detected SV in signal transduction, focal adhesion and cytoskeleton regulation pathways (Extended Data Fig. 7h), reflecting the intricate cellular interactions and extracellular matrix remodeling within tumors. TPM3, a tropomyosin family member with well-documented cancer-associated splicing patterns across tumor types⁶³, exhibited complex and distinct splicing variation (Fig. 6g). We identified an upstream TPM3 event (event 4) that partially overlapped with neuronal and hypoxia signatures, while the canonical form (event 1) associated with glial programs and increased actin expression while negatively correlating with B cell infiltration (Fig. 6h). These results resonate with recent reports of differential splicing of actin cytoskeleton components between peripheral and core glioblastoma cells⁶⁴. In addition, we observed spatially variable usage of the last exon of GFAP, encoding two variants of an astrocytic intermediate filament protein whose ratio is linked to glioma grade and malignancy^65,66 (Extended Data Fig. 7i). The location-specific distribution of these cytoskeleton gene isoforms indicates dynamic responses to local microenvironmental cues, modulating migration potentials and driving glioblastoma invasion.

Microenvironmental influences extended to ribosomal proteins as well. We observed SV in transcripts encoding ribosomal proteins (including RPS8, RPS24, RPL5, RPLP1, RPS6, RPS12) associated with tumor infiltration, frequently involving retained introns or truncated 3′ ends (Supplementary Fig. 11). While some such as RPS8 also exhibited variability in normal brain, the altered read distributions clearly displayed glioblastoma-specific changes (Supplementary Fig. 11a), aligning with previous findings that ribosomal isoform switching occurs in response to microenvironmental cues and contributes to metabolic reprogramming phenotypic plasticity in glioblastoma⁶⁷.

FTH1 offers another prominent example of microenvironment-driven transcript usage (Fig. 6i–m). This iron-storage protein, upregulated under hypoxic conditions, protects cells from ferroptosis by reducing reactive iron⁶⁸. We discovered that FTH1 upregulation in hypoxic tumor regions coincided with increased expression of 3′ truncated transcripts lacking the final exon–exon junction (Fig. 6j). In SR data, we identified a minor event spanning FTH1 exons 2 and 3, predominantly in regions with erythrocytes and overlapped with the chromatin regulation metaprogram (Fig. 6k). Our findings suggest coordination between oxygen-sensing, iron metabolism and stress response pathways through transcript-level modulation of FTH1.

Discussion

Spatial omics techniques are transforming our understanding of tissue organization, yet few studies have explored molecular diversity at the isoform level. Here we present SPLISOSM, a computational method designed for robust detection of spatial transcript processing and its regulation in ST data. Through theory-grounded nonparametric kernel tests, our approach achieves high statistical power in sparse data while delivering well-calibrated, permutation-free P values. SPLISOSM demonstrates broad applicability across ST platforms and spatial resolutions. We show that standard 3′ end sequencing protocols and predesigned in situ panels can capture considerable transcript diversity, enabling researchers to extract new insights from existing datasets. Our implementation of low-rank kernel approximation allows testing hundreds of thousands of locations within minutes on standard hardware with minimal power loss (Supplementary Note).

Using SPLISOSM, we have uncovered thousands of evolutionarily conserved spatial transcript diversity events in mouse and human brain. However, the spectrum of detectable events varies across ST platforms (Fig. 1a). While SPLISOSM remains agnostic to event type, its performance depends on platform-specific limitations (Extended Data Fig. 8). Sequencing-based platforms suffer primarily from false negatives due to 3′ bias, read length and sequencing depth, particularly affecting detection of longer transcripts (Extended Data Fig. 4b). Current depths have not saturated SVP detection, suggesting that improvements in RNA capture efficiency and isoform quantification especially for novel transcripts can further expand the landscape. In contrast, imaging-based technologies face false positives from off-target probe binding, exemplified by spurious glial-specific patterns in negative control probes (Extended Data Fig. 2e). Nevertheless, our analysis revealed hundreds of variable exon usage events in mouse brain using predesigned Xenium 5K panel, though mapping these events to full-length isoforms requires future efforts.

Our integrative regulatory analyses shed light on the complex network governing spatial splicing. Neural RBPs, including RBFOX and CELF family members, may orchestrate transcript diversity through precise spatiotemporal activation⁶⁹. However, important limitations temper our conclusions. First, ST data sparsity limits association test power, potentially missing lowly expressed but functionally important RBPs. Second, tissue and developmental stage mismatches between spatial data (adult mouse brain) and available functional perturbation data (often in vitro cell culture) complicate direct validation. Evidence for cooperative regulation derived from coexpression, motif enrichment and CLIP binding remains largely correlative. Future perturbation experiments in appropriate neural contexts are essential to validate and elucidate the molecular basis of the proposed cooperative mechanisms. Third, while our DU test accounts for spatial autocorrelation, they still assess correlation rather than causation and treat RBPs independently without explicitly controlling for coexpression. Future extensions could incorporate causal graphical models to test conditional independence among multiple regulators.

In glioblastoma, our analysis reveals how spatial transcript diversity is shaped by microenvironmental composition and metabolic conditions. The upregulation of truncated and intron-retaining transcripts in antigen presentation genes implies that tumors may employ alternative processing for immune evasion⁶². Targeting these events may enhance immune response and improve immunotherapy benefits. We also observed noteworthy diversity in ribosomal transcripts, suggesting translational regulation could play an underappreciated role in tumor heterogeneity and thus exposing new therapeutic vulnerabilities⁶⁷.

In summary, SPLISOSM introduces an isoform-centric perspective to ST data analysis. The spatial organization of transcript diversity we mapped in healthy and malignant brain tissues established a foundation for understanding how alternative isoform processing contributes to specialized functions and disease pathology.

Methods

SPLISOSM overview

SPLISOSM analyzes isoform-level ST data through a two-step approach: first detecting SV, then identifying DU by associating isoform patterns with potential regulatory factors. The framework accommodates quantification results of both full-length isoforms from long-read sequencing and local transcript diversity events from SR sequencing platforms including 10X Visium and Slide-seqV2.

Unlike gene-level analysis, SPLISOSM recognizes that multiple isoforms (q > 1) from the same gene are interdependent. Their relative proportions form a multivariate statistical variable across the spatial random field of n locations

$$\{{X}_{i}\in {[0,1]}^{q},i=1,\cdots ,n\}.$$

Together with the 2D spatial coordinates $\{{Y}_{i}\in {{\mathbb{R}}}^{2},i=1,\cdots ,n\}$ and covariates such as RNA binding protein expression $\{{Z}_{i}\in {\mathbb{R}},i=1,\cdots ,n\}$, we can formulate SV detection and differential association analysis as multivariate independence tests T(X, Y) and T(X|Y, Z|Y). The spatial conditioning in DU tests is critical for eliminating spurious associations caused by spatial autocorrelated noise and hidden confounders.

Below we outline SPLISOSM’s key components, with comprehensive methodology, theoretical analysis and implementation details available in the Supplementary Note.

Unconditional kernel independence test

A commonly used statistic for multivariate correlation analysis is the RV coefficient, defined as the normalized matrix norm of the cross-covariance matrix ${C}_{{XY}}\in\mathbb{R}^{q \times 2}, \, {C}_{{ij}}=\text{Cov}\left({X}^{i},{Y}^{j}\right)$ between X and Y

$$s:=|{C}_{{XY}}{|}_{\text{F}}^{2}=\text{tr}({C}_{{XY}}{C}_{{XY}}^{T}).$$

To capture complex, nonlinear spatial patterns beyond linear correlation, SPLISOSM uses kernel transformations to map variables into reproducing kernel Hilbert spaces. In these potentially infinite-dimensional feature spaces, we measure statistical dependence using the HSIC³³, defined as the Hilbert–Schmidt norm of the cross-covariance operator ${C}_{{XY}}:{\mathcal{G}}\to {\mathcal{F}}$ that connects the respective feature spaces ${\mathcal{F}}$ and ${\mathcal{G}}$ of X and Y,

$$\text{HSIC}(X,Y):=|{C}_{{XY}}{|}_{\text{HS}}^{2}.$$

Similar to the univariate gene expression SV test SPARK-X³⁰, we build calibrated, permutation-free testing procedures based on the empirical HSIC estimator,

$${T}_{{\rm{HSIC}}}(X,Y)=\frac{1}{n}{\rm{tr}}({K}_{X}H{L}_{Y}H).$$

Here, K_X and ${L}_{Y}$ are the n-by-n isoform and spatial kernel matrices that specify feature maps for X and Y, and $H=I-\frac{1}{n}1{1}^{T}$ is the centering matrix. Under the null hypothesis of statistical independence, T_HSIC follows an asymptotic distribution of chi-square mixture³⁴, with weights derived from the eigenvalues {λ_i} and {μ_j} of K_X and ${L}_{Y}$,

$${T}_{\mathrm{HSIC}}\mathop{\to }\limits^{{\rm{d}}}\mathop{\sum }\limits_{i,\,j=1}^{n}{\lambda }_{i}{\mu }_{j}{z}_{{ij}}^{2}.$$

The statistical power of HSIC-based nonparametric test depends heavily on effective kernel design. To profile spatial isoform patterns in sparse data, SPLISOSM introduces two technical innovations:

First, we prove that any low-rank approximation of the spatial kernel significantly reduces test power (Theorem 1 in Supplementary Note), highlighting a key limitation of existing SV tests such as SPARK-X. Based on this insight, we developed a new full-rank spatial kernel using the intrinsic conditional autoregressive (ICAR) model³⁵,

$${L}_{Y}=(D-{\rho W)}^{-1},$$

where W is the n-by-n binary adjacency weight matrix of the mutual k-nearest-neighbor spatial graph, $D=\text{diag}\{{\sum }_{j}{W}_{{ij}}\}$ is the degree matrix and $\rho \in [0,1)$ is the spatial autocorrelation coefficient ensuring invertibility.

In essence, this approach represents spatial patterns as signals on the spatial graph to be decomposed onto the eigenvectors of ${L}_{Y}$ through graph Fourier transform (GFT)⁷⁰, allowing us to prioritize patterns by frequency in the graph spectral domain without manually selecting spatial bandwidths. Furthermore, the sparse structure of D and W enhances computational efficiency. For large-scale datasets (for example, hundreds of thousands of spots) where full-rank spatial kernels become computationally prohibitive, we developed GFT-based low-rank kernels that approximate the kernel inverse ${L}_{Y}^{-1}$ through sparse eigen-decomposition, preserving biologically meaningful low-frequency patterns while limiting power loss to less important high-frequency signals.

Second, to handle sparse isoform data where many spots have zero gene coverage, we designed a zero-padded centered kernel for isoform ratios X_n with n − m undefined values,

$${K}_{{X}_{n}}=\left(\begin{array}{cc}{H}_{m}{K}_{{X}_{m}}{H}_{m} & 0\\ 0 & 0\end{array}\right),$$

where X_m represents isoform ratios at m spots with nonzero gene coverage, and ${K}_{{X}_{m}}:= \phi \left({X}_{m}\right)\phi {\left({X}_{m}\right)}^{T}$ is the isoform kernel with transformation ɸ for compositional data (for example log-ratio transformations). Our empirical analysis showed that a simple linear kernel $k\left(x,y\right)=\left\langle x,y\right\rangle$ (with identity transformation) delivers optimal performance.

The zero-padded centered version of a linear kernel is equivalent to a two-step procedure where the n − m undefined ratios in X_n are first replaced with global averages per isoform before constructing the n-by-n isoform kernel for independence test. The NA replacement allows us to reuse the n-by-n spatial kernel across genes with varying sparsity patterns, substantially improving computational efficiency. We mathematically prove that this approach provides a bounded approximation to testing procedures that simply omit spots with undefined ratios (Theorem 2 in Supplementary Note).

Detailed implementations of the ICAR kernel and SPLISOSM’s three SV tests—HSIC-GC (gene expression), HSIC-IR (isoform usage ratio) and HSIC-IC (isoform expression)—are available as Algorithms 1–4 in the Supplementary Note. The GFT-based spatial kernel construction is presented in Algorithm 5.

Conditional kernel independence test

Linking isoform usage X with potential regulators Z requires addressing a fundamental challenge: X and Z may appear related simply because both follow similar spatial patterns irrelevant to splicing regulation. To learn the causal relationship, we need to condition on spatial coordinates Y and all other confounders if available. However, ST data provide only snapshots: at each location Y_i, we observed only one $\left({X}_{i},{Z}_{i}\right)$ pair, making direct estimation of conditional distributions for ${X|Y}$ and ${Z|Y}$ impossible.

We address this using the conditional independence framework from ref. ³⁴, which shares information across observations by learning regression functions ${f}_{X}:Y\to X$ and ${f}_{Z}:Y\to Z$, then testing kernel independence of the residuals.

For linear ridge regression with L2 regularization λ, we can compute the residuals as

$$X-\hat{X}=(I-Y{({Y}^{T}Y+\lambda I)}^{-1}{Y}^{T})X=(I-Y{Y}^{T}{(Y{Y}^{T}+\lambda I)}^{-1})X$$

where $Y\in \mathbb{R}^{n\times 2}$ represents spatial coordinates and $X\in \mathbb{R}^{n\times {\rm{d}}}$ the spatial variable to predict. By substituting the linear kernel $Y{Y}^{T}$ with general spatial kernels ${K}_{Y}$, we extend the solution to nonlinear relationships

$$X-\hat{X}=\lambda {\left({{\rm{K}}}_{{\rm{Y}}}+\lambda {\rm{I}}\right)}^{-1}X:= {R}_{Y}^{X}X.$$

This allows us to construct a kernel for the conditional variable ${X|Y}$ as ${K}_{{X|Y}}={R}_{Y}^{X}{K}_{X}{R}_{Y}^{X}$ where ${R}_{Y}^{X}=\lambda {\left({K}_{Y}+\lambda I\right)}^{-1}$ is learned from the data. The parameter $\lambda$ controls conditioning strength: at λ = 0, X is fully explained by coordinates Y, leaving no information for X|Y; as $\lambda \to \infty$, the residuals $X-\hat{X}\to X$, which gives the unconditional test. Since genes have diverse spatial patterns, we estimate λ and ${K}_{Y}$ for each variable X (and Z) individually using Gaussian process regression.

Using linear kernels K_X and K_Z, our conditional association test statistic becomes

$${{\rm{T}}}_{\mathrm{HSIC}}(X|Y,Z|Y)=\frac{1}{n}\text{tr}\left({\left({R}_{Y}^{X}\tilde{X}\right)}^{T}\left({R}_{Y}^{Z}\tilde{Z}\right)\right)\,\,$$

where $\tilde{X}$ and $\tilde{Z}$ are column-wise centered isoform usage ratios and covariates, and ${R}_{Y}^{X}$ and ${R}_{Y}^{Z}$ are the residual operators estimated from Gaussian process regression.

Detailed implementations of the HSIC-based unconditional and conditional DU tests are provided as Algorithms 6 and 7 in the Supplementary Note. For parametric approaches, we can also introduce spatial conditioning through GLMMs with spatial random effects. Specifically, we implemented the score test for DU where null GLMM models without covariates are first fitted to account for background spatial patterns. Covariate significance is then assessed by computing the gradient (that is, score statistic) at zero effect size. Details on model fitting and hypothesis testing are available in Chapter 3 of the Supplementary Note.

General test configurations

For all isoform SV tests, we used raw UMI counts from isoform quantification results (that is, isoform counts in ONT data and TREND event counts in SR data). Input data varied by method: HSIC-GC and SPARK-X used summed isoform UMI counts (a scalar) per gene per spot, HSIC-IC used the vector of isoform counts per gene per spot and HSIC-IR used observed isoform ratios. For spots with zero gene coverage (undefined ratios), we substituted with the global mean ratio (justified in Theorem 2).

For DU testing with RBP expression, we used log1p-normalized Visium RBP gene expression (library size 1 × 10⁴) as covariates. We first identified spatially variably expressed RBPs (adjusted P < 0.01 in both HSIC-GC and SPARK-X tests) to include as covariates, excluding ribosomal proteins and noncanonical RBPs. SVE tests were conducted on Visium-based RBP gene raw counts. For human DLPFC samples, we restricted our analysis to potential splicing modulators (RBPs with motif or CLIP binding data). Only SVP genes with average total ONT or TREND counts >0.5 per spot were investigated for DU with RBP. Specific numbers of tested RBPs and SVP genes per sample are detailed in Supplementary Table 1. For HSIC-based DU tests, we used observed isoform ratios with mean replacement for undefined values. Gaussian process regression was implemented using GaussianProcessRegressor from the scikit-learn⁷¹ package with learnable RBF and white noise kernels. For parametric models (GLM and GLMM), we used isoform count vectors as inputs, grouping genes with identical isoform numbers to enable parallel processing. We calculated P values using score tests on fitted null models under asymptotic chi-square distribution (one-sided).

Except where otherwise noted, all SPLISOSM SV results were computed with the full-rank ICAR kernel with ρ = 0.99 and the number of mutual nearest neighbors k = 4 for constructing the spatial graph. SV results in the Xenium Prime 5K adult mouse brain sample were computed with the low-rank kernel (r = 100) for computational efficiency. HSIC-based test P values were calculated using Liu’s method⁷² to approximate the chi-square mixture null distribution (one-sided). Multiple testing correction was applied using the Benjamini–Hochberg method⁷³.

External datasets of RBP

We obtained mouse and human RBP lists from EuRBPDB⁷⁴. For motif analysis, we obtained RBP binding motifs from CISBP-RNA⁷⁵ and refined them using the R package universalmotif⁷⁶ to trim low-information peripheral positions before scanning with FIMO from the MEME suite⁷⁷ (P threshold 1 × 10⁻³, background model computed using the default fasta-get-markov). RBP CLIP data were downloaded from the POSTAR3⁴⁰ database and the ENCODE⁷⁸ portal (for PCBP2 human eCLIP). In our downstream analysis, we prioritized RBPs with validated binding motifs or CLIP evidence as potential splicing regulators. APA-related RBPs were collected based on regulators previously characterized in a high-throughput screening study⁷⁹.

Data simulation

We generated in silico spatial isoform quantification data using a hierarchical generative model following two steps: first sampling total gene expression and expected isoform usage per spot, then sampling observed isoform counts from spot-specific multinomial distributions.

For total gene expression, we sampled from Poisson distributions with spot-specific means. In scenarios 1–3 (without spatial gene expression variability), these means were drawn from independent Gaussian distributions (μ = 5, σ² = 1). In scenarios 4–6 (with regional gene expression patterns), means were sampled from multivariate Gaussian distributions with binary covariate-controlled means and covariance matrices combining spatial autocorrelation (ICAR)³⁵ and white noise.

For expected isoform usage ratios, we sampled in the log-ratio space with q − 1 degrees of freedom where q = 3 is the number of isoforms per gene. In scenarios 1 and 4 (without spatial isoform variability), log-ratios were sampled from independent Gaussian distributions (μ = 0, σ² = 0.2) and transformed via softmax to obtain expected ratios. In scenarios 2 and 5 (with Gaussian process variability), log-ratios were sampled from multivariate Gaussian distributions with ICAR-based spatial covariance. In scenarios 3 and 6 (with regional isoform usage), log-ratios were determined by binary covariates with added ICAR-based spatial autocorrelated noise.

To evaluate statistical power, we created intermediate scenarios by interpolating between key configurations. For the SV test HSIC-IR, we varied the proportion of spatially autocorrelated noise between scenario 4 (regional expression, no isoform usage variability) and scenario 5 (regional expression, 50% spatially autocorrelated noise + 50% white noise in the Gaussian process). For DU tests, we adjusted covariate effect sizes between scenario 5 (regional expression, no isoform usage association) to scenario 6 (regional expression, covariate effect size 0.5).

SiT data of adult mouse brain

We downloaded processed spatial isoform transcriptomics (SiT)¹⁸ isoform quantification results as well as Visium gene expression data of mouse olfactory bulb and two coronal brain section samples (CBS1, CBS2) from Gene Expression Omnibus (GSE153859). The SiT ONT datasets contain only reference isoforms mapped to Mouse Gencode vM24. We removed isoforms expressed in <1% of spots and genes with fewer than 2 detected isoforms.

To reduce sparsity for visualization and clustering, we applied local smoothing by borrowing 20% of UMIs from six nearest neighbors per spot, then calculated isoform ratios with mean-padding for remaining undefined values. The resulting ratios may amplify noise and artifacts and should therefore be interpreted with caution. For spatial clustering, we first identified significant SVE and SVP genes using unsmoothed raw data, then performed dimensionality reduction (principal components analysis, 50 components) and Leiden clustering on either smoothed gene expression or isoform ratios. RBP-based clustering used log₁P-normalized Visium expression of SVE RBPs. Clustering resolutions were individually chosen such that the resulting cluster number were similar. For SVP usage program hierarchical clustering, we computed pairwise gene similarity using RV coefficients between multivariate smoothed isoform usage ratios.

For splicing type annotation, we used SUPPA⁸⁰ to split isoforms into local alternative splicing events. Skipping exons, mutually exclusive exons and their flanking introns were analyzed for motif enrichment using MEME suite⁷⁷ tools (XSTREME and SEA), with additional exon sequence features extracted using Matt⁸¹.

Visium and Slide-seqV2 data of adult mouse brain

We downloaded RNA-seq .bam files of the 10X Visium⁴⁴ data of a fresh frozen adult mouse coronal brain section sample from https://www.10xgenomics.com/datasets/adult-mouse-brain-coronal-section-fresh-frozen-1-standard, and the Slide-seqV2 (ref. ¹⁶) data of adult mouse hippocampus from https://singlecell.broadinstitute.org/single_cell/study/SCP815/sensitive-spatial-genome-wide-expression-profiling-at-cellular-resolution#study-summary.

TREND was quantified using Sierra⁸² with Mouse Gencode v.M10 reference annotation, with minimal peak cutoffs in FindPeaks set to zero to recover minor events in the quantification stage. TREND events expressed in <1% of spots and genes with fewer than 2 TREND regions were later filtered out. Events were annotated using Sierra’s AnnotatePeaksFromGTF with annotation_correction=FALSE to allow multiple annotations per region. Alternative exons (Alt-Exon) were defined as exons located within introns of other transcript variants. Motif enrichment analysis was performed on exons of TREND regions using MEME suite⁷⁷ tools (XSTREME and SEA).

For SV tests on gene expression (HSIC-GC and SPARK-X), we used the sum of TREND reads per gene per spot rather than Visium’s Space Ranger quantification (except for the RBP SVE test in which we always used the latter) to maintain consistency with HSIC-IC/IR tests and ONT data analysis. Slide-seqV2 data were analyzed using HSIC-GC/IC/IR with full-rank spatial kernels. See Supplementary Note for low-rank test performance.

For spatial clustering, we use unsmoothed TREND-based gene expression and isoform usage from top 200 SVE and SVP genes for respective clusters, and Visium-based expression of all SVE RBPs for RBP clusters. We performed dimensionality reduction (principal components analysis, 50 components) and Leiden clustering following the same approach as in our SiT ONT data analysis.

Xenium Prime 5K data of adult mouse brain

We obtained the Xenium output bundle of a fresh frozen adult mouse brain hemisphere profiled using 10X Xenium Prime 5K Mouse Pan Tissue and Pathways Panel⁴⁶ from https://www.10xgenomics.com/datasets/xenium-prime-fresh-frozen-mouse-brain and reran the Xenium Ranger (v.3.1.1) relabel pipeline with default parameters. Transcripts passing sequence quality filter (Q ≥ 20) from genes with multiple detected codewords were spatially binned into 20 × 20-μm regions. This yielded a sparse count matrix comprising 10,476 codewords from 4,993 genes across 92,202 spatial locations. SVP significance threshold (adjusted P < 2.5 × 10⁻¹⁷) was determined by the minimum P value observed in negative control and intergenic probe sets. Cell segmentation, clustering and per-cluster differential gene expression analysis were performed as part of the Xenium Ranger pipeline with default parameters. For colocalization analysis, we quantified the number of cells from different clusters within each 20 × 20-μm bin. To identify molecular heterogeneity within cluster 2 (excitatory neurons), we performed an additional differential codeword expression analysis using a two-sided t-test, comparing Dtnbp1-11516-only bins against the remaining cluster 2 bins. This analysis revealed Nptxr as a marker for the Dtnbp1-206-positive excitatory neuron subpopulation.

Single-cell splicing quantification and RBFOX triple knockout data

We analyzed processed exon and splicing quantification data from the adult mouse neocortex single-cell atlas⁸³ using results from ref. ⁸⁴. Cassette exon Percent Spliced-In was quantified at cell-type level using Quantas⁴ by aggregating cells of identical types. Average RBP expression per cell type was log normalized and standardized to zero means.

For RBFOX triple knockout analysis, we used processed Quantas-based splicing quantification results of mouse day 5 and 10 motor neurons in vitro differentiated from mouse embryonic stem cells from ref. ⁴⁹. The alternative splicing event, Percent Spliced-in and statistical significance were all determined by the original study. All RBFOX tKO events shown in the paper are statistically significant after multi-test correction. Raw RNA sequencing (RNA-seq) data were downloaded from the Sequence Read Archive (SRP128054) to run RBP map and positional motif enrichment analysis using Matt⁸¹.

Visium data of human DLPFC

We downloaded Visium RNA-seq bam files of 12 human DLPFC samples⁵⁶ through Globus (endpoint: jhpce#HumanPilot10x). TREND was quantified using Sierra⁸² with 10X’s GRCh38-2024-A reference annotation and default parameters. To create a shared set of TREND events across samples, we merged per-sample peaks using MergePeakCoordinates with default settings and quantified them with CountPeaks. We obtained conservation scores (phyloP100way and phastCons20way) from the UCSC Genome Browser and calculated average conservation scores specifically for exons within the TREND regions.

ONT and Visium data of human glioma samples

We analyzed two independent cohorts of human glioma samples using long-read and SR ST platforms.

For the cohort from ref. ⁶⁰, we obtained processed ONT isoform quantification results, matched Visium gene expression data and region annotations for 13 human glioma samples directly from the study authors, as the raw data were restricted by human genetic resources regulations. ONT transcripts were error corrected, collapsed by shared exon–exon junctions and quantified using DEMINERS⁸⁵ by the original study. For spatial analysis, we included only reference isoforms matching Gencode v.32 (hg38) and novel isoforms from known genes. We further filtered out isoforms expressed in <5% of spots and genes with fewer than 2 detected isoforms. SUPPA⁸⁰ was used to categorize alternative isoform usage into local alternative splicing events.

For the cohort from ref. ⁵⁹, we processed Visium data from 13 IDH wild-type glioblastoma samples downloaded from SRA (PRJNA994130). Raw RNA-seq reads were aligned to the human reference genome (hg38) using Space Ranger v.3.0.1. Metaprograms and spatial annotations were obtained from the authors’ GitHub repository (github.com/tiroshlab/Spatial_Glioma). TREND was quantified using Sierra⁸² with 10X’s GRCh38-2024-A reference annotation and default parameters. Due to sample heterogeneity, we processed each sample independently with sample-specific TREND regions rather than merging across samples. For spatial analysis, we filtered out TREND events expressed in <1% of spots, genes with fewer than 2 TREND regions and novel genes with symbols beginning with ‘ENSG’.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

This paper analyzes existing, publicly available data without generating new primary data. References and accession details to raw data are provided in Supplementary Table 1 and in the corresponding Methods. 10X Visium⁴⁴ data of a fresh frozen adult mouse coronal brain section sample are available from 10X Genomics via https://www.10xgenomics.com/datasets/adult-mouse-brain-coronal-section-fresh-frozen-1-standard, the Slide-seqV2 (ref. ¹⁶) data of adult mouse hippocampus are available from Broad Institute via https://singlecell.broadinstitute.org/single_cell/study/SCP815/sensitive-spatial-genome-wide-expression-profiling-at-cellular-resolution#study-summary and 10X Xenium Prime 5K Mouse Pan Tissue and Pathways Panel⁴⁶ are available from 10X Genomics via https://www.10xgenomics.com/datasets/xenium-prime-fresh-frozen-mouse-brain. Per-cohort isoform quantification results, figure source data and other data necessary to reproduce results described in this study can be downloaded from Zenodo at https://doi.org/10.5281/zenodo.17625643 (ref. ⁸⁶). Processed and formatted per-sample data and SPLISOSM test results can be downloaded from Zenodo at https://doi.org/10.5281/zenodo.16905935 (ref. ⁸⁷).

Code availability

The SPLISOSM Python package is available via GitHub from https://github.com/JiayuSuPKU/SPLISOSM under BSD-3 License. Code and scripts to reproduce this paper, as well as Google Colab notebooks for interactive data exploration and visualization, are available via GitHub from https://github.com/JiayuSuPKU/SPLISOSM_paper.
