Transcriptional regulation of living materials via extracellular electron transfer

Nature Chemical Biology volume 20, pages 1329–1340 (2024)Cite this article

Subjects

Abstract

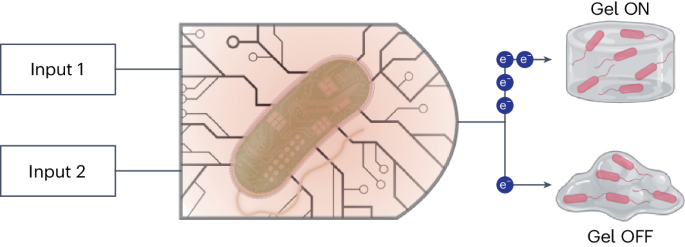

Engineered living materials combine the advantages of biological and synthetic systems by leveraging genetic and metabolic programming to control material-wide properties. Here, we demonstrate that extracellular electron transfer (EET), a microbial respiration process, can serve as a tunable bridge between live cell metabolism and synthetic material properties. In this system, EET flux from Shewanella oneidensis to a copper catalyst controls hydrogel cross-linking via two distinct chemistries to form living synthetic polymer networks. We first demonstrate that synthetic biology-inspired design rules derived from fluorescence parameterization can be applied toward EET-based regulation of polymer network mechanics. We then program transcriptional Boolean logic gates to govern EET gene expression, which enables design of computational polymer networks that mechanically respond to combinations of molecular inputs. Finally, we control fibroblast morphology using EET as a bridge for programmed material properties. Our results demonstrate how rational genetic circuit design can emulate physiological behavior in engineered living materials.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

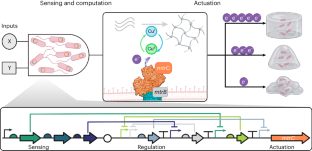

Fig. 1: Bacterial sensing and computation actuate material mechanics.
Fig. 2: Transcriptional control of EET proteins enables dynamic cross-linking tunable by inoculation density, inducer concentration and reaction time.

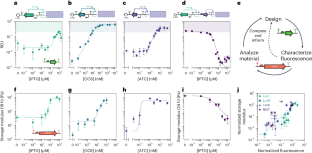

Fig. 3: Transcriptional regulation of mtrC yields predictable control over polymer network mechanics via fluorescent gate parameterization.

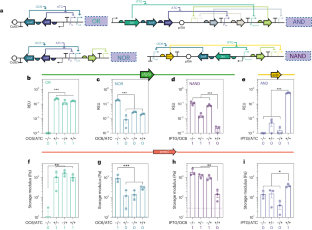

Fig. 4: Genetic Boolean logic enables polymer network computation via living cellular actuators.

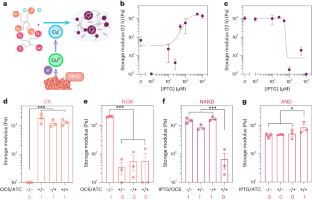

Fig. 5: Alternative living material chemistries enabled by EET-driven CuAAC cross-linking.

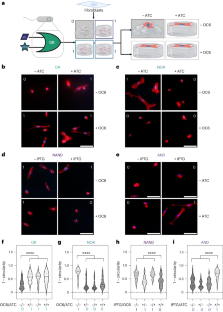

Fig. 6: Fibroblast morphology is dictated by living material mechanics under genetic Boolean regulation.
