A second-generation M1-polarized CAR macrophage with antitumor efficacy

Lei, Anhua; Yu, Hua; Lu, Shan; Lu, Hengxing; Ding, Xizhong; Tan, Tianyu; Zhang, Hailing; Zhu, Mengmeng; Tian, Lin; Wang, Xudong; Su, Siyu; Xue, Dixuan; Zhang, Shaolong; Zhao, Wei; Chen, Yuge; Xie, Wanrun; Zhang, Li; Zhu, Yuqing; Zhao, Jing; Jiang, Wenhong; Church, George; Chan, Francis Ka-Ming; Gao, Zhihua; Zhang, Jin

doi:10.1038/s41590-023-01687-8

Article
Published: 27 November 2023

A second-generation M1-polarized CAR macrophage with antitumor efficacy

Anhua Lei^1,2,3,4^na1,
Hua Yu¹^na1^nAff12,
Shan Lu⁵,
Hengxing Lu²,
Xizhong Ding^1,2,
Tianyu Tan^1,2,
Hailing Zhang^1,2,
Mengmeng Zhu¹,
Lin Tian^1,3,
Xudong Wang^1,2,
Siyu Su⁶,
Dixuan Xue²,
Shaolong Zhang²,
Wei Zhao⁷,
Yuge Chen^8,9,
Wanrun Xie⁶,
Li Zhang^1,2,3,
Yuqing Zhu¹,
Jing Zhao^1,2,
Wenhong Jiang²,
George Church ORCID: orcid.org/0000-0001-6232-9969¹⁰,
Francis Ka-Ming Chan ORCID: orcid.org/0000-0002-4803-8353²,
Zhihua Gao ORCID: orcid.org/0000-0001-8603-0777^8,9 &
…
Jin Zhang ORCID: orcid.org/0000-0003-0197-3624^1,2,3,11

Nature Immunology volume 25, pages 102–116 (2024)Cite this article

39k Accesses
221 Citations
48 Altmetric
Metrics details

Subjects

An Author Correction to this article was published on 18 December 2023

This article has been updated

Abstract

Chimeric antigen receptor (CAR) T cell therapies have successfully treated hematological malignancies. Macrophages have also gained attention as an immunotherapy owing to their immunomodulatory capacity and ability to infiltrate solid tumors and phagocytize tumor cells. The first-generation CD3ζ-based CAR-macrophages could phagocytose tumor cells in an antigen-dependent manner. Here we engineered induced pluripotent stem cell-derived macrophages (iMACs) with toll-like receptor 4 intracellular toll/IL-1R (TIR) domain-containing CARs resulting in a markedly enhanced antitumor effect over first-generation CAR-macrophages. Moreover, the design of a tandem CD3ζ-TIR dual signaling CAR endows iMACs with both target engulfment capacity and antigen-dependent M1 polarization and M2 resistance in a nuclear factor kappa B (NF-κB)-dependent manner, as well as the capacity to modulate the tumor microenvironment. We also outline a mechanism of tumor cell elimination by CAR-induced efferocytosis against tumor cell apoptotic bodies. Taken together, we provide a second-generation CAR-iMAC with an ability for orthogonal phagocytosis and polarization and superior antitumor functions in treating solid tumors relative to first-generation CAR-macrophages.

You have full access to this article via your institution.

Download PDF

Inhibition of furin in CAR macrophages directs them toward a proinflammatory phenotype and enhances their antitumor activities

Article Open access 04 December 2024

Optimization of THP-1-CAR monocytes utilizing CD32a signaling phagocytosis for antigen-specific T cell activation

Article Open access 10 February 2026

CAR-macrophage therapy for HER2-overexpressing advanced solid tumors: a phase 1 trial

Article 07 February 2025

Main

Cancer immune cell therapies illustrated by chimeric antigen receptor (CAR) T cells have achieved great success in B cell leukemia/lymphoma and other hematologic malignancies¹. Although therapeutic cells have been designed to precisely target solid tumor antigens, the immune cell therapy of solid tumors warrants further investigation^2,3. To date, challenges including exhaustion in the immunosuppressive tumor microenvironment (TME)⁴, limited infiltration into dense extracellular matrix⁵, off-target effects⁶, antigen escape and heterogeneity within the tumor^7,8 are widely thought to be the substantial obstacles to successful immune cell therapies against solid tumors.

Macrophages, a type of terminally differentiated monocytic phagocytes, come to the horizon of the tumor immunotherapy field due to their engulfing capacity, central roles in the crosstalk between adaptive and innate immune systems and critical roles in defending pathogens and combating cancer cells^9,10. Accordingly, macrophages have become a potential target of immunotherapy¹⁰. An increasing body of evidence substantiates that tumor-associated macrophages (TAMs) reside in tumor tissues and account for most of the infiltrated leukocytes^10,11. However, these TAMs are reprogramed toward the alternatively activated M2 phenotype and have a tumorigenic role in carcinomas through suppressing immune responses, such as downregulating immunological activation-related transcripts including IL-12A and adaptors involved in the toll-like receptor (TLR) signaling pathway, inducing angiogenesis and facilitating the escape of tumor cells^{12,13,14,15,16,17,18,19}. Therefore, the introduction of pro-inflammatory or M1-like macrophages or conversion of M2- to M1-like macrophages represents a viable antitumor strategy (macrophage polarization is a continuum, with the M1 or M2 fully polarized cell at the extremes, and for simplicity, the macrophages on either end of the spectrum are named as M1-like or M2-like here)^20,21,22. Over the years, substantial efforts have been made to target endogenous macrophages or TAMs^23,24. Recent technology progress in genetically engineered macrophages enabled us to better harness macrophages as a type of therapeutic cell for adoptive transfer^25,26,27. Currently, preclinical and clinical studies using genetically engineered macrophages are ongoing. With the large availability, stability and standardization of the engineered macrophages, induced pluripotent stem cell (iPSC)-derived macrophages (iMACs) have been used as a valuable alternative solution^25,28,29,30. Previous work has verified the feasibility of producing CAR-iMACs and demonstrated the CAR-dependent activation of CAR-iMACs in treating blood cancers²⁵. However, the first-generation CAR containing the CD3ζ activating domain that is responsible for the effector cell function of phagocytosis in macrophages was borrowed from CAR-T cells. In theory, it is not feasible to polarize macrophages toward the durable M1-like pro-inflammatory state²⁵. Thus, designing a new macrophage-specific CAR (M-CAR) to confer CAR-iMACs with both phagocytosis abilities and polarization functions would contribute to the fight against solid cancers.

TLRs are pattern-recognition receptors (PRRs) involved in immune regulation by recognizing distinct pathogen-associated molecular patterns (PAMPs)³¹. TLR4 is a typical TLR member widely expressed by myeloid cells such as macrophages^32,33. Once recognizing lipopolysaccharide (LPS), TLR4 interacts with adaptor molecules via its toll/IL-1R (TIR) signal transduction domain and leads to nuclear translocation of nuclear factor kappa B (NF-κB)/p65, promoting the expression of pro-inflammatory cytokines such as interleukin (IL)-1A, IL-1B, IL-6, IL-12, chemokine (C–C motif) ligand 8 (CCL8) and tumor necrosis factor (TNF)^{34,35,36,37,38,39,40}. Based on the biological mechanisms of TLR4, we hypothesized that introducing the intracellular TIR domain of TLR4 into the CAR would stimulate and maintain the M1-like phenotype of iMACs upon engaging antigens and elevate antitumor efficacy.

In this work, we developed the second-generation M-CAR by integrating intracellular CD3ζ and TIR domains in tandem to construct an antigen-targeting M-CAR. Genetic modification of iMACs with the second-generation M-CAR substantially improved CAR- and antigen-dependent antitumor efficacy both in vitro and in vivo in two different solid tumor models. Further cellular and molecular analysis and comprehensive single-cell RNA-seq (scRNA-seq) assessment showed that the underlying mechanisms consisted of TIR promoting the M1-like pro-inflammatory state and suppressing the M2-like state in an NF-κB pathway-dependent manner. Notably, we also identify an antitumor mechanism of CAR-mediated efferocytosis of iMACs, consisting of induction of target tumor cell apoptosis and engulfment of apoptotic bodies from tumor cell debris by CAR-iMACs. Thus, we have established a proof-of-concept for second-generation CAR-iMACs and provided insights into mechanisms of action for future myeloid cell-based immune cell therapies for solid tumors.

Results

Construction of M-CARs and development of antigen-targeting CAR-iMACs

There is ample evidence that the CD3ζ signal transduction domain obtained from T cell-specific CAR can stimulate the first generation of human CAR-iMACs^25,26,27. However, this domain may not enable stimulation of the M1-like state of macrophages in the TME²⁵. Therefore, we designed M-CARs containing the intracellular TIR domain from TLR4, whose activation can drive M1-like macrophage polarization via interplay with TIR domain-containing adaptors. Meanwhile, we used EGFRvIII- and Glypican-3 (GPC3)-targeting single-chain fragment variable (scFv) as the extracellular domain and designated it TIR-CAR to distinguish it from the previous CD3ζ-CAR (Fig. 1a). Inspired by the evolutionary process of different generations of CARs in T cells (T-CARs), we simultaneously designed a second-generation M-CAR by integrating intracellular CD3ζ and TIR domains in tandem designated as CD3ζ-TIR-CAR (Fig. 1a). A truncated CAR without an intracellular domain was designed as the negative control (Fig. 1a). We then transduced the above CARs into human iPSCs with lentiviruses to construct CAR-expressing iPSCs. The CAR-expressing iPSCs were subsequently differentiated into CAR-iMACs via our established differentiation platform²⁵ (Fig. 1b). Flow cytometric (FCM) analysis showed that all types of CAR-iMACs exhibited relatively high expression of enhanced green fluorescent protein (EGFP) (Fig. 1c) and achieved above 80% CAR transgene expression (Fig. 1d). We thus have established the iPSC lines for producing antigen-specific CAR-iMACs.

**Fig. 1: CAR construct design and production of CAR-iMAC cells.**

We subsequently analyzed the expression of TLR4 signaling pathway genes at different stages of wild-type (WT) myeloid/macrophage differentiation with RNA-seq data²⁵. We found that key factors such as IRF7, RELA (encoding NF-κB P65), MYD88, TRAP6, TRAM and TAB2/3 were highly expressed on day 18 and declined on day 28 (Fig. 2a). This finding suggested that most downstream modulators of TLR4 were higher when the iMACs were still in a monocyte-like state, compared with the later stage where the iMACs were more matured. Furthermore, M1-polarized iMACs showed higher expression of TLR4 signaling pathway-associated genes compared to the naive or M2-polarized iMACs (Fig. 2b). Thus, the data suggested that the early differentiated iMACs resembled the M1-polarized iMACs in terms of higher expression of the TLR4 pathway genes and might reserve more potent signaling capacity upon TLR4 pathway activation. We thus chose to use the earlier-stage iMACs for the following studies.

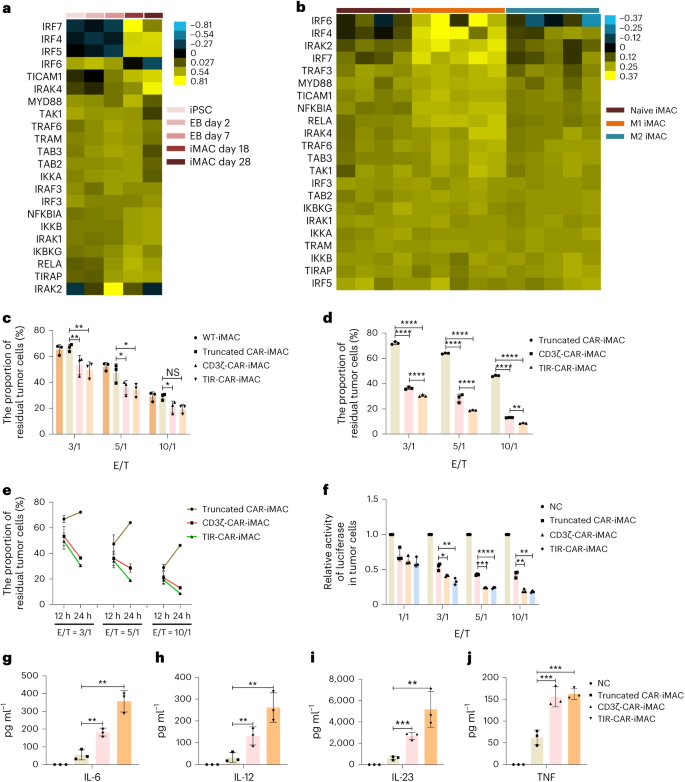

**Fig. 2: The TIR domain enhances antitumor potency of CAR-iMACs.**

To establish a target cell line for the EGFRvIII-CAR-expressing iMACs, we cloned the human EGFRvIII sequence into a lentivirus vector (Extended Data Fig. 1a) and overexpressed the gene in U87MG cells to obtain a stable EGFRvIII-expressing tumor cell line (U87MG^EGFRvIII). While basal expression of total EGFR was observed in both WT and transgenic U87MG cells, only the latter exhibited high expression of EGFRvIII protein (Extended Data Fig. 1b,c). We also observed that EGFRvIII was localized both on the cell membrane and in the cytoplasm due to overexpression (Extended Data Fig. 1d). As for GPC3, it is naturally expressed on the HepG2 cells. Thus, we have obtained tumor cell lines for assessing the effector functions of different antigen-targeting CAR-iMACs.

The TIR domain contributes to CAR-iMACs anticancer activity

To evaluate whether the TIR signal domain can enhance CAR-iMACs’ phagocytosis of tumor cells in a CAR-dependent manner, we first incubated the single intracellular domain-containing CAR-iMACs cells with U87MG^EGFRvIII cells in vitro. We stimulated WT-iMACs and EGFRvIII-targeting CAR-iMACs (truncated CAR-iMACs, CD3ζ-CAR-iMACs and TIR-CAR-iMACs) with interferon-γ (IFN-γ) and LPS, respectively, and then cocultured the cells with tdTomato-expressing (tdTomato⁺) U87MG^EGFRvIII cells with different effect/target ratios (E/T) of 3/1, 5/1 and 10/1. After 4 h of coculturing, we observed the enhanced adhesion of all types of CAR-iMACs to the cancer cells compared to WT-iMACs (Extended Data Fig. 1e), suggesting that the CAR conferred iMACs with targeting capacity. Moreover, immunofluorescence (IF) assays showed that both CD3ζ-CAR-iMACs and TIR-CAR-iMACs more potently engulfed tdTomato-labeled components of tumor cells than WT-iMACs and truncated CAR-iMACs after 12 h of coculturing (Extended Data Fig. 1f), indicating that overexpression of CAR enhanced this function. Noteworthy, we observed that the CAR-iMACs tended to bind to tumor cells and induce their apoptosis followed by phagocytizing the debris. Next, FCM analysis showed that compared to both WT-iMACs and truncated CAR-iMACs, CD3ζ- and TIR-CAR-iMACs treatment led to less residual tumor cells when co-incubated with U87MG^EGFRvIII cells at the same E/T ratio (Fig. 2c), suggesting their stronger antitumor capacity. We did not observe a significant difference between CD3ζ-CAR-iMACs and TIR-CAR-iMACs at 12 h of incubation (Fig. 2c).

To demonstrate the progressive antitumor effect of EGFRvIII-targeting CAR-iMACs, we performed the same experiments at 24 h of co-incubation. The antitumor capacity of CAR-iMACs was improved at all tested E/T ratios compared with 12 h of co-incubation (Fig. 2d), and the TIR domain conferred stronger activity than CD3ζ at this time point (Fig. 2d). When we plotted the residual tumor cells at both 12 and 24 h, we found that TIR-CAR-iMACs gradually exhibited a greater antitumor cell effect than CD3ζ-CAR-iMACs (Fig. 2e). To further confirm the cytolytic activity of CAR-iMACs, we overexpressed a firefly luciferase (FFluc) gene in U87MG^EGFRvIII cells and then co-incubated the tumor cells with the three types of CAR-iMACs, respectively, for 24 h. Consistently, the BLI signal from tumor cells was significantly attenuated by both CD3ζ-CAR-iMACs and TIR-CAR-iMACs compared to truncated CAR-iMACs, and the optimal efficiency was achieved at an E/T ratio of 10/1 (Fig. 2f). Furthermore, to investigate whether the pro-inflammatory activity of CAR-iMACs was dependent on CAR activation, we measured the secreted TIR downstream cytokines released in the medium. The ELISA assay revealed that when incubated with U87MG^EGFRvIII cells for 24 h at an E/T ratio of 10/1, TIR-CAR-iMACs secreted considerably higher levels of pro-inflammatory cytokines including IL-6 (Fig. 2g), IL-12 (Fig. 2h), IL-23 (Fig. 2i) and TNF (Fig. 2j) indicating higher pro-inflammatory activity of TIR-CAR-iMACs. Interestingly, the T cell-specific CD3ζ domain-containing CAR also promoted low expression of these cytokines in CAR-iMACs (Fig. 2g–i), suggesting that combining both domains might achieve the maximal pro-inflammatory activity. Together, these results demonstrated that both TIR and CD3ζ domains enhanced CAR-dependent cytotoxic activity of CAR-iMACs, but TIR-CAR-iMACs exhibited higher potential for persistent antitumor activity and potent pro-inflammatory activity.

Second-generation CAR-iMACs have robust antitumor function

In the above work, we established that TIR-CAR-iMACs exhibited the M1-like phenotype and both TIR and CD3ζ domains provided CAR-iMACs with CAR-dependent phagocytosis capacity. Based on the design of the second-generation T-CAR, we hypothesized that the integration of TIR and CD3ζ domains into one CAR structure could further promote the antitumor potency of CAR-iMACs. Thus, we developed a new EGFRvIII-targeting M-CAR containing intracellular CD3ζ and TIR domains in tandem (Fig. 1a) and then generated CD3ζ-TIR-CAR-iMACs (Fig. 1b). We first compared the expression of pro-inflammatory genes reportedly driven by TIR activation. As expected, the quantitative real-time PCR (qRT–PCR) analysis revealed that after incubation of the three types of CAR-iMACs with U87MG^EGFRvIII cells for 24 h, expression of IL-1A/IL-1B, IL-6, IL-12A, IL-23, CCL8, CXCL8 and TNFA were significantly elevated in CD3ζ-TIR-CAR-iMACs compared to TIR- or CD3ζ-CAR-iMACs, all without IFN-γ/LPS pretreatment (Fig. 3a–h), revealing the synergistic effect of TIR and CD3ζ domains. Correspondingly, the ELISA assay confirmed that CD3ζ-TIR-CAR-iMACs mostly improved the production of IL-6, IL-12, IL-23 and TNF (Fig. 3i–l). These results further substantiated that the TIR domain contributed to the M1-like polarization of CAR-iMACs. Subsequently, we examined the cytotoxicity of the integrated CD3ζ-TIR-CAR-iMACs against FFluc⁺ U87MG^EGFRvIII cells. Measurement of BLI from FFluc⁺ U87MG^EGFRvIII cells indicated that compared to single CD3ζ or TIR domain-containing CAR-iMACs, 24h incubation with CD3ζ-TIR-CAR-iMACs led to the lowest number of viable tumor cells at an E/T of 10/1 (Fig. 3m), revealing that CD3ζ-TIR-CAR-iMACs conferred significantly higher cytotoxicity against tumor cells than single domain-containing CAR-iMACs. Subsequently, we co-incubated the CD3ζ-TIR-CAR-iMACs with FFlu⁺U87MG^EGFRvIII cells as well as EGFRvIII-negative U87MG and HepG2 cells, respectively, at an E/T of 10/1 in vitro and found that CD3ζ-TIR-CAR-iMACs showed most evident cytotoxicity only against the EGFRvIII-positive cells (Fig. 3n), demonstrating the activity was antigen-dependent. Furthermore, to test whether the second-generation CAR-iMACs had antigen presentation capacity to activate T cells, we first cocultured the CD3ζ-TIR-CAR-iMACs with U87MG^EGFRvIII cells for 48 h and then added the Jurkat T cells expressing a NY-ESO-1-specific T cell receptor (TCR) to the coculturing system for 24 h (Fig. 3o). CAR-iMACs along led to basal level of T cell activation, and the T cells were further activated in the presence of NY-ESO-1-overexpressing tumor cells (Fig. 3o).

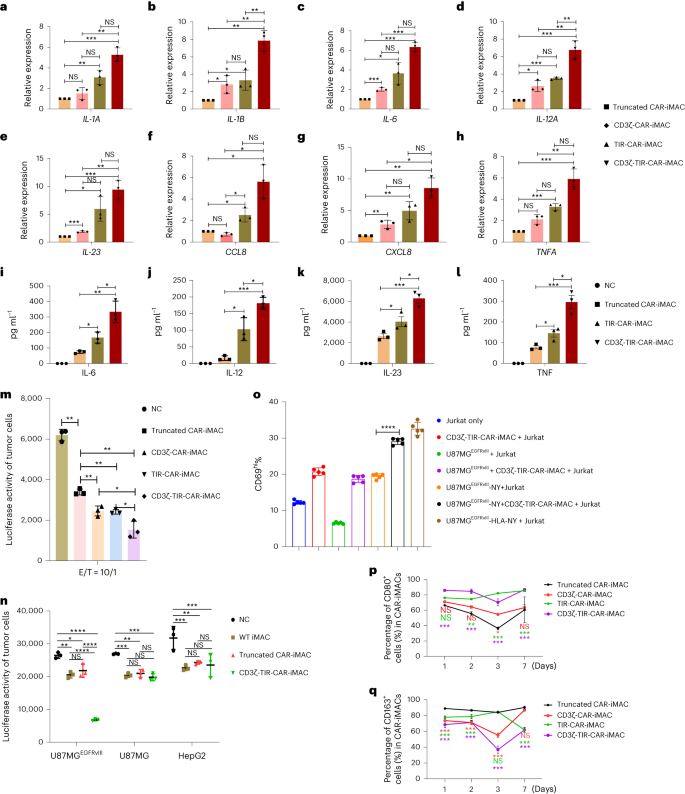

**Fig. 3: Integration of TIR and CD3ζ enhances antitumor potency of CAR-iMACs.**

Substantial evidence suggests that the interaction with tumor cells leads to the exhaustion of T cells and promotes M2-like polarization of macrophages^41,42,43,44. To explore whether the TIR-based CAR-iMACs could withstand immunosuppressive effects from tumor cells, we examined the polarization state of the four types of CAR-iMACs cocultured with tdTomato⁺ U87MG^EGFRvIII cells with no IFN-γ/LPS pretreatment at an E/T ratio of 3/1. Subsequent FCM analysis showed that incubation with the tumor cells for 24 h stimulated higher expression of CD80 in the two TIR-based CAR-iMACs compared to truncated CAR-iMACs and CD3ζ-CAR-iMACs (Fig. 3p). Of note, prolonged periods of exposure to tumor cells resulted in a significant reduction of CD80⁺ populations to about 40–50% for truncated CAR-iMACs and CD3ζ-CAR-iMACs (Fig. 3p), whereas the percentage of CD80⁺ cells in both TIR-CAR-iMACs and CD3ζ-TIR-CAR-iMACs was kept at a higher level of ~80% at day 7 (with a slight drop to 70% at day 3 for CD3ζ-TIR-CAR-iMACs), indicating that TIR enhanced the sustained stimulation of the M1 state. Besides, we also determined M2-like populations of the four types of CAR-iMACs by measuring CD163, a typical M2 marker. We found that prolonged exposure to the tumor cells led to various CD163 expression levels in the first three types of CAR-iMACs, whereas CD3ζ-TIR-CAR-iMACs exhibited the most resistance against M2 conversion on day 3 and remained low on day 7 (Fig. 3q). Based on the above results, we concluded that the combination of the TIR and CD3ζ domains induced M1 polarization of CAR-iMACs exposed to tumor cells and prevented the conversion from the M1 to the M2-like state.

We next investigated the antitumor potency of EGFRvIII-targeting CD3ζ-TIR-CAR-iMACs in vivo. This time, the four types of CAR-iMACs without IFN-γ/LPS pretreatment were used to treat FFluc⁺ U87MG^EGFRvIII cell-bearing mice at an E/T ratio of 15/1 (Extended Data Fig. 2a). As expected, treatment by CD3ζ-TIR-CAR-iMACs alleviated tumor cell growth compared to truncated CAR-iMACs (Extended Data Fig. 2b,c) and prolonged survival of the tumor-bearing mice (Extended Data Fig. 2d). To assess whether TIR contributed to M1 polarization of CAR-iMACs in vivo, we isolated the immune cells from the mice after 2 d of treatment and measured CD80⁺ and CD163⁺ populations by FCM. More CD3ζ-TIR-CAR-iMACs exhibited CD80 positivity than CD3ζ-CAR-iMACs (Extended Data Fig. 2e,f), and lower CD163 expression was present in CD3ζ-TIR-CAR-iMACs (Extended Data Fig. 2e,f). Next, to mimic the clinical situation, we carried out another animal experiment with an orthotopic glioblastoma (GBM) model in which FFluc⁺ U87MG^EGFRvIII cells were intracranially inoculated to NOD-SCID mice. IFN-γ/LPS-pretreated truncated CAR-iMACs and CD3ζ-TIR-CAR-iMACs were delivered into the intracranial GBM lesion after 6 d of transplantation of the FFluc⁺ U87MG^EGFRvIII cells, followed by live imaging to monitor the tumor growth (Extended Data Fig. 3a). Similar to the above therapeutic outcome, CD3ζ-TIR-CAR-iMACs evidently restrained the progression of intracranial GBM compared to that of truncated CAR-iMACs (Extended Data Fig. 3b,c) and prolonged the survival of the GBM-bearing mice (Extended Data Fig. 3d). Notably, the expression of EGFRvIII persisted during the tumor growth (Extended Data Fig. 3e).

In summary, we confirmed that the second-generation CAR design by integrating intracellular CD3ζ and TIR domains into one CAR structure could enhance the cytotoxic activity against tumor cells, promote the antigen presentation capacity and maintain the polarization state of CAR-iMACs.

GPC3-targeting TIR-based CAR-iMACs have robust antitumor function

To consolidate the above proof-of-concept results with another type of tumor cell naturally expressing a targetable antigen, we next investigated whether GPC3-targeting CAR-iMACs could achieve similar efficacy in hepatocellular carcinoma (HCC) models using HepG2 cells. Similar as before, we obtained GPC3-targeting CAR-iMACs by differentiating the engineered iPSCs. Flow cytometry analysis showed that all types of GPC3-CAR-iMACs had high CAR expression of more than 80% (Extended Data Fig. 4a). To assess the antitumor activity of the CAR-iMACs against GPC3-expressing cells, we incubated the CAR-iMACs with tdTomato-expressing HepG2 cells at an E/T ratio of 10/1 (Fig. 4a) and found that both TIR-CAR-iMACs and CD3ζ-TIR-CAR-iMACs led to remarkable inhibition of tumor cell growth compared to truncated CAR-iMACs over a time course of ~5 d (Fig. 4b and Extended Data Fig. 4b), strongly demonstrating that the TIR-containing CARs enhanced antitumor activity of CAR-iMACs against HepG2 in vitro. Moreover, luciferase assays revealed that GPC3-targeting CD3ζ-TIR-CAR-iMACs possessed significantly higher cytotoxicity on GPC3-expressing HepG2 cells but not on GPC3-negative U87MG cells (Fig. 4c), demonstrating the antigen-dependent cytotoxicity.

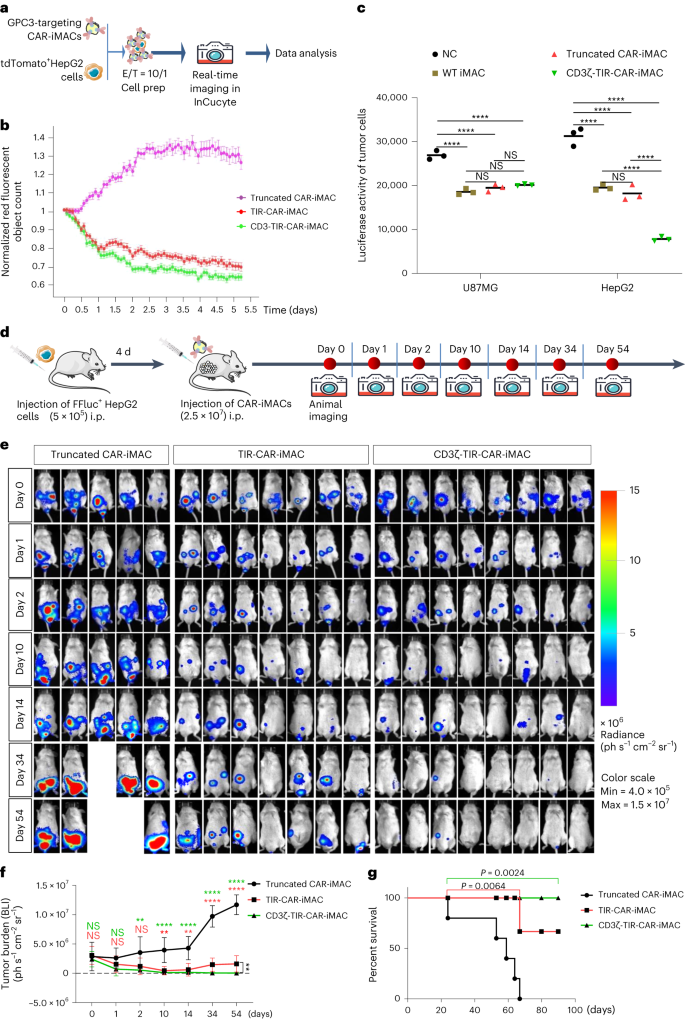

**Fig. 4: GPC3-targeting TIR-based CAR-iMACs have anti-HCC function.**

To prove the in vivo efficacy, we used a HepG2 xenograft models (Fig. 4d). Four days after seeding the tumor cells when tumors were established, GPC3-targeting truncated CAR-iMACs, TIR-CAR-iMACs and CD3ζ-TIR-CAR-iMACs were used to treat the tumor-bearing mice and animal imaging was conducted to monitor the tumor growth (Fig. 4e). TIR-based CAR-iMACs exhibited significant antitumor activity compared to truncated CAR-iMACs (Fig. 4e,f). Moreover, CD3ζ-TIR-CAR-iMACs achieved the strongest effect and led to complete remission in 6 of 8 mice. Correspondingly, CD3ζ-TIR-CAR-iMACs evidently prolonged the survival of HCC-bearing mice (Fig. 4g). Together, GPC3-targeting CAR-iMACs containing the intracellular TIR domain showed potent antitumor activity, and the CAR design by integrating CD3ζ and TIR domains further enhanced the potency.

Next, we tested whether a combination of CAR-iMACs and CD47 antibody could provide synergistic effects. Anti-HCC tumor assays with HepG2-bearing mice showed that TIR-based CAR-iMACs combined with a low dose of 0.5 μg CD47 antibody achieved superior antitumor efficacy compared to CD47 antibody alone, or CD47 antibody combined with the truncated CAR-iMAC control (Extended Data Fig. 4c,d). Notably, all the mice receiving the combination therapy of CD3ζ-TIR-CAR-iMACs and CD47 antibody showed significant remission after 10 d of treatment, with almost complete elimination of tumor signal on day 30. Moreover, the combined treatment showed no apparent effect on the weight of the mice (Extended Data Fig. 4e), indicating there was no toxicity associated with this treatment strategy.

To assess whether the second-generation CAR-iMACs could modify the TME, we designed a mouse-specific CAR (G2-CAR) containing the extracellular scFv sequence recognizing the human GPC3 protein and the intracellular mouse TIR and CD3ζ tandem domains, as well as the truncated control (G1-CAR; Extended Data Fig. 5a). Next, we transduced the G1- and G2-CARs into mouse bone marrow-derived macrophages (BMDMs) with lentivirus and obtained the CAR-BMDMs, even though the transduction efficiency was relatively low (Extended Data Fig. 5b–d). Afterward, we incubated the mouse CAR-BMDMs with human GPC3-expressing Hepa1-6 (Hepa1-6^GPC3) cells in vitro and observed significantly stronger phagocytosis of the tumor cells by G2-CAR-BMDMs compared to G1-CAR-BMDMs (Extended Data Fig. 5e,f). For in vivo analysis, the progression of Hepa1-6^GPC3-derived subcutaneous tumors was restrained after the treatment with the G2-CAR-BMDMs (Extended Data Fig. 5g,h), without affecting the weight of the mice (Extended Data Fig. 5i). Next, we assessed the changes of immune cells in the TME. We found an increased proportion of M1-like CD86⁺ macrophages in the G2-CAR-BMDMs treated group (Extended Data Fig. 5j), while the CD206⁺ macrophages (Extended Data Fig. 5k) and dendritic cells (DCs) (Extended Data Fig. 5l) showed no significant changes. Meanwhile, G2-CAR-BMDMs also increased the proportion of NK (Extended Data Fig. 5m) and T cells (Extended Data Fig. 5n), implying enhanced recruitment of these cells to tumors. Together, the CAR-BMDMs improved the TME for better elimination of tumor cells.

NF-κB/P65-mediated M1 polarization of TIR-based CAR-iMACs

The TIR domain is responsible for signal transduction from TLR4, and the downstream signaling liberates NF-κB/P65 from IκB (inhibitor of NF-κB) inhibition, followed by the translocation of NF-κB/P65 into the nucleus to transcriptionally activate pro-inflammatory target genes^39,45. To investigate the molecular mechanism of whether NF-κB/P65 mediated the pro-inflammatory activity of TIR-based CAR-iMACs when encountering the antigen, we first measured the expression of NF-κB/P65 gene RELA with qRT–PCR analysis and found higher expression in both TIR domain-containing CAR-iMACs (Fig. 5a). Next, we monitored nuclear translocation of NF-κB/P65 by IF imaging when the control truncated CAR-iMACs were treated with LPS for 20 min (Extended Data Fig. 6a). Afterward, we cocultured the EGFRvIII-targeting truncated CAR-iMACs, TIR-CAR-iMACs, CD3ζ-CAR-iMACs and CD3ζ-TIR-CAR-iMACs with tdTomato⁺ U87MG^EGFRvIII cells, respectively, at an E/T ratio of 3/1, followed by IF imaging to detect NF-κB/P65 subcellular localization. Confocal imaging showed that interaction between CAR-iMACs and U87MG^EGFRvIII cells for 4 h triggered NF-κB/P65 expression in CD3ζ-TIR-CAR-iMACs (Extended Data Fig. 6b). When the incubation time was prolonged to 12 h, NF-κB/P65 exhibited a higher expression in TIR-CAR-iMACs and CD3ζ-TIR-CAR-iMACs, with aggregation in the nuclei (Fig. 5b,c). As the positive control, all the IFN-γ/LPS-pretreated CAR-iMACs showed the accumulation of NF-κB/P65 in nuclei (Fig. 5d,e). Taken together, these results demonstrated that the NF-κB signaling pathway was activated in the TIR domain-containing CAR-iMACs.

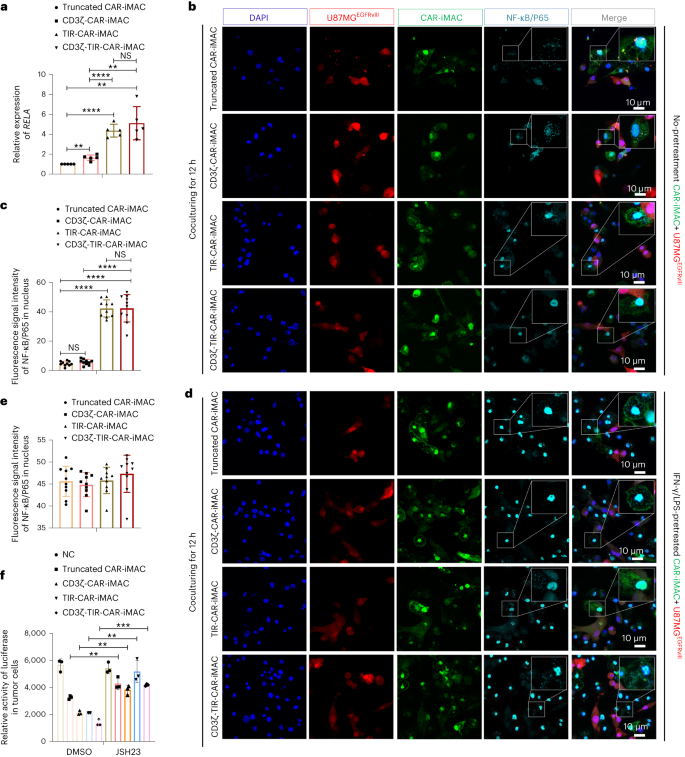

**Fig. 5: NF-κB/P65-mediated immune activation initiated by TIR-based CARs.**

To further confirm the role of NF-κB/P65 in CAR-iMACs, we treated the same CAR-iMACs cocultured with FFluc/tdTomato⁺ U87MG^EGFRvIII cells using an NF-κB/P65 inhibitor JSH23. As expected, blocking the nuclear translocation of NF-κB/P65 by JSH23 abrogated cytotoxicity of CAR-iMACs against FFluc/tdTomato⁺ U87MG^EGFRvIII cells (Fig. 5f). Collectively, we revealed that immune activation and M1 polarization of TIR-based CAR-iMACs were through the NF-κB pathway.

Mechanism of M1 polarization in TIR-based CAR-iMACs

We next sought to further reveal the mechanism by examining the TIR-based CAR-iMACs exposed to tumor cells with scRNA-seq analysis (Fig. 6a). IFN-γ/LPS-pretreated EGFRvIII-targeting CAR-iMACs were incubated with U87MG^EGFRvIII cells for 24 h. Subsequently, we performed 10x Genomics scRNA-seq and found that all cells could be clustered into six main subpopulations (Extended Data Fig. 7a,c,e). According to the published in vivo scRNA-seq data of human hematopoietic development, C1, C2, C3, C5 and C6 clusters were mainly matched to the macrophage (Extended Data Fig. 7b,d,f). Meanwhile, the C4 cluster was primarily matched with the U87MG cancer cell phenotype in all three types of CAR-iMACs groups. Also, compared with truncated CAR-iMACs and TIR-CAR-iMACs groups, CD3ζ-TIR-CAR-iMACs treatment resulted in fewer remaining tumor cells (C4 cluster; Extended Data Fig. 7a,c,e), consistent with the cytotoxicity results above. In addition, the C5 cluster of all three groups also possesses (DC) characteristics (Extended Data Fig. 7a–f). Interestingly, the percentage of DC-feature cells in the C5 cluster showed a growing trend from truncated CAR-iMACs and TIR-CAR-iMACs to CD3ζ-TIR-CAR-iMACs (Extended Data Fig. 7a–f), implying that TIR-based CAR-iMACs, especially the second-generation ones, might have acquired enhanced DC cell capacity.

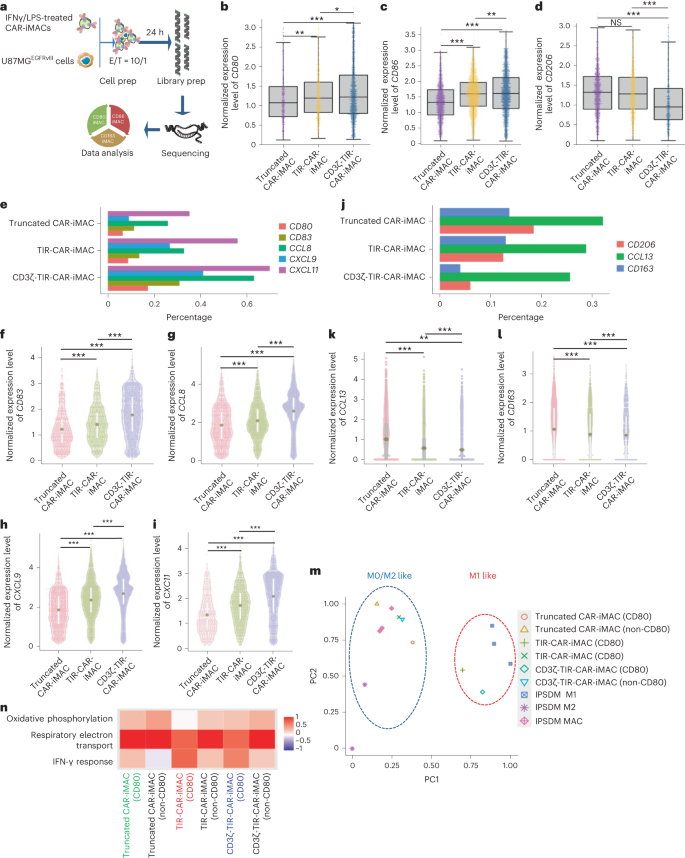

**Fig. 6: M1 polarization of TIR-based CAR-iMACs.**

Next, we performed a quantitative analysis of M1- or M2-like state-associated marker genes (M1 or M2 genes) using scRNA-seq data. Normalized gene expression showed that more TIR-CAR-iMACs exhibited high expression of CD80 and CD86, and CD3ζ-TIR-CAR further significantly boosted the expression levels of the two M1 marker genes (Fig. 6b,c), and consistently validated by the previous FCM analysis. Accordingly, the M2 marker gene CD206 exhibited the significantly lowest expression in CD3ζ-TIR-CAR-iMACs, followed by TIR-CAR-iMACs and truncated CAR-iMACs (Fig. 6d). Moreover, the percentage of CAR-iMACs that expressed other M1 genes, including CD83, CCL8, CXCL9 and CXCL11, increased incrementally from truncated CAR-iMACs to TIR-CAR-iMACs and CD3ζ-TIR-CAR-iMACs (Fig. 6e). Accordingly, the normalized expression level of these genes exhibited the same trend (Fig. 6f–i). On the contrary, a smaller percentage of TIR-CAR-iMAC and CD3ζ-TIR-CAR-iMACs expressed M2 genes such as CCL13 and CD163 (Fig. 6j), or TIR-CAR-iMACs and CD3ζ-TIR-CAR-iMACs presented significantly lower expression of these genes compared to truncated CAR-iMACs (Fig. 6k,l). Collectively, these results illustrated that integration of the TIR and CD3ζ domains facilitated M1 gene expression and simultaneously suppressed M2 gene expression at the single macrophage level.

Next, we investigated whether the global gene expression signature resembled M1-like macrophages. We divided CAR-iMACs into CD80-expressing and CD80-absent (non-CD80) populations, as the latter represented the iMACs that might not encounter tumor cells, and evaluated the discrepancy of their expression profile. Principal component analysis (PCA) using M1 genes identified in our previous study and a published work indicated that CD80-expressing TIR-CAR-iMACs and CD3ζ-TIR-CAR-iMACs were positioned closer to the IFN-γ/LPS-stimulated M1-like iMACs, compared to CD80-positive truncated CAR-iMACs and non-CD80 CAR-iMACs from all types (Fig. 6m). Furthermore, pathway analysis revealed that CD80-expressing CAR-iMACs showed lower activation of M2-related pathways such as oxidative phosphorylation and respiratory electron transport than in non-CD80 CAR-iMACs, but a higher activation of M1-related pathway IFN-γ response (Fig. 6n). More importantly, within the CD80-expressing groups, TIR-CAR-iMACs and CD3ζ-TIR-CAR-iMACs showed significantly higher IFN-γ responses and lower oxidative phosphorylation (Fig. 6n), indicating that TIR-based CAR conferred the CAR-iMACs with more robust pro-inflammatory activity. Finally, hierarchical clustering analysis based on a defined set of M1 and M2 genes⁴⁶ showed that both TIR-CAR-iMACs and CD3ζ-TIR-CAR-iMACs clustered with IFN-γ/LPS-polarized iMACs, whereas truncated CAR-iMACs clustered with M2-polarized iMACs (Extended Data Fig. 8a,b). The same clustering trend was observed when using the CD80-expressing populations (Extended Data Fig. 8c,d). To sum up, the above scRNA-seq analysis corroborated the mechanism that TIR-based CARs contributed to the pro-inflammatory state of CAR-iMACs in a CAR-dependent manner when encountering target tumor cells.

CAR-iMACs-mediated efferocytosis of apoptotic tumor cells

To further dissect cytolytic mechanisms of the CAR-iMAC, we next examined the expression of apoptosis-related genes in U87MG^EGFRvIII from Fig. 6a, due to the abovementioned apoptosis-inducing phenomenon of CAR-iMACs against tumor cells (Extended Data Fig. 1f). We found increased expression of genes related to apoptosis such as CASP3/CASP6/CASP7/CASP8 and APAF1, as well as genes involved in transducing cell death signals such as FAS, TNFRSF10A and TNFRSF25 in the CD3ζ-TIR-CAR-iMAC-treated U87MG^EGFRvIII cells (Fig. 7a). These results implied an apoptosis-promoting role of CD3ζ-TIR-CAR-iMACs upon encountering targeting tumor cells. To verify it, we directly measured the apoptosis of target tumor cells after incubation with CAR-iMACs. FCM analysis with Annexin V showed that ~40% of U87MG^EGFRvIII cells underwent apoptosis after 6 h of treatment by CD3ζ-CAR-iMACs, TIR-CAR-iMACs and CD3ζ-TIR-CAR-iMACs, significantly higher than a ~5% apoptosis in the treatment with the truncated CAR-iMAC control (Fig. 7b,c). Moreover, 12 h of incubation markedly increased the apoptotic rate of CD3ζ-TIR-CAR-iMAC-treated U87MG cells to more than 80% compared to a 24% rate for the truncated control (Fig. 7b,c). To strengthen these results, another experiment using GPC3-CAR-iMACs against HepG2 cells also showed stronger target cell apoptosis-inducing capacity of TIR-based CAR-iMACs, particularly with an apoptotic rate above 90% when treated with CD3ζ-TIR-CAR-iMACs (Fig. 7d,e). Macrophage-secreted cytokines such as TNF can lead to apoptosis of tumor cells. As TNF was markedly increased in the medium of the second-generation CAR-iMACs and tumor cell coculture (Fig. 3), we added the TNF-neutralizing antibody adalimumab to the coculture and found that the cytolytic activity of CAR-iMACs was largely abolished (Fig. 7f,g), demonstrating that the tumor cell apoptosis was contributed by CAR-mediated M1 polarization and secretion of cytokine TNF.

**Fig. 7: CAR-iMACs have increased antitumor function via efferocytosis of apoptotic tumor cells.**

Next, we performed confocal imaging to visualize the antitumor process of GPC3-CAR-iMACs against HepG2 cells after 12 h of incubation and observed fragmentation of HepG2 cells as well as tumor cell debris-engulfing processes of both TIR-CAR-iMACs and CD3ζ-TIR-CAR-iMACs (Fig. 7h). To monitor the killing process of CAR-iMACs against tumor cells, we conducted long-term super-resolution imaging via a high sensitivity structured illumination microscope (HIS-SIM). Real-time imaging in a bright field revealed that GPC3-targeting CD3ζ-TIR-CAR-iMACs induced dismantling of HepG2 cells, followed by engulfing the debris over time (Fig. 7i,j and Supplementary Video 1), a process characteristic of efferocytosis⁴⁷. Consistently, the EGFRvIII-targeting CD3ζ-TIR-CAR-iMACs induced the cell death process of tdTomato⁺ U87MG^EGFRvIII cells followed by engulfing and digesting the tumor cell debris (Fig. 7k and Supplementary Video 2). Together, we illustrated that our CAR-iMACs display antitumor cell cytolytic activity via a sequential process, which is as follows: (1) engagement of tumor cell antigen and CAR to activate CAR-iMACs, (2) CAR-mediated M1 polarization and secretion of TNF to induce tumor cell apoptosis and (3) tumor cell apoptotic bodies clearance by CAR-iMACs through efferocytosis (Fig. 7l).

Discussion

Macrophages and genetically engineered CAR macrophages have drawn substantial attention, given their potential advantages in homing and infiltrating solid tumors and manifold roles in regulating the immunosuppressive TME^12,48. More excitingly, the first clinical study in patients with a solid tumor has started⁴⁹, and the proof-of-concept results will provide the foothold for using CAR macrophages as a new weapon to combat solid tumors.

The abovementioned progresses were based on the first-generation CAR macrophages, in which the intracellular signaling is mediated by a CD3ζ domain or a substitute effector domain from macrophages^25,26,27,50. To integrate a polarization signal, we added a TIR domain into the CAR and thus provided an orthogonal signal of macrophage polarization (Extended Data Fig. 9). We demonstrated that the iPSC-derived second-generation CAR-iMACs exhibited enhanced antitumor activity both in vitro and in vivo, with a strong M1 polarization phenotype. Particularly, the second-generation GPC3-CAR-iMACs showed strong efficacy in that it led to complete remission either by itself or combined with a low dose of CD47 antibody, and the possible reasons for the stronger efficacy compared with the EGFRvIII-CAR include the different quality of the antibodies from which the CAR’s scFv was derived. We also confirmed the safety of the CAR-iMACs in the mouse model (Extended Data Fig. 4e). Even though the M1-like state cytokines such as IL-1 and IL-6 were induced, as CAR-iMACs were not significantly expanded in vivo²⁵, and they tended to go into tissues, the accumulated amount of IL-1 or IL-6 in the circulation system might not necessarily lead to cytokine release syndrome that warrants further studies using humanized models. We also elucidated a surprising cytolytic mechanism of CAR-mediated efferocytosis of iMACs against apoptotic tumor cells. Our analysis indicated engulfment of apoptotic tumor cell bodies is one of the main mechanisms of tumor cell clearance. This mechanism of action will provide more molecular basis for moving the CAR-iMACs therapy toward the clinic.

It is well established that macrophages are equipped with receptors called pattern recognition receptors (PRRs) that recognize pathogen-associated molecular patterns (PAMPs) or damage-associated molecular patterns (DAMPs) and then release pro-inflammatory or anti-inflammatory cytokines to exert various functions in defense^31,34. The TIR-containing chimera antigen receptor is a new engineered PRR that recognizes ‘antigen-associated molecular patterns,’ enabling macrophages with antigen-dependent capacity of M1 polarization, which in our study is an advantage in cancer immune cell therapy.

Methods

Cell culture

Human iPSCs were reprogrammed from peripheral blood mononuclear cells of a volunteer donor (approved by the Human Subjects Committee of the First Affiliated Hospital of Zhejiang University²⁵ and were cultured in mTeSR™-1 medium (a feeder-free maintenance medium for human ES and iPS cells. STEMCELL Technologies, 85851) or ncTarget hPSC (human pluripotent stem cell) medium (Nuwacell Biotechnology, RP01020) with Matrigel Matrix (Corning, 354277) or Vitronectin (Nuwacell Biotechnology, RP01002) coated onto six-well cell culture plates. iPSCs were passaged using Versene (Gibco, 15040-066). Matured CAR-iMACs and WT-iMACs were maintained in StemSpan-XF medium (STEMCELL Technologies, 100-0073) containing M-CSF (PEPROTECH, 300-25; 100 ng ml⁻¹) and GM-CSF (PEPROTECH, 300-3; 100 ng ml⁻¹). HEK293T cells (ATCC, CRL-3216) and HepG2 cells were cultured in high-glucose DMEM (Gibco, 11965-065) containing 10% FBS (Gibco, 10099-141) and 1× Penicillin–Streptomycin (Pen–Strep; 10,000 U ml⁻¹ penicillin and 10,000 µg ml⁻¹ streptomycin; Gibco, 15140-122). U87MG cells (ATCC, HTB-14) and U87MG^EGFRvIII cells were cultured in MEM (Hyclone, SH30024.01) medium supplemented with 10% FBS (Gibco, 10099-141), 1× nonessential amino acids (Gibco, 11140-050), 1 mM sodium pyruvate (Gibco, 11360-070) and 1× Pen–Strep. Mouse BMDM cells were cultured in RPMI 1640 medium (Meilunbio, MA0215) containing 10% inactive FBS (Gibco, 10099-141) and mouse M-CSF (PEPROTECH, 315-02).

Construction of CARs

We designed T-CAR or M-CARs according to the intracellular CD3ζ domain (amino acids 52–164) or TIR domain (amino acids 672–818), integrating hinge and transmembrane region of human CD8α (amino acids 183–206). The extracellular fragment of the CAR consisted of the humanized scFv nucleotide sequence, respectively, specific to EGFRvIII (139 scFv nucleotide sequence, patent: US 9,394,368 B2) and GPC3 (patent: US2016/0215261 A1). The integration of cytoplasmic parts of the CD3ζ and TIR was designed for the second-generation M-CAR. All CARs were synthesized by GenScript Biotech and cloned into the Lenti-EF1A-T2A-EGFP-PGK-Puro vector. We also designed GPC-targeting CAR containing intracellular mouse CD3ζ and TIR domains. All the sequences are listed in Supplementary Data.

Stable overexpression of CARs in iPSCs

CAR sequence-containing lentiviral vector (Lenti-EF1α-T2A-EGFP-PGK-Puro), psPAX2 and pMD2.G were transfected into HEK293T cells cultured in 10 cm dishes using Lipofectamine 2000 (Invitrogen, 11668). The lentivirus-containing medium was collected at 24 h, 36 h, 48 h and 60 h post-transfection and filtered with a 0.45 μm filter. The filtered medium was mixed with a half volume of 30% PEG8000 and centrifuged at 4,000 r.p.m. for 30 min at 4 °C. The pellet was resuspended with mTeSR medium (STEMCELL Technologies, 85851) containing 10 μg ml⁻¹ polybrene (Yeasen Biotechnology, 40804ES76). The resuspended lentivirus was then added to prepare iPSCs in six-well plates. The medium was refreshed after 6 h postinfection with a new mTeSR medium. The infected cells were cultured for 24 h and then treated with 0.5 μg ml⁻¹ puromycin for at least 48 h to select successfully transduced clones. Subsequently, the CAR-expressing iPSCs were expanded to obtain enough cells for differentiation.

Macrophage differentiation from iPSCs

WT-iPSCs and CAR-expressing iPSCs were treated with TrypLE (Gibco, 12604-021) for 1 min to disaggregate into individual cells. The cells were collected and transferred to low-attachment plates (Corning, 3471) to allow the formation of embryoid bodies (EBs) in mTeSR medium (STEMCELL Technologies, 85851) supplemented with Rock inhibitor Y27632 (STEMCELL Technologies, 72304). The process of formation of EBs and macrophage differentiation from EBs has been described in our previous work²⁵.

Generation of stable tumor cell lines

The coding sequence of EGFRvIII was synthesized in GenScript Biotech and then cloned into the Lenti-EF1α-PGK-Puro vector. Lentivirus containing EGFRvIII coding sequence was collected from HEK293T cells and used to infect U87MG cells to develop the U87MG^EGFRvIII cell line. The GPC3 coding sequence from human HepG2 cells was cloned into the Lenti-EF1α-PGK-Puro vector and overexpressed in Hepa1-6 cells using the abovementioned strategy to establish the Hepa1-6^GPC3 cell line. The sequence cloning primers are listed in Supplementary Data.

FFluc and tdTomato genes were overexpressed in U87MG^EGFRvIII cells, HepG2 cells and Hepa1-6^GPC3 cells via PCDH-EF1α-tdTomato-FFluc2 plasmids to establish the FFluc/tdTomato-expressing cell lines.

Examination of CAR-iMAC cytotoxicity

To assess the cytotoxicity of CAR-iMACs against targeting cells, we cocultured CAR-iMACs with FFluc⁺ tumor cells at indicated E/T ratios in a black 96-well plate (Wohong Bio, WHB-96-02) in vitro and then added 50 μl 15 mg ml⁻¹ luciferin buffer (GoldBio, LUCK-1G) into the culturing wells and captured the BLI signal from tumor cells through the microplate reader (Molecular Devices, MD M5).

To examine the antigen-dependent activation of CAR-iMACs, we incubated the EGFRvIII-targeting CAR-iMACs with 1 × 10⁴ U87MG^EGFRvIII cells, EGFRvIII-negative U87MG cells and HepG2 cells at E/T ratios of 10/1, respectively, for 48 h in a black 96-well plate (Wohong Bio, WHB-96-02) in vitro and then captured the BLI signal from tumor cells as described above.

Anti-HCC assay

To evaluate the inhibition effect of GPC3-targeting CAR-iMACs on HCC cells, we mixed CAR-iMACs with tdTomato⁺ HepG2 cells at an E/T ratio of 10/1 in a 24-well plate (NEST, 082721BH01) in vitro and then incubated the coculture in Incucyte 2022A Live-Cell Analysis Instrument that can monitor the dynamic activity of cells and capture the change of tdTomato fluorescence in a lively manner.

Detection of cytokines

We detected the cytokines released by CAR-iMACs with an ELISA kit (Elabscience). After incubating CAR-iMACs with U87MG^EGFRvIII cells for 24 h, the medium was collected and used to quantify IL-6 (E-EL-H0102c), IL-12 (E-EL-H0150c), IL-23 (E-EL-H0107c) and TNF (E-EL-H0109c) levels. The fluorescence signals were detected by a microplate reader (Molecular Devices, MD M5).

In vivo antitumor assays

NOD-Prkdc^em26Cd52/Gpt (NOD-SCID, stock: T001492) mice and C57BL/6 (stock: N000295) mice were obtained from Jiangsu Biocytogen and maintained under pathogen-free conditions at the animal center of the Zhejiang Academy of Medical Sciences. All mice were kept at 25 °C in a clean, pathogen-free and humid environment (typically 50%), with a 12-h dark/12-h light cycle, and fed with sufficient and sterile water and food (Xietong, 1010085). The protocols used were approved by the Ethics Committee of the Zhejiang Academy of Medical Sciences. The progression of tumor health status of mice was monitored carefully. The mouse with tumor size exceeding 2,000 m³ or tumor diameter exceeding 20 mm was killed in peace.

To assess the capability of CAR-iMACs targeting GBM in vivo, 4 × 10⁵ FFluc⁺ U87MG^EGFRvIII cells mixed with 200 μm 0.1% BSA in PBS were injected intraperitoneally into 6-week-old male NOD-SCID mouse. EGFRvIII-targeting CAR-iMACs were cultured with StemSpan-XF medium for 48 h before injection. Four hours later after intraperitoneal injection of the tumor cells, 4 × 10⁶ above pretreated CAR-iMACs mixed with 200 μm 0.1% BSA in PBS were injected at the same position in the abdominal cavity of the tumor-bearing mouse. Two hours after CAR-iMACs injection, d-luciferin (GoldBio, LUCK-1G) was injected intraperitoneally into the mice at 150 mg kg⁻¹ dosage, followed by live animal imaging through the animal imaging system (IVIS Lumina series III) to capture the BLI signal. Subsequently, live animal imaging was conducted at the same time point on days 1, 3, 7 and 15 to monitor tumor growth.

To evaluate the efficacy of the CAR-iMACs against intracranial GBM, 1 × 10⁴ FFluc⁺ U87MG^EGFRvIII cells were seeded into the corpus striatum of 6-week-old male NOD-SCID mice. After 6 d of good care, 2 × 10⁵ EGFRvIII-targeting CAR-iMACs with no pretreatment were intracranially injected into the GBM lesion. Live animal imaging was conducted at the same time point on days 1, 2, 2, 5 and 15 after treatment.

To test the antitumor potency of GPC3-targeting CAR-iMACs against HCC in vivo, 5 × 10⁵ FFluc⁺ HepG2 cells were intraperitoneally injected into a 6-week-old male B-NDG mouse. Four days after that, 2.5 × 10⁷ cytokine-free medium pretreated GPC3-targeting CAR-iMACs were injected into HCC-bearing mice, followed by live animal imaging as performed above on days 0, 1, 2, 10, 14, 34 and 54. The treatment of HCC-bearing mice by GPC3-targeting CAR-iMACs combined with CD47 antibody (50 μg per mouse) was performed as the strategy above.

To assess the TME with syngeneic mouse models, 3 × 10⁶ Hepa1-6^GPC3 cells were inoculated subcutaneously into the left flank of 8-week-old male C57BL/6 mice on day 0. On day 3, the tumors were palpable, mice were treated intratumorally with C57BL/6 mice-derived G1-CAR-BMDM (1 × 10⁷ cells), or G2-CAR-BMDM (1 × 10⁷ cells), or with PBS. Before treatment, the CAR-BMDM cells were stimulated with 50 ng ml⁻¹ IFNγ for 24 h and 100 ng ml⁻¹ LPS for 30 min. The mice were monitored for tumor growth and body weight every 2 d starting on the day the CAR-BMDM cells were injected. Tumor volumes were measured by length (L) and depth (D) and calculated as tumor volume = (4/3) × π × (L/2) × (D/2) × (D/2). On day 10, the mice were sacrificed, and the tumors were collected and digested to obtain single-cell suspensions. The cells were incubated with IF-conjugated Abs in PBS containing 2% FBS for 30 min at room temperature after blockade by TruStain FcX PLUS (anti-mouse CD16/32) Antibody (BioLegend, CloneS17011E, 156603, Lot: B362118; 0.25 µg per 10⁻⁶ cells). The following Abs were used: Phycoerythrin (PE)/Cyanine7 anti-mouse CD3 (BioLegend, Clone: 17A2, 126408, Lot: B356287; 1:100), FITC anti-mouse CD45 (BioLegend, Clone: 30-F11, 103108, Lot: B363912; 1:100), PE anti-mouse CD4 (BioLegend, Clone: RM4-5, 100511, Lot: B359453; 1:100), PE anti-mouse CD69 (BioLegend, Clone: H1.2F3, 104514, Lot: B372693; 1:100), PE/Cyanine7 anti-mouse CD107a (BioLegend, Clone: 1D4B, 121619, Lot: B376215; 1:100), PE/Cyanine7 anti-mouse CD11b (BioLegen, Clone: M1/70, 101207, Lot: B279981; 1:100), APC anti-mouse CD11c (BioLegend, Clone: N418, 117310, Lot: B372999; 1:100), BV421 anti-mouse CD86 (BioLegend, Clone: GL-1, 105031, Lot: B261490; 1:100) and PE/Cyanine7 anti-mouse CD206 (BioLegend, Clone: C086C2, 141705, Lot: B347491; 1:100). The stained cell samples were analyzed on a flow cytometer (BD Biosciences) with FlowJo (Version 9).

Antigen cross-presentation assays

The U87MG^EGFRvIII cells were transduced with lentiviral vectors to express NY-ESO-1 only or with HLA-A0201. The NY-ESO-1-specific Jurkat cells were generated by transducing the Jurkat TCRαβ-KO cell line with a lentivirus encoding the anti-NY-ESO-1-specific TCR(1G4). The human CAR-iMACs with HLA-A0201⁺ phenotype were pretreated by IFN-γ (20 ng ml⁻¹) for 24 h, followed by LPS (100 ng ml⁻¹) for 30 min. Next, 5 × 10⁴ CAR-iMACs were cocultured with 1 × 10⁴ U87MG^EGFRvIII, U87MG^EGFRvIII-NY and U87MG^EGFRvIII-HLA0201-NY cells for 48 h in 96-well plates. Subsequently, 5 × 10⁴ NY-ESO-1-specific Jurkat cells were added to each well. Twenty-four hours later, T cells were analyzed for activation marker CD69 using Flow Cytometry. The data were presented by GraphPad Prism 8.2.1.

IF assay

To detect the expression of EGFRvIII in the U87MG^EGFRvIII cell line, the U87MG^EGFRvIII cells attaching to 0.1% gelatin-coated glass slides were incubated with primary antibody against EGFRvIII (CST, 64952; 1:200) at 4 °C overlight, followed by incubation with a secondary antibody (Alexa Fluor 647 donkey anti-rabbit immunoglobulin G (IgG), Abcam, ab150075; 1:1,000), for 1 h in 37 °C. Afterward, the glass slides were mounted with an antifading mounting medium (with DAPI; Solarbio, S2110). Cells were observed with a Zeiss LSM800 fluorescence microscope at a ×63 oil objective. LSM800 with the Airyscan module was used to capture high-resolution pictures.

For detecting NF-κB/P65, the EGFP-marked CAR-iMACs were co-incubated with tdTomato⁺ U87MG^EGFRvIII cells for 4 and 12 h, respectively, in 0.1% gelatin-coated glass slides. Afterward, the cells were incubated with Alexa Fluor 647-conjugated rabbit antibodies against NF-κB/p65 (CST, 8801; 1:100) at 4 °C overnight, followed by being mounted with an antifading mounting medium.

Detection of phagocytosis by CAR-iMACs/CAR-BMDMs

To capture phagocytosis of CAR-iMACs/BMDMs against target tumor cells, we incubated EGFP-labeled CAR-iMACs/BMDMs with tdTomato⁺ tumor cells at an E/T ratio of 10/1 in Glass Bottom Cell Culture Dish (NEST, 801001) for 12 h. Afterward, cells were observed under an Olympus FV3000 confocal microscope with the ×60 oil objective. Processing of images was conducted through ImageJ software.

HIS-SIM imaging

The procedure for Hessian-SIM imaging was performed by following the previous report⁵¹. A commercial HIS-SIM was used to acquire and reconstruct the cell images. To further improve the resolution and contrast in reconstructed images, sparse deconvolution was used by following the previous report⁵².

RNA isolation and qRT–PCR

Total RNA extraction was performed using Eastep Super Total RNA Extraction Kit (Shanghai Promega Bio, LS1040) according to the manufacturer’s instructions. cDNA was prepared using HiScript II Q Select RT SuperMix for qRT–PCR with gDNA wiper (Vazyme, R223-01). Gene expression was analyzed in triplicates using HiScript II One Step qRT–PCR SYBR Green Kit (Vazyme, Q221-04) and Bio-Rad PCR machine (CFX-96 Touch). The difference in cycle threshold values (ΔCT) of all genes tested was normalized to the ΔCT of glyceraldehyde-3-phosphate dehydrogenase, and the fold change in expression was expressed relative to WT iMACs. The primer sequences used in the qRT–PCR assay are listed in the Supplementary Data.

Immunoblotting (IB)

The IB assay was performed with conventional SDS–PAGE. The lysates were obtained from WT and EGFRvIII-expressing U87MG cells with RIPA buffer (Beyotime, P0013K) containing protease inhibitors (Roche, 04693124001). The antibodies used in these experiments are as follows: rabbit anti-human EGFR (CST, 4267; 1:2,000), rabbit anti-human EGFRvIII polyclonal antibody (Absin, abs124275; 1:1,000) and rabbit anti-human β-actin (CST, 4970; 1:10,000). Blots were incubated with SuperSignal West Pico PLUS Chemiluminescent Substrate (Thermo Fisher Scientific, 34577). Signal from blots was detected with ChemiDoc Touch Imaging System (Bio-Rad).

Fluorescence-activated cell sorting (FACS) analysis

Flow cytometry was performed on Beckman CytoFLEX LX (Version 9). FACS data were collected using CytExpert (Version 2.3) and were processed using FlowJo (Version 9). To detect the expression efficiency of CARs in CAR-iMACs, we performed flow cytometry by using rabbit anti-human IgG F(ab′)2/APC (Bioss, bs-0364R-APC; 1:100) that can recognize the F(ab′)2 fragment of EGFRvIII- and GPC3-CARs. The WT-iMACs stained or unstained with the APC-conjugated F(ab′)2 antibody were applied as the negative control.

To count the residual tumor cells after treatment by CAR-iMACs, tdTomato⁺ U87MG^EGFRvIII cells were incubated with CAR-iMACs at E/T ratios of 3/1, 5/1 and 10/1 for 12 and 24 h, respectively, in vitro. The cells were digested using 0.25% trypsin-EDTA (Meilunbio, MA0233). The dissociated cells were resuspended with 0.1% BSA and then filtered into individual cells using a 300-mesh. The PE fluorescence channel was chosen to detect tdTomato⁺ U87MG^EGFRvIII cells. The FITC channel was used to recognize EGFP-marked CAR-iMACs.

To assess dynamic changes in the polarization state of the CAR-iMACs in the presence of tumor cells in vitro, we first incubated EGFP-marked CAR-iMACs with U87MG^EGFRvIII cells without tdTomato at an E/T ratio of 10/1 for 1, 2, 3 and 7 d, respectively. After that, the cells were collected as performed above and stained with PE fluorophore-conjugated antibodies recognizing human CD80 protein (PE-CD80; Biolegend, 305208, Lot: B330518; 1:200) or the human CD163-specific antibody conjugated with PE (PE-CD163; Biolegend, 333606, Lot: B347256; 1:200). Then, flow cytometry was performed to collect the EGFP-positive population of CAR-iMACs, followed by detection of CD80⁺ and CD163⁺ cells from EGFP-marked CAR-iMACs

To analyze the polarization state of CAR-iMACs in vivo, we first cultured EGFRvIII-targeting CAR-iMACs with a cytokine-free medium (for 48 h). This time, we created tumor models using U87MG^EGFRvIII cells without tdTomato to eliminate interference from its signal. After 2 d of CAR-iMACs treatment, we isolated CAR-iMACs from the tumor-bearing mice using a dissociative buffer containing 0.02% collagenase IV (Solarbio, C8160), 0.01% hyaluronidase (Meilunbio, 37326-33-3) and 0.002% DNAase (Meilunbio, 9003-98-9), and the cells were stained using the PE-CD80 or PE-CD163 antibodies.

Apoptosis analysis

To analyze the apoptosis of target tumor cells, we incubated EGFP-labeled CAR-iMACs with tdTomato⁺ tumor cells at an E/T ratio of 10/1 in vitro for 6 and 12 h, respectively. Afterward, cells were collected for FCM analysis with an Annexin V-Alexa Fluor 647/PI Apoptosis Detection Kit (Yeasen, 40304ES50) on the Beckman CytoFLEX LX (Version 9). The FACS data were processed by FlowJo V10. To investigate the effect of TNF on tumor cell apoptosis, we treated the incubation system with 5 μg ml⁻¹ Adalimumab (Targetmol, 331731-18-1) for 12 h and performed FCM analysis.

Generation of single-cell GEMs and sequencing libraries

We established single-cell GEMs (gel beads in emulsion) and sequencing libraries using methods described in our previous work²⁵. In total, 10,000 cells (90–95% viability) were captured per sample using a 10x Chromium device using 10x V2 Single-Cell 3′ Solution reagents (10x Genomics) at a concentration of 1,000 cells per μl. The experiment was performed according to the manual instructions. After GEM-reverse–transcription (RT) incubation, barcoded cDNA was purified with DynaBeads cleanup mix, followed by ten cycles of PCR amplification (98 °C for 3 min; (98 °C for 15 s, 67 °C for 20 s, 72 °C for 1 min) × 10; 72 °C for 1 min). The total cDNA of single-cell transcriptomes was then fragmented, with double-size selection using solid-phase reversible immobilization (SPRI) beads (Beckman), followed by 12 cycles of sample index PCR amplification (98 °C for 45 s; (98 °C for 20 s, 54 °C for 30 s, 72 °C for 1 min) × 10; 72 °C for 1 min). Subsequently, another double-size selection with SPRI beads was performed before sequencing (Illumina NextSeq platform).

Public bulk RNA-seq data mapping and analysis

A publicly available bulk RNA-seq dataset of iPSC and macrophage cells was obtained from two previous studies^46,53. All publicly available bulk RNA-seq reads were first trimmed using Trimmomatic (version 0.36) software with the parameters ‘ILLUMINACLIP: TruSeq3-PE.fa:2:30:10 LEADING:3 TRAILING:3 SLIDINGWINDOW:4:15 MINLEN:36’ and were further quality-filtered using the FASTX Toolkit (version 0.0.13, http://hannonlab.cshl.edu/fastx_toolkit/) with the minimum quality score 20 and a minimum of 80% of bases that have a quality score larger than this cutoff value. The high-quality reads were mapped to the GRCh38 genome by HISAT2, a fast and sensitive spliced alignment program for mapping RNA-seq reads, with the -dta parameter. PCR duplicate reads were removed using Picard tools (v2.18.2), and only uniquely mapped reads were kept for further analysis. The expression levels of genes were calculated by StringTie (v1.3.4d, with -e -B -G parameters) using Release 28 (GRCh38.p12) gene annotations downloaded from the GENCODE data portal. To obtain reliable and cross-sample comparable expression abundance estimation for each gene, reads mapped to the reference genome were counted as transcripts per million (TPM) reads based on their genome locations. We used ‘prcomp’ and pheatmap function with default parameters for PCA and hierarchical clustering, respectively. We also used high confident genes characterizing the M1 and M2 states (with the maximum TPM values among different samples larger than 1) for PCA and hierarchical clustering analysis.

scRNA-seq data analysis

The ‘cellrange count’ program, a subcommand included in the 10× single-cell gene expression analysis pipeline (https://support.10xgenomics.com/single-cell-gene-expression/), was used to produce a gene–cell barcode expression matrix. The single-cell gene expression matrix was analyzed with Seurat v3.2.1 (https://satijalab.org/seurat/). To guarantee the quality of genes and cells, we excluded genes expressed in fewer than three cells and cells expressing less than 200 genes. We also filtered the cells with the expressional percentages of mitochondrial genes larger than 20%. We then adopted the top 20 principal components for tSNE and clustering analysis with a cluster resolution of 0.1.

The known cell identities (types) of each cell cluster of gene expression data were further predicted by an entropy-based predictor with default parameters (http://scibet.cancer-pku.cn/; SciBet v1.0). To perform a comprehensive annotation of well-known cell types, we used an Atlas database of cell types during human fetal liver hematopoiesis and integrated them with 30 major human cell type databases from 42 scRNA-seq datasets^54,55. To perform PCA, hierarchical clustering and differential gene expression analysis on bulk RNA-seq data, we grouped and summed up the normalized expression levels of our single-cell gene expression data to produce the synthetic bulk RNA-seq dataset. We used ‘prcomp’ function, pheatmap (https://cran.r-project.org/web/packages/pheatmap/index.html) and DESeq2 (https://bioconductor.org/packages/release/bioc/html/DESeq2.html) packages with default parameters for PCA, hierarchical clustering and differential gene expression analysis, respectively. The IPSDM MAC, IPSDM M1 and IPSDM M2 used in PCA, and hierarchical clustering were obtained from the Gene Expression Omnibus (GEO) database (GSE55536)⁴⁶. The bioinformatics data analysis and visualization of results were performed in R software (4.0.2)/Bioconductor (v3.13) using custom R scripts.

Statistical analysis

All statistical analyses for next-generation sequencing (NGS) data were performed with R software (4.0.2). The other statistical analyses were performed with GraphPad Prism 8.2.1 software. Details of individual tests are outlined within each figure legend, including the number of replications performed (n) and the reported error as standard error of the mean (mean ± s.e.m.). P values of statistical analyses for NGS data were as the following: NS, not significant, *P < 0.05, **P < 0.01 and ***P < 0.001, calculated by the Wilcoxon signed-rank test (for paired samples), Mann–Whitney U test (for independent samples). P values of statistical analyses performed with GraphPad Prism 8.2.1 software were as the following: NS, not significant, *P < 0.05, **P < 0.01, ***P < 0.001 and ****P < 0.0001, and were calculated by the two-way ANOVA, multiple t tests, two-tailed/non-paired t test and as described in the figure legends. Data distribution was assumed to be normal, but this was not formally tested. No statistical methods were used to predetermine sample sizes, but our sample sizes are similar to those reported in previous publications^25,26. All the data collection was randomized. For animal studies, tumor-bearing mice were randomly assigned to the various experimental groups and received CAR-iMACs treatment. Data collection and analysis were not performed blind to the conditions of the experiments. No animals or data points were excluded from the analysis.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

scRNA-seq generated in this study has been deposited in the National Center for Biotechnology Information GEO database under the accession code GSE214140. Previously published single-cell and bulk RNA-Seq data that were re-analyzed here are available under accession codes E-MTAB-7407 and GSE55536. Source data are provided with this paper.

Code availability

The codes used for the analysis reported in this study are freely available at https://github.com/huayu1111/carmProj.

Change history

18 December 2023
A Correction to this paper has been published: https://doi.org/10.1038/s41590-023-01734-4
