The eukaryotic phylum of Apicomplexa includes several important human parasites, such as Toxoplasma gondii, Cryptosporidium spp. and Plasmodium spp., which are responsible for toxoplasmosis, cryptosporidiosis and malaria, respectively. These intracellular parasites invade host cells and tissues using a unique mechanism of gliding motility1,2, which is powered by actomyosin motors3,4,5 and relies on a dynamic, cone-shaped organelle known as the conoid6.

The T. gondii conoid (Fig. 1a) is a cage made up of ~14 spiral conoid fibers (CFs), each formed by nine tubulin protofilaments arranged in a bent C-shaped open tubule7. These CFs are packed against each other and are capped at the apical end by three preconoidal rings (PCRs) and at their base by an apical polar ring (APR), through which the conoid extrudes and retracts8,9. Within the conoid cage are a pair of conventional microtubules made of 13 protofilaments7. These intraconoidal microtubules (ICMTs) have an essential role in the docking and discharge of secretory organelles termed rhoptries10, the contents of which are essential for host cell invasion11,12. In Cryptosporidium parvum sporozoites, the conoid is shorter but key features such as the PCRs and APR are conserved13. The conoid structure is even more reduced in Plasmodium spp., although the PCRs and APR remain conserved and a short, flattened conoid structure is observed in the motile ookinete stage within the mosquito midgut14,15,16,17.

Fig. 1: Cryo-EM structure of the CF.
figure 1

a, Schematic diagram of T. gondii, adapted from a previous study47. b, Representative cryo-EM image showing well-separated CFs following sonication and protease treatment. Overlapping boxes (yellow rectangles) were used to extract CF particles. c, Selected 2D class averages of CF particles, showing different views. d, Cross-sectional view of the cryo-EM structure of a CF segment, with component proteins displayed in distinct colors. Three clusters of proteins bound to the external tubulin surfaces are indicated by black dashed circles. e, Longitudinal view of the CF segment shown in d. f, Interprotofilament angles of the CF. g, Single-particle cryo-EM structure of CF (dark gray) fitted into a previously reported subtomogram average of CF (light orange) (EMD-66190)34. The red arrow indicates additional densities above the CPH1–DCX–CF6 network that are absent in our single-particle cryo-EM structure.

Source data

The APR in T. gondii anchors the minus ends of 22 subpellicular microtubules (SPMTs) that extend posteriorly to subtend the membrane along two thirds of the cell body (Fig. 1a). These SPMTs are associated with the inner membrane complex (IMC), a set of flattened membrane vesicles (alveoli) that lie beneath the parasite’s plasma membrane18. Unlike mammalian microtubules, SPMTs in T. gondii are remarkably stable, retaining their structure under detergent treatment and cold exposure19,20. This stability is mainly attributed to the binding of microtubule inner proteins (MIPs)21,22 and the integral membrane proteins of the IMC23.

Our current knowledge about the protein composition of the conoid has been obtained through microscopy of epitope-tagged proteins6,15,24,25,26 and cellular fractionation combined with proteomics, including the hyperplexed localization of organelle proteins by isotope tagging (hyperLOPIT) approach27. Collectively, these studies localize over 40 proteins to the conoid with high confidence28, although they typically lack resolution to assign proteins to specific complexes and the current lists are unlikely to be complete because of limitations in methodology.

Recently, cryo-electron tomography (cryo-ET) and subtomogram averaging have enabled visualization of the conoid structure of apicomplexan species with unprecedented detail10,12,17,29,30,31,32,33,34. However, the resolutions achieved so far, typically 8–30 Å, have been insufficient for direct protein identification, thereby limiting further functional characterization.

In this study, we applied another major cryo-electron microscopy (cryo-EM) technique, single-particle analysis (SPA), to native samples purified from T. gondii and determined high-resolution structures of several key conoid components, including the CFs, both ICMTs, the apical region of SPMTs and one of the PCRs (Fig. 1a). With resolutions often exceeding 3.5 Å, we confidently assigned 40 different proteins to the cryo-EM densities and built their atomic models, revealing their three-dimensional (3D) organization and interaction partners. Our structures enabled rational design of synthetic lethal pairs and identification of essential genes through phenotypic screening. Our work offers unique insights into how tubulin polymers acquire specialized functions and properties through interactions with associated proteins. Furthermore, it sheds light on the molecular mechanisms underlying conoid extrusion, a critical process for apicomplexan parasite invasion and egress (exit) from host cells.

Results

Structure of the CFs

To determine the structure of CFs, we used an established protocol to isolate and concentrate intact conoids from detergent treated T. gondii cells (Methods). After proteolytic treatment with α-chymotrypsin to disassemble the conoids into separated CFs, we vitrified the samples on cryo-EM grids and collected tens of thousands of micrographs using a Titan Krios microscope (Fig. 1b). To reconstruct the CF repeat unit using single-particle cryo-EM, we extracted consecutive CF segments along the fiber axis using overlapping boxes with an 8-nm step size (Fig. 1b and Extended Data Fig. 1) and treated each segment as a single particle. Because of their twisted geometry, we successfully captured multiple views of a CF segment (Fig. 1c), enabling us to reconstruct its 3D structure at 2.9-Å resolution (Fig. 1d).

The structure revealed a twist angle of −1.67° between consecutive α,β-tubulin heterodimers within the same protofilament. In contrast, conventional microtubules typically exhibit a twist angle of ~0.1° (ref. 35). This substantial deviation explains the curved morphology of CF (Fig. 1b,c), which may only be possible in the bent C-shaped configuration. We also identified a ‘microtubule seam’ (ref. 36) between protofilaments 4 and 5, where α-tubulin is laterally associated with β-tubulin (Fig. 1d). The angles between protofilaments 2–3 and 3–4 are unusually large compared to the 27.7° angle typical of a 13-protofilament microtubule (Fig. 1f) and are largely responsible for the bent C shape. At these sites, the canonical tubulin lateral interfaces are preserved but further reinforced by neighboring microtubule-associated proteins (MAPs).

The high-quality side-chain densities of our structure (Extended Data Fig. 2) also allowed the identification of 12 different proteins bound to the tubulin surfaces. Six of these proteins were renamed CF1 through CF6 (Table 1 and Extended Data Fig. 3). CF2, CF3, CF4 and SPM1 (ref. 22) are MIPs that bind to the open lumen of the CF (Fig. 2a). CF2 is particularly abundant, forming eight coiled-coil heterodimers that associate with the luminal surface of protofilaments 5–9 (Fig. 2d), with its C-terminal short helices binding across the seam (Fig. 2g, red arrow). Unlike other CF proteins, CF2 exhibits 24-nm rather than 8-nm periodicity (Fig. 2d). While CF2, CF3 and CF4 may be specific to CFs, SPM1 is also present on nearly all protofilaments of T. gondii SPMTs21. Collectively, these MIPs likely contribute to scaffolding and stabilizing the distinctive bent C-shaped geometry of CFs.

Fig. 2: Atomic model of the CF.
figure 2

a, Cross-sectional view of the atomic model of a CF segment, with component proteins shown in distinct colors. Viewing angles for b, d, e and g are indicated. b, Close-up view of TgDCX bound at the intradimer interface on the microtubule lattice. c, Close-up view of human DCX (PDB 6RF2)39 bound at the interdimer interface on the microtubule lattice. d, Longitudinal view of a CF segment with 24-nm periodicity, showing component proteins in distinct colors. Atomic models of α,β-tubulin are hidden for clarity. e, Close-up view of T. gondii SAS6L linear array in the region indicated by dashed rectangles in d. f, Crystal structure of zebrafish SAS6 homodimer (PDB 2Y3W)41. g, Luminal view of the CF structure showing that C-terminal short helices of CF2 bind across the seam. h, External surface view of the seam between protofilaments 4 and 5. i, Cutaway view of the CF structure showing CIP3 penetrating through the tubulin wall.

Table 1 Proteins identified by cryo-EM in this study, organized by complex

We identified three protein clusters bound to the external tubulin surfaces. The first cluster consists of conoid protein hub 1 (CPH1), doublecortin (DCX) and CF6, which form a meshwork over the crests of protofilaments 5–9 (Figs. 1d and 2a). Within this region, the interprotofilament angle stays consistently around 19° (Fig. 1f), accounting for the repetitive lateral binding pattern of the CPH1–DCX–CF6 complex (Fig. 1d,e). Both CPH1 and DCX are crucial for the structural integrity of the conoid25,37,38. Notably, T. gondii DCX (TgDCX) binds to the tubulin lattice in a manner distinct from its mammalian orthologs39 (Fig. 2b,c). The cryo-ET structure of the T. gondii conoid34 shows additional densities above the CPH1–DCX–CF6 network (Fig. 1g, red arrow), indicating that these densities were lost during our sample preparation.

The second protein cluster forms a prominent bulge on protofilaments 2–3 (Figs. 1d and 2a) and comprises SAS6L, elements from CIP3 and a proline-rich protein (PRP), all of which specifically localize to the conoid25,27,40. Interestingly, SAS6L homodimers form a linear array aligned along the CF axis (Fig. 2e) with interfaces similar to those of its homolog, SAS-6 (Fig. 2f), known to form the ring-like structure of the centriolar cartwheel41. These linear arrays likely explain the filaments observed following overexpression of SAS6L in Toxoplasma tachyzoites40.

The extended protein CIP3 appears to function as a molecular ‘glue’, wrapping around protofilaments 2–5 (Fig. 2a) and bridging across the seam (Fig. 2h, red arrow). CIP3 penetrates the tubulin wall (Fig. 2h,i, red arrows), engaging internally with the MIPs and externally with the third protein cluster: a coiled-coil homodimer of CF1 that extends across the seam from the CPH1 molecule bound to protofilament 5 (Fig. 2h). The distal end of CF1 interacts with CF5 and two more SAS6L linear arrays (Fig. 2a,d). Comparison to cryo-ET structures31,33,34 indicates that this assembly is positioned between neighboring CFs in cells (Figs. 1g and 3a), leading us to designate it as the ‘bridging complex’.

Structure-guided genetic disruption of identified CF proteins

Despite the bridging complex apparently linking neighboring CFs, a previous genome-wide CRISPR screen42 indicated that all four proteins (CF1, CF5, SAS6L and CIP3) are individually nonessential (Fig. 3b) and experimental deletion of the genes encoding CIP3 and SAS6L caused only mild growth defects25,40.

Fig. 3: Structure-guided genetic disruption of identified CF proteins within the bridging complex.
figure 3

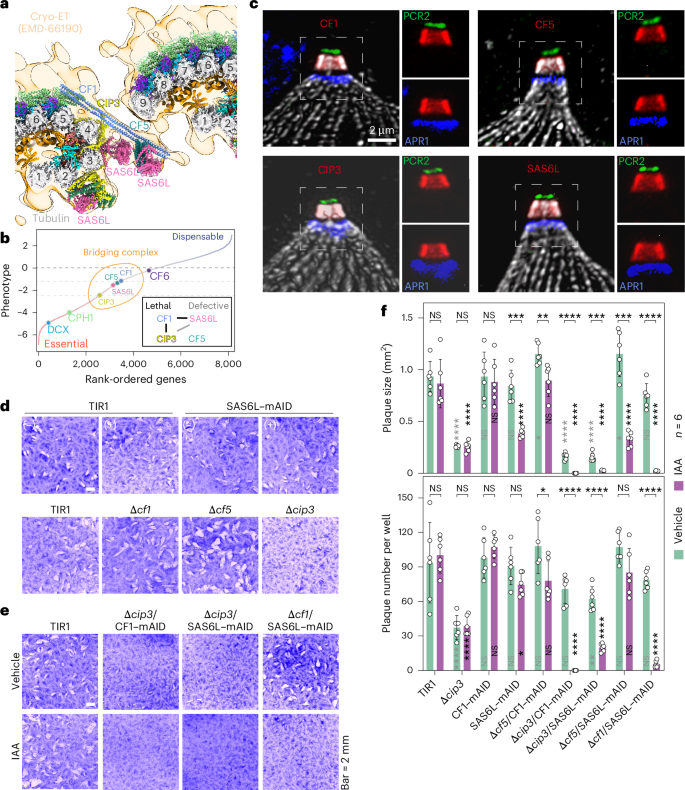

a, Atomic model of two adjacent CFs fitted into a previously reported subtomogram average of the CF (light orange) (EMD-66190)34. b, Positions of eight CF component genes in the phenotypic ranking of all T. gondii genes (x axis), as determined in a genome-wide KO screen42. The phenotype scores (fitness scores) for each gene (y axis) were obtained from ToxoDB75, where genes with low scores are predicted to be essential. Inset: the two synthetic lethal pairs (black lines) and one synthetic defective pair (gray line) identified in this study. c, Costaining of the four bridging complex proteins with selected markers using U-ExM. Markers include PCR2 (green), APR1 (blue) and tubulin (gray). Freshly egressed extracellular parasites were labeled with chicken anti-Myc and anti-chicken IgY Alexa Fluor 405 (blue), mouse anti-Ty and anti-mouse IgG Alexa Fluor 488 (green), rat anti-HA and anti-rat IgG Alexa Fluor 555 (red), and rabbit anti-Tubulin and anti-rabbit IgG Alexa Fluor 647 (gray). d, Plaque assay of four bridging complex protein mutants, generated through clean KO or cKD, on HFF monolayers treated with IAA or vehicle control (−IAA) for 8 days with 200 parasites per monolayer. Scale bar, 5 mm. e, Plaque assay of 2 synthetic lethal pairs and 1 synthetic defective pair on HFF monolayers treated with IAA or vehicle control (−IAA) for 8 days with 200 parasites per monolayer. Scale bar, 5 mm. f, Quantification of plaque area and number in parental lines and synthetic mutants (n = 6), from 3 independent experiments, each with 2 technical replicates. Data are shown as the mean ± s.d. Each parasite line was analyzed individually for statistical significance using an unpaired Student’s t-test (IAA versus vehicle). NS, not significant (P ≥ 0.05); *P ≤ 0.05, **P ≤ 0.01, ***P ≤ 0.001 and ****P ≤ 0.0001.

Source data

To further investigate the functional relevance of the bridging complex subunits, we tagged each gene with a C-terminal mini auxin-inducible degron (mAID) cassette (for controlled protein degradation) and a hemagglutinin (HA) epitope (for indirect immunofluorescence assay (IFA)) using CRISPR–Cas9 gene editing techniques, as previously described25,43,44,45. All four proteins localized to the CFs, as confirmed by ultrastructure expansion microscopy (U-ExM) (Fig. 3c). When cultured in the presence of auxin (indole acetic acid, IAA), CF1 and SAS6L were degraded efficiently within 1 h (Extended Data Fig. 4a,b), while CIP3 and CF5 required over 24 h for degradation. We then tested the fitness of parasites after degradation of individual proteins using a growth assay where repeated cycles of parasite invasion, replication and egress (exit) form a visible plaque on monolayers of human foreskin fibroblasts (HFFs). Conditional knockdown (cKD) induced by auxin treatment (+IAA) or complete knockout (KO) of CF1, CF5 and SAS6L individually did not cause detectable defects in plaque formation on host cell monolayers (Fig. 3d,f and Extended Data Fig. 4c), consistent with their modest fitness scores (Fig. 3b). In contrast, depletion of CIP3 led to a decrease in plaque numbers and size (Fig. 3d,f and Extended Data Fig. 4c). Notably, despite the presence of three SAS6L arrays within the CF structure (Figs. 2d and 3a), depletion of SAS6L did not alter the expression or localization of the other three proteins (Extended Data Fig. 4d,e).

Although depletion of individual bridging complex proteins did not cause severe growth defects, this outcome may be attributable to their functional overlap, despite their differences in structure, localization and interaction partners. Such functional overlap likely serves as a mechanism to enhance resilience during the extension and retraction of the conoid, processes that exert notable mechanical stress on the CFs. To investigate this possibility, we leveraged our atomic model of the CF to design synthetic pairs of interacting proteins, for example, a KO of CF1 in the background of the SAS6L–mAID–HA cell line (Extended Data Fig. 4f). In total, we generated five synthetic pairs from the four proteins and identified two synthetic lethal pairs (Δcip3/CF1–mAID and Δcf1/SAS6L–mAID) and one synthetic defective pair (Δcip3/SAS6L–mAID) that exhibited severe growth defects, as evidenced by impaired plaquing assays in the presence of IAA (Fig. 3e,f and Extended Data Fig. 4g). Transmission electron microscopy (TEM) further revealed that these synthetic lethal and defective pairs disrupt the conoid structure in both intracellular and extracellular parasites (Extended Data Fig. 5). These findings underscore the power of structure-guided genetic disruption in identifying functionally important proteins whose roles may otherwise be masked by functional redundancy or overlap.

Structures of the ICMTs

The ICMTs are a pair of conventional 13-protofilament microtubules positioned within the conoid that facilitate rhoptry docking and discharge10. In cryo-EM images of isolated conoids, we often observed ICMT pairs either retained within the conoid (Fig. 4a) or dislodged from the conoid during sample preparation (Fig. 4b). The ICMT pairs were easily distinguishable from SPMTs by the presence of fibrous features on their surfaces (Fig. 4b, red arrow). To determine their structures, we first treated the ICMT pair as a single intact complex (Fig. 4c and Extended Data Fig. 6), yielding a 3D reconstruction at 13 Å resolution (Fig. 4d). We then refined each ICMT individually (designated ICMT-1 and ICMT-2), achieving a local resolution of ~3.4 Å, which enabled direct protein identification using side-chain information obtained from the cryo-EM density maps.

Fig. 4: Cryo-EM structures of ICMTs and apical SPMTs.
figure 4

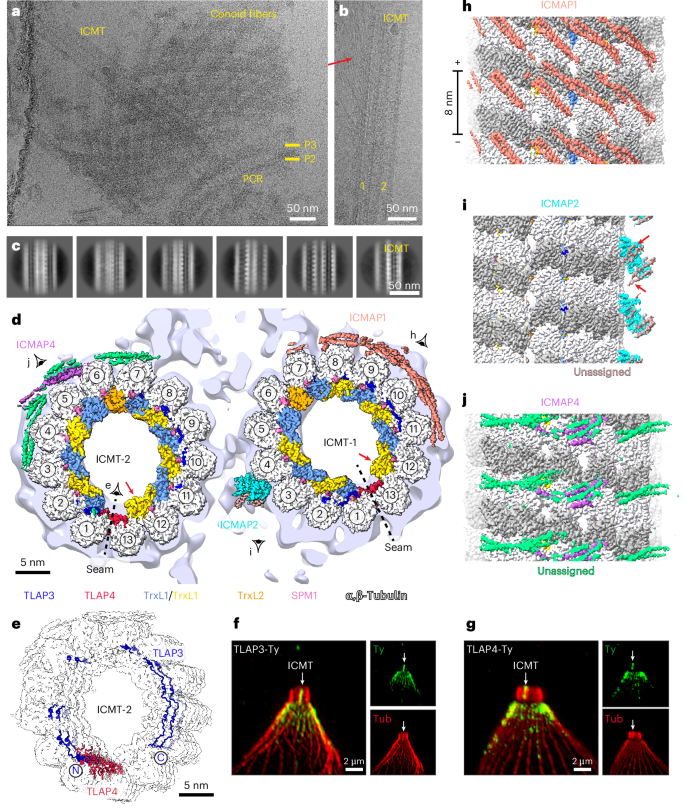

a, Representative cryo-EM image showing a pair of ICMTs within the conoid. b, Example of an ICMT pair dislodged from the conoid, revealing fibrous densities on their sides. c, Selected 2D class averages of ICMT particles showing different views. d, Cross-sectional view of the cryo-EM structures of ICMT-1 and ICMT-2, with associated proteins. The light-purple density in the background is our single-particle 3D reconstruction of the ICMT pair, obtained before refining each ICMT individually. e, Tilted view of ICMT-2 showing that TLAP3 spans laterally across 11 of the 13 protofilaments, while TLAP4 binds specifically at the microtubule seam. TLAP3 and TLAP4 in ICMT-1 and apical SPMT exhibit similar appearances. f,g, Costaining of TLAP3 (f) and TLAP4 (g) with tubulin markers using mouse anti-Ty and anti-mouse IgG Alexa Fluor 488 (green) and rabbit anti-Tubulin and anti-rabbit IgG Alexa Fluor 568 (red) for U-ExM. h,i, Longitudinal views of ICMT-1 showing ICMAP1 (h) and ICMAP2 (i), respectively. j, Longitudinal view of ICMT-2 showing MAP densities (green), with some confidently assigned to ICMAP4 (medium orchid).

The cryo-EM structures revealed that ICMT-1 and ICMT-2 share an almost identical MIP arrangement (Fig. 4d), which is also the same as that of the apical SPMTs (Fig. 1a), as discussed below. The MIPs in these three microtubule types closely resemble those in our previously reported central SPMT structure21 (Fig. 5f,g), with two subtle differences. Firstly, thioredoxin-like protein 1 (TrxL1) replaces its homolog TrxL2 (ref. 46) between protofilaments 12 and 13 (Figs. 4d and 5f, red arrows). Secondly, two additional MIPs, thioredoxin-like associated protein 3 (TLAP3) and TLAP4 (ref. 47), are present (Figs. 4e and 5g, red arrows). TLAP4 binds specifically at the microtubule seam, whereas TLAP3 spans laterally across 11 of the 13 protofilaments (Fig. 4e) and inserts residues into multiple taxol-binding pockets on different protofilaments (Fig. 5h). This microtubule-binding mode makes TLAP3 an arc-MIP, a class of proteins first identified in structures of Chlamydomonas central apparatus microtubules48. We validated the binding of TLAP3 and TLAP4 to ICMTs using U-ExM (Fig. 4f,g, white arrows).

Fig. 5: Cryo-EM structures of apical SPMTs.
figure 5

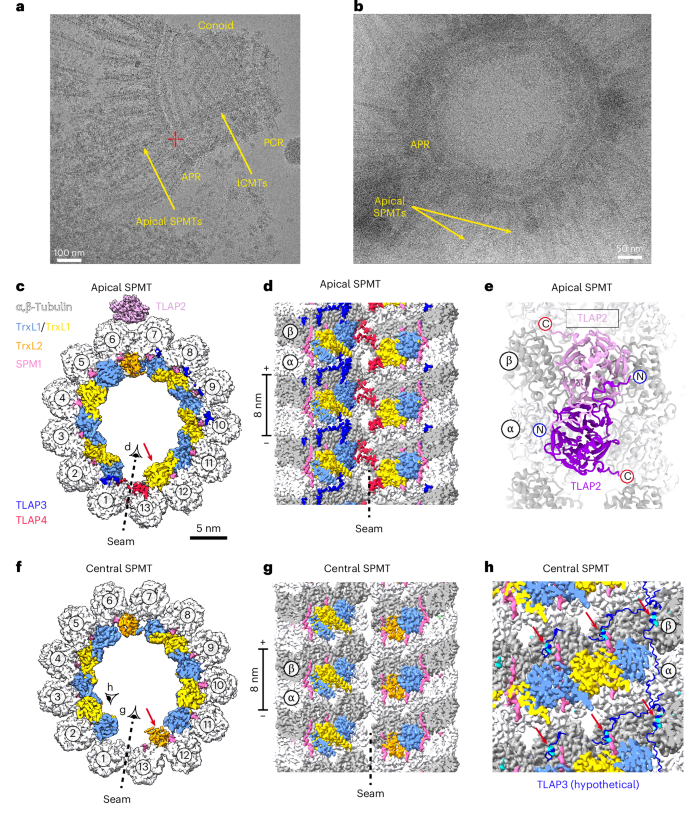

a, Representative cryo-EM image showing an isolated conoid after sonication but before protease treatment. b, Representative cryo-EM image of a conoid sample after sonication and protease treatment, showing SPMTs connected to the APR. c, Cross-sectional view of the cryo-EM structure of apical SPMT, obtained by manually selecting only the SPMTs near the APR, as shown in a and b. d, Luminal view of the seam in the apical SPMT. e, Close-up view of the TLAP2 homodimer bound to the apical SPMT. f, Cross-sectional view of the cryo-EM structure of the central SPMT (EMD-23869)21. g, Luminal view of the seam in the central SPMT, showing the absence of TLAP3 and TLAP4 molecules. h, TLAP3 inserts a segment into the taxol-binding pocket. In the central SPMT, this pocket is occupied by a small molecule-like density (cyan).

In contrast to their similar MIP organizations, the two ICMTs have distinct MAPs asymmetrically distributed on their external surfaces (Fig. 4d). On ICMT-1, a long coiled-coil homodimer of ICMT-associated protein 1 (ICMAP1)49 wraps around five protofilaments (Fig. 4d) with an 8-nm periodicity (Fig. 4h). The resolved α-helices of ICMAP1 represent only a small portion of the total protein (Extended Data Fig. 3); the unresolved portion may account for the long fibrous densities observed on one side of the ICMT pair in our micrographs (Fig. 4b, red arrow) and absent from ICMAP1-depleted parasites10. ICMT-2 is associated with a distinct ICMAP4 on its external surface (Fig. 4d,j), which contains several long α-helices (Extended Data Fig. 3).

At the interface between ICMT-1 and ICMT-2, we observed extensive connecting densities (Fig. 4d). Among these, we resolved a globular density associated with ICMT-1 with 8-nm periodicity and identified it as ICMAP2 (ref. 10). ICMAP2 forms a dimer and binds between protofilaments 3 and 4, with each copy interacting with a pair of helices of unknown identity (Fig. 4i, red arrows). The resolved globular domain of ICMAP2 constitutes only 10% of its total length, with the remaining portion likely contributing to the connecting densities observed between ICMT-1 and ICMT-2 (Fig. 4d). Consistent with its location, deletion of ICMAP2 results in dissociation of the two ICMTs10.

Structure of the apical SPMTs

Our U-ExM results (Fig. 4f,g) indicated that TLAP3/4 also localized to the apical region of the SPMTs (Fig. 1a), suggesting potential structural differences between apical and central regions of SPMTs. To investigate further, we determined the structure of the apical SPMT by manually selecting SPMTs near the APR in our micrographs (Fig. 5a,b). The structure, resolved to 3.3-Å resolution, revealed an MIP organization nearly identical to that of the ICMTs (Fig. 5c). However, it differed in several aspects from the central SPMTs (Fig. 1a), whose cryo-EM data (Fig. 5f,g) were collected semiautomatically without specifically targeting the apical region21. The apical SPMT structure displays the presence of TLAP3/4 and a TrxL1 molecule at the binding site located between protofilaments 12 and 13 (Fig. 5c,d,f,g).

On the external surface of the apical SPMT near protofilaments 6 and 7, we observed a homodimer of TLAP2 (Fig. 5e). Previous studies have shown that TLAP2 coats the entire length of SPMTs, with a gap near the apical end47. Its absence in our previous cryo-EM structure of the central SPMT21 (Fig. 5f) is likely because of different sample treatments. TLAP2 binds to a site directly facing the IMC, as revealed by a prior cryo-ET study31, suggesting that TLAP2 may mediate the association between the SPMTs and the IMC.

Structure of PCR

In the same set of cryo-EM images, we observed PCRs that were either attached or detached from the conoid (Fig. 6a). To reconstruct their 3D structure using single-particle cryo-EM, we extracted consecutive overlapping segments along the circumference of the ring (Fig. 6a) and treated each segment (containing ~3 repeating units) as an individual particle. Some of the rings appeared partially broken or twisted, likely because of the sample treatment needed to disassemble the conoid for single-particle cryo-EM. Serendipitously, these ring defects provided additional views (Fig. 6b), enabling us to obtain a 3D reconstruction at a resolution of 3.3 Å. Using the relative angle between consecutive repeating units in this structure (Fig. 6c, red dashed rectangle), we could extend our model into a complete ring comprising 46 units (Fig. 6c), although a slight misalignment was observed at the rejoining point (Fig. 6c, red arrow).

Fig. 6: Cryo-EM structure of PCR-P2.
figure 6

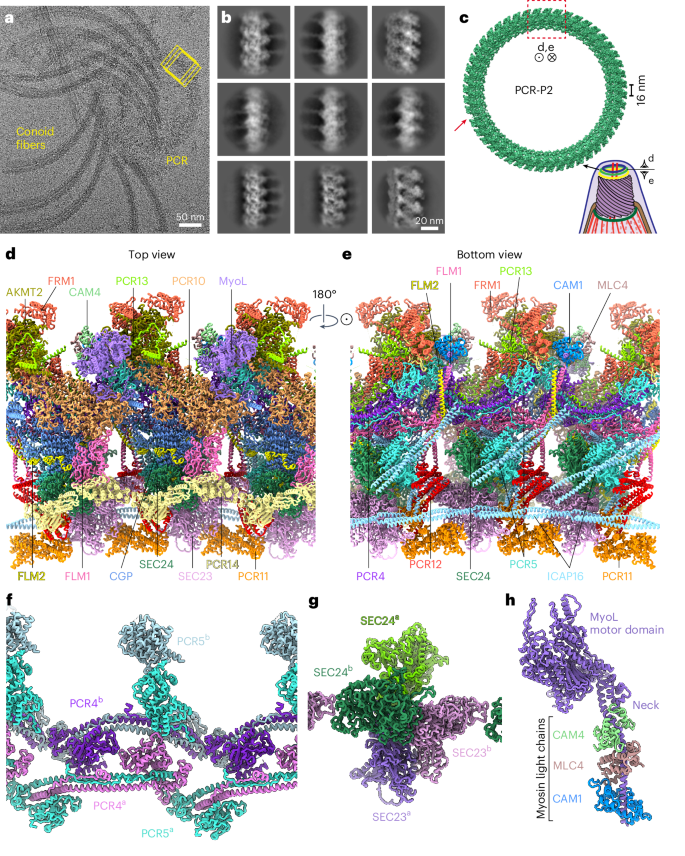

a, Representative cryo-EM image of a conoid sample after sonication and protease treatment, showing a PCR dislodged from the conoid. Overlapping boxes (yellow rectangles) were used to extract the ring segments. b, Selected 2D class averages of ring particles showing different views. c, A hypothetical structure of a complete ring, generated by extending the single-particle structure (red dashed rectangle) using the measured angle between two consecutive repeating units. A slight misalignment was observed at the rejoining point (red arrow). Viewing angles for d and e are indicated. d,e, Top view (d) and bottom view (e) of the atomic model of the PCR-P2 containing ~3 repeating units, with component proteins shown in distinct colors. f, Atomic model of the two copies of PCR4/5 heterodimers located at the core of the PCR-P2. g, Atomic model of the two SEC23/24 heterodimers located at the inner rim of the PCR-P2. h, Atomic model of MyoL interacting with three potential myosin light chain subunits (CAM1, CAM4 and MLC4).

A recent cryo-ET study visualized three PCRs (P1, P2 and P3) at the apical end of the conoid, with P2 and P3 each containing 45–47 subunits per ring33, consistent with our estimate of 46 subunits. Comparison of our structure to the PCR structures from cryo-ET confirmed that it corresponds to the P2 ring (Figs. 5c and 6a, and Extended Data Fig. 7a–c). The high-resolution cryo-EM densities (Extended Data Fig. 2) enabled us to identify 20 distinct subunits densely packed within a single repeat unit of PCR-P2 (Table 1, Fig. 6d,e and Extended Data Fig. 7d,e), with nine proteins present in two copies unrelated by C2 point-group symmetry, such as PCR4, PCR5, SEC23 and SEC24 (Fig. 6f,g). Among the identified proteins, 12 were not characterized previously in terms of localization and phenotype; six of these were renamed PCR10 through PCR15 (Table 1). The 20 proteins contain a variety of structural domains (leucine-rich, tetratricopeptide and ankyrin repeats) and functional domains (methyltransferase and cyclic nucleotide-binding), although not all features are resolved in the cryo-EM map (Extended Data Fig. 8).

The core of the P2 ring comprises two PCR4/5 heterodimers (Fig. 6e,f), corroborating recent findings that are both proteins are essential for maintaining PCR integrity6. PCR4 and PCR5 are homologous except that PCR5 has acquired a C-terminal GTPase-activating domain (Extended Data Fig. 8) that appears to be sterically inhibited from binding GTPases by ICAP16. The core also features conoid gliding protein (CGP) and a structurally related protein, PCR10. Both proteins contain a Clu central domain50 and a tetratricopeptide (TPR)-like domain and make extensive interactions with PCR4/5. The central positioning of CGP and PCR4/5 agrees well with their indispensable roles in supporting gliding motility and egress and the failure of the conoid to extrude in PCR4/5-depleted parasites6,51.

Cryo-ET structures of intact conoids have shown that the P2 and P3 rings are connected by regularly spaced linkers ~25 nm in length33. Our structures suggest that the top of these linkers is formed by elongated α-helical elements from the filamin-domain-containing proteins, FLM1 and FLM2, which form a paired structure extending from the core of PCR-P2 (Figs. 5e and 6a,b). Although filamins typically function as F-actin gelation agents by crosslinking filaments, neither FLM1 nor FLM2 has the conventional actin-binding domain needed for high affinity F-actin binding. Their arrangement in the core of the P2 ring, thus, suggests that they have been co-opted for a structural role.

The surfaces of the P2 ring are functionalized by specific proteins. Notably, the outer rim contains proteins associated with actin nucleation and polymerization, including the actin-nucleator formin 1 (FRM1)52 (Figs. 5d and 6b). The localization of FRM1 to the outer rim corresponds to the observed loss of density by cryo-ET following cKD of FRM1 in T. gondii13. Our structures demonstrate that the TPR domain of FRM1 embeds it within the P2 ring, while its C-terminal FH2 domain, which nucleates actin polymerization, is not resolved and may be flexible. FRM1 interacts extensively with a SET domain-containing protein, which we designate as apical lysine methyltransferase 2 (AKMT2) (Figs. 5d and 6b). This enzyme is related to, but distinct from AKMT, another lysine methyltransferase that localizes to the PCR and conoid and is required for activating parasite motility6,53,54. Collectively, these findings support a model where actin polymerization is initiated at the PCR by FRM1 (ref. 6).

The outer rim also contains myosin L (MyoL), a myosin motor previously localized to the conoid and cytosol55. We could visualize its myosin motor domain (Fig. 6d and Extended Data Fig. 7d) and its neck region interacting with three potential myosin light chain subunits (CAM1 (ref. 43), CAM4 and MLC4 (ref. 56)) (Fig. 6h). Each of these subunits contain calcium-binding EF-hand domains, suggesting that this complex may respond to calcium signaling, which is essential for conoid extrusion25,57,58.

To validate our cryo-EM protein assignments and investigate their functions, we generated mAID-tagged and HA-tagged strains for eight PCR proteins: FRM1, FLM1, FLM2, AKMT2, MyoL, SEC23, SEC24 and PCR10. U-ExM confirmed their localization to the PCR (Fig. 7c and Extended Data Fig. 9d). Notably, SEC23 and SEC24, which are located at the P2 inner rim (Fig. 7b), were also detected at the endoplasmic reticulum (ER)–Golgi interface (Fig. 7e), consistent with their well-characterized functions as subunits of COPII coatamers involved in the transport of the proteins between the ER and the Golgi59. The dual localization of SEC23 and SEC24 implies that they maintain their protein-trafficking roles in addition to serving as structural components of the PCR.

Fig. 7: PCR-P2 contains several essential genes.
figure 7

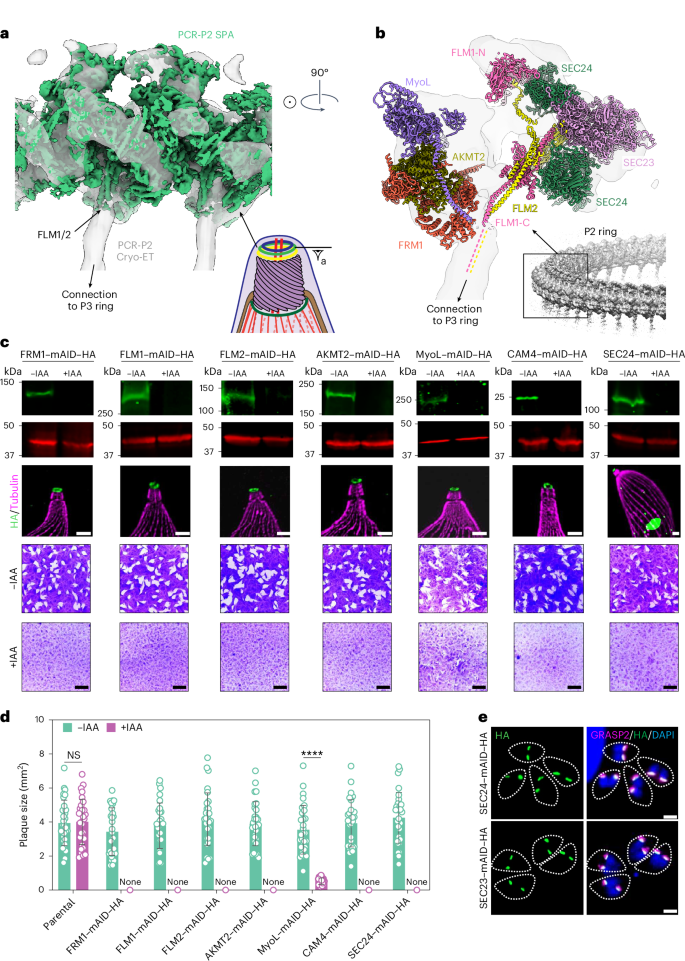

a, The single-particle cryo-EM structure of PCR-P2 (dark green) fitted into a subtomogram average of the PCR P2–P3 rings (gray) (EMD-28126)73. b, Locations of seven identified P2 essential proteins in this study (FRM1, FLM1, FLM2, AKMT2, PCR10, CAM4 and SEC24). c, Rows 1–2: immunoblot of lysates from parasites containing C-terminal mAID–HA-tagged PCR proteins treated with vehicle (−IAA) or 500 μM auxin (+IAA) for 14 h. Western blots were performed for ALD1 (red) and HA (green). Row 3: localization of mAID–HA-tagged PCR proteins by U-ExM. Parasites were detected with rabbit anti-HA (green) and mouse anti-acetylated tubulin (magenta). Scale bars, 2 μm. Rows 4–5: plaque assay of mAID–HA-tagged lines on HFF monolayers treated with IAA or vehicle control (−IAA) for 8 days. Scale bars, 5 mm. d, Quantification of plaque size (n = 3 independent experiments, each with n = 10 technical replicates; total n = 30). Data are presented as the mean ± s.d. Statistical analysis was conducted using a multiple-comparison unpaired Student’s t-test with false discovery rate correction. ****P < 0.000001. None indicates no formed plaques. e, Immunofluorescence microscopy of intracellular dividing SEC23–mAID–HA and SEC24–mAID–HA parasites expressing GRASP2-Ty (Golgi marker) growing on HFF monolayers for 16 h. Parasites were detected with mouse anti-Ty (green) and rabbit anti-HA (magenta). DAPI (blue) was used to stain the nuclei of both HFFs and parasites. Scale bars, 2 µm. In these images, SEC23 and SEC24 signals at the conoid are not evident because of their notably weaker intensity compared to those at the ER–Golgi interface.

Source data

By fusing mAID to their C termini, we achieved efficient depletion of these PCR proteins in parasites through IAA treatment, as confirmed by immunoblotting (Fig. 7c and Extended Data Fig. 9d). cKD of FLM1, FLM2, AKMT2, MyoL and SEC24 completely inhibited lytic parasite growth, as evidenced by the absence of or notable reduction in plaque formation on host cell monolayers (Fig. 7c,d), with FRM1 serving as a previously validated PCR-essential protein control60,61. We further demonstrated that cKD of MyoL resulted in dramatic reduction in the invasion assay (Extended Data Fig. 9c). In contrast, PCR10 and SEC23 are dispensable for parasite growth (Extended Data Fig. 9d), consistent with their more peripheral locations in the structure compared to their structurally related binding partners (CGP and SEC24, respectively). Thus, we identified FLM1, FLM2, AKMT2, MyoL and SEC24 as essential PCR proteins for lytic parasite growth.

Discussion

In this study, we applied SPA cryo-EM to samples isolated from T. gondii and determined structures of several key conoid components, including the CFs, both ICMTs, the apical region of SPMTs and PCR-P2. Through analysis of the cryo-EM density, we confidently assigned 40 different proteins (Table 1) and built their atomic models. Structure-guided genetic disruption of CF proteins identified functionally important proteins that might otherwise be obscured by functional overlap. Furthermore, we identified five PCR proteins (FLM1, FLM2, AKMT2, MyoL and SEC24) that are essential for the parasite’s lytic growth. Our structures provide a blueprint for future functional investigations of individual conoid proteins and their collective roles. Given the structural conservation of these conoid components (Supplementary Table 1), our structures also facilitate functional studies of conoid proteins in other apicomplexans, including Cryptosporidium and Plasmodium spp.

MAPs and MIPs influence the geometry of tubulin polymers

Our structural analysis revealed the detailed organization of the tubulin protofilaments and MAPs that contribute to the unique bent C-shaped geometry of the CFs. A recent cryo-ET study suggested that CFs may originate from SPMTs34, as some CFs in daughter cells exhibit a cylindrical shape reminiscent of conventional microtubule structures. It is intriguing to speculate that binding of the identified CF proteins during early development may guide the structural maturation of a nascent microtubule into bent C-shaped CFs. Consistent with this idea, TgDCX induces strongly curved tubulin polymers when ectopically expressed in Xenopus cells, whereas its mammalian counterparts do not38. Our results may provide a structural explanation for this phenomenon. Specifically, the mammalian DCX domain binds to the tubulin lattice at the interdimer interface39 (Fig. 2c), whereas the DCX domain of TgDCX binds at the intradimer interface, with an N-terminal domain bound at the interdimer interface (Fig. 2b). These interactions likely contribute to the generation of a pronounced twist between two longitudinally interacting tubulin subunits, resulting in the curved geometry of the polymers. Our work, therefore, provides unique insight into how MAPs influence the geometry of tubulin polymers.

MAPs impart microtubules with specialized functions

Beyond shaping tubulin geometries, MAPs also impart microtubules with specialized functions. A compelling example comes from our structural comparison of SPMTs and ICMTs, which enhance cortical rigidity62 and facilitate repeated rounds of rhoptry discharge10, respectively. Our structural analysis showed that both microtubule types have similar MIP organizations, presumably functioning to stabilize the microtubule. However, their MAPs differ and confer unique roles. SPMTs feature TLAP2, which we hypothesize mediates an interaction with the IMC based on its location31, likely through the IMC component protein IMC1 (ref. 63). In contrast, the ICMTs are decorated with long coiled-coil proteins, with ICMAP1 contributing to the formation of fibrous projections from the surface of ICMT-1 (ref. 10).

SPMT network is organized into discrete subdomains defined by MAPs and MIPs

The structural differences between apical and central SPMTs are intriguing, with TLAP3 and TLAP4 exclusively present at the apical end (Figs. 4f,g and 5d,g) and TrxL2 replacing TrxL1 on protofilaments 12 and 13 in central regions (Fig. 5c,f, red arrows). The SPMT network of Trypanosoma species appears to be similarly organized into discrete subdomains (posterior, middle and anterior) defined by distinct MAPs64. One possible explanation for these differences is that the apical and central SPMT regions experience different mechanical stresses during events such as parasite invasion and egress. This reflects an emerging concept in which associated proteins prime the microtubules with specialized mechanical properties depending on function. Supporting evidence for this idea comes from a structural comparison of mammalian axonemal doublet microtubules, which revealed that the doublet microtubules of sperm, which experience more intense forces than other doublet microtubules, exhibit the highest density of MIPs65,66,67,68.

The PCR serves as a platform for initiating and directing actin flow

In our structure of the PCR-P2, we find that several subunits, including PCR4, PCR5 and CGP, are deeply embedded within the ring structure and likely serve structural roles. Other essential structural subunits such as FLM1/2 and SEC24 appear to have been co-opted from other ancestral functions. These structural components create a platform for proteins involved in the processes of actin flow and conoid extrusion, which are essential for parasite invasion and egress. Previous studies proposed that actin filament nucleation is initiated at the level of PCR and subsequently translocated by conoid-associated MyoH motors toward the APR, with the force generated by MyoH driving conoid extrusion6,13. Our structures expand upon this model with atomic-level details. We conclusively demonstrated that FRM1, the essential nucleator of F-actin for gliding motility, is located at the outer rim of the P2 ring (Figs. 5f and 6b), in an ideal position to initiate actin polymerization through a flexible C-terminal FH2 domain. Intriguingly, the close structural interaction with the lysine methyltransferase AKMT2 raises the possibility that actin polymerization by FRM1 may be regulated through methylation. Furthermore, our identification of MyoL within the P2 ring suggests an additional step in actin translocation before transfer to MyoH. Direct interaction of MyoL neck region with three EF-hand-containing subunits (Fig. 6h), which may serve as myosin light chains, support a role for this complex in responding to the calcium signaling that ultimately drives conoid extrusion8. Consistent with this idea, cKD of MyoL severely impaired parasite growth and invasion (Fig. 7c,d and Extended Data Fig. 9c). A previous study reporting that MyoL is dispensable55 may have resulted from partial genetic disruption. Collectively, these findings reveal that PCR-P2 comprises a complex assemblage of structural components with key functional modules at the periphery.

Structural complexity of the PCRs

The complexity of the P2 ring, with at least 20 unique proteins organized into ~46 repeating units, is similar to that of a nuclear pore complex69 and surpasses other oligomeric ring structures including AAA+ ATPases70, pore-forming toxin71 and inflammasomes72. Dense packing of its subunits allows the formation of intricate assemblies with internal binding surfaces that stabilize the structural core, while their diverse external domains likely confer functional roles. Some domains within the structure are not resolved, such as the pleckstrin homology domains of ICAP16 and the cyclic nucleotide-binding domains of PCR12, suggesting a flexibility that may be functionally important. While many of the identified proteins were previously localized to the conoid through microscopy and proteomics, the presence of SEC23/24 at the inner rim was unexpected given their known roles in COPII coatamer formation59. Considering that the inner rim of the P2 ring faces the secretory organelles within the conoid, it is tempting to speculate that SEC23 and SEC24 may have a role in trafficking PCR components or secretory organelles. This interaction could have evolved into their entanglement as permanent structural components of the PCR.

Previous cryo-ET studies revealed distinct morphologies of the three PCRs33,73. We anticipate that each has a distinct protein composition with similar complexity to PCR-P2. Some previously identified PCR proteins not found in our P2 ring structure, such as PCR1 (ref. 15), PCR2 (ref. 26) and PCR6 (ref. 6), are likely localized to the P1 or P3 rings. In C. parvum and Plasmodiumfalciparum, two PCRs with similarly shaped subunits to the P2 and P3 rings in T. gondii were visualized by cryo-ET13,73, suggesting that these features and their composition are conserved across the Apicomplexa phylum.

By resolving structures of conoid components, we revealed a complexity consistent with the conoid’s multifaceted roles as a cytoskeleton component, a platform for actin-based gliding motility and a conduit for coordinated protein secretion. Given the complexity of the conoid, which contains proteins with many annotated functional domains, it is unlikely to have evolved de novo in a single step, nor does it seem to have been imported from a distant source, as this assemblage has no known counterpart in contemporary biology. Understanding the origin and function of the conoid would benefit greatly from studying analogous structures in related apicomplexans, as well as more distant relatives within the Myzozoan group, which span over 1 billion years of evolutionary history74. Insights into the structural and functional evolution of the conoid in these early-branching protozoans could also shed light on the evolution of complex macromolecular cytoskeletal structures that are conserved across eukaryotes.

Methods

Cell culture

T. gondii tachyzoites were cultured in HFFs (American Type Culture Collection) at 37 °C in a 5% CO2 incubator, using DMEM (Life Technologies) with a pH of 7.4, supplemented with 10% FBS (GE Healthcare Life Sciences), 10 μg ml−1 gentamicin (Thermo Fisher Scientific) and 10 mM glutamine (Thermo Fisher Scientific) for maintenance. The e-Myco plus kit (Intron Biotechnology) was used to test all strains and host cell lines, confirming their Mycoplasma-free status. Parasite lines used in the study are listed in Supplementary Table 1. T. gondii type I strain RH TIR1–3FLAG43,76 was used as the original strain for genetic modification.

Plasmid construction

Plasmids were constructed by assembling DNA fragments using the NEBuilder HiFi DNA assembly kit (New England Biolabs). Plasmids used in this study are all listed in Supplementary Table 1.

Primers

All primers were synthesized by Integrated DNA Technologies and are listed in Supplementary Table 1.

Parasite transfection

Fresh parasites were obtained by mechanically scraping HFF monolayers, passing through 25G needles and filtration through 5-µm polycarbonate membranes. Purified parasites were washed with cytomix buffer (10 mM KPO4, 120 mM KCl, 0.15 mM CaCl2, 5 mM MgCl2, 2 mM EDTA, 25 mM HEPES, 2 mM ATP and 5 mM GSH) and then transfected with plasmids and amplicons according to a previous protocol77. Briefly, 1 × 107 parasites were suspended in 300 µl of cytomix buffer and combined with a maximum of 50 µl of purified plasmid (10 µg) and/or DNA amplicons (2 µg) within a 4-mm-gap BTX cuvette and electroporated using a BTX ECM 830 electroporator (Harvard Apparatus) using the following parameters: 1,700 V, 176-ms pulse length and two pulses with a 100-ms interval between pulses. Transfected parasites were cultivated within HFFs for 24 h before drug selection, as described below.

Generation of stable transgenic parasite lines

C-terminal tagging

The RH TIR1–3FLAG line was used as the parental strain for C-terminal epitope tagging. Gene-specific pSAG1:CAS9-U6 (Toxoplasma U6 promoter, an RNA polymerase III promoter):sgRNA (3′) plasmid was generated to target the region downstream of the translation stop codon of the gene of interest. Those sgRNA-specific plasmids were cotransfected with DNA amplicons containing mAID–HA containing a floxed HXGPRT selectable marker with 40-bp homologous arms overlapping with sequences preceding the stop codon and downstream of the protospacer-adjacent motif site. For other epitope tagging, the coding sequence of mAID–HA was replaced with that of Myc and Ty using Gibson assembly. Following transfection, parasites were selected with a combination of mycophenolic acid (25 µg ml−1) and xanthine (50 µg ml−1). Subsequently, parasites were cloned by limiting dilution and validated by polymerase chain reaction, IFA and western blotting.

Generation of clean KO

A previously described CRISPR–Cas9 system78, which contains dual sgRNAs simultaneously targeting regions adjacent to start and stop codons, was used to generate clean KO of target genes in the RH TIR1–3FLAG parental line. Dual-sgRNA-containing plasmids for the gene of interest were generated by double enzymatic digestion of the pSAG1:CAS9-U6:sgRNA (5′) using KpnI and XhoI and integration of polymerase chain reaction-amplified U6: sgRNA (3′) from pSAG1:CAS9-U6:sgRNA (3′) by Gibson assembly. The resulting dual sgRNAs containing CRISPR plasmids were cotransfected with DNA amplicons containing floxed DHFR-TS selection marker, flanked by 40-bp homologous arms near the start and stop codons. Transfected parasites were selected in 3 µM pyrimethamine. Single clones were isolated by limiting dilution in 96-well plate containing confluent HFFs and confirmed by diagnostic polymerase chain reaction.

Indirect IFA

Intracellular parasites grown in HFF monolayers on glass coverslips were fixed in 4% (v/v) formaldehyde in PBS for 10 min, followed by permeabilization by 0.25% (v/v) Triton X-100 diluted in PBS for 20 min. Samples were then blocked by 3% BSA in PBS for 1 h at room temperature, followed by incubation with different primary antibodies and corresponding secondary antibodies conjugated to Alexa Fluor at room temperature for 1 h. PBS containing 0.1% (v/v) Triton X-100 was used to wash the samples three times after incubation with primary and secondary antibodies. Coverslips were finally mounted onto slides using ProLong gold antifade containing DAPI (Thermo Fisher Scientific) to visualize the nuclei. Images were captured and analyzed with a ×63 oil Plan-Apochromat lens (numerical aperture (NA): 1.4) on an Axioskop2 MOT Plus wide-field fluorescence microscope (Carl Zeiss). Scale bars and linear adjustments were made to images using Axiovision LE64 software (Carl Zeiss). For confocal imaging, Images were obtained through a Zeiss ×63 (NA: 1.4) objective lens, leveraging the Airyscan super-resolution functionality on the Zeiss LSM 880 confocal microscope system. Subsequent image processing and refinement were conducted using the ZEN Black software suite.

Western blotting

Samples were prepared in CelLytic M buffer (Sigma, C2978) containing protease inhibitor cocktail (Sigma) and Benzonase nuclease (Sigma). Subsequently, samples were boiled in 5× Laemmli buffer containing 100 mM dithiothreitol for 5 min, followed by centrifugation to remove the insoluble components. Samples were separated on polyacrylamide gels by SDS–PAGE, transferred onto a nitrocellulose membrane, blocked with 5% BSA diluted in PBS (blocking buffer) and probed with primary antibodies also diluted in blocking buffer. Membranes were washed three times with PBS containing 0.1% Tween-20 (0.1% PBS-T) and subsequently incubated with goat IRDye-conjugated secondary antibodies (LI-COR Biosciences) in blocking buffer. After three additional washes, the membranes were scanned and analyzed using a LI-COR Odyssey imaging system (LI-COR Biosciences).

Plaque assay

Freshly isolated parasites were counted using a hemocytometer (Sigma) and 200 parasites were added to 6-well plates of confluent HFF monolayers in DMEM. Cultures were then treated with either vehicle (ethanol 1:1,000) or 500 μM IAA (Sigma) to induce the knockdown of mAID fusion proteins. The plaques were allowed to develop for 7 or 8 days, followed by fixation with 100% ethanol for 5 min and staining by 0.2% (v/v) crystal violet (Sigma) for 10 min at room temperature. Finally, the six-well plates were washed with water three times. Once dried, the plaques on the monolayers were scanned by Bio-Rad ChemiDoc MP imager and analyzed by Image J (version 1.54).

U-ExM

U-ExM was performed as previously described79 with minor modifications. Freshly egressed tachyzoites were allowed to settle on 12-mm round poly(d-lysine)-coated (Sigma-Aldrich) coverslips for 8 min. Cells were fixed in 0.7% formaldehyde (Sigma-Aldrich) and 1% acrylamide (AA, Sigma-Aldrich) at 37 °C for 3 h. Gelation was carried out for 1 h at 37 °C in in monomer solution (19% sodium acrylate (Sigma-Aldrich), 10% AA and 0.1% N,N′-methylenebis-AA (Sigma-Aldrich) in PBS) containing solution ammonium persulfate (Sigma-Aldrich) and N,N,N′,N′-tetramethyl ethylenediamine (Sigma-Aldrich). Gels were denatured at 95 °C for 90 min and then expanded overnight in deionized water at room temperature overnight for complete expansion. The following day, gel samples were washed twice in PBS (30 min each) to remove residual water, cut into square pieces (~1 cm × 1 cm), incubated with primary antibodies at 37 °C for 3 h and washed with 0.1% PBS-T 3 times for 10 min each. After 3 washes with 0.1% PBS-T (10 min each), secondary antibody incubation was performed for 3 h at 37 °C, followed by 3 additional washes in 0.1% PBS-T (10 min each). Gels were then washed 3 times in 0.1% PBS-T (15 min each) and expanded overnight in deionized water at room temperature. Fully expanded gels (~0.5 cm × 0.5 cm) were mounted in aqueous medium for imaging.

Conoid sample preparation for cryo-EM

Conoids were prepared following an established protocol38. T. gondii tachyzoites (a total of ~5 × 109 parasites) were isolated and treated with the calcium ionophore A23187 (Sigma, 100105). The stimulated parasites were centrifuged at 800g for 10 min and the supernatant was discarded. The parasites were lysed by washing with EGTA-containing demembrane buffer A (5 mM CHAPS (Sigma, C3023), 1 mM Tris–acetate pH 7.5 and 10 mM K2-EGTA), followed by three washes with EGTA-free demembrane buffer B (1 mM Tris–acetate pH 7.5 and 10 mM K2-EGTA). After each wash, the parasites were centrifuged at 4,500g for 5 min. The lysed parasites were resuspended in EGTA-free demembrane buffer B and sonicated on ice for 10 min, using a pulse mode of 2 s on and 2 s off. The suspension became translucent with no obvious flocks and was centrifuged at 13,200g for 5 min; then, the supernatant was discarded. The barely white or transparent pellets were resuspended in KH buffer (20 mM K + HEPES, pH 7.5), which contained isolated intact conoids plus APRs and proximal SPMTs (Fig. 5a). To disassemble the intact conoids into separated CFs (Fig. 1b), the conoid suspension was diluted and digest with 5–10 μg ml−1 α-chymotrypsin at room temperature or on ice for 6 min. Digestion was stopped by 100 μM TPCK (Sigma, T4376). CFs were centrifuged at 13,200g for 5 min and resuspended in KH buffer.

Negative-stain EM

Isolated conoid samples were applied to glow-discharged carbon-coated copper grids (Ted Pella). After 30 s of incubation, the grid was negatively stained with 2% uranyl acetate solution and examined using a JEOL JEM-1400 120-kV TEM instrument (JEOL) at the Washington University Center for Cellular Imaging (WUCCI). Images were recorded using an AMT XR111 high-speed 4,000 × 2,000-pixel charge-coupled device camera (AMT Imaging Direct).

Cryo-EM sample preparation and data collection

For cryo-EM, grids were prepared using a Vitrobot Mark IV (Thermo Fisher Scientific) operated at 8 °C and 100% humidity. Then, 3–4 μl of final suspension was applied to a glow-discharged R2/1 300-mesh copper grid (Quantifoil or C-Flat), blotted with filter paper and plunge-frozen in liquid ethane held at liquid-nitrogen temperature. Frozen grids were screened in a 200-keV Glacios microscope (Thermo Fisher Scientific) at WUCCI with respect to ice thickness, sample concentration and CF intactness. Low-dose images were acquired at a nominal magnification of ×57,000, with a defocus of −10 μm.

The grids with ideal qualities were stored in liquid nitrogen and transferred to a 300-keV Titan Krios microscope (Thermo Fisher Scientific) at Case Western Reserve University (CWRU) or the Pacific Northwest Center for Cryo-EM (PNCC), equipped with a BioQuantum Energy Filter (slit width: 20 eV) (Gatan) and a K3 direct electron detector (Gatan). The data were collected using SerialEM80 at a defocus range of −0.5 to −2.5 μm. Images were recorded at a nominal magnification of ×64,000 (calibrated pixel size: 1.34 Å) or ×81,000 (calibrated pixel size: 1.07 Å and 1.059 Å for the Krios microscopes at CWRU and PNCC, respectively). Cryo-EM data were collected over 22 sessions, with all the imaging targets manually selected.

Cryo-EM data processing

A total of 43,480 video frames were drift-corrected and dose-weighted using patch motion correction in cryoSPARC81. Contrast transfer function (CTF) parameters were estimated using patch CTF estimation in cryoSPARC.

CFs

The data-processing workflow for CFs is illustrated in Extended Data Fig. 1. CFs were automatically picked from a total of 2,792 micrographs using filament tracer in cryoSPARC. CF particles were then extracted from drift-corrected micrographs using overlapping boxes (512-pixel box size, 2× binning) with an 82.5-Å step size, corresponding to the length of an α/β-tubulin heterodimer. Two rounds of two-dimensional (2D) classifications were conducted to discard junk particles. The remaining particles were used to generate an initial model through ab initio reconstruction, followed by homogeneous refinement, yielding a preliminary 3D reconstruction of a CF segment containing ~5 tubulin dimers in length. Subsequently, the CF particles, along with their associated alignment parameters, were exported to FREALIGN (version 9.11)82 for further local refinement. During this step, we used customized scripts (https://github.com/rui–zhang/Microtubule) to minimize alignment errors by applying the geometric relationship among neighboring CF particles83. The refined particle set, featuring improved alignment parameters, was reimported into cryoSPARC, reextracted with a 512-pixel box size (no binning) and subjected to a round of local refinement, followed by local CTF refinement and an additional round of local refinement. This process yielded a 3D reconstruction at 2.9-Å resolution. In this reconstruction, the core region appeared disordered. To improve the density quality in this area, we computationally removed the tubulin signals from the raw particles using particle subtraction in cryoSPARC and performed 3D classification of the tubulin-subtracted particles in RELION (version 5.0)84 with a cylindrical mask encompassing the core region near protofilaments 5–9. This classification yielded three major classes with approximately equal particle counts, corresponding to the three possible registers of an object with 24-nm periodicity within the reconstruction box. Particles from one of the three classes were reimported into cryoSPARC, reextracted with a 512-pixel box size (no binning) and subjected to a round of local refinement, followed by local CTF refinement and an additional round of local refinement. This process ultimately produced a 3.1-Å-resolution 3D reconstruction with 24-nm periodicity.

ICMTs and apical SPMTs

The data-processing workflow for ICMTs is illustrated in Extended Data Fig. 6. ICMTs were manually picked from 3,491 micrographs in RELION (version 5.0)84, with a single trace drawn for each pair of ICMTs. Isolated ICMTs were also picked as single microtubules. We then used these traces to extract the ICMT particles with overlapping boxes (800-pixel box size, 2× binning) with an 82.5-Å step size, corresponding to the length of an α/β-tubulin heterodimer. Next, the particle coordinates were imported back into cryoSPARC, where the particles were reextracted and subjected to one round of 2D classification to remove junk particles. The remaining particles were used to generate an initial model through ab initio reconstruction, followed by homogeneous refinement, yielding a preliminary 3D reconstruction of a pair of ICMTs at 12.6-Å resolution.

Subsequently, we shifted the reconstruction center to each of the ICMTs and reextracted the particles with a 512-pixel box size (2× binning). Following an established microtubule data-processing protocol83,85, as previously applied to the CFs, the microtubule particles and their associated alignment parameters were exported to FREALIGN (version 9.11) for further local refinement. During this step, customized scripts (https://github.com/rui–zhang/Microtubule) were used to minimize alignment errors by leveraging the geometric relationships among neighboring microtubule particles. The refined particle set, along with improved alignment parameters, was reimported into cryoSPARC, reextracted with 400-pixel box size (no binning) and subjected to one round of local refinement, followed by local CTF refinement and an additional round of local refinement. Next, we performed 3D classification in cryoSPARC using a mask around the ICMAP densities and retained the particles with strong ICMAP densities for further processing. The particle set was then expanded using symmetry expansion in cryoSPARC (rise: 82.5 Å, twist: 0°, helical symmetry order: 5) to add neighboring particles from the same microtubule. Duplicate particles were removed and the expanded particles were reextracted with a 400-pixel box size and subjected to one round of local refinement and local CTF refinement. This process ultimately yielded 3D reconstructions of ICMT-1 and ICMT-2 at 3.3-Å and 3.5-Å resolution, respectively.

To further improve the local resolution of the ICMT maps, focused refinements were performed in cryoSPARC using seven wedge masks (120 Å in length). These masks divide the microtubule radially into seven sections, each covering approximately two protofilaments. To generate maps for protein identification and model building, the local refined maps, at resolutions ranging from 3.3 to 3.5 Å, were sharpened using DeepEMhancer86 or the phenix.auto_sharpen program in PHENIX87. The sharpened maps were multiplied by their corresponding masks, aligned to the consensus ICMT map and merged into a single composite map using the ‘vop resample’ and ‘vop maximum’ commands in Chimera.

The SPMTs near the APR (Fig. 5a,b) were manually picked from 5,783 micrographs and processed using the same approach as individual ICMTs.

PCRs

The PCRs were manually picked as single particles, with 16-nm spacing, from 7,676 micrographs using manual picker in cryoSPARC. The particles were then extracted from drift-corrected micrographs with a 512-pixel box size (2× binning). One round of 2D classification was performed to remove junk particles and the remaining particles were used to generate three initial models through ab initio reconstruction. One of these models corresponded to a segment of the PCR containing approximately three repeating units, while no other ring-like structure was detected at this stage. Next, all particles were refined using homogeneous refinement with the good initial model, resulting in a decent 3D reconstruction. Duplicate particles introduced during manual picking were removed and a customized script ‘recenterVolume_PCR.py’ (https://github.com/rui–zhang/Doublet) was used to perform symmetry expansion on the particle set. This script explicitly provided the rotational matrix between neighboring repeating units, which was measured using the ‘measure rotation’ command in Chimera. The total number of particles was effectively doubled after these operations. Subsequently, we reextracted the particles with a 512-pixel box size (no binning) and performed homogeneous refinement, followed by local CTF refinement and local refinement, with a mask cover the central repeating unit (160 Å in length). This iterative process ultimately yielded a 3D reconstruction of the PCR at 3.3-Å resolution. To allow data merging, PCR particles collected at different pixel sizes were rescaled to 1.34 Å per pixel using the ‘extract from micrographs’ tool in cryoSPARC.

Protein identification, model building and refinement

Component proteins of CF, ICMTs, apical SPMT and PCR-P2 were identified using either sequence-based or structure-based approaches88 (Extended Data Fig. 2). The sequence-based approach was applied to regions with well-resolved side chains. Protein segments were automatically modeled using artificial-intelligence-based software, including DeepTracer89 and ModelAngelo90. The predicted amino acid sequences were used to search the entire T. gondii proteome using either protein basic local alignment search tool or a hidden Markov model90. If a unique hit was confidently identified and was present in the list of proteins from mass spectrometry (M/S) analysis (Supplementary Table 1), the model was updated, manually extended and combined using Coot91. All identified proteins were rigorously evaluated based on side-chain densities to ensure accuracy.

The structure-based approach was applied to regions of globular densities resolved at intermediate resolution (4–10 Å), where secondary-structure elements (α-helices and β-sheets) are visible but side-chain information is unavailable. We first compiled an AlphaFold92,93 library of the top 1,000 proteins identified in our M/S analysis (Supplementary Table 1) and split the predicted structures into individual domains using scripts from the DomainSeeker package94. Each domain was then automatically docked into the cryo-EM density map using ChimeraX95, followed by quantitative assessments of the docking results94,96. Finally, the best-fitting models were visually inspected against the cryo-EM densities. Proteins were assigned only when the AlphaFold-predicted domain structure essentially matched the densities in the spatial arrangement of secondary structural elements. Using this approach, we identified TLAP2, ICMAP2, PCR11 and the myosin motor domain of MyoL.

Final models were assembled and refined against the final sharpened composite maps using phenix.real_space_refine97. During refinement, secondary structure, Ramachandran and rotamer restraints were applied with the weighting of nonbonded restraints set to 500. The quality of the refined model was assessed by MolProbity98, with statistics reported in Extended Data Table 1.

Interprotofilament rotation angle measurement

To measure the interprotofilament angle, we used the ‘angle_between_domains’ command in PyMOL (https://www.pymol.org/), as previously applied to doublet microtubules and central apparatus microtubules48,99. This command calculates the relative rotation and translation between one α-tubulin subunit and its adjacent α-tubulin subunit (or β-tubulin if across the seam) in the lateral direction.

M/S analysis

The sample for M/S analysis was prepared using the same protocol as for cryo-EM. Isolated conoids were pelleted and suspended in KH buffer and sent for M/S analysis at the Proteomics and Metabolomics Facility at the University of Nebraska-Lincoln.

One tube of sample (358 μg) was redissolved in reducing SDS–PAGE sample buffer to a volume of 358 μl and heated at 95 °C for 10 min. Five lanes of samples constituting 10, 20, 30, 40 or 50 μg were loaded onto a Bolt 12% Bis–Tris plus gel (Thermo Fisher Scientific) and run with MES SDS running buffer. The gel was fixed for 1 h, washed briefly with water and stained overnight, followed by destaining. Two lanes of samples (40 + 50 μg = 90 μg of material) were selected and cut into three sections each and equivalent sections were pooled. All gel pieces were then cut up further into smaller pieces and washed with water, reduced by the addition of dithiothreitol and alkylated with iodoacetamide. They were then further washed in ammonium bicarbonate and acetonitrile. Trypsin was added and digestion was carried out overnight at 37 °C. Peptides were extracted from the gel pieces and dried down in a Speed-Vac. The digests were redissolved in 5% acetonitrile and 0.05% trifluoroacetic acid. M/S analysis was carried out using a 2-h gradient on a 0.075 mm × 250 mm C18 Waters CSH column feeding into an Orbitrap Eclipse M/S instrument run in OT-IT-HCD mode.

All tandem M/S samples were analyzed using Mascot (version 2.7.0; Matrix Science). Mascot was set up to search a common contaminants database (cRAP_20150130.fasta with 125 entries), a human UniProt database (82,685 sequences, downloaded November 20, 2023) and a T. gondii database with 8,322 sequences (ToxoDB-65_TgondiiME49_AnnotatedProteins_ 20230825.fasta) assuming the digestion enzyme trypsin. Mascot was searched with a fragment ion mass tolerance of 0.6 Da and a parent ion tolerance of 15 ppm.

Scaffold (version 5.1.2; Proteome Software) was used to validate tandem M/S-based peptide and protein identifications. Peptide identifications were accepted if they could be established at greater than 80.0% probability by the Peptide Prophet algorithm100 with Scaffold delta mass correction. Protein identifications were accepted if they could be established at greater than 99.0% probability and contained at least two identified peptides. Protein probabilities were assigned by the Protein Prophet algorithm101. The annotated M/S data are provided in Supplementary Table 1.
