Introduction

High-purity Germanium (HPGe) detectors have proven to be the most sensitive among the current technologies for detecting the radiation and particle signatures of rare physical events in nature, such as neutrino-less double beta-decay (\(\textit{0}\nu \beta \beta\)). These detectors offer higher energy resolution, greater energy sensitivity, and lowest background signal among all detectors currently used in search of \(\textit{0}\nu \beta \beta\)1,2. Observing \(\textit{0}\nu \beta \beta\) would confirm the Majorana nature of neutrino (i.e. neutrino is its own antiparticle), leading to the violation of Lepton number2,3. In that case, it would imply that neutrinos acquire mass via an effective Majorana mass term, which is inversely proportional to \(\textit{0}\nu \beta \beta\) half-lives. This is consistent with the observed discovery of neutrino oscillations in atmospheric and solar neutrinos oscillation experiments, which also indicate neutrinos to have non-zero mass2,4,5,6,7,8. The widely used candidate for parent nuclei that can undergo \(\textit{0}\nu \beta \beta\) is the Ge isotope \(^{76}\)Ge2,8,9,10. HPGe detectors are built from high-purity Ge crystals isotopically enriched in \(^{76}\)Ge, serving both as sources and detectors of \(\textit{0}\nu \beta \beta\)11. These Ge crystals have a low impurity concentration < 10\(^{10}\) cm\(^{-3}\) and dislocation density < 10\(^4\) cm\(^{-2}\)12. They are used in several \(\textit{0}\nu \beta \beta\) experiments such as GERDA8,9,13,14 and MAJORANA2,3, and more recently in LEGEND10,15 collaboration, which combines efforts from the two. The LEGEND-200 collaboration aims to search for \(\textit{0}\nu \beta \beta\) decay in enriched \(^{76}\)Ge HPGe detectors of mass 200 kg, targeting a \(\textit{0}\nu \beta \beta\) decay half-life of 10\(^{27}\) years6,10. Likewise, LEGEND-1000 aims to develop ton-scale enriched \(^{76}\)Ge HPGe detector with a half-life of \(\textit{0}\nu \beta \beta\) decay beyond 10\(^{28}\) years10.

Despite the technical advantages of HPGe detectors, growing crystals free from defects and impurities is close to impossible. The incoming particles and radiations interacting with Ge atoms in these detectors create charge carriers that drift towards the electrodes. In large HPGe detectors, the long drift distance that these charge carriers migrate, increases the likelihood of them being trapped by impurities. Such charge trapping affects the performance of these detectors by degrading their energy resolution16. Therefore, understanding the role of defects and impurities in crystalline Ge is crucial for optimizing the fabrication process of these detectors and improving their energy resolution by eliminating defects during manufacturing. Although a low concentration of defects is desirable for optimal performance in HPGe detectors, contamination with group-V impurities such as nitrogen (N), phosphorus (P), arsenic (As), and antimony (Sb) can occur during the manufacturing process. Furthermore, previous studies have reported that group-V impurities, along with Ge vacancies, are the most common defects in Ge17,18,19,20,21,22,23,24,25,26,27,28,29.

In this work, we employ first-principles calculations using a hybrid functional within density functional theory (DFT) to study the formation of possible group-V defects and their complexes in Ge. A comprehensive assessment of the energetics of the point defects considered in this study reveals that group-V impurities are favorable in Ge compared to vacancy and interstitial of Ge. Unlike N, Ge vacancies, and Ge interstitials, which have charge transition levels (CTLs) far from the band edges, forming deep traps, P, As, and Sb introduce ionization levels close to the conduction band edge, resulting in shallow traps in Ge. Since these group-V impurities diffuse in Ge through their interaction with vacancies18,19,20,21,26,28,29, we also investigated the formation of defect complexes in Ge. We infer from our results that the group-V impurities can form complexes with vacancies; larger complexes are found to bind strongly than the smaller ones. Furthermore, such clustering lowers their formation energy, as larger complexes of group-V impurities with Ge vacancies have lower formation energies than smaller ones. The impurity-vacancy complexes introduce CTLs far from the band edges, forming deep traps in Ge. Consequently, these defect complexes are expected to act as charge-trapping centers, potentially degrading the performance of HPGe detectors .

Computational details

First-principles calculations

We employed spin-polarized plane-wave DFT as implemented in VASP (version 6.1.2)30,31, in conjunction with the open-source python package SPINNEY32, to study charged defects in Ge. The local density approximation (LDA) was used to approximate the exchange-correlation energy functional during structural relaxations. The projector augmented wave (PAW) method33,34 was employed to account for the interactions between valence electrons and ionic cores. To model point defects—vacancies, interstitials, and substitutional group-V dopants—we constructed a 3\(\times\)3\(\times\)3 supercell of Ge containing 216 atoms. Structural relaxations were performed at the LDA level without any symmetry constraints until the residual force on each atom was below 0.001 eV/Å. Since the local and semi-local DFT functionals are known to underestimate the bandgap of Ge due to self-interaction errors associated with these functionals, we employed a single point hybrid functional (HSE06)35,36 calculations on LDA relaxed structures to study the energetics of these defects.

The HSE06 functional, which partially corrects the self-interaction errors associated with the standard DFT functionals by incorporating a fraction (\(\sim\)25%) of Hartree-Fock exchange term, is known to yield accurate electronic bandgaps and lattice constants for semiconductors35,36. It is noteworthy that HSE06 lattice constant of 5.61 Å for Ge agrees very well with LDA lattice constant of 5.65 Å, within 1%, suggesting that the structural properties predicted by LDA are comparable to those from HSE06 for Ge. While the lattice parameters predicted by LDA and HSE functionals are nearly identical, the corresponding local atomic relaxations near charged defects may vary considerably. To verify the reliability of the approach used, full HSE relaxations for some of the considered defects were also performed. Calculations indicate that CTLs and formation energies determined using HSE on LDA-relaxed structures are in close agreement with those obtained from fully HSE-relaxed structures. This further justifies the use of LDA relaxed structures for single-point HSE06 calculations of these charged defects. A Monkhrost-Pack37 k-point mesh of 2x2x2 and a plane-wave basis set with energy cutoff of 350 eV were used in these calculations. The total energy convergence criterion during self-consistent cycle was set to \(10^{-6}\) eV.

Formalism for defect calculations

The formation energy of a charged defect was computed using32,38,39,40

$$\begin{aligned} \Delta {\textrm{E}_{\textrm{f}}} = \textrm{E}_{\textrm{D},\textrm{q}} - \textrm{E}_{\textrm{H}} - \sum _{\textrm{i}}{\textrm{n}_{\textrm{i}}}\mu _{\textrm{i}} + \textrm{q}(\epsilon _{\textrm{v}} + \textrm{E}_{\textrm{F}}) + \textrm{E}_{\textrm{corr}}, \end{aligned}$$
(1)

where \(\textrm{E}_{\textrm{D},\textrm{q}}\) is the total energy of a supercell containing defect, D, in charge state q; \(\textrm{E}_{\textrm{H}}\) is the energy of the pristine supercell; and \(\textrm{n}_{\textrm{i}}\) is the number of atoms of type i added (\(\textrm{n}_{\textrm{i}} > 0\)) or removed (\(\textrm{n}_{\textrm{i}} < 0\)) in the process of forming the defect. The chemical potential of species i, \(\mu _{\textrm{i}} = \mu _{\textrm{i}}^0 + \Delta \mu _{\textrm{i}}\), describes the exchange of particles with respective reservoirs and depends on the reference chemical potential of atomic species i, \(\mu _{\textrm{i}}^0\). Here, \(\Delta \mu _{\textrm{i}}\) is any deviation from the reference state. The reference chemical potential can be computed from respective standard elemental phase using DFT. For Ge, crystalline Ge is the standard phase, yielding \(\mu _{\textrm{Ge}}^0\) = -5.68 eV/atom. Likewise, for N, the molecular gas phase is used as reference, giving \(\mu _{\textrm{N}}^0\) = -10.49 eV/atom. For P, As, and Sb, the reference is their respective crystalline phase. Our calculations give \(\mu _{\textrm{P}}^0\) = -6.54 eV/atom, \(\mu _{\textrm{As}}^0\) = -5.95 eV/atom, and \(\mu _{\textrm{Sb}}^0\) = -5.40 eV/atom, all obtained using HSE06 functional.

In Eq. (1), \(\epsilon _{\textrm{v}}\) is the valence band maximum (VBM ), and \(\textrm{E}_{\textrm{F}}\) is electron chemical potential. \(\textrm{E}_{\textrm{F}}\) is confined within the bandgap of Ge, such that 0 \(\le\) \(\textrm{E}_{\textrm{F}}\) \(\le\) \(\textrm{E}_{\textrm{g}}\), where 0 is the position of VBM and \(\textrm{E}_{\textrm{g}}\) represents the bandgap of Ge. The position of \(\textrm{E}_{\textrm{F}}\) in semiconductors and insulators depends on the level of doping and presence of external fields. \(\textrm{E}_{\textrm{corr}}\), in Eq. (1), is the correction term that takes into account of finite-size effects arising due to the use of supercells in our calculations. We used the scheme of Kumagai and Oba38, as implemented in the python package SPINNEY32, to compute the finite-size corrections. The correction term can be expressed as

$$\begin{aligned} \textrm{E}_{\textrm{corr}} = -\textrm{E}_{\textrm{lat}} + \textrm{q}\Delta \phi, \end{aligned}$$
(2)

where \(\textrm{E}_{\textrm{lat}}\) is the Madelung energy of charge density \(\rho _d\) embedded in the host material in presence of jellium background and \(\Delta \phi\) is the potential alignment term32.

As a function of \(\textrm{E}_{\textrm{F}}\), Eq. (1) describes a straight line with a slope corresponding to the defect’s charge state q. The diagram showing the variation of formation energy of a charged defect as a function of \(\textrm{E}_{\textrm{F}}\) for different q is the defect diagram or charge transition level (CTL) diagram. The primary purpose of this diagram is to identify CTL, which correspond to \(\textrm{E}_{\textrm{F}}\) value where the formation energies of two charge states become equal. CTL can be expressed in terms of the formation energies of defects in charge states q and \({\textrm{q}^{\prime }}\) as40

$$\begin{aligned} \epsilon (\textrm{q}/\textrm{q}^{\prime }) = \frac{\Delta {\textrm{E}_{\textrm{f}}} (\textrm{D},\textrm{q}; \textrm{E}_{\textrm{F}}=0) - \Delta {\textrm{E}_{\textrm{f}}}(\textrm{D},{\textrm{q}^{\prime }}; \textrm{E}_{\textrm{F}}=0)}{\textrm{q}^{\prime } - \textrm{q}}, \end{aligned}$$
(3)

where \(\Delta {\textrm{E}_{\textrm{f}}}(\textrm{D},\textrm{q}, \textrm{E}_{\textrm{F}}=0)\) and \(\Delta {\textrm{E}_{\textrm{f}}}(\textrm{D},{\textrm{q}^{\prime }}, \textrm{E}_{\textrm{F}}=0)\) are formation energies for defects in charge state q and \(\textrm{q}^{\prime }\) at the VBM (\(\textrm{E}_{\textrm{F}}\) = 0).

CTL indicates whether a defect behaves as shallow or deep level. Shallow traps are those whose electronic states can be approximated by the hydrogen atom model, making them readily ionized at room temperature and thereby contributing free carriers in the material. Their ionization energies lie close to the band edges, typically within a few \(\textrm{k}_{\textrm{B}}\)T (\(\le\) 0.1 eV) from the band edges, where \(\textrm{k}_{\textrm{B}}\) is the Boltzmann constant and T is the absolute temperature. Conversely, when CTL is significantly far from the band edges, it indicates a deep trap. In general, deep traps affect the charge transport and optical properties of materials by facilitating charge trapping and boosting non-radiative recombination in semiconductors and insulators.

Results and discussion

Crystalline Ge

We begin with studying the structural and electronic properties of crystalline Ge. Ge adopts diamond-like structure with an FCC lattice and space group \(\textrm{Fd}\bar{3}\)m (No. 227). The primitive basis in this crystal structure consists of two identical Ge atoms located at (0,0,0) and (1/4, 1/4, 1/4), associated with each FCC lattice point41. The primitive and conventional unit cell structures of Ge are shown in Fig. S1. The computed lattice parameter for Ge at LDA level in our calculations is 5.65 Å, which agrees well with the experimental lattice constant of 5.66 Å42 within 0.2%. The Ge-Ge bond length in our calculations is 2.45 Å. However, LDA predicts a semi-metallic behavior for Ge due to self-interaction errors associated with pure DFT local and semi-local functionals. The hybrid functional HSE06, which corrects these inaccuracies, yields an indirect bandgap of 0.79 eV for Ge (Fig. S1) at the HSE06 relaxed lattice constant \(\sim\)5.61 Å. The computed bandgap in this work is in close agreement with the experimental bandgap of 0.740-0.785 eV at 0 K20,43,44.

Ge vacancy, Ge interstitial, and group-V substitutional dopants

Structural properties

Fig. 1
Fig. 1
Full size image

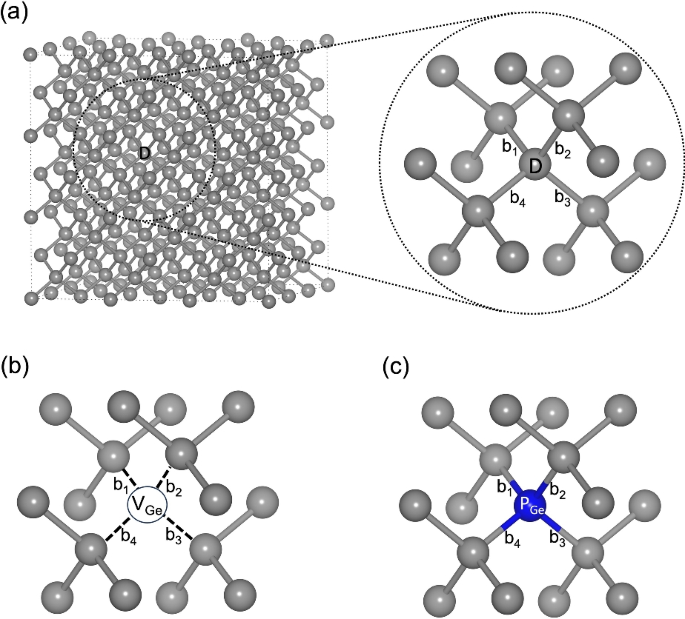

(a) The 216 atoms supercell of Ge constructed from its conventional unit cell. The supercell is zoomed in near the defect site, D, to provide a clear view of the nearest Ge atoms bonded to D. In the zoomed figure, \(\textrm{b}_1\), \(\textrm{b}_2\), \(\textrm{b}_3\), and \(\textrm{b}_4\) show the bond length of the Ge atom at site D with its nearest neighbors. For a pristine supercell of Ge, \(\textrm{b}_1\)=\(\textrm{b}_2\)=\(\textrm{b}_3\)=\(\textrm{b}_4\)=2.45 Å, (b) Ge vacancy (\(\mathrm V_{Ge}\)), and (c) P substitutional defect at D (\(\mathrm P_{Ge}\)). The gray and blue spheres represent Ge and P atoms, respectively.

The simulations of point defects including vacancy and interstitial of Ge, substitutional group-V dopants, and their complexes, were carried out in a large 3\(\times\)3\(\times\)3 supercell (Fig. 1a) consisting of 216 Ge atoms. This supercell was constructed from the conventional unit cell of Ge using the LDA-relaxed lattice constant (a \(\sim\)5.65 Å). Such large supercell (a = \(\sim\)16.95 Å) minimizes interactions between a defect and its periodic images when employing the periodic supercell approach in our calculations. In Fig. 1a, the supercell is zoomed in near the defect site (D), to clearly visualize the adjacent Ge atoms bonded to D. A vacancy in this supercell is created by removing a Ge atom at site D, as shown in Fig. 1b and is labeled by \(\textrm{V}_{\textrm{Ge}}\). Figure 1c illustrates a single Ge atom substituted by a phosphorus (P) atom, represented by \(\textrm{P}_{\textrm{Ge}}\). Similarly, other group-V defects like Nitrogen (N), Arsenic (As), and Antimony (Sb) are labeled by \(\textrm{N}_{\textrm{Ge}}\), \(\textrm{As}_{\textrm{Ge}}\), and \(\textrm{Sb}_{\textrm{Ge}}\). The defective supercells were then relaxed at LDA level of theory, which, as confirmed above, yields similar structures comparable to those obtained using HSE06. Upon relaxation, these defect supercells undergo structural changes near defect sites; however, in all cases, we found these relaxations to be short-range.

Table 1 Calculated defect-Ge bond lengths at LDA level.
Full size table

Depending on the type of defect (vacancy or substitutional) and the radius of the substituted atom, the bond distances between the defect and the nearest Ge atoms change. Table 1 summarizes the calculated defect-Ge bond lengths obtained in this work. As seen in Table 1, \(\textrm{V}_{\textrm{Ge}}\), \(\textrm{P}_{\textrm{Ge}}\) and \(\textrm{N}_{\textrm{Ge}}\) result in bond length contraction in the vicinity of the defect site D, while the other group-V defects, \(\textrm{As}_{\textrm{Ge}}\) and \(\textrm{Sb}_{\textrm{Ge}}\), cause the bond length elongation. The variations in defect-Ge bond lengths for different group-V defects (see Table 1) originate from the difference in their atomic radii and electronegativity. The smaller size of N and P atoms, combined with their larger electronegativity difference relative to Ge, leads to a contraction of the N-Ge and P-Ge bond lengths. Conversely, the larger atomic size of As and Sb, along with their smaller electronegativity difference with Ge, results in an elongation of the As-Ge and Sb-Ge bond lengths. Far from the defect site, Ge-Ge bond length remains unchanged, indicating that these defects only affect the local structural properties of crystalline Ge.

Formation energy and charge transition level for a Ge vacancy

Previous theoretical studies45,46,47,48 have investigated charged \(\textrm{V}_{\textrm{Ge}}\) using both DFT and beyond DFT methods. Table 2 presents the calculated formation energy of a charged \(\textrm{V}_{\textrm{Ge}}\) at VBM (\(\textrm{E}_{\textrm{F}} = 0\)). The computed formation energy is in reasonable agreement with previous works, considering that those works employed different levels of approximations and supercell sizes. Notably, when comparing the formation energy of \(\textrm{V}_{\textrm{Ge}}^{0}\) with reported value in Ref. 49, we find excellent agreement (see Table 2). Although the formation energy of the neutral \(\textrm{V}_{\textrm{Ge}}\) calculated for the 64-atom supercell of Ge is in reasonable agreement with that of larger defect supercells, reliable CTL calculations demand greater accuracy. Furthermore, Ref. 48 reports that a supercell containing at least 216 atoms is required to achieve reliable results for a \(\textrm{V}_{\textrm{Ge}}\). Therefore, in this study, all defect calculations were performed using a 216-atom Ge supercell.

Table 2 Comparison of computed formation energy of a charged \(\textrm{V}_{\textrm{Ge}}\) with previous studies (at \(\textrm{E}_{\textrm{F}} =0\)).
Full size table

Figure 2a illustrates the formation energy (\(\Delta \textrm{E}_{\textrm{F}}\)) of a Ge vacancy (\(\textrm{V}_{\textrm{Ge}}\)) as a function of electron chemical potential (\(\textrm{E}_{\textrm{F}}\)) for various charge states: 0, \(\pm 1\), and \(\pm 2\). Our findings indicate that the +2 and +1 charge states of \(\textrm{V}_{\textrm{Ge}}\) exhibit higher formation energies compared to the -1, 0, and -2 charge states. Therefore, \(\textrm{V}_{\textrm{Ge}}\) if exists, is most likely to be in -1, 0, and -2 charge states, depending upon the position of \(\mathrm{\mathrm E}_{\textrm{F}}\) within the bandgap of Ge. Our calculations reveal that, among the various charge states of the \(\textrm{V}_{\textrm{Ge}}\), \(\textrm{V}_{\textrm{Ge}}^{-2}\) is the dominant defect under n-type doping conditions, aligning with previous theoretical20 and experimental17 studies. Similarly, among the various charge states of \(\textrm{V}_{\textrm{Ge}}\) and under the p-type doping conditions, \(\textrm{V}_{\textrm{Ge}}^{0}\) emerges as the most stable defect, consistent with earlier theoretical research20.

Fig. 2
Fig. 2
Full size image

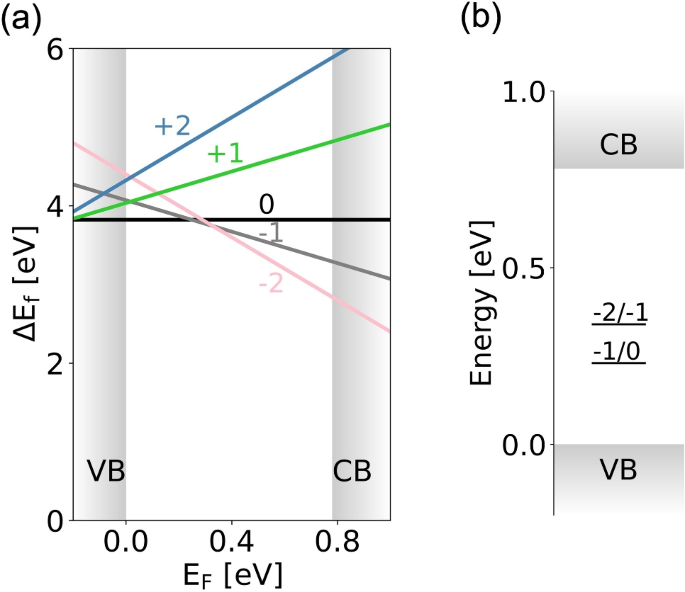

(a) Formation energy (\(\Delta \textrm{E}_{\textrm{f}}\)) as a function of the electron chemical potential (\(\textrm{E}_{\textrm{F}}\)) for a \(\textrm{V}_{\textrm{Ge}}\). (b) Charge transition levels (CTLs) for a \(\textrm{V}_{\textrm{Ge}}\). The shaded region in plots represents the valence band (VB) and conduction band (CB).

Figure 2 also depicts that \(\textrm{V}_{\textrm{Ge}}\) behaves as a multi-level acceptor. The computed CTLs are 0.23 eV for the -1/0 transition and 0.34 eV for the -2/-1 transition, suggesting that \(\textrm{V}_{\textrm{Ge}}\) introduces deep traps in Ge. Such deep traps are detrimental as they can lead to charge trapping, ultimately degrading the energy resolution of HPGe detectors. The obtained CTLs are shown in Fig. 2b.

The formation energy and CTLs presented in Fig. 2 were obtained from single-point HSE calculations on LDA-relaxed structures. However, full HSE relaxations can potentially produce significantly different local geometries near defects. To assess the reliability of the computed CTLs, we performed full HSE relaxations for a \(\textrm{V}_{\textrm{Ge}}\) until the residual forces on each atom were less than 0.01 eV/Å. The resulting -1/0 and -2/-1 CTLs are at 0.27 eV and 0.34 eV, respectively, for full HSE-relaxed structures, in reasonable agreement with the corresponding values of 0.23 eV and 0.34 eV obtained from single-point HSE calculations on LDA-relaxed structures. The difference is shown clearly in Fig. 3.

Table 3 compares CTLs of a \(\textrm{V}_{\textrm{Ge}}\) obtained in this work with previous theoretical and experimental findings. The -1/0 CTL of 0.23 eV, obtained from HSE calculations on LDA-relaxed structures in this work, is in close agreement with the corresponding experimental value of 0.20 ± 0.04 eV, measured with the Perturbed Angular Correlation Spectroscopy (PAC)50, demonstrating the reliability of our results. The -1/0 CTL obtained using fully relaxed HSE calculations is also in fair agreement with the reported experimental value.

Similarly, another experimental study utilizing Deep Level Transient Spectroscopy (DLTS) identified a transition level at 0.33 eV51 above the VBM for a \(\textrm{V}_{\textrm{Ge}}\). Comparing our theoretical predictions with the DLTS data, we infer that the ionization level at 0.33 eV likely corresponds to -2/-1 transition for a \(\textrm{V}_{\textrm{Ge}}\). It may be noted that both the single-point HSE calculations on LDA-relaxed structures and full HSE-relaxed structures give -2/-1 CTL at 0.34 eV for a \(\textrm{V}_{\textrm{Ge}}\).

Table 3 Comparison of charge transition levels (eV) for a \(\textrm{V}_{\textrm{Ge}}\) with previous studies.
Full size table

The computed -2/-1 transition for a \(\textrm{V}_{\textrm{Ge}}\) in this study is in excellent agreement with the value reported in Ref. 49, which was obtained using the HSE functional with a similar supercell size and k-grid sampling. However, Ref. 49 does not report the -1/0 CTL. Another study (Ref. 48) investigated the charged \(\textrm{V}_{\textrm{Ge}}\) at the HSE level using a 216-atom Ge supercell, while the calculations are done at \(\Gamma\)-point. Our computed -1/0 and -2/-1 CTLs are in close agreement (within 0.05 eV) with those reported in Ref. 48. However, Ref. 48 also identifies additional 0/+1 and +1/+2 CTLs at 0.15 eV and 0.14 eV, respectively, which are not observed in our calculations. This discrepancy is due to the exclusive use of the \(\Gamma\)-point in their simulations. Our \(\Gamma\)-point calculations reproduce all the CTLs reported in Ref. 48 with +1/+2 and 0/+1 CTLs at 0.19 eV and 0.27 eV, respectively, obtained using HSE calcualtions on LDA-relaxed structures. Full HSE-relaxed structures gives +1/+2 and 0/+1 CTLs at 0.15 eV and 0.24 eV, which are in close agreement with the single-point HSE results on LDA-relaxed structures. Our results indicate that a 2\(\times\)2\(\times\)2 k-grid is required to obtain reliable value of the formation energies and consequently CTLs for a 3\(\times\)3\(\times\)3 Ge supercell.

Additionally, another study (Ref. 47) examined charged \(\textrm{V}_{\textrm{Ge}}\) at HSE level using a smaller 64-atoms Ge supercell and k-mesh of 2\(\times\)2\(\times\)2. This study reported -1/0 and -2/-1 transition levels at 0.50 eV and 0.65 eV, respectively. The deviation between our results and those in Ref. 47 can be attributed to the use of less dense k-mesh (2\(\times\)2\(\times\)2) in Ref. 47. Our calculations yield a formation energy of 3.38 eV for a neutral \(\textrm{V}_{\textrm{Ge}}\) in a 64-atoms Ge supercell using a \(2\times 2\times 2\) k-mesh, compared to 3.70 eV obtained with a denser \(4\times 4\times 4\) mesh. This indicates that, for a 64-atom Ge supercell, a \(2\times 2\times 2\) k-mesh does not converge the formation energy, and consequently the CTLs.

Another study conducted at LDA level (Ref. 45) reports the -1/0 and -2/-1 CTLs at 0.37 eV and 0.40 eV, respectively. In addition, they identify a 0/+1 transition at 0.21 eV, which is not observed in our calculations. The small energy difference between the -1/0 and -2/-1 transitions in their study is a result of ignoring spin-polarization in their calculations. The spacing between the CTLs is associated with intra-orbital repulsion, and so the spin-polarization is essential to get the correct spacing between them48. Other factors contributing to the discrepancies between their results and ours include the use of the LDA functional, a smaller 128-atom supercell, and simulations performed exclusively at the \(\Gamma\)-point. The -1/0 CTL obtained using the GGA+U method in Ref. 20 is in reasonable agreement with our results, despite their use of a 64-atom Ge supercell. However, the obtained -2/-1 CTL in Ref. 20 lies close to the -1/0 CTL compared to this work.

Formation energy and charge transition level for group-V defects

Since we validated our approach by comparing our results for a \(\textrm{V}_{\textrm{Ge}}\) with previous experimental and theoretical studies, we now proceed to investigate the energetics of potential group-V impurities in Ge.

Fig. 3
Fig. 3
Full size image

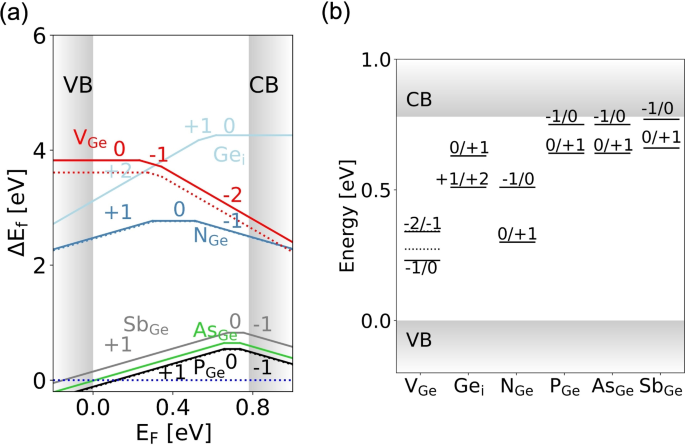

(a) Formation energy (\(\Delta \textrm{E}_{f}\)) as a function of the electron chemical potential (\(\textrm{E}_{F}\)) for group-V dopants in Ge. (b) Corresponding charge transition levels (CTLs) for the same dopants. For comparison, results for \(\mathrm {V_{Ge}}\) and \(\mathrm {Ge_i}\) are also included. The dotted lines in the plot show the corresponding results for fully relaxed HSE structures. In panel (a), \(\mathrm {P_{Ge}}\) results obtained using full HSE-relaxed structures (dotted black lines) are shifted down by 0.01 eV to avoid overlap with solid black lines. The shaded regions denote the valence band (VB) and conduction band (CB).

Group-V dopants are among the most common defects in Ge crystals17,18,19,20,21,22,23,24,25,26,27,28,29 and are possible contaminants in HPGe detectors during the detector manufacturing process. Figure 3a presents \(\Delta \textrm{E}_{\textrm{F}}\) as a function of \(\textrm{E}_{\textrm{F}}\) for different substitutional group-V dopants in Ge. For comparison, we also included our results for \(\textrm{V}_{\textrm{Ge}}\) and \(\textrm{Ge}_{\textrm{i}}\) at tetrahedral site in Fig. 3a.

We infer from Fig. 3a that the formation energy of group-V defects in Ge is significantly lower than that of \(\textrm{V}_{\textrm{Ge}}\) and \(\textrm{Ge}_{\textrm{i}}\). Among the group-V impurities examined in this work, \(\textrm{P}_{\textrm{Ge}}\) exhibits a much lower formation energy than \(\textrm{N}_{\textrm{Ge}}\) and its formation energy is comparable in magnitude to that of \(\textrm{As}_{\textrm{Ge}}\) and \(\textrm{Sb}_{\textrm{Ge}}\). The formation energy of a defect is directly related to its equilibrium concentration (\(\textrm{c}_{\textrm{q}}^{\textrm{D}}\)) as \(\textrm{c}_{\textrm{q}}^{\textrm{D}}\) = \(\textrm{N}_{\textrm{sites}}\textrm{exp}(-\Delta \textrm{E}_{\textrm{f}}(\textrm{D},\textrm{q}))/{\textrm{k}_{\textrm{BT}}}\)40,52, where \(\textrm{N}_{\textrm{sites}}\) is the appropriate site concentration for the defect. It should be noted that the incorporation of impurities into the Ge strongly depends on their availability and ability to diffuse into the host lattice. Consequently, N, being the most abundant element in the atmosphere, is more likely to be incorporated into the crystal than other group-V impurities under typical conditions. However, assuming the similar availability of group-V dopants during the synthesis of these detectors and considering that the formation energy of \(\textrm{P}_{\textrm{Ge}}\) is significantly lower than that of \(\textrm{N}_{\textrm{Ge}}\), \(\textrm{V}_{\textrm{Ge}}\), and \(\textrm{Ge}_{\textrm{i}}\), the concentration of P in Ge is expected to be much higher. Due to very similar formation energies, \(\textrm{As}_{\textrm{Ge}}\) and \(\textrm{Sb}_{\textrm{Ge}}\) will have similar concentration as \(\textrm{P}_{\textrm{Ge}}\), indicating that these defects (\(\textrm{P}_{\textrm{Ge}}\), \(\textrm{As}_{\textrm{Ge}}\), and \(\textrm{Sb}_{\textrm{Ge}}\)) are the most prevalent defects in Ge among those considered in this study. Figure 3a also depicts that the group-V defects considered here exhibit +1/0 and -1/0 CTLs within the bandgap of Ge, indicating amphoteric behavior. The 0/+1 CTL corresponds to the donor level, where the neutral defect donates an electron to become positively charged. Likewise, the -1/0 CTL corresponds to the acceptor level, where the neutral defect captures an electron to become negatively charged. The energetic locations of the defects depend on the type of dopant. The CTLs for \(\textrm{P}_{\textrm{Ge}}\), \(\textrm{As}_{\textrm{Ge}}\), and \(\textrm{Sb}_{\textrm{Ge}}\) are located near the conduction band edge, approximately at 0.64 eV and 0.75 eV for the respective 0/+1 and -1/0 transitions. \(\textrm{N}_{\textrm{Ge}}\), however, exhibits 0/+1 charge transition at \(\sim\)0.30 eV and -1/0 transition at \(\sim\)0.51 eV. The ionization levels of various group-V dopants in Ge are presented in Fig. 3b.

Figure 3 also presents the results of the full HSE relaxations for \(\textrm{N}_{\textrm{Ge}}\) and \(\textrm{P}_{\textrm{Ge}}\). As shown, the CTLs and formation energies obtained from HSE calculations on LDA-relaxed structures are in excellent agreement with those derived from the full HSE-relaxed structures. We deduce from Figure 3a and b that the group-V impurities can introduce both shallow and deep traps in Ge. These traps can impact the performance of HPGe detectors by capturing the carriers, thereby affecting their energy resolution and hence the ability to detect traces of rare physical events in nature.

Defect complexes

Stability of defect complexes

It has been found experimentally18,19 and theoretically20,21,26,28,29 that the diffusion of group-V dopants in Ge is facilitated by Ge vacancies. A neutral Ge vacancy has a high formation energy of 3.82 eV, meaning it can only be introduced under non-equilibrium growth conditions such as ion implantation or electron irradiation45,50,53,54. Once formed, Ge vacancies can interact with group-V dopants to form defect complexes, provided the defects are in close proximity. To assess their stability, we analyze the binding energies of these defect complexes. Our analysis begins with the binding energies of neutral defect complexes and is then extended to charged complexes by evaluating their binding energies as a function of \(\textrm{E}_{\textrm{F}}\) across the Ge bandgap, thereby providing a comprehensive understanding of their energetics.

The binding energy (\(\textrm{E}_{\textrm{b}}\)) of a neutral defect complex was computed using39,40:

$$\begin{aligned} {\textrm{E}_{\textrm{b}}} = \Delta {\textrm{E}_{\textrm{f}}^{\textrm{complex}}} - {\sum \Delta {\textrm{E}_{\textrm{f}}^{\textrm{isolated}}}} \end{aligned}$$
(4)

where \({\Delta \textrm{E}_{f}}^{{complex}}\) and \({\Delta {E}_{f}}^{{isolated}}\) are formation energies of a defect complex and isolated defect. The summation in Eq. (4) is over all the defects that form a complex. A positive \(\textrm{E}_{b}\) indicates repulsion between defects, thus such defect complex is not stable. In contrast, a negative \(\textrm{E}_{b}\) indicates that the defect complex is stable.

Fig. 4
Fig. 4
Full size image

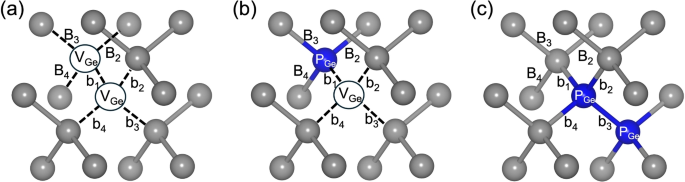

Illustration of defect complexes considered in this study for complexes with two defects. (a) VV complex, (b) PV complex, and (c) PP complex. The gray and blue spheres represent Ge and Phosphorus (P) atoms, respectively.

Fig. 5
Fig. 5
Full size image

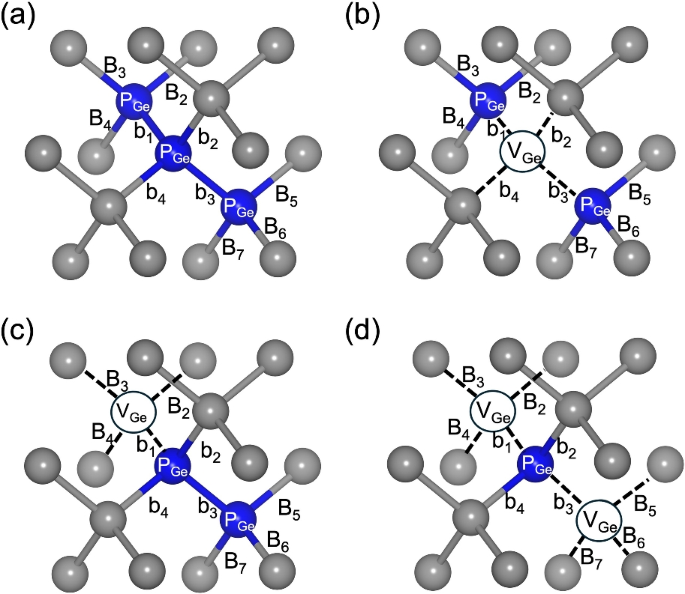

Illustration of defect complexes considered in this study for complexes with three defects. (a) PPP complex, (b) PVP complex, (c) PPV complex, and (d) VPV-complex. The gray and blue spheres represent Ge and P atoms, respectively.

In this study, we investigated the defect complexes formed from pairs and triplets of isolated defects, as illustrated in Figs. 4 and 5. For convenience, we denote the \(\textrm{V}_{\textrm{Ge}}\textrm{V}_{\textrm{Ge}}\) complex simply as VV and \(\textrm{P}_{\textrm{Ge}}\textrm{P}_{\textrm{Ge}}\) complex as PP. Similarly, \(\textrm{P}_{\textrm{Ge}}\textrm{P}_{\textrm{Ge}}\textrm{P}_{\textrm{Ge}}\) , \(\textrm{P}_{\textrm{Ge}}\textrm{V}_{\textrm{Ge}}\textrm{P}_{\textrm{Ge}}\), \(\textrm{P}_{\textrm{Ge}}\textrm{P}_{\textrm{Ge}}\textrm{V}_{\textrm{Ge}}\) and \(\textrm{V}_{\textrm{Ge}}\textrm{P}_{\textrm{Ge}}\textrm{V}_{\textrm{Ge}}\) complexes are denoted as PPP, PVP, PPV, and VPV, respectively. Defect complexes involving N, As, and Sb are represented using the same notation.

We begin by examining the stability of a neutral VV complex in Ge. The calculated formation energy of a neutral VV complex in this study is 6.03 eV. Our calculations yield a binding energy of -1.61 eV for the VV complex, indicating strong binding between the two vacancies upon formation. This finding is consistent with previous experimental and theoretical studies, which suggest that vacancies in Ge have a tendency to cluster and form voids18,19,20,21,26,28,29,55.

Table 4 Calculated formation (\(\Delta \textrm{E}_{\textrm{f}}\)) and binding (\(\textrm{E}_{\textrm{b}}\)) energies of neutral defect complexes at HSE06 level.
Full size table

Table 4 presents the computed formation and binding energies for neutral defect complexes in Ge. Our calculations indicate that, unlike NN and NNN complexes, which exhibit strong binding between N dopants, DD and DDD complexes (where D = P, As, and Sb) are not stable in Ge. This instability is reflected in their positive or nearly positive binding energies, as shown in Table 4. We further predict that vacancies can form stable defect clusters with group-V dopants, as evidenced by their negative binding energies in Table 4. This result aligns with previous experimental and theoretical studies that also suggest the formation of defect clusters in Ge18,19,20,21,26,28,29,55. Additionally, our calculations reveal that N forms the most strongly bound defect complexes, although the formation energies of N-related complexes with vacancies are larger than formation energies of P, As, and Sb related defect complexes. Among the studied defect structures, DVD complexes (where D = N, P, As, and Sb) exhibit significantly stronger binding compared to DDV and VDV complexes. This suggests that group-V dopants preferentially occupy the nearest neighboring sites on either side of the vacancy when forming defect complexes, a behavior that has also been observed experimentally in a previous study18. We also infer from our calculations that larger defect complexes with vacancies exhibit significantly stronger binding than the smaller ones. For instance, the binding energy for a PVP complex is -2.74 eV, compared to the -1.28 eV for a PV complex. We also find that vacancy in Ge lower its formation energy by forming defect complexes with P, As, and Sb. For example, the formation energy of a PVP (\(\sim\)2.16 eV) complex is lower than a PV (\(\sim\)3.08 eV) complex, which in turn is lower than the formation energy an isolated Ge vacancy (\(\sim\)3.82 eV). Such significant reduction in formation energy upon clustering, along with the strong binding of these defect complexes, suggests that larger complexes are energetically more favorable in Ge, provided the defects diffuse and come into close proximity. Our calculations also reveal that AsAsV and SbSbV complexes relax to the respective AsVAs and SbSbV complexes, respectively, indicating a preference for these rearranged structures. The computed binding energies for defect complexes are in good qualitative agreement with previous studies conducted at GGA level25,27. However, in this work, we examined the stability of these complexes using a more accurate hybrid functional approach.

Defects can exist in different charge states within the bandgap, and their stability is strongly influenced by the electron chemical potential (\(\textrm{E}_{\textrm{F}}\)). Therefore, we next evaluate binding energy (\(\textrm{E}_{\textrm{b}}\)) as a function of \(\textrm{E}_{\textrm{F}}\) within the Ge bandgap. For our analysis, we focus on defect complexes of the XV and XVX types. Since the results for P, As, and Sb are very similar (see Table 4), particularly when a vacancy is involved, we only computed and analyzed the binding energies of various phosphorus-related complexes, including PPP, PPV, VPV, and PVP, as a function of \(\textrm{E}_{\textrm{F}}\). The results of these calculations are presented in Figs. S2–S4.

To determine \(\textrm{E}_{\textrm{b}}\) as a function of \(\textrm{E}_{\textrm{F}}\), we start by analyzing the simplest XV-type complexes and then extend the approach to larger defect complexes. As an example, let us consider the formation of a dopant–vacancy complex through the following reaction as in Ref. 56

$$\begin{aligned} \textrm{D}_{\textrm{Ge}}^{\textrm{q}} + \textrm{V}_{\textrm{Ge}}^{\textrm{q}\prime } - \big (\textrm{q}^{\prime \prime } - (\textrm{q}^{\prime } + \textrm{q})\big )\textrm{e}^{-} \overset{\textrm{E}_{\textrm{b}}}{{\mathop {\leftharpoondown }\limits ^{\leftharpoonup }}} (\textrm{D}_{\textrm{Ge}}\textrm{V}_{\textrm{Ge}})^{\textrm{q}^{\prime \prime }}, \end{aligned}$$
(5)

where \(\textrm{D}\) represents a dopant atom (N, P, As, or Sb), while q, \(q^{\prime }\), and \(q^{\prime \prime }\) denote the charge states of the dopant, vacancy, and complex, respectively. \(e^{-}\) is an electron charge. The binding energy of a defect-complex can be expressed in terms of the formation energies of its constituents as

$$\begin{aligned} \textrm{E}_{\textrm{b}} = \Delta \textrm{E}_{\textrm{f}}\big [(\textrm{D}_{\textrm{Ge}} \textrm{V}_{\textrm{Ge}})^{\textrm{q}\prime \prime }\big ] - \Delta \textrm{E}_{\textrm{f}}[\textrm{D}_{\textrm{Ge}}^{\textrm{q}}] - \Delta \textrm{E}_{\textrm{f}}[\textrm{V}_{\textrm{Ge}}^{\textrm{q}^{\prime }}]. \end{aligned}$$
(6)

Because the slope of \(\Delta \textrm{E}_{\textrm{F}}\) with respect to \(\textrm{E}_{\textrm{F}}\) corresponds to the charge state of the defect, and each segment between charge transitions is linear in \(\textrm{E}_{\textrm{F}}\), \(\textrm{E}_{\textrm{b}}\) is piecewise linear, with the slope given by

$$\begin{aligned} \frac{\textrm{dE}_{\textrm{b}}}{\textrm{dE}_{\textrm{F}}} = \textrm{q}^{\prime \prime } - (\textrm{q}^{\prime } + \textrm{q}). \end{aligned}$$
(7)

This slope is zero only if the complex forms without exchanging electrons with the electron reservoir. A negative value (\(\mathrm{\mathrm q}^{\prime \prime } - \textrm{q}^{\prime } - \textrm{q} < 0\)) means that the defect-complex formation happens by electrons capture from the electron reservoir56. In contrast, a positive value (\(\textrm{q}^{\prime \prime } - \textrm{q}^{\prime } - \textrm{q} > 0\)) signifies that electrons are instead released into the electron reservoir as the complex forms56.

Figure S2 presents \(\textrm{E}_{\textrm{b}}\) as a function of \(\textrm{E}_{\textrm{F}}\) for the simplest defect complexes of type XV (X = N, P, As, Sb) formed from isolated X (X = N, P, As, Sb) and \(\textrm{V}_{\textrm{Ge}}\) defects. For clarity, the corresponding formation energies as a function of \(\textrm{E}_{\textrm{F}}\) are also included. Kinks in the \(\textrm{E}_{\textrm{b}}\) curves occur at the CTLs, i.e. whenever the charge state of a defect changes in the formation energy plot. Across the entire range of \(\textrm{E}_{\textrm{F}}\) within the bandgap, the binding energies remain negative, indicating that these complexes are strongly bound. In particular, for P-, As-, and Sb-based complexes, \(\textrm{E}_{\textrm{b}}\) becomes increasingly negative as \(\textrm{E}_{\textrm{F}}\) moves from VBM toward the CBM, suggesting that the binding increases, except in the nearest vicinity of the CBM. For the NV-complex, the binding energy decreases (becomes more negative) as the Fermi level moves away from the VBM and subsequently increases as it approaches the CBM. The calculated binding energy spans from -1.60 eV to -1.96 eV for NV, and from approximately -0.63 eV to -1.32 eV for PV complex; the binding energy results for AsV, and SbV complexes are very similar to PV complex. As shown in Fig. S2, there is no region within the bandgap where the neutral charge states of the complex and the isolated defects overlap. Hence, evaluating \(\textrm{E}_{\textrm{b}}\) as a function of \(\textrm{E}_{\textrm{F}}\) is essential to capture full picture of the defect energetics.

Equations (5) and (6) can also be generalized to the larger defect complexes. For the larger XVX complexes (X = N, P, As, Sb), our results indicate the same overall trend as for the simplest defect complexes, which can be seen in Fig. S3. However, the larger complexes show much stronger binding, as reflected by their more negative \(\textrm{E}_{\textrm{b}}\) values. Our calculations further reveal that the PPP complex (see Fig. S4) exhibits positive binding energy throughout the entire \(\textrm{E}_{\textrm{F}}\) range, indicating that it is unstable. By contrast, other complexes such as VPV and PPV are bound within the bandgap, though their binding is weaker compared to the PVP complexes.

Similar to Ge vacancies and other group-V defects, the formation of defect complexes in Ge alters its local structural properties. The structural modifications, specifically in terms of Ge-defect and defect-defect bond lengths for the simplest defect complexes, are summarized in Table S1. Our calculations indicate that structural changes near the defect site are more pronounced for N-related defect complexes compared to those involving P, As, and Sb. This difference arises from variations in atomic size and electronegativity among the group-V dopants studied here. However, beyond the immediate vicinity of the defect complex, no significant structural changes are observed.

Formation energy and charge transition level for defect complexes

Fig. 6
Fig. 6
Full size image

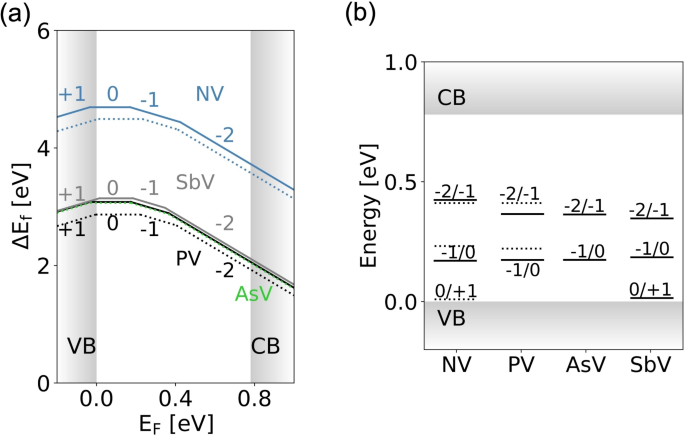

(a) Formation energy (\(\Delta \textrm{E}_{\textrm{f}}\)) of defect complexes of the type XV (X = N, P, As, Sb) as a function of the electron chemical potential (\(\textrm{E}_{\textrm{F}}\)). (b) Corresponding charge transition levels (CTLs) for the defect complexes shown in (a). In both panels, the dotted black (PV) and steel blue (NV) lines represent the corresponding results obtained using full HSE-relaxed structures. The shaded regions denote the valence band (VB) and conduction band (CB).

Next, we examine the energetics of the simplest defect complexes formed by clustering of a single vacancy with a single group-V dopant in Ge. Figure 6 presents \(\Delta \textrm{E}_{\textrm{F}}\) as a function of \(\textrm{E}_{\textrm{F}}\) for these defect clusters. Our calculations reveal that, similar to \(\textrm{V}_{\textrm{Ge}}\), defect complexes primarily exist in the 0, -1, and -2 charge states within the bandgap of Ge. The formation energy of an NV complex in these charge states is significantly higher than that of PV, AsV, and SbV complexes. For instance, the formation energy of a neutral NV complex is approximately 4.69 eV, whereas the formation energy for PV, AsV, and SbV complexes is around 3.10 eV. Due to their similar formation energies across different charge states, PV, AsV, and SbV complexes are expected to have comparable concentrations in Ge. Furthermore, Figure 6 indicates that defect-vacancy complexes are more likely to be in a doubly negative charge state under n-type doping conditions, consistent with a previous theoretical study performed using the GGA+U method20.

Figure 6a and b illustrates that these defect complexes exhibit -1/0 and -2/-1 CTLs within the electronic bandgap of Ge. Similar to the formation energies shown in Fig. 6, our calculations indicate that PV, AsV, and SbV complexes have nearly identical CTLs. The -1/0 and -2/-1 transitions for these complexes are located at approximately 0.17 eV and 0.35 eV, respectively. This suggests that their CTLs are very close to the corresponding ionization levels of \(\textrm{V}_{\textrm{Ge}}\). Notably, the SbV complex exhibits an additional 0/+1 CTL near the valence band edge at 0.015 eV. However, this defect level is relatively shallow and less detrimental compared to the deeper traps associated with SbV cluster. Unlike PV, AsV, and SbV complexes, the -2/-1 CTL for the NV complex is slightly deeper, located at 0.42 eV. However, its -1/0 CTL ( 0.17 eV) is similar to other defect complexes considered in this study.

Table 5 Calculated charge transition levels for XV (X = N, P, As, Sb) defect complexes.
Full size table

Figure 6 also confirms that, like \(\textrm{V}_{\textrm{Ge}}\), these defect complexes behave as multi-level acceptors, despite being composed of donor-type dopants.

To assess the reliability of the CTLs obtained from single-point HSE calculations on LDA-relaxed structures, we also carried out full HSE relaxations for the NV and PV complexes. The results, shown by the dotted black (PV) and dotted steel blue (NV) lines in Fig. 6a, indicate that the full HSE-relaxed structures yield -1/0 and -2/-1 CTLs at 0.23 eV and 0.41 eV for the NV complex. The corresponding values for the PV complex are at 0.22 eV and 0.40 eV for the -1/0 and -2/-1 transitions. These results demonstrate that CTLs obtained from single-point HSE calculations on LDA-relaxed structures (see Table 5) are in excellent agreement with those yielded from full HSE-relaxed structures.

Table 5 summarizes the computed CTLs for these defect complexes and compares them with previously reported theoretical values. The discrepancies between the transition levels in the two studies are likely due to differences in supercell size and computational method (GGA+U) used in Ref. 20.

Fig. 7
Fig. 7
Full size image

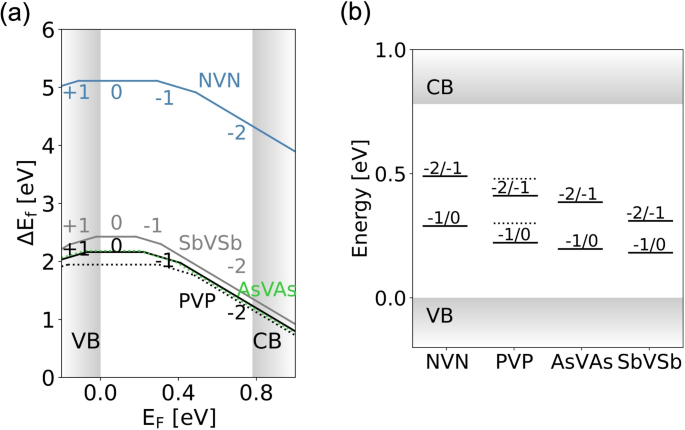

(a) Formation energy (\(\Delta \textrm{E}_{\textrm{f}}\)) of defect complexes of the type XVX (X = N, P, As, Sb) as a function of the electron chemical potential (\(\textrm{E}_{\textrm{F}}\)). (b) Corresponding charge transition levels (CTLs) for the defect complexes shown in (a). In both panels, the dotted black lines represent results for PVP complex obtained using full HSE-relaxed structures. The shaded regions denote the valence band (VB) and conduction band (CB).

However, XV (X = N, P, As, Sb) complexes represent the simplest vacancy-dopant complex, and it is highly likely that the defects cluster into larger defect complexes in HPGe detectors. To examine the impact of such large complexes, we extend our analysis to investigate CTLs associated with complexes of type XVX (X = N, P, As, Sb). Figure 7 presents \(\Delta \textrm{E}_{\textrm{F}}\) as a function of \(\textrm{E}_{\textrm{F}}\) for XVX complexes. Similar to XV complexes, XVX defect complexes are stable in the 0, –1, and –2 charge states within the bandgap of Ge, and generally introduce deep traps away from the band edges. Among them, the N-related complex exhibits a significantly higher formation energy compared to the other defect complexes shown in Fig. 7. The computed –1/0 and –2/–1 CTLs for the NVN complex are at 0.29 eV and 0.49 eV from the VBM. Calculations reveal that the PVP and AsVAs complexes not only possess nearly identical formation energies but also produce CTLs that lie extremely close to each other, with the –1/0 and –2/–1 transitions at approximately 0.22 eV and 0.41 eV. On the other hand, SbVSb complex forms -1/0 and -2/-1 CTLs at 0.18 eV and 0.31 eV, respectively. These results are summarized in Table 6. Our calculations, thus, show that XV and XVX (X = P, As, Sb) complexes in Ge exhibit CTLs very similar to those of a \(\textrm{V}_{\textrm{Ge}}\). Furthermore, like a \(\textrm{V}_{\textrm{Ge}}\) and simplest defect complexes, the XVX complexes introduce deep traps in Ge.

We also performed fully relaxed HSE calculations for the PVP complex. As shown by the black dotted lines in Fig. 7a and b, the results are in good agreement with single-point HSE calculations on the LDA-relaxed structures. The –1/0 and –2/–1 transitions differ by no more than 0.08 eV between the two approach (see Table 6), confirming their consistency.

Table 6 Calculated charge transition level (eV) for XVX (X = N, P, As, Sb) defect complexes.
Full size table

In this work, we further compute and analyze CTLs for different phosphorus-related complexes, namely PPP, PPV, and VPV. Our calculations indicate that the PPP complex has CTLs comparable to those of a single P dopant in Ge, although its formation energy is substantially higher. Specifically, the PPP complex forms 0/+1 and –1/0 CTLs at 0.65 eV and 0.78 eV, respectively. However, it may be noted that PPP complex does not bind and may not be stable in Ge. In contrast, the VPV complex has a much larger formation energy than the other phosphorus-related complexes and introduces –1/0 and –2/–1 CTLs at 0.09 eV and 0.24 eV in Ge. The PPV complex, while exhibiting slightly higher formation energy than the PVP complex, induces –1/0 and –2/–1 CTLs at 0.24 eV and 0.39 eV, along with an additional 0/+1 transition level at 0.03 eV. The results of these calculations have been presented in Fig. S5.

Based on this study, we infer that although the group-V dopants in Ge generally form shallow traps (except N), their complexes with vacancies give rise to deep traps in Ge. Such traps are expected to degrade the performance of HPGe detectors by capturing carriers generated through the interaction of incoming radiation with Ge atoms, thereby reducing the number of carriers collected at the electrodes.

Shallow traps, located close to the band edges, allow carriers to undergo continuous trapping and de-trapping phenomena due to thermal agitation \(\sim \textrm{k}_{\textrm{B}}\)T, where \(\textrm{k}_{\textrm{B}}\) is the Boltzmann constant and T is the absolute temperature. While continuous trapping and de-trapping reduces the carrier mobility, it does not result in permanent carrier loss. In contrast, deep traps, located away from the band edges, captures carriers for a long time, resulting permanent charge loss, lowering charge collection efficiency and degrading the performance HPGe detectors.

The deep traps formed due to vacancy–impurity complexes are detrimental for HPGe detectors, which require minimal defect concentration and efficient charge collection at the electrodes to achieve excellent energy resolution. It may be noted that a small concentration of defects in HPGe detectors can introduce significant charge carrier loss, reduce detector sensitivity, and limit the ability of these detectors to detect rare physical events, such as \(\textit{0}\nu \beta \beta\). Therefore, controlling the introduction of vacancies and group-V impurities during synthesis is vital to suppress the formation of detrimental defect complexes and to ensure the optimal performance of Ge-based radiation detectors.

Conclusions

In summary, we employed a hybrid functional within DFT to investigate group-V defects and their complexes in Ge. Our calculations indicate that group-V dopants are easily accommodated in Ge, and except N, they, in general, induce shallow traps just below the conduction band edge. Vacancy and interstitial of Ge, on the other hand, have relatively high formation energies and give rise to deeper traps. We also find that group-V defects strongly bind with Ge vacancies, with larger complexes binding more strongly and exhibiting lower formation energies than smaller ones. For example, the formation energy of a PVP complex is lower than that of a PV complex by 0.92 eV, which, in turn, is lower than the formation energy of a vacancy by 0.74 eV in Ge. This reveals a clear preference for defect clustering, provided the defects diffuse and encounter each other in their proximity. Crucially, these impurity–vacancy complexes introduce deep traps in Ge, which cause charge trapping in HPGe detectors and degrade energy resolution. This work is expected to advance our understanding of group-V defect behavior in Ge and aid in developing necessary mitigation strategies to suppress such defects during the fabrication process of HPGe detectors, thereby enhancing their performance in detecting rare physical events, such as \(\textit{0}\nu \beta \beta\).
