Introduction

Two-dimensional (2D) semiconductors are promising candidates for next-generation electronic and optoelectronic devices due to their atomically thin structure, excellent electronic and optical properties, and tunable bandgaps1,2,3. Moreover, 2D materials can exist as both monolayers and multilayers; precise thickness control enables further tuning of their physical and chemical properties, thereby broadening their potential applications. For example, monolayer 2D materials are well suited for transparent and flexible electronics, whereas multilayers structures are advantageous for photovoltaic applications, highlighting the importance of highly controlled thickness of 2D materials4. Among them, molybdenum disulfide (MoS2) has attracted particular attention for its high carrier mobility, mechanical flexibility, and compatibility with existing semiconductor processes. These properties make MoS2 a strong candidate for a variety of applications, including flexible electronics, photo detectors, and scaled transistors. Notably, the monolithic integration of MoS2 thin-film transistors (TFTs) with micro-LEDs has been demonstrated using MoS2 directly synthesized on GaN wafers, highlighting its potential for advanced optoelectronics technologies5. Another rapidly emerging application is the use of 2D semiconductors as alternative channel materials to silicon in complementary metal-oxide-semiconductor (CMOS) transistors for large-scale integrated circuits (LSIs)6, where scaling limitations of conventional semiconductors are becoming increasingly significant. The 2D semiconductors offer significant advantages in overcoming the ultimate limits of CMOS miniaturization due to their high carrier mobility, which exceeds 100 cm2/V·s7, and their extremely thin single-layer thickness of approximately 0.7 nm, providing the potential to surpass the properties of Si7,8. Additionally, transition metal dichalcogenides (TMDCs) have a smaller dielectric constant compared to Si (11.9), with MoS2 and WSe2 exhibiting values of approximately 59. This lower dielectric constant helps suppress short-channel effects in transistors. Due to these attractive characteristics, many researchers have recently reported significant advancements in 2D materials for scaled CMOS transistors. For instance, transistors based on TMDCs have demonstrated a high on-current of 1.23 mA/µm with an on/off ratio exceeding 108, outperforming their Si CMOS counterparts10. Leading research institutions and companies have also actively pursued the integration of TMDCs into CMOS technology on 300-mm substrates11,12,13,14. A high on-current of 420 µA/µm has been reported on a 300-mm substrate by transferring TMDC films15, with an expected 42% improvement in energy efficiency compared to Si devices16. Such research advancements will drive continued progress for CMOS scaling. Moving forward, TMDC-channel CMOS technology must focus on minimizing performance variations and improving characteristic controllability to meet the stringent requirements of advanced Si CMOS. Accordingly, realizing uniform, high-quality, and thickness-controlled TMDCs films on wafer scale remains a key challenge for practical device integration17.

The direct growth of MoS2 on wafers has been successfully achieved via a metal-organic chemical vapor deposition (MOCVD) process18,19,20, demonstrating a variation in transistor characteristics of ~ 12.86% and an excellent yield of ~ 99.9%19. As another scalable synthesis method, conversion techniques involving the transformation of a metal or oxide film into a TMDC film have also been reported21. In this approach, a pure transition metal or transition metal oxide film is first deposited as a starting film using techniques such as sputtering22, evaporation23,24,25,26, pulsed laser deposition27,28,29, or atomic layer deposition30,31. Subsequently, the deposited film is converted into TMDCs through a reaction with a chalcogen vapor, using either a solid source or chalcogen gas. In the case of MoS2, starting films such as molybdenum (Mo) 22,24,26, epitaxial MoO227,28,29, and amorphous Mo oxide23,25,26,30,31 have been employed, while sulfurization or reduction sources include elemental sulfur (S)22,23,24,25,26,27,28,29, hydrogen (H2)23, and hydrogen sulfide (H2S)30,31. This approach holds significant potential for achieving precise thickness control, uniformity, and conformity, with these capabilities determined by the properties of the starting film. However, the material and composition of the starting film, as well as the chalcogenation conditions, have not yet been universally optimized.

In this work, we present a scalable three-step conversion (3SC) method that enables precise control over the thickness and crystallinity of MoS2 films through the sulfurization of amorphous Mo oxide (MoOx) under optimized processing conditions. By tuning the oxygen content of the initial MoOx film and carefully controlling temperature and pressure during H2S annealing, we achieve uniform MoS2 films with precisely controlled thickness, from a monolayer to ~ 20 nm, exhibiting optical and structural properties comparable to those of single-crystalline counterparts. This process-driven approach offers a robust, reproducible, and LSI-compatible route for integrating high-quality 2D semiconductors into large-area electronic device fabrication.

Methods

First step of 3SC method

As the first step of the 3SC method, MoOx (x ≤ 3) films were deposited onto SiO2/Si substrates using physical vapor deposition techniques. This deposition step is critical for accurately controlling film thickness and ensuring the high quality of the resulting MoS2. To identify the optimal starting film, MoOx films were prepared using electron beam evaporation (EB), ion-assisted deposition (IA), ion plating (IP), sputtering (SP), and atomic layered deposition (ALD). For the physical vapor deposition methods (EB, IA, IP, and SP), solid Mo and Mo oxide targets were employed, and O2 gas was introduced during deposition conducted at temperatures ranging from room temperature (RT) to 150 °C. This process resulted in variations in the oxygen content (x) of the MoOx films, enabling a systematic investigation of how the initial composition influences subsequent sulfurization and crystallization processes. The resulting MoOx film, deposited on either a 4-inch wafer or a 10 mm × 10 mm square substrate, was then subjected to thermal annealing to facilitate MoS2 formation via sulfurization (second step) and crystallization (third step).

Second step of 3SC method

In the second step, H2S gas was introduced into the reactor at a pressure ranging from 0.1 to 50 kPa. Once the pressure stabilized, the substrate temperature was raised and maintained between 100 and 1000 °C. Heating was applied using lamp (manufacturer: THERMO RIKO Co., Ltd., model: GVP298, power range: 0.1–2 kW, wavelength: 700–3000 µm) positioned above the 10 mm × 10 mm square substrate, while a direct substrate heating method was used for 4-inch wafers. The heating rate was in the range of 1–10 °C/s, and variations within this range were confirmed to have no significant effect on the film quality. This H2S annealing was carried out for 10 min to promote sulfurization, after which the H2S gas was exhausted. Cooling proceeded naturally without rate control. Because H2S is highly toxic, it was exhausted through an abatement system after processing. High-pressure H2S was handled in a sealed chamber enclosed within a safety cabinet, and the laboratory is continuously monitored using gas detectors. These safety measures are commonly applied to other semiconductor process gases (e.g., SiH4) and are therefore not unique.

Third step of 3SC method

In the third step, Ar gas was introduced into the reactor at a pressure of 60 − 100 kPa as part of a vacuum-integrated process following the second step, and the substrate temperature was further increased to 1000–1100 °C. This Ar annealing step was maintained for 10 min to enhance the crystallinity of the MoS2 film.

Characterization of the film

As an evaluation index for MoS2, the Raman spectroscopy has been extensively utilized and studied, particularly for single-crystalline MoS2. In contrast, although this work focuses on polycrystalline MoS2 synthesized via the 3SC method, the characterization of polycrystalline MoS2 remains insufficiently explored due to the complexity introduced by grain boundaries. Accordingly, it is essential to establish a reliable evaluation index specifically for polycrystalline MoS2 in order to efficiently advance and optimize synthesis method efficiently. Various grain boundary structures have been reported in polycrystalline MoS2, which may induce internal stress and defects, thereby influencing its Raman spectra; particularly the disorder-related modes such as longitudinal optical (LO) and transverse optical (TO) modes32,36. Accordingly, we used the LO mode of 360 cm− 1, which exhibits relatively higher Raman intensity compared to out-of-plane optical (ZO) mode of 420 cm− 1, as an indicator of polycrystalline MoS2 film quality. Raman spectroscopy was performed on a 10 mm × 10 mm square substrate using a 488-nm continuous-wave laser with an output power of ~ 0.5 mW, focused to a spot size of ~ 2 µm in a diameter, while a 532-nm continuous-wave laser was used for in-plane mapping measurements on the 4-inch wafer. The film was further evaluated using Photoluminescence (PL) spectroscopy and X-ray photoelectron spectroscopy (XPS).

Results and discussion

Initial MoOx film

We first explored the optimal oxygen composition x in the initial MoOx film for the 3SC method. Raman measurements and TEM observations confirmed that the MoOx films were in an amorphous state, regardless of the deposition methods (electron beam evaporation (EB), ion-assisted deposition (IA), ion plating (IP), sputtering (SP), and atomic layered deposition (ALD)). Each MoOx film thickness was precisely adjusted to ~ 1–2 nm to yield a monolayer or bilayer of MoS2 after conversion. For thicker MoS2 films, initial MoOx thickness corresponding to 20–30 nm were similarly prepared. These films were then converted into MoS2 through H2S annealing at 600 °C, followed by Ar annealing at 1100 °C to enhance crystallinity (Fig. 1a). The Raman and Photoluminescence (PL) spectra of the resulting MoS2, converted form the MoOx (x = 2.8) film deposited by EB, are shown in Fig. 1b,c. In the Raman spectra, both LO and ZO modes32 were observed, indicating the presence of the disorder-related modes associated with grain boundaries. In the PL spectra, a main A peak at 1.87 eV, corresponding to a combination of the negatively charge trion (A−) and neutral exciton (A0) peaks, and a shoulder B peak at 2.0 eV were detected. Notably, the full width at half maximum (FWHM) of the A peak decreased with increasing MoO3 content in the initial MoOx film, approaching the PL-FWHM of 0.06 − 0.08 eV characteristic of single-crystalline monolayer MoS2, as shown in Fig. 1d. Here, a single Voigt profile was used to fit the A signal, which includes both the A0 and A− components, for the extraction of the PL-FWHM. This approach was adopted because separating A0 and A− peaks becomes difficult when the PL intensity is weak, although the A0 exciton is dominant under high PL intensity conditions, as shown in Fig. 1c. The trend in Fig. 1d indicates that the oxygen content in MoOx plays a crucial role in determining the optical properties and overall quality of the resulting MoS2 film. Specifically, a higher oxygen content, closer to that of MoO3, appears to enhance the sulfurization process, enabling a more complete and uniform conversion to MoS2.

Fig. 1
Fig. 1The alternative text for this image may have been generated using AI.
Full size image

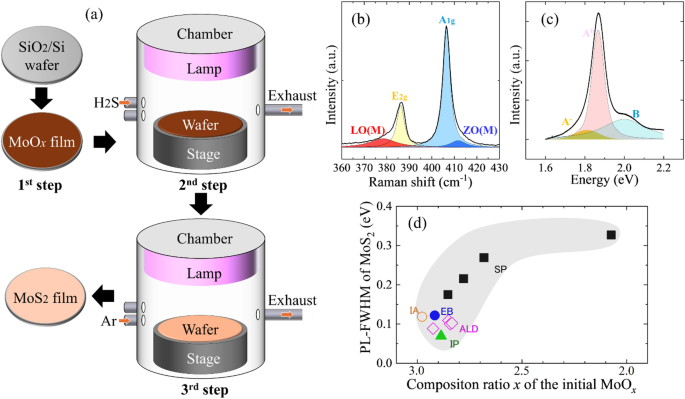

(a) Wafer-scale growth of MoS2 films using an annealing system based on the three-step conversion (3SC) method. (b) Raman and (c) Photoluminescence (PL) spectra of monolayer MoS2 synthesized by the 3SC method. (d) Full width at half maximum (FWHM) of the PL peak of the monolayer MoS2 synthesized by the 3SC method as a function of the composition ratio x in the initial MoOx film, deposited using electron beam evaporation (EB), ion-assisted deposition (IA), ion plating (IP), sputtering (SP), and atomic layered deposition (ALD) methods.

To verify the effect of the initial MoOx film composition on the resulting MoS2 film, we also investigated thick films. The thick MoO2.89 film was sulfurized to a depth of 10.7 nm from the surface, while the deeper region remained unsulfurized after H2S annealing at 600 °C followed by Ar annealing at 1100 °C, as shown in Fig. 2a. In contrast, the thick MoO2.98 film underwent complete sulfurization, achieving full conversion to MoS2 across the entire 26 nm thickness under the same sulfurization condition, as shown in Fig. 2b. This finding indicates that MoOx films with higher oxygen content promote sulfurization. This behavior can be explained by considering the molar volumes of the materials involved. The molar volumes of Mo, MoO2, MoO3, and MoS2 were calculated to be 9.4, 19.8, 30.7, and 31.6 cm3/mol, respectively, based on their molecular weights (95.9, 127.9, 143.9, and 160.1 g/mol) and densities (10.2, 6.5, 4.7, and 5.1 g/cm3). These values indicate that MoO3 and MoS2 possess similar molar volumes, which likely suppresses volume expansion during the conversion process. As a result, structural stability is improved, and internal stress is reduced in MoS2 films synthesized from MoO3. In other words, when sulfurization occurs in MoOx with a lower oxygen content (x < 3), strain induced by volumetric expansion can inhibit further sulfurization reactions or the thermal diffusion of sulfide species into the MoOx film. Additionally, we propose the following mechanism. The amorphous MoO3 film is likely composed of molecular-scale structural units resembling the MoO6 octahedral units found in crystalline MoO333. This structural characteristic is significant, as MoO6 octahedra can potentially rearrange into the trigonal prismatic coordination of 2H-MoS2 during sulfurization34. The presence of such prearranged structural units in the amorphous MoO3 film may facilitate a controlled and uniform conversion, resulting in high-quality MoS2 with fewer defects and lower residual stress. To clarify the effect of volumetric expansion during conversion to MoS2, we also investigated Mo as an initial film. An initial Mo film with a thickness of 3.2 nm was converted into a sulfurized MoS2 film with a thickness of 5.6 nm, corresponding to a 1.7-fold increase. This significant expansion led to the formation of wrinkles, attributed to stress induced by volume expansion during sulfurization. The internal stress generated in the MoS2 exceeded its adhesion strength to the underlying SiO2, ultimately causing film delamination and wrinkle formation, as shown in Fig. 2c. In contrast, MoS2 films derived from initial MoOx (x = 2.8) films exhibited significantly less expansion, with the sulfurized MoS2 film showing only a 1.1-fold increase in thickness. As a result, no wrinkles were observed at this thickness, even at 20 nm, although they began to appear when the thickness reached 30 nm. These wrinkles are associated with a weak adhesion at the van der Waals interface between MoS2 and the substrate. This comparison suggests that the initial film plays a crucial role in suppressing stress accumulation during sulfurization, thereby improving film adhesion.

Fig. 2
Fig. 2The alternative text for this image may have been generated using AI.
Full size image

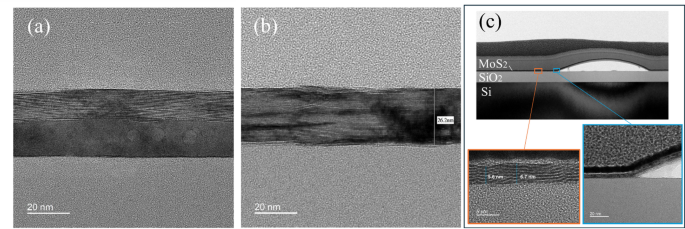

Cross-sectional transmission electron microscopy (TEM) images of MoS2 films synthesized from initial MoOx films with (a) x = 2.89 and (b) x = 2.98, and from (c) a Mo film after H2S annealing at 600 °C followed by Ar annealing at 1100 °C. (c) Delamination is observed in (c).

Annealing conditions for conversion from MoOx to MoS2

To investigate the effect of the second-step H2S annealing conditions, two types of samples were prepared under different H2S pressure: a low pressure of 100 Pa and a high pressure of 50 kPa. The MoOx (x = 2.8) film with a thickness of 0.7 nm, synthesized by EB, was used to achieve a monolayer of MoS2. This was followed by second-step H2S annealing at 300 °C and third-step Ar annealing at 1100 °C. Despite the H2S pressure being the only variable, a significant difference in Raman peak intensity was observed, as shown in Fig. 3a,b. To clarify the cause of this difference, the films were analyzed using XPS before and after the H2S annealing, as shown in Fig. 3c,d. The initial MoOx film primarily consisted of MoO3 (Mo6+), with a minor MoO2 (Mo5+) component, as shown in Fig. 3c. After annealing under high-pressure H2S, Mo-S bonds were clearly detected, evidenced by the appearance of Mo4+ 3d peaks at 229.3 eV and 232.5 eV, as shown inMo Fig. 3d. In contrast, after annealing under low-pressure H2S, the MoO3 (Mo6+) species were reduced to MoO2 (Mo5+), with little to no sulfur incorporation observed. These results demonstrate that high-pressure H2S annealing significantly enhances sulfurization efficiency.

Fig. 3
Fig. 3The alternative text for this image may have been generated using AI.
Full size image

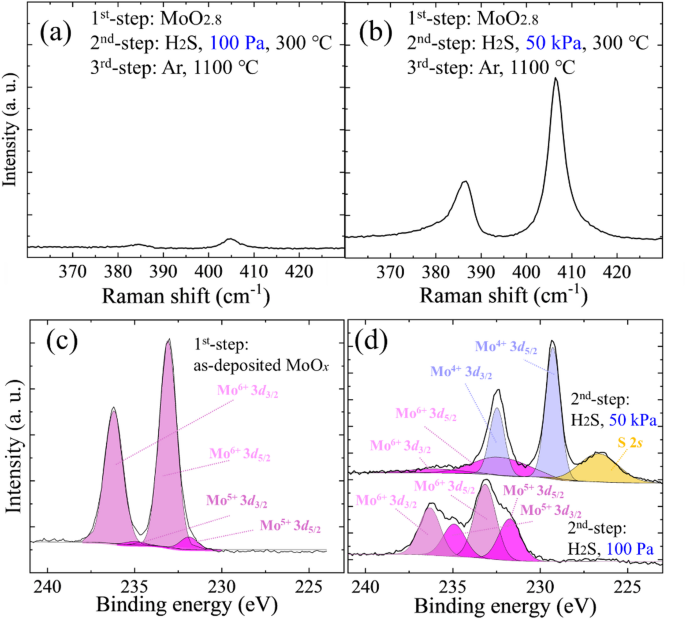

Raman spectra of MoOx films with x = 2.8 after H2S annealing at 300 °C under (a) 100 Pa and (b) 50 kPa for 10 min, followed by Ar annealing at 1100 °C for 10 min. XPS spectra of (c) the as-deposited MoOx films with x = 2.8, and (d) after H2S annealing at 300 °C under 100 Pa and 50 kPa for 10 min.

To further clarify the effect of the second-step H2S annealing, the dependence of the Raman peak intensity ratio of LO/E2g on the H2S annealing temperature was systematically investigated, as shown in Fig. 4a. A single-crystal monolayer of MoS2 exhibits a LO/E2g ratio of less than 0.1, with values closer to zero indicating a more ideal film. The LO/E2g ratio of MoS2 synthesized under the low-pressure (100 Pa) H2S decreased with increasing H2S annealing temperature, indicating a reduction in the Raman disorder mode as the annealing temperature increased. In comparison, the MoS2 synthesized under the high-pressure H2S (50 kPa) exhibited a lower LO/E2g ratio than that obtained under the low-pressure H2S, consistent with the XPS results confirming the effective sulfurization. Notably, the LO/E2g ratio saturated at approximately 0.35 for annealing temperatures above 700 °C, indicating that the film quality does not further improve by H2S annealing beyond this temperature. The H2S annealing treatment, which involves hydrogen, may induce damage at elevated temperatures due to desulfurization-driven etching effects that generate defects in the MoS2 film35. This adverse effect tends to be more pronounced in polycrystalline MoS2, which contains numerous grain boundaries acting as reactive edge planes36. These edge sites are more susceptible to defect formation compared to the single-crystalline MoS2, which is predominantly composed of chemically stable basal planes.

To overcome the limitations of the LO/E2g ratio saturating at 0.35 after the second-step H2S annealing, an Ar annealing step was introduced as a continuous third-step process. Figure 4b shows the LO/E2g ratio of MoS2 as a function of the second-step H2S annealing temperatures, followed by a common additional Ar annealing at 1100 °C. For MoS2 subjected to low-pressure H2S annealing in the second step, the LO/E2g ratio saturated near 0.35, even after the third-step Ar annealing. A similar saturation was observed for samples treated with high-pressure H2S annealing above 700 °C, indicating that high-temperature H2S exposure induces desulfurization driven etching effects, as discussed above. These effects degrade crystallinity and persist through the third step. In contrast, MoS2 treated with high-pressure H2S annealing below 600 °C showed a significant reduction in the LO/E2g ratio to ~ 0.2 after the third step, closely resembling that of an ideal MoS2 crystal. This improvement highlights the importance of low-temperature, high-pressure sulfurization conditions for achieving high crystal quality.

The third-step Ar annealing further facilitates the reconstruction of the MoS2 crystal, leading to a reduction in grain boundary density and an increase in grain size. To visually confirm this reconstruction behavior, thick MoS2 films were prepared before and after the third step, as shown in Fig. 4c,d. The MoS2 subjected only to the second step exhibited a random orientation, whereas after the third step, it transformed into a well-aligned layered structure. This transformation suggests that a similar crystal reconstruction process occurs in monolayer MoS2 during the third-step annealing. We found that the LO/E2g ratio of the monolayer MoS2 films decreases with increasing Ar annealing temperature in the range of 900–1200 °C, indicating that higher annealing temperatures help reduce structural disorder in the MoS2 films. However, a negative shift of the A1g peak was also observed with increasing annealing temperature, suggesting an increase in electron density (Fig. S1 in Supplementary information).

Fig. 4
Fig. 4The alternative text for this image may have been generated using AI.
Full size image

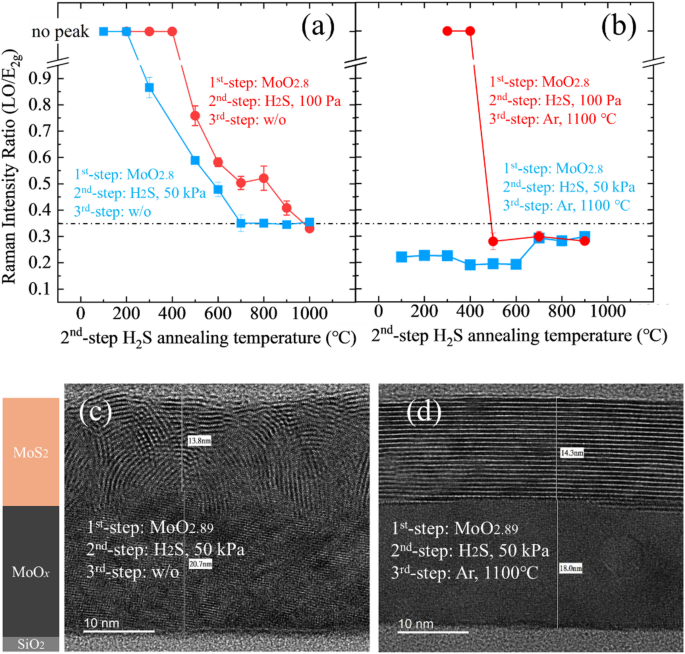

Raman intensity ratio of LO/E2g as a function of the H2S annealing temperature (a) without and (b) with the following Ar annealing at 1100 °C for 10 min. MoOx films with x = 2.89 were used, with H2S annealing conducted under 100 Pa and 50 kPa for 10 min as a common condition. Cross-sectional TEM images of MoOx films with x = 2.89 after H2S annealing at 600 °C under 50 kPa for 10 min (c) without and (d) with subsequent Ar annealing at 1100 °C for 10 min.

Indicator of MoS2 film quality

The optimized 3SC method, featuring low-temperature and high-pressure H2S annealing in the second step followed by high-temperature Ar annealing in the third step, was established based on the observed correlation between the PL-FWHM and the Raman LO/E2g intensity ratio in monolayer MoS2 films, as shown in Fig. 5. In this study, a 0.7 nm-thick MoOx (x = 2.8) film synthesized via EB was consistently used as the starting material. The MoS2 films exhibited a clear relationship between the PL-FWHM and the LO/E2g ratio, where lower LO/E2g ratios were associated with narrower PL-FWHM values. This trend indicates that the lower-left region of Fig. 5 corresponds to an ideal single-crystalline MoS2 film with minimal structural disorder. This correlation validates both PL-FWHM and the LO/E2g ratio as complementary indicators of poly-crystalline MoS2 film quality. Although this approach has limitations in accurately determining the grain size of MoS2, the proposed indicators are expected to facilitate further research on poly-crystalline MoS2 films.

Fig. 5
Fig. 5The alternative text for this image may have been generated using AI.
Full size image

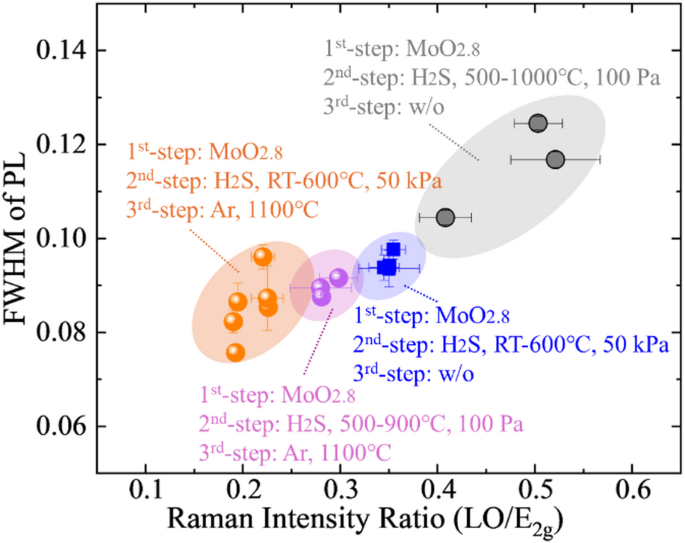

FWHM of the PL peak of monolayer MoS2 synthesized by the 3SC method under various conditions, plotted as a function of Raman intensity ratio of LO/E2g.

Scalable synthesis of MoS2 films

We demonstrated the scalable synthesis MoS2 films on a 4-inch Si wafer using the 3SC method. The resulting monolayer MoS2 film exhibited uniform and continuous coverage across the entire wafer surface, as shown in Fig. 6a. Additionally, PL mapping (Fig. 6b) validated the monolayer uniformity, revealing a strong A exciton peak centered at 1.87 eV and a narrow FWHM of ~ 0.09 eV, comparable to that of single-crystalline MoS2. By precisely tuning the thickness of the initial MoOx film, we achieved reliable control over the number of MoS2 layers. Specifically, an initial MoOx thickness of 0.7 nm yielded a monolayer MoS2 film, while increasing the thickness to 1.2 nm resulted in a bilayer film, both with high reproducibility, as demonstrated in Fig. 6c,d. Raman spectroscopy mapping confirmed the layer uniformity, with the peak separation between the E2g and A1g modes showing minimal spatial variation across the wafer, as shown in Fig. 6e. Although the peak differences differed slightly from those of single-crystalline MoS237, as shown in Fig. 6f, this variation is attributed to differences in strain and carrier concentration38,39,40,41,42, which affect the Raman shift and reflect the polycrystalline nature of MoS2 synthesized via the 3SC method. The grain size was estimated to be over 20 nm based on cross-sectional TEM images. The relationship between MoS2 grain size and carrier mobility has been well reported20,43,44, showing that films with larger grains exhibit higher mobility. For example, MoS2 film with a typical grain size of ~ 20 nm exhibit mobilities below 0.5 cm2·V− 1·s− 143, whereas films with grain size of ~ 100 nm show mobilities as high as 21 cm2·V− 1·s− 120. Accordingly, MoS2 film synthesized using the 3SC method are expected to achieve mobilities exceeding 0.5 cm2·V− 1·s− 1. Larger grain sizes reduce grain-boundary-induced scattering during electron transport in the polycrystalline MoS2 film. These characterization results demonstrate that the 3SC method enables wafer-scale production of high-quality MoS2 films with controllable thickness and excellent optical and structural uniformity, making it a promising approach for large-area electronics and optoelectronics applications.

Fig. 6
Fig. 6The alternative text for this image may have been generated using AI.
Full size image

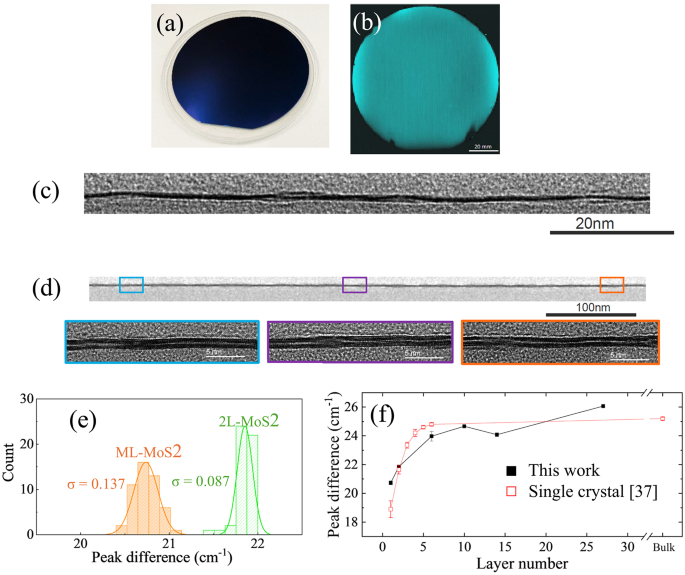

(a) Monolayer MoS2 film on a 4-inch Si/SiO2 wafer synthesized by the 3SC method. (b) PL mapping at the exciton peak centered at 1.87 eV. Cross-sectional TEM images of (c) monolayer MoS2 and (d) bilayer MoS2 films on the 4-inch Si/SiO2 wafer using the 3SC method. (e) Variation of Raman peak difference between the E2g and A1g modes at 50 points for the monolayer and bilayer MoS2 films. (f) Raman peak difference between the E2g and A1g modes as a function of MoS2 layer number synthesized by the 3SC method, compared to single-crystal MoS2 data37.

Conclusion

The 3SC method provides a scalable and controllable approach for synthesizing high-quality MoS₂ films on Si/SiO₂ wafers. By tuning the initial thickness of the amorphous MoOx precursor, we achieved precise control over the resulting MoS₂ thickness, from monolayer to approximately 20 nm. The oxygen content in MoOx was found to critically influence sulfurization efficiency and uniformity. Effective sulfur conversion was achieved via high-pressure (50 kPa), low-temperature (≤ 600 °C) H₂S annealing, followed by high-temperature (1100 °C) Ar annealing, which promoted crystal reconstruction and reduced grain boundary density. Raman and PL spectroscopy confirmed the improved structural and optical properties, with the PL FWHM of the monolayer MoS2 narrowed to ~ 0.08 eV. Uniform MoS₂ coverage across a 4-inch wafer further demonstrated the scalability and compatibility of the process with large-area fabrication. Overall, the 3SC process provides a robust and reproducible platform for integrating 2D semiconductors into next-generation electronic and optoelectronic devices.
