Main

Behavioral analyses using model animals are critical for understanding neural functions and pathological states. Due to its ease of handling and suitability for genetic manipulation, the laboratory mouse is widely used as a model animal to study the neural bases of various conditions, including psychiatric, neurodevelopmental and neurodegenerative disorders. Traditional methods for analyzing neural functions in mice involve assessing behaviors, such as locomotion, exploration, social interaction and learning/memory, through specific tests, including the open field test, the elevated plus maze, the social interaction test and the Morris water maze1,2,3,4. However, these traditional approaches come with several limitations.

A major limitation of traditional behavioral analyses is the low throughput of data acquisition, as most analyses are manually conducted over limited periods under artificial conditions. Typically, behavior is recorded for a single mouse in a specific experimental setup. For instance, the open field test measures general locomotor activity and anxiety-related behavior by placing a single mouse in an open arena and tracking its movements and time spent in different zones1. Similarly, the three-chamber social interaction test assesses sociability by comparing the time a mouse interacts with a novel mouse versus an empty chamber, offering insights into social preferences5. A more substantial concern is that interactions between experimenters and animals often introduce biases that influence results6,7,8. Handling by experimenters can elevate heart rate, body temperature, spontaneous activity and anxiety, potentially impacting memory and learning abilities7,9. Moreover, variations in behavioral data have been linked to the researcher’s biological sex and environmental conditions8,10. Therefore, there is a growing need for automated, unbiased systems to analyze behavior in semi-natural (home-caged) conditions to ensure more robust and reliable data.

Recent advances in behavioral analyses have increasingly focused on studying group dynamics in semi-natural environments. One widely adopted approach is the use of radio frequency identification (RFID) technology, which enables the tracking of multiple animals within a home-cage setting. Compared with manual video tracking, RFID systems offer continuous, high-throughput data acquisition with minimal human intervention. IntelliCage, a pioneering RFID-based system, utilizes RFID readers placed at the corners of a cage to automatically monitor the frequency and timing of animals entering chambers11. IntelliCage has been widely used to investigate spontaneous behavior and learning in group-housed mice12,13. Another RFID-based system, ECO-HAB, consists of four open fields connected by tubes, with RFID readers positioned at the junctions, allowing the study of free movement and social interactions among mice by tracking their movement between fields14,15. In addition, floor plate RFID systems have been developed to measure the locomotor activity of multiple animals simultaneously16. The first such system, ‘Trafficage’, was introduced in 2005 by NewBehavior and later commercialized by TSE Systems17,18,19, which was followed by ‘MultimouseMonitor’, being brought to market by PhenoSys20. More recently, a high-resolution RFID floor plate system was developed by Dr. Toshihiro Endo and his team and has been commercialized by Phenovance (Japan), enabling the precise tracking of multiple animals with improved temporal resolution21.

In this study, we developed IntelliProfiler, a research workflow comprising data processing scripts designed to analyze locomotor activity and social proximity using the commercially available, high-resolution RFID floor plate system from Phenovance described above. While IntelliProfiler itself is purely a software-based workflow, here it was applied to data acquired from an RFID floor plate capable of tracking up to 16 mice with high spatial (5 × 5 cm grid) and temporal resolution21. This setup enables long-term, continuous monitoring of activity and proximity-based interactions with minimal researcher intervention. Using the IntelliProfiler workflow, we conducted 72-h continuous behavioral analyses in large groups of male or female wild-type (WT) mice, comparing behavioral patterns between sexes across age groups to evaluate the effects of aging on social dynamics. We also examined a mouse model of autism spectrum disorder (ASD) derived from aged fathers22,23, assessing alterations of social behavior in offspring. Collectively, our findings demonstrate that IntelliProfiler workflow provides a robust and efficient approach for investigating complex social behaviors and group dynamics in rodent models. Notably, IntelliProfiler functions solely as a data processing workflow; it neither incorporates RFID hardware nor provides any hardware control. Accordingly, the number of animals and spatial resolution used in this study are determined entirely by the specifications of the external RFID board21.

Results

IntelliProfiler research workflow

The recording schema and physical configuration are shown in Fig. 1a,b. Raw data from the RFID floor plate system, including time, antenna ID and transponder ID, were exported from the RFID floor plate (Supplementary Fig. 1a,b). These data were then converted into spatial coordinates and downsampled to a per-second resolution using the IntelliProfiler workflow (Supplementary Fig. 1c,d). Subsequent calculations, statistical analyses and figure visualization were performed on the converted data generated during the preprocessing step (Fig. 1c and Supplementary Fig. 2). Using this workflow, we conducted continuous 72-h behavioral analyses on 8-week-old male or female mice in groups of 4, 8 and 16, recorded with RFID floor plate hardware (Fig. 1d). In the group of 16 male mice, one RFID tag was dislodged during the experiment. Therefore, data from 15 male mice were analyzed, following the approach described previously24.

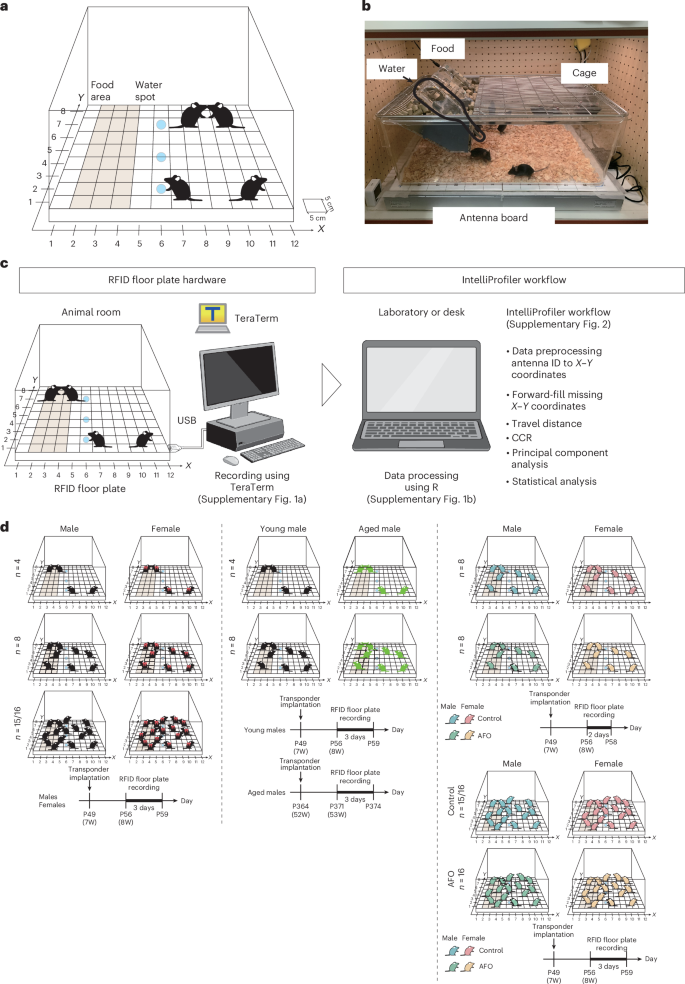

Fig. 1: RFID floor plate automated behavioral measurement system and IntelliProfiler workflow data processing.
figure 1

a, A schematic of the RFID floor plate (Phenovance). The RFID floor plate system tracks the location of mice implanted with RFID tags via detectors placed in a 96-grid array at the base, with each grid measuring 5 cm × 5 cm. Location information is converted into XY coordinates (X = 12, Y = 8) using the IntelliProfiler workflow, based on RFID floor plate antenna IDs (1–96). b, A photograph of the RFID floor plate. c, Original data, capturing information on time, antenna ID and transponder ID from RFID floor plate hardware using TeraTerm. Raw hardware logging data are shown in Supplementary Fig. 1a. Processed data, converted using the IntelliProfiler workflow, are refined to include time, antenna ID, transponder ID and XY coordinates. Decimal information is removed from the time data. If multiple individuals are detected on the same antenna ID simultaneously, their information is separated into different rows. d, Behavioral analysis was conducted using RFID floor plate over a continuous 72-h period for male and female mice in groups of 4, 8 and 15/16. Young (8-week old) and aged (53-week old) male mice were analyzed in groups of 4 and 8. AFO and control male and female mice were analyzed in groups of 8 and 16. The personal computer and monitor icons in c were created with BioRender.com and edited in Adobe Illustrator. W indicates the age of the mouse (in weeks).

Full size image

Locomotor activity

In the males, cumulative travel distances for every 2 h exhibited the highest travel distance values in the 4-mouse group compared with the 8- and 15-mouse groups during most of the time (Fig. 2a; day 1, 8:00: 4 versus 8, P < 0.001; 4 versus 15, P < 0.001). Across all groups, males exhibited the highest travel distance immediately after entry compared with all subsequent time points, dropping to less than half within 2 h. Their travel distance increased again during the transition from light to dark period. By contrast, females were less active overall and displayed more stable travel distances across nearly all time points (Fig. 2b).

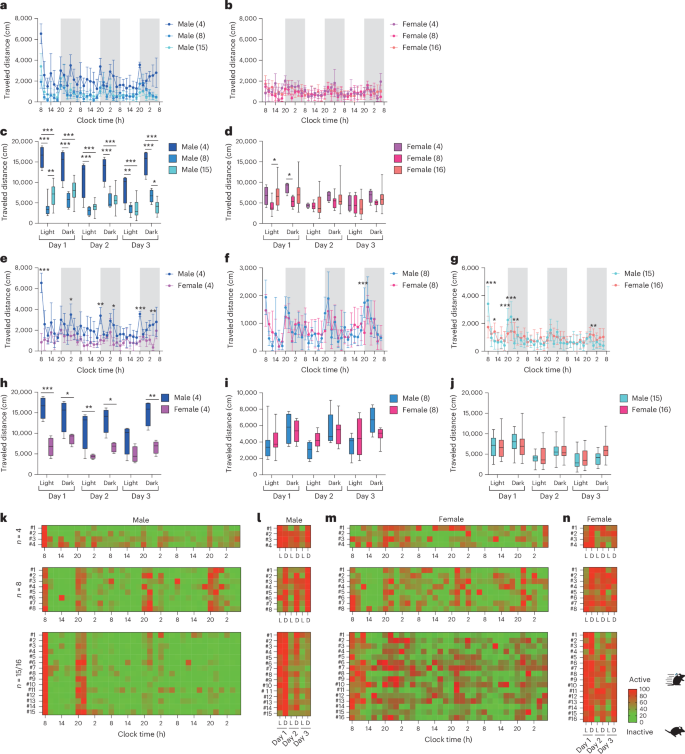

Fig. 2: Activity analysis of group-housed mice using the IntelliProfiler workflow.
figure 2

a–j, Cumulative travel distances measured in 2-h intervals (a,b,e–g) and over 12-h intervals (light–dark cycles) (c,d,h–j). a–d, Analysis of locomotor activity based on group size, comparing groups of 4, 8 and 15 males (a,c) and 4, 8 and 16 female mice (b,d). e–j, Analysis of sex differences in locomotor activity, comparing groups of 4 (e,h), 8 (f,i) and 15–16 (g,j) male and female mice. k–n, Heatmaps showing relative locomotor activity over 2-h intervals (k,m) and 12-h intervals (l,n) for groups of 4, 8 and 15–16 mice. Values in the bar or line graphs are presented as mean ± s.d., with box plots displaying minimum and maximum whiskers. Statistical analysis was conducted using the Holm–Šidák method for multiple comparison. The same statistical tests (two-way ANOVA followed by Holm–Šidák’s multiple comparison test) were applied to all bar and line graphs and box plots graphs in a–j. Significance levels are indicated as *P < 0.05, **P < 0.01 and ***P < 0.001. P < 0.001 (c), P = 0.011 (d), P < 0.001 (e), P = 0.894 (f), P = 0.009 (g), P < 0.001 (h), P = 0.920 (i), P = 0.139 (j).

Source data

Full size image

To understand the general trends of locomotor activity, we analyzed cumulative travel distances in 12-h intervals. Males showed the highest travel distance just after their entry relative to subsequent 12-h intervals and significantly higher travel distance in the 4-mouse group than in 8- and 15-mouse group (Fig. 2c; day 1 light: 4 versus 8, P < 0.001; 4 versus 15, P < 0.001). Small but significant differences were observed between the 8- and 15-mouse groups in the light period on day 1 and the dark period on day 3 (day 1 light: P = 0.010; day 3 dark: P = 0.020). Meanwhile, females showed similar travel distances through the period among groups, except for day 1 (Fig. 2d).

We then compared 2-h interval activities to examine sex differences. In the four-mouse group, male mice showed higher travel distances throughout the period than females, with significantly higher travel distances observed at five time points in the dark periods (Fig. 2e; day 1, 2:00: P = 0.014; day 2, 20:00: P = 0.002; day 2, 4:00: P = 0.002; day 3, 20:00: P < 0.001; day 3, 4:00: P = 0.006). However, no periodic trend was observed in the 8- and 15/16-mouse groups (Fig. 2f,g). In the 12-h intervals (Fig. 2h–j), males in the four-mouse group showed higher travel distances throughout the period than female mice except for the light period on day 3 (Fig. 2h; day 1 light: P < 0.001; day 1 dark: P = 0.046; day 2 light: P = 0.009; day2 dark: P = 0.012; day 3 dark: P = 0.001). Meanwhile, no noticeable sex difference was observed in the groups of 8 and 15/16 mice (Fig. 2i,j). Two-way ANOVA followed by Holm–Šidák’s multiple comparisons test was used for all bar and line graphs and box plots to assess differences between groups in locomotor activity (Fig. 2).

The time course of relative locomotor activity for each mouse was visualized as heatmaps. Male mice showed a marked increase in activity immediately after the introduction and at the onset of the dark period compared with the subsequent activities in both light and dark periods (Fig. 2k). A pronounced contrast of locomotor activity was observed between light and dark periods over 3 days (Fig. 2l). By contrast, female mice displayed relatively more variable activity patterns over time (Fig. 2m), with some mice showing elevated activity even during the light period (Fig. 2n). These findings suggest that male mice, particularly in smaller group sizes, exhibit higher locomotor activity than female mice, pointing to potential sex-specific behavioral responses to group size.

Social interactions

To assess social interactions among group-housed mice, we tracked changes in the distance between two individual mice. The spatial relationships were classified into four categories based on proximities: ‘Same’—the other mouse occupied the same grid as the focal mouse; ‘Close’—the other mouse was in the adjacent grids; ‘Intermediate’—the other mouse was located beyond the surrounding grids; and ‘Away’ (Fig. 3a). The transition in social distance ratios was recorded in 2-h intervals for groups of 4, 8 and 15 male mice and groups of 4, 8 and 16 female mice.

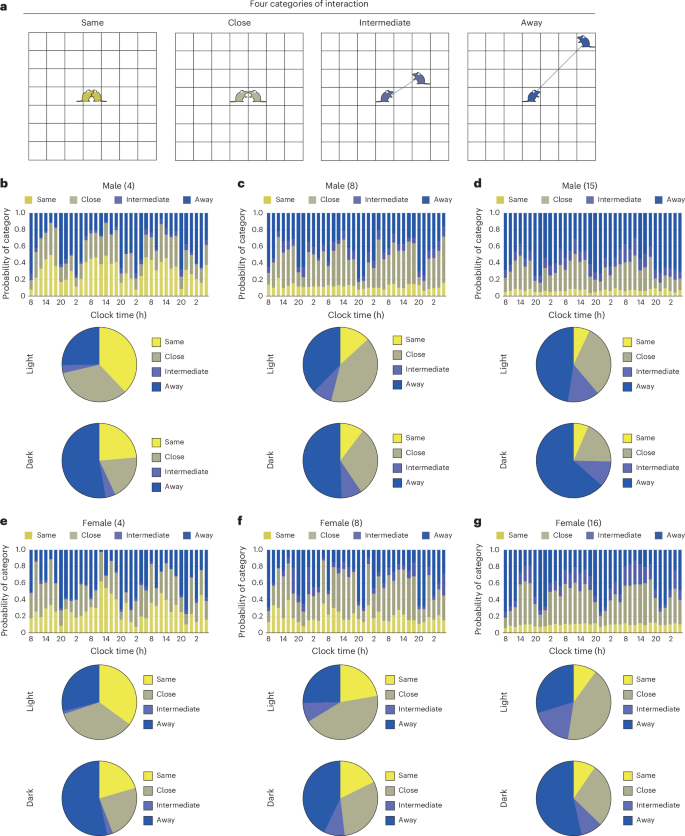

Fig. 3: The spatial relationships among group-housed mice using the IntelliProfiler workflow.
figure 3

a, Definition of the spatial relationships between two individual mice. When another mouse is in the same grid as the focal mouse (both depicted in yellow), the relationship is defined as ‘Same’. If the other mouse is in the surrounding grids (depicted in olive), it is defined as ‘Close’. If the other mouse is outside the surrounding grids (depicted in indigo), it is defined as ‘Intermediate’. If the other mouse is beyond the ‘Intermediate’ zone (depicted in blue), the relationship is categorized as ‘Away’. b–g, The 2-h bin transition of proportions based on ‘Same’, ‘Close’, ‘Intermediate’ and ‘Away’ for groups of 4 male mice (b), 8 male mice (c), 15 male mice (d), 4 female mice (e), 8 female mice (f) and 16 female mice (g). The average proportion of distance categories during the light period and the dark period is shown for each group. Chi-square P values comparing the proportions between light and dark periods: P < 0.001 (b, 4 males), P = 0.256 (c, 8 males), P = 0.114 (d, 15 males), P = 0.005 (e, 4 females), P = 0.049 (f, 8 females), P = 0.007 (g, 16 females). The P values of chi-square for group size, P < 0.001 (b–d, males in the light phase), P = 0.002 (b–d, males in the dark phase), P < 0.001 (e–g, females in the light phase), P = 0.092 (e–g, females in the dark phase).

Source data

Full size image

The proportion of ‘Same’ increased during the light period and decreased during the dark period in the four-mouse group, but this pattern was not observed in the other groups (Fig. 3b–g). A similar trend was found for the ‘Close’, where its proportion rose in the light period and declined in the dark period across groups of 4, 8 and 15 males and 4, 8 and 16 females (Fig. 3b–g). The proportion of ‘Intermediate’ was relatively low in the four-mouse group but increased with group size without showing a consistent periodic trend observed. By contrast, the proportion of ‘Away’ decreased during the light period and increased in the dark period across all groups.

The average proportion of each social distance category during the light and dark periods was compared across groups (Fig. 3b–g). The proportion of ‘Same’ decreased as group size increased. During the light period, the percentage of ‘Close’ was higher than during the dark period across all groups, although there was no clear trend concerning group size. The proportion of ‘Intermediate’ increased with group size during the light period and was higher in the 8- and 15/16-mouse groups than the 4-mouse group during the dark period, but similar between the 8-mouse and 15/16-mouse groups. By contrast, the proportion of ‘Away’ was the highest in the 15-male group during both periods, although no clear pattern emerged for the female groups. These analyses revealed qualitatively distinct patterns of social distance in the 8- and 15/16-mouse groups compared with the 4-mouse group.

Significant differences in the proportions of each category between the light and dark periods were observed in the groups of 4 males and 4, 8 and 16 females (Fig. 3b; P < 0.001; Fig. 3e; P = 0.005; Fig. 3f; P = 0.049; Fig. 3g; P = 0.007). However, no significant differences were found in the 8- and 15-male groups (Fig. 3c,d). Regarding group size, significant differences were noted in the male groups during both the light and dark periods and in the female groups during the light period, but no significant differences were observed in the female groups during the dark period (male light: P < 0.001; male dark: P = 0.002; female light: P < 0.001). The chi-square test was used for all statistical comparisons in social interaction analyses (Fig. 3).

We then introduced the close contact ratio (CCR), a metric to quantify social proximity to analyze social interactions. This ratio reflects the proportion of time two mice are either in the ‘Same’ or ‘Close’ (Fig. 4a). When CCR data were divided into 2-h intervals for both male and female groups, males in the 4-mouse group exhibited the highest CCR compared with the 8- and 15-mouse groups throughout the entire period. In male mice, the CCR was initially low immediately after entry, gradually increasing until 18:00, followed by a gradual decline until 20:00, with a similar pattern recurring from day 2 onward (Fig. 4b). By contrast, the females in the 16-mouse group showed a substantially lower CCR compared with the 4- and 8-mouse groups (Fig. 4c), although no consistent time-dependent pattern was observed. We also analyzed the average CCR over 12-h intervals. In male mice, the CCR decreased as the group size increased from 4 to 8 to 15 mice during the light period (Fig. 4d; day 1 light: 4 versus 8, P = 0.001; 4 versus 15, P < 0.001; 8 versus 15, P < 0.001; day 2 light: 4 versus 8, P < 0.001; 4 versus 15, P < 0.001; 8 versus 15, P < 0.001; day 3 light: 4 versus 8, P = 0.001; 4 versus 15, P < 0.001; 8 versus 15, P < 0.001). The 15-mouse male group had the lowest CCR, while no significant difference was found between the 4- and 8-mouse groups during the dark period. Similarly, female mice in the 16-mouse group tended to have the lowest CCR during the light period compared with the 4- and 8-mouse groups, although no consistent differences were observed between the latter two groups (Fig. 4e; day 1 light: 4 versus 16, P < 0.001; 8 versus 16, P < 0.001; day 2 light: 4 versus 16, P < 0.001; 8 versus 16, P < 0.001; day 3 light: 4 versus 16, P < 0.001; 8 versus 16, P < 0.001). No clear trend was observed during the dark period in female mice.

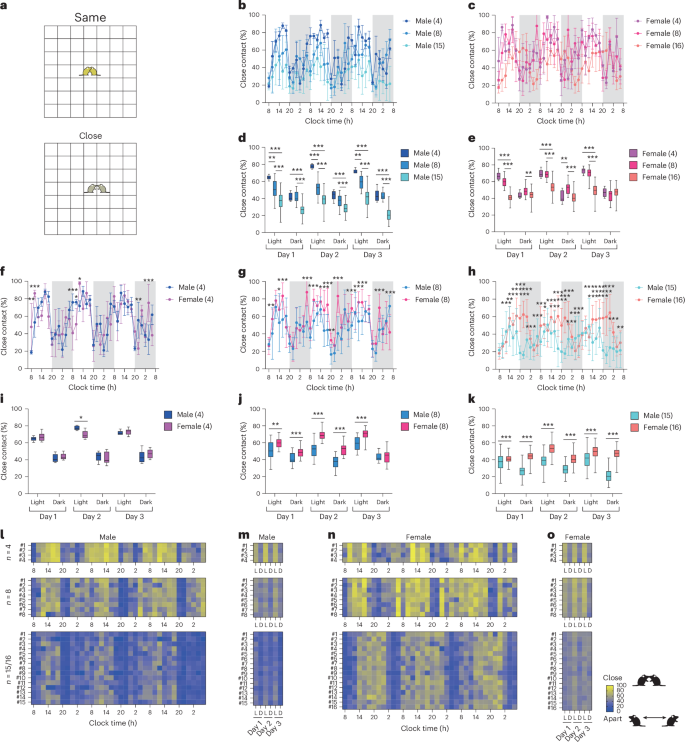

Fig. 4: Close contact between two individuals among group-housed mice analyzed using the IntelliProfiler workflow.
figure 4

a, Definition of close contact: two mice either in the ‘Same’ grid (depicted in yellow) or in adjacent grids, classified as ‘Close’ (depicted in olive). b–k, Average CCR measured in in 2-h intervals (b,c,f–h) and 12-h intervals (d,e,i–k). b–e, Analysis of CCR based on group size, comparing groups of 4, 8 and 15 male mice (b,d) and 4, 8 and 16 female mice (c,e). f–k, Analysis of sex differences in CCR, comparing groups of 4 (f,i), 8 (g,j) and 15/16 (h,k) male and female mice. l–o, Heatmaps showing the time course of CCR over 2-h intervals (l,n) and 12-h intervals (m,o) for groups of 4, 8 and 15–16 mice. Values in the bar or line graphs are presented as mean ± s.d., with box plots showing minimum/maximum whiskers. Statistical analysis was conducted using the Holm–Šidák method for multiple comparisons. The same statistical tests (two-way ANOVA followed by Holm–Šidák’s multiple comparison test) were applied to all bar and line graphs and box plots in b–k. Significance levels are indicated as *P < 0.05, **P < 0.01 and ***P < 0.001. P < 0.001 (b), P < 0.001 (c), P = 0.882 (f), P < 0.001 (g), P < 0.001 (h), P = 0.873 (i), P < 0.001 (j), P < 0.001 (k).

Source data

Full size image

We also examined the sex differences in CCR using 2-hour intervals in 4-, 8- and 15/16-mouse groups. In the four-mouse group, females showed a significantly higher CCR than males during the initial 4 h (Fig. 4f; day 1, 8:00: P = 0.008; day 1, 10:00: P = 0.001). However, CCR fluctuated between males and females throughout the remaining time points, suggesting that consistent sex differences in social proximity might not be present in these four-mouse group. By contrast, in the 8- and 15/16-mouse groups, females consistently exhibited higher CCR than males at most time points, indicating more pronounced sex differences in social proximity (Fig. 4g,h). To assess the overall trend, we analyzed the CCR in 12-h intervals. In the four-mouse group, no clear sex differences in CCR were observed, except during the light period on day 2, when females had a higher CCR than males (Fig. 4i; day 2 light: P = 0.049). However, in the eight-mouse group, females had a higher CCR than males across most periods, except during the dark period on day 3 (Fig. 4j; day 1 light: P < 0.001; day 1 dark: P = 0.009; day 2 light: P < 0.001; day 2 dark: P < 0.001; day 3 light: P < 0.001). Similarly, in the 16-mouse group, females consistently exhibited a higher CCR than males across all the periods (Fig. 4k; day 1 light: P < 0.001; day 1 dark: P < 0.001; day 2 light: P < 0.001; day 2 dark: P < 0.001; day 3 light: P < 0.001; day 3 dark: P < 0.001). Two-way ANOVA followed by Holm–Šidák’s multiple comparisons test was used for all bar and line graphs and box plots to assess differences between groups in CCR (Fig. 4).

The time course of CCR, visualized as a heatmap for individual mice, revealed a strong periodic trend in the males, with CCRs peaking during the light period and decreasing during the dark period (Fig. 4l,m). By contrast, the female groups generally displayed higher CCRs for longer durations compared with males (Fig. 4n,o). The periodic patterns of CCRs were less pronounced in the 15/16 mouse groups, although the trend remained more apparent in males than females (Fig. 4m,o). These findings suggest that sex-specific social dynamics become more prominent in larger groups.

Aging effect

As aging has been reported to affect many behavioral aspects, including locomotor activity and social interaction25,26, we compared young (8-week-old) and aged (53-week-old) male mice in groups of four and eight (Fig. 1d and Supplementary Figs. 3–5). Aged males in the four-mouse group showed reduced social proximity compared with young males, while those in the eight-mouse group exhibited prolonged movement durations relative to young males, indicating that aging impacts activity and social behavior, particularly with group size.

Application into ASD model mice

We further applied IntelliProfiler workflow to analyze behavior in a mouse model of ASD induced by advanced parental aging, using 8-week-old male and female offspring from aged fathers (AFO) and control fathers22,23, housed in groups of 8 or 16 (Fig. 1d).

In both group sizes, AFO males showed consistently increased travel distances across nearly all time points compared with control males, while AFO females showed elevated activity at two-thirds of the time points compared with control females (Fig. 5a–f). These effects were more pronounced in the 16-mouse group, with AFO males exhibiting greater cumulative distances compared with AFO females, especially on day 2 and during the light phase (Fig. 5g–l; Fig. 5j; day 2 light: P = 0.050; day 2 dark: P = 0.004; Fig. 5l; day 1 light: P < 0.001; day 2 light: P < 0.001; day 3 light: P < 0.001). The chi-square test was used for all statistical comparisons in social interaction analyses (Fig. 5). Heatmaps indicate peak activity after cage introduction and at the onset of the dark phase, with AFO males displaying prolonged activity over time compared with control males (Fig. 5m–t), suggesting altered temporal patterns.

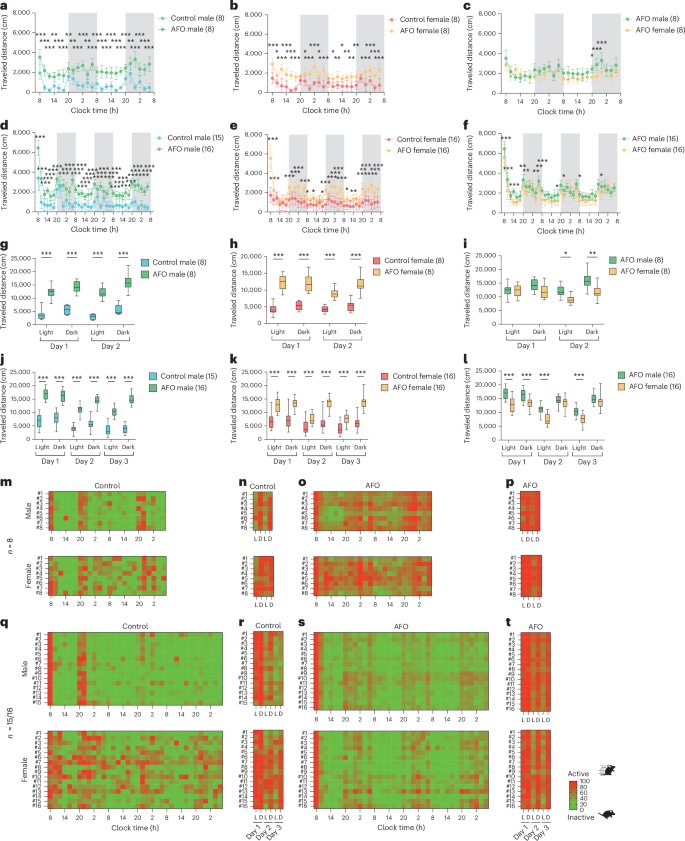

Fig. 5: Activity analysis of group-housed male and female AFO mice using the IntelliProfiler workflow.
figure 5

a–l, Cumulative travel distances measured in 2-h intervals for 2 days (a–c) and for 3 days (d–f) and over 12-h intervals for 2 days (g–i) and for 3 days (j–l). Analysis of parental aging effects in locomotor activity, comparing groups of 8 and 15/16 male AFO and control mice (a,d,g,j), groups of 8 and 16 female AFO and control mice (b,e,h,k), groups of 8 and 16 male and female AFO mice (c,f,i,l). m–t, Heatmaps showing relative locomotor activity. For 2-h bins, control groups included 8 mice (m) and 15/16 mice (q), and AFO groups included 8 mice (o) and 16 mice (s). For 12-h bins, control groups included 8 mice (n) and 15/16 mice (r), and AFO groups included 8 mice (p) and 16 mice (t). Values in the bar or line graphs are presented as mean ± s.d., with box plots displaying minimum and maximum whiskers. Statistical analysis was conducted using Holm–Šidák method for multiple comparisons. Significance levels are indicated as *P < 0.05, **P < 0.01 and ***P < 0.001.

Source data

Full size image

Spatial proximity analysis revealed that AFO mice spent less time in close proximity and more time in intermediate or distant positions compared with control mice (Fig. 6a–i). CCR values were lower in AFO mice, especially in males during the dark phase and in females across both phases, with effects amplified in larger groups (Fig. 7a–g). AFO females showed higher CCRs values than males during the light phase, while cumulative CCRs confirmed reduced social proximity in AFO mice (Fig. 7h–m; Fig. 7j; day 1 light: P = 0.010; day 2 light: P < 0.001; Fig. 7m; day 1 light: P < 0.001; day 2 light: P < 0.001; day 3 light: P < 0.001). Two-way ANOVA followed by Holm–Šidák’s multiple comparisons test was used for all bar and line graphs and box plots to assess differences between groups in CCR (Fig. 7). CCR heatmaps further revealed greater individual variability within the AFO groups (Fig. 7n–u).

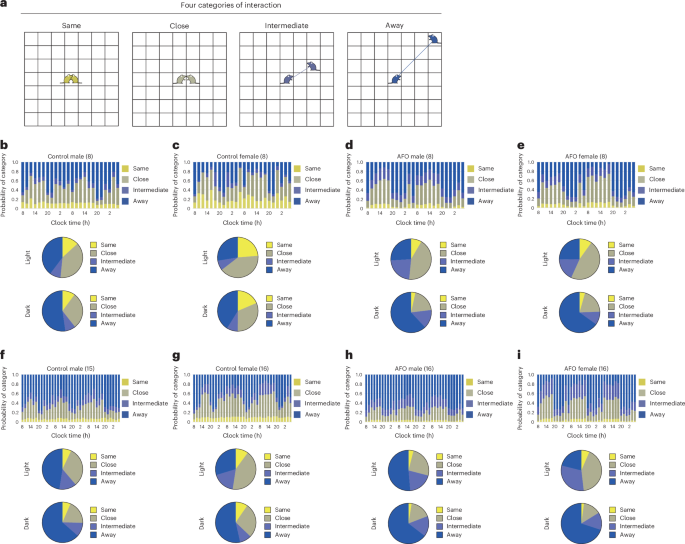

Fig. 6: The spatial relationships among group-housed male and female AFO mice using the IntelliProfiler workflow.
figure 6

a, Definition of the spatial relationships between two individual mice. When another mouse is in the same grid as the focal mouse (both depicted in yellow), the relationship is defined as ‘Same’. If the other mouse is in the surrounding grids (depicted in olive), it is defined as ‘Close’. If the other mouse is outside the surrounding grids (depicted in indigo), it is defined as ‘Intermediate’. If the other mouse is beyond the ‘Intermediate’ zone (depicted in blue), the relationship is categorized as ‘Away’. b–e, The 2-h bin transition of proportions based on ‘Same’, ‘Close’, ‘Intermediate’ and ‘Away’ for groups of 8 male control mice (b), 8 female control mice (c), 8 male AFO mice (d), 8 female AFO mice (e), 15 male control mice (f), 16 female control mice (g), 16 male AFO mice (h) and 16 female AFO mice (i). b–i, The average proportion of distance categories during the light period and the dark period is shown for each group. Chi-square P values comparing the proportions between light and dark periods, P = 0.359 (b, 8 male control mice), P = 0.215 (c, 8 female control mice), P < 0.001 (d, 8 male AFO), P < 0.001 (e, 8 female AFO), P = 0.114 (f, 15 male control mice), P = 0.007 (g, 16 female control mice), P = 0.050 (h, 16 male AFO), P < 0.001 (i, 16 female AFO).

Source data

Full size image

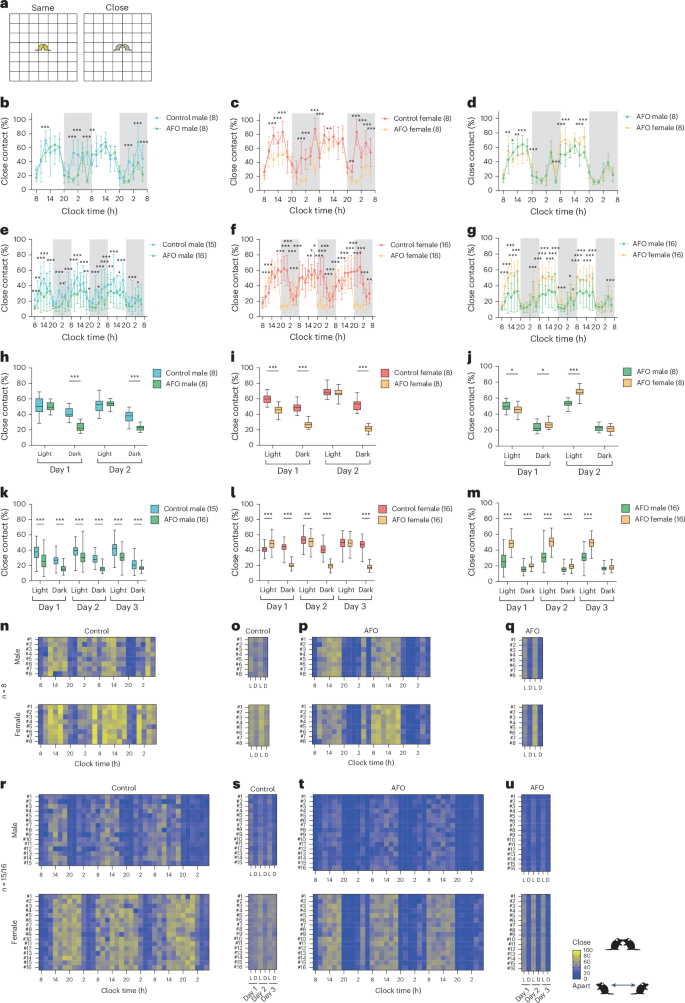

Fig. 7: Close contact between two individuals among group-housed male and female AFO mice analyzed using the IntelliProfiler workflow.
figure 7

a, Definition of close contact: two mice either in either ‘Same’ (depicted in yellow) or in adjacent grids, classified as ‘Close’ (depicted in olive). b–m, Average CCR measured in 2-h intervals (b–g) and 12-h intervals (h–m). In b, e, h and k, analysis of CCR based on group size, comparing groups of 8 and 15/16 male AFO or control mice. In c, f, i and l, analysis of CCR based on group size, comparing groups of 8 or 16 female AFO and control mice. In d, g, j and m, analysis of CCR based on group size, comparing groups of 8 or 16 male AFO and female AFO. n–u, Heatmaps showing the time course of CCR. For 2-h bins: control groups included 8 mice (n) and 15/16 mice (r) and AFO groups included 8 mice (p) and 16 mice (t). For 12-h bins: control groups included 8 mice (o) and 15/16 mice (s), and AFO groups included 8 mice (q) and 16 mice (u). Values in the bar or line graphs are presented as mean ± s.d., with box plot showing minimum and maximum whiskers. The same statistical tests (two-way ANOVA followed by Holm–Šidák’s multiple comparison test) were applied to all bar and line graphs and box plots in b–m. Statistical analysis was conducted using the Holm–Šidák method for multiple comparisons. Significance levels are indicated as *P < 0.05, **P < 0.01 and ***P < 0.001. P < 0.001 (c), P = 0.338 (d), P = 0.072 (e), P < 0.001 (f), P = 0.007 (g), P = 0.109 (h).

Source data

Full size image

Characterization of group behaviors

To investigate the behavioral characteristics of each group, we conducted principal component analysis (PCA) using four key parameters for three comparisons: (1) males versus females (groups of 4, 8 and 15/16), (2) young versus aged males (groups of 4 and 8), (3) control versus AFO animals, analyzed within each sex (groups of 8 and 15/16). First, we defined normalized activity as the activity at time t, divided by the maximum activity value recorded over days 1–3, and multiplied by 100 to standardize the data. This allowed us to calculate the normalized activity in the light (AL) and dark (AD) periods by averaging activity values at each time point over 3 days. We selected four parameters for PCA: sociability, measured as CCR values during the light (SL) and dark (SD) periods (parameters 1 and 2, respectively) and normalized activity during the light (AL) and dark (AD) periods (parameters 3 and 4, respectively). The PCA results with estimated clusters are displayed in Fig. 8: male versus female comparisons (Fig. 8a–c), AFO versus control comparisons within sex (Fig. 8d–f). Correlations among these parameters are shown in Supplementary Figs. 6–8. The number of clusters was determined using the Elbow method27 and further assessed through Silhouette plots28 for (1) male versus female (Supplementary Fig. 9), (2) young versus aged males (Supplementary Fig. 10) and (3) AFO versus control within sex (Supplementary Fig. 11).

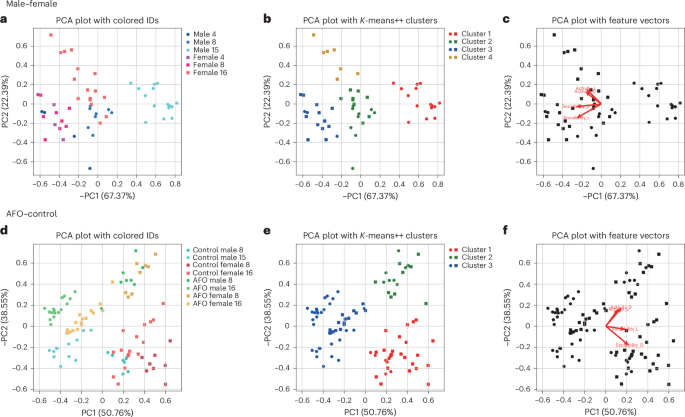

Fig. 8: PCA of group behavior using the IntelliProfiler workflow.
figure 8

a–f, PCA of group behavior in 4, 8 and 15/16 male and female mice (a–c) and in AFO and control mice in groups of 8 and 15/16 (d–f): PCA scatter plots illustrating group-wise distribution across PC1 and PC2 (a,d); K-means clustering in PCA plots (b,e); analysis of feature vectors, focusing on CCR and relative activity during the light and dark periods (c,f). Activity L, normalized activity during the light period; Activity D, normalized activity during the dark period; Sociability L, CCR during the light period; Sociability D, CCR during the dark period.

Source data

Full size image

The PCA revealed that male mice in the 15-mouse group formed a well-defined separated cluster whereas male and female mice in the 4-mouse groups and female mice in the 8-mouse group clustered together (Fig. 8a). Female mice in the 16-mouse group split into two clusters, with one cluster aligning with the male mice in the 8-mouse group (Fig. 8b). In the feature space, AL and AD vectors pointed in the same direction, indicating similar patterns of activity, while SL and SD vectors diverged, reflecting different sociability dynamics between light and dark periods (Fig. 8c). In terms of aging effects, young and aged mice in the four-mouse groups were largely distributed, whereas those in the eight-mouse groups clustered near the origin (0,0) or in the negative X direction (Supplementary Fig. 10a). K-means clustering separated the four- and eight-mouse groups, indicating that aging influenced both activity and sociability in distinct ways (Supplementary Fig. 10b,c).

In the PCA analysis comparing AFO and control mice (Fig. 8d–f), AFO mice were primarily distributed along the negative axis of PC1, while control mice shifted toward the positive side. Control females predominantly clustered in cluster 1, whereas AFO females were classified into clusters 2 or 3, indicating a clear group separation (Fig. 8e). In the feature space, AL and AD vectors aligned, while SL and SD diverged (Fig. 8f), highlighting distinct contributions of locomotor and social features.

Network analysis of social interactions

We explored how group size influences social interaction networks (Fig. 9). Qualitatively, there was no noticeable difference in network structure between male and female mice in the four- and eight-mouse groups (Fig. 9). However, in the 15/16-mouse groups, male mice exhibited increased social proximity and developed more expanded networks compared with females, influenced by light–dark circadian rhythms. By contrast, female mice maintained relatively uniform network structures (Fig. 9). When comparing young and aged male mice in the four-mouse groups, no substantial differences in network structure were observed (Supplementary Fig. 12). In the eight-mouse groups, however, young male mice displayed increased social proximity and formed diverse networks that fluctuated with light–dark cycles, while aged male mice maintained more stable, uniform networks with only slight variation corresponding to circadian rhythms (Supplementary Fig. 12). When comparing AFO and control mice in both the 8- and 16-mouse groups, the social network structures of AFO males and females seemed more expanded than those of their control counterparts, with the more pronounced alterations observed in AFO female groups during the dark phase (Fig. 10). These findings suggest that male and female mice create distinct social environments and that aging may impact the complexity and heterogeneity of the networks in larger groups.

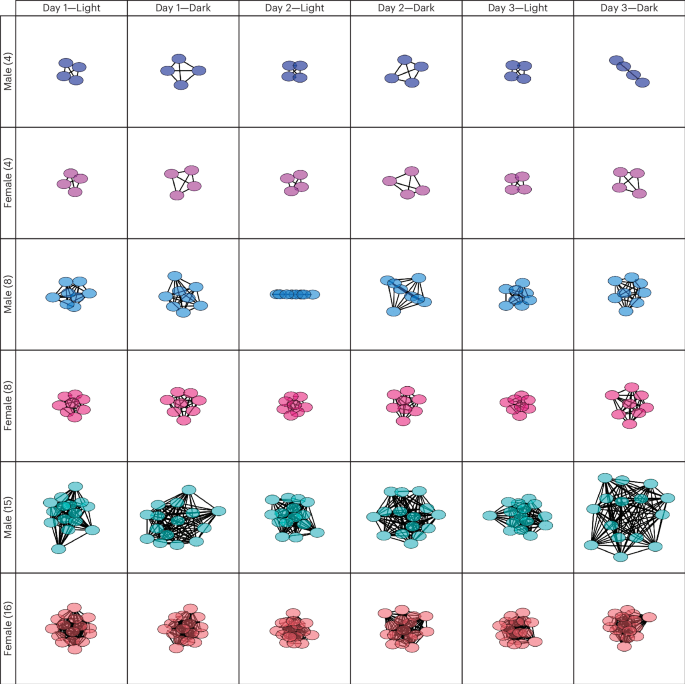

Fig. 9: Network analysis of social interaction in the male and female mice using the IntelliProfiler workflow.
figure 9

Network analysis of social interactions during the light period on day 1 and the dark period on day 3 in groups of 4, 8 and 15/16 male and female mice. Nodes represent individual mice, and edges (lines between each node) reflect the relative social contacts between two individuals. The network graph was generated using Cytoscape. Supplementary Fig. 13 provides additional network diagrams, where a unique color code for each individual highlights the individual-specific social dynamics within the network.

Source data

Full size image
Fig. 10: Network analysis of group interaction in male and female AFO mice using the IntelliProfiler workflow.
figure 10

Network analysis of social interactions during the light period on day 1 and the dark period on day 3 in groups of 4 and 8 and 15/16 male and female AFO and control mice. Nodes represent individual mice, and edges reflect the relative social contacts between two individuals. The network graph was generated using Cytoscape. Supplementary Fig. 15 provides additional network diagrams, where a unique color code for each individual highlights the individual-specific social dynamics within the network.

Source data

Full size image

Analysis of individual social interactions

Lastly, we focused on individual differences in social interaction patterns using two complementary approaches: (1) social network visualization (Supplementary Figs. 13–15) and (2) pairwise CCR analysis (Supplementary Figs. 16–18). The network analysis illustrates group-level connectivity, whereas the pairwise analysis visualizes the time-course patterns of spatial relationships between each pair of individuals. No obvious individual differences were observed between sexes in the 4- and 8-mouse groups (Supplementary Figs. 13–15). However, in the 15/16-mouse groups, two males (mouse ID #1 and #2) exhibited lower CCR scores than the others (Supplementary Fig. 16). Regarding the aging effect, aged males showed lower CCR scores and more ambiguous, less defined time-dependent patterns than young males (Supplementary Fig. 17). In the ASD model mice, AFO males and females showed lower CCR scores and less defined time-dependent patterns than control males (Supplementary Fig. 18). These findings suggest that individuality may develop progressively with aging in males, potentially contributing to the observed social dynamics. In addition, the consistently reduced CCR and less defined temporal patterns observed in AFO mice indicate that ASD-related phenotypes are associated with attenuated and dysregulated individual-level social interaction dynamics.

Pairwise spatial analyses revealed group size–dependent sex differences in WT mice, with females in the 8- and 15/16-mouse groups showing increased ‘Close’ and decreased ‘Away’ proportions compared with males, whereas no notable sex differences were observed in the four-mouse groups (Supplementary Fig. 19). Aging further altered spatial relationships, as aged males exhibited increased ‘Intermediate’ and reduced ‘Away’ proportions compared with young males, along with irregular temporal patterns in larger groups (Supplementary Fig. 20), indicating greater variability and instability in spatial interaction patterns with aging.

Discussion

In this study, we implemented IntelliProfiler, a research workflow comprising data processing scripts, which were developed to process raw positional data collected via a commercially available RFID floor plate system21 in combination with RFID tag implantation. Unlike fully integrated platforms such as IntelliR29, the current IntelliProfiler workflow is semi-automated and requires users to have basic proficiency in R and other analysis tools. Although not yet packaged as a standalone application, the workflow offers flexibility and transparency, making it well suited for research adaptation. IntelliProfiler itself contains no hardware components and is compatible with position data from high-resolution RFID boards, such as the one developed by Phenovance. The antenna board used in our study has previously been described as ‘a high-resolution RFID floor plate’ in a recent review of the IntelliCage system21.

By applying IntelliProfiler workflow, we obtained insights into how group size, sex and aging influence locomotor activity and social proximity, thereby providing a more comprehensive understanding of semi-natural behaviors in group-housed mice. Although RFID tag implantation is an invasive procedure and may have minor postsurgical effects, it is already used for IntelliCage and other systems. Our protocol enables rapid and well-tolerated tagging, supporting longitudinal behavioral studies under home-cage conditions with minimal disruption.

One of our key findings was the impact of group size on behavior. Using the IntelliProfiler workflow, we detected significant differences in both activity levels and social proximity across group sizes. Traditional behavior paradigms, which are typically designed for individual animals30,31, may overlook the complexities that emerge in group settings. Recent work has underscored the importance of studying animals under ‘natural conditions’32. By enabling continuous monitoring of authentic locomotor activity in semi-natural conditions, the IntelliProfiler workflow provides a more comprehensive view of how group size shapes both individual activity patterns and social dynamics.

We introduced CCR as a novel social parameter to measure social proximity, representing a substantial advancement in behavioral analysis (Fig. 4). Traditional social interaction tests offer limited insight into short-term interactions, but the CCR provides a more detailed, long-term view of group dynamics. We found that females tended to form stable clusters, while males exhibited more fluid, group size-dependent social patterns (Figs. 4, 8 and 9).

While CCR serves as a useful proxy for spatial proximity and potential sociability, it is important to recognize that such proximity can also result from non-social factors. A high CCR value may reflect a range of behavioral motivations, including social affiliation, thermoregulation or reduced locomotor activity due to aging or pathology. Although our study maintained consistent environmental conditions (for example, temperature, cage size and light–dark cycles), CCR should be interpreted with caution and considered alongside activity levels and other behavioral measures that may independently influence proximity patterns. Future studies incorporating temperature manipulation or single-housing controls will help disentangle these contributing factors.

Previous studies using depth-sensing or RFID-assisted video tracking systems have enabled detailed assessment of social behaviors such as approaching, avoiding or attacking by detecting animal orientation with the high spatial resolution33,34,35,36. However, these systems are typically limited in the number of animals that can be tracked simultaneously. By contrast, the CCR metric used in our study reflects spatial proximity but does not directly capture specific social actions. Still, time-resolved CCR trajectories may support broader analyses of such social interactions. Notably, CCR analysis avoids identity-swapping errors that can occur in video tracking with large groups.

Aging affected both locomotor activity and social interactions, with aged males showing more variable and less distinct CCR patterns compared with young males (Supplementary Figs. 4 and 5). In the eight-mouse group, aged males exhibited higher activity levels than younger males (Supplementary Fig. 3), contrasting with studies using open field test that reported reduced or similar travel distances in aged mice26,37. This discrepancy probably stems from differences in the experimental context—short-term, single-animal testing in a novel environment versus long-term monitoring in group-housed, semi-natural settings. In terms of social behavior, our findings align with previous reports of reduced contact frequency and shorter interaction durations in aged mice26.

To assess behavioral variability, we analyzed the coefficient of variation (CV) for both travel distance and CCR across experimental conditions (Supplementary Figs. 21–24). CVs for travel distance increased with group size in both sexes (Supplementary Fig. 21e,f), while aged males showed similar variability to young males in smaller groups (Supplementary Fig. 21g–l), suggesting that aging had limited impact on variability. A similar trend was observed for CCR: male mice showed greater variability with increasing group sizes, whereas females maintained more consistent CV (Supplementary Fig. 23e,f). AFO mice showed lower variability in travel distance compared with control mice (Supplementary Fig. 22), although both groups (controls and AFO mice) exhibited increased CCR variability with larger group sizes (Supplementary Fig. 24). These results suggest that behavioral variability is shaped by group size, sex and epigenetic factors such as advanced paternal age. Elevated CVs in large male groups may reflect greater heterogeneity or emerging social stratification. A limitation of this study is that the AFO and control mice were generated, housed and recorded in different facilities, which may have introduced confounding effects.

Our findings show that AFO mice, a model of ASD, exhibited increased locomotor activity and reduced social proximity compared with control mice, particularly in larger groups (Figs. 5–7). While previous studies have reported no difference38 or reduced activity in AFO mice39, our group-housed analysis revealed increased locomotor activity, suggesting a context-dependent phenotype that emerges only under ecologically valid conditions. Regarding social behavior, prior studies have shown reduced sociability in AFO mice, especially with advanced paternal age38,39,40. Consistent with these reports, IntelliProfiler workflow detected lower CCR values in AFO mice, particularly in larger groups—a pattern not observed in our previous study41. These results underscore the utility of IntelliProfiler workflow as a context-sensitive platform for detecting subtle behavioral phenotypes in neurodevelopmental disorder models.

Our study was not intended to provide a comprehensive analysis of sex differences per se, but rather highlights the interaction between age, genotype and social context in shaping group dynamics. While some sex-related effects have been previously described42, our results extend these findings by revealing distinct behavioral trajectories in aged males and AFO mice under RFID floor plate conditions, incorporating both physical activity and social proximity metrics. These observations serve as illustrative examples of how the IntelliProfiler workflow can capture complex group dynamics, including those influenced by age and sex. Although some patterns were consistent with prior literature, the workflow enabled their quantification in an automated and high-throughput manner, thereby offering new analytical value rather than claiming behavioral novelty.

The special resolution of RFID floor plate hardware is limited by the 5 × 5 cm grid size. The resolution is sufficient for proximity-based analyses, such as huddling or sleeping, where each grid typically contains only a few mice. However, higher resolution in RFID floor plate may be needed to capture fine-scale interactions such as mating or grooming. It is important to emphasize that IntelliProfiler is purely a research workflow. Hardware specifications such as animal capacity or grid resolution are determined by the RFID board it is paired with and are not inherent limitations of the IntelliProfiler workflow itself. Notably, one RFID tag detached from a male mouse in the 16-mouse group, resulting in no movement data from day 2 onward. As the untagged mouse remained in the cage, this may have slightly biased the social interaction data.

Despite its advantages, the RFID floor plate system (RFID technique) has a few limitations. First, the spatial resolution of RFID floor plate hardware is lower than video-based tracking systems such as DeepLabCut43,44, as the current grid size is 5 cm × 5 cm, allowing two mice located in parallel within the same grid. Determining body orientation is also challenging when the animal remains within the same grid. Second, the RFID floor plate system has difficulty distinguishing detailed social contacts, such as sniffing, mounting or huddling. Lastly, the current RFID system requires surgery for transponder implantation and it is not yet possible to eliminate the invasive effects due to the size of commercially available transponders. These challenges should be addressed in future developments.

It has been reported that invasive interventions, such as intracranial surgery, can reduce continuous locomotor activity45. Although the RFID-tag implantation is considerably less invasive than neurosurgical procedures, we allowed a 1-week recovery before behavioral assessments, following a previous study that implemented subcutaneous RFID transponder implantation in the abdominal region46. Another study reported that, under naturalistic conditions, mice in pain may be avoided by their conspecifics, suggesting that healthy animals might actively avoid individuals experiencing discomfort47. In our experimental design, such avoidance responses were probably minimized, as all mice underwent RFID tag implantation, thereby standardizing the physical condition and procedural experience across the groups.

Importantly, IntelliProfiler is not a standalone system; it requires integration with the specific high-resolution RFID floor plate developed by Phenovance and currently incompatible with other hardware configurations. The RFID floor plate offers substantial advantages in scalability and adaptability for high-throughput behavioral experiments in semi-naturalistic home-cage environments. This capability is especially valuable for neuroscience research, where detecting subtle behavioral differences is often critical. By enabling long-term, large-scale data collection with minimal human intervention, the RFID floor plate reduces experimenter bias and improves reproducibility.

The CCR metric, derived from IntelliProfiler workflow, provides a standardized, scalable measure of social interaction. When combined with additional behavioral parameters extracted via the workflow, the RFID floor plate enables a versatile approach to behavioral phenotyping. This integrated framework has broad applicability, ranging from basic neuroscience to translational preclinical research, with strong potential to advance studies on social behavior, neurodevelopmental disorders and future pharmacological interventions.

Beyond mice, the RFID floor plate can be applied to other socially or nurturing species, such as rats, degus and guinea pigs48,49,50. Furthermore, the combination of the RFID floor plate and IntelliProfiler could be used for quantitative assessment in models of neurodegenerative diseases, such as Alzheimer’s disease, by capturing spontaneous activity patterns. This approach offers a potential alternative to conventional behavioral testing protocols42,51.

Conclusion

The combination of the RFID floor plate and IntelliProfiler workflow represents a substantial advancement in animal behavior research, enabling continuous, detailed and unbiased analysis of individual movements and social interactions within dynamic and complex group environments. In this study, we demonstrated its utility in uncovering the critical influence of aging on behavior and on the behavioral patterns of an ASD model. As a robust and versatile platform, the RFID floor plate supports the study of behavior in more naturalistic home-cage settings, while the IntelliProfiler workflow opens new avenues for large-scale behavioral research and provides deeper insights into mouse social dynamics.

Methods

Animals

C57BL/6J WT mice at 7 or 52 weeks of age were purchased from CLEA Japan and maintained in the animal facility at Tohoku University Graduate School of Medicine. To generate AFO, 54–60-week-old male mice were mated with 8–12-week-old female mice at Tohoku University. For the AFO control group, 13–32-week-old male were mated with 10-12-week-old female mice at CLEA Japan, and their offspring were used as AFO controls. AFO mice were weaned at 4 weeks old and housed in littermate groups (two to five animals per cage) until the start of experiments.

Following subcutaneous RFID tag implantation (see below), 7-week-old WT males and females were housed in groups of four per cage; 52-week-old aged WT males in pairs; and 7-week-old AFO males and females in groups of two to five per cage. All animals underwent a 1-week recovery period before behavioral testing. Mice were housed in plastic cages (CL-0104-2; Clean S-TPX; 225 × 338 × 140 mm; CLEA Japan) containing Aspen chip bedding (CLEA Japan) and water bottle sets (CK-200 K-11; CLEA Japan, CL-0904).

Unlike a previous study52 that used long-term cohousing from the juvenile stage to minimize aggression, our design intentionally did not include an extended habituation period. Instead, adaptability to the social environment was evaluated following recovery from RFID implantation, with behavioral recording initiated at 8 or 53 weeks old. Although a short-term cohousing period was used for recovery, this was limited to littermate groups and was not intended as habituation to the full social group used in the behavioral assay.

Mice were maintained under standard laboratory conditions with a 12-h light–dark cycle (lights on at 8:00 and lights off at 20:00), ambient temperature of 20–25 °C and relative humidity of 40–60%. Animals were provided with the same standard chow (Lab MR Stock; Nihon Nosan Kogyo) and water ad libitum. Aspen chip bedding (CLEA Japan) was similarly used in all cages.

All experimental procedures were approved by the Ethics Committee for Animal Experiments at the Tohoku University Graduate School of Medicine (approval number 2021MdA-020-13).

RFID implementation

Mice were deeply anesthetized using 5.0% isoflurane in an induction chamber (Shinano Manufacturing) and maintained under anesthesia with 2.0% isoflurane delivered via a facemask (Bio Research Center, Japan). Once fully anesthetized, each mouse was placed in a supine position, and the abdominal skin was gently lifted by pinching to facilitate subcutaneous access. An RFID tag (7 mm × 1.25 mm, Phenovance), preloaded in an injector, was inserted at a shallow angle from the caudal to cranial direction to ensure subcutaneous placement while avoiding penetration of the abdominal cavity. After fully inserting the needle tip beneath the skin, the RFID tag was slowly ejected and gentle pressure was applied to stabilize the tag during needle withdrawal. Correct placement was immediately verified using a dual-band (HF/LF) RFID reader (Phenovance).

The implantation procedure used in this study was minimally invasive and did not require an abdominal incision. Each implantation took approximately 2–3 min per animal, and mice typically recovered from anesthesia and resumed voluntary movement within a few minutes after the procedure. No obvious signs of distress or abnormal behavior were observed during the brief (~5 min) postsurgical observation period. Mice were monitored during recovery and allowed a 1-week rest period before the commencement of behavioral recordings.

Hardware

The antenna board has been developed by Dr. Toshihiro Endo and his colleagues and is commercially available (eeeHive 2D, Phenovance)21. The antenna board consists of 96 antenna tiles (5 cm by 5 cm each) arranged in 12 × 8 grids (Fig. 1a). The home cage was a 2000P cage (58 cm × 38 cm × 21.5 cm = width × depth × height, Tecniplast), equipped with a cage lid with food pellets, and three water bottles for long-term housing (Fig. 1a,b). The antenna board and home cage were placed inside a soundproof box (Phenovance). The light–dark cycle in the soundproof box and testing room was 12:12 h (8:00-20:00, light; 20:00–8:00, dark). Mice were introduced at 8:00 in the light period on day 1.

Data collection using RFID floor plate hardware

Data, including time, antenna ID and transponder ID, were exported from the antenna board hardware via Universal Serial Bus (USB) using TeraTerm software53 (Supplementary Fig. 1a,b).

Software

R language (Version 4.2.2) was mainly used for preprocessing, data analysis and visualization54. Python (Version 3.9.7), Prism 9 and Microsoft Excel (Version 16.86) were also used for preprocessing, data analysis and visualization. R and Python packages required for the scripts are listed in Supplementary Table 1. All custom scripts are publicly available in a GitHub repository (see ‘Code availability’ section).

Preprocessing workflow

Raw data obtained from RFID floor plate hardware were processed into a format per second with time, antenna ID, transponder ID and X–Y coordinates using the IntelliProfiler workflow (Supplementary Fig. 1c,d). In instances where multiple detections occurred within the same second, only the first X–Y coordinates were retained for analysis. Missing X–Y coordinates were interpolated by the immediately preceding value. These operations were performed using a custom R script (IP_general.R) (Supplementary Fig. 2).

Importing RFID floor plate-derived data into the IntelliProfiler workflow

Positional information from the RFID floor plate was first logged as a plain text (.txt) file using the terminal software TeraTerm53. This raw log file served as the input to the workflow, initiated by a custom R script (IP_general.R) that parsed and reformatted the data for subsequent processing. This setup provided a structured transition from data acquisition to analysis, with downstream behavioral quantification performed through the IntelliProfiler workflow. Timestamps in the raw data were recorded using the computer clock via TeraTerm, which was synchronized with Japan Standard Time to ensure temporal consistency across all recorded sessions.

Flow chart of RFID floor plate and IntelliProfiler workflow

The workflow is illustrated in Fig. 1c and Supplementary Fig. 2. Each stage—preprocessing and feature extraction, CCR computation and advanced analysis—is described in the following sections.

Travel distance for each mouse

The Euclidean distance (D) of mouse movement was calculated from consecutive RFID positions at time t and t + 1 using the following formula:

$${D}_{t+1}=\sqrt{{({X}_{t+1}-{X}_{t})}^{2}+{({Y}_{t+1}-{Y}_{t})}^{2}}.$$

For each individual, the per-second distances were summed over time to yield a quantitative measure of physical activity. The total distance traveled over a given observation period T was calculated as

$$\mathrm{Total}\,\mathrm{distance}=\mathop{\sum }\limits_{t=1}^{T-1}{D}_{t+1}.$$

In this study, travel distance was evaluated across various time windows, such as 2 h (T = 7,200 s) and 12 h (T = 43,200 s), depending on the behavioral context or phase of interest (for example, light versus dark cycle).

This measure was pivotal for understanding the spatial dynamics of the subjects. Graphical representations of tracked movements, including two-dimensional positional plots and time series plots of X and Y coordinates, were generated to visualize trajectories and movement patterns over time.

Relative distance between two mice

The distances between different pairs of mice were calculated from their positions on the IntelliProfiler X–Y matrix, based on RFID floor plate data. For each pair of mice i and j, the interindividual Euclidean distance at each time point t was computed as

$${L}_{t}^{(i,\,j)}=\sqrt{{\left({X}_{t}^{\,(i)}-{X}_{t}^{\,(j)}\right)}^{2}+{\left({Y}_{t}^{\,(i)}-{Y}_{t}^{\,(j)}\right)}^{2}}.$$

In addition, the total travel distance for each mouse was also calculated and plotted over the experimental period, providing a quantitative measure of activity levels. These calculations were performed using the custom R script ‘IP_general.R’.

Spatial interaction analysis

Spatial relationships between paired mice on the X–Y plane were classified into four categories based on the calculated distance \({L}_{t}^{(i,j)}\) between the two mice (Fig. 3a). ‘Same’ indicates that both mice occupied the same grid (\(L=0\) (cm)), suggesting immediate proximity. ‘Close’ represents occupancy of adjacent grids (\(L=5\,\mathrm{or}\,5\sqrt{2}\) (cm)), indicating close but distinct positions. ‘Intermediate’ (\(L=\mathrm{10,}\,5\sqrt{5}\,\mathrm{or}\,10\sqrt{2}\) (cm)) places one mouse on the outer perimeter of ‘Close,’ range. ‘Away’ (\(L > 10\sqrt{2}\) (cm)) signifies that one mouse was outside of the ‘Intermediate’ range, indicating substantial separation.

CCR—defining social proximity

To quantify social interactions within a group of mice, we defined the CCR as the cumulative percentage of time a pair of mice spent in the same grid (‘Same’) or adjacent grids (‘Close’).

CCR was computed over specified time windows (for example, 2 h or 12 h) using the following formula:

$${\mathrm{CCR}}^{(i,\,j)}=\frac{1}{T}\mathop{\sum }\limits_{t=1}^{T}\delta \left({L}_{t}^{(i,\,j)}\le 5\sqrt{2}\right)\times 100( \% ).$$

Here, T is the number of time points in the analysis window (for example, \(T=\mathrm{7,200}\) for 2 h and T = 43,200 for 12 h), and \(\delta (\bullet )\) is an indicator function returning 1 if the condition is satisfied or 0 otherwise. The threshold of \(5\sqrt{2}\) was chosen to reflect the maximal spatial extent for immediate or adjacent contact on the IntelliProfiler grid.

This metric provides a quantitative measure of sociality between two mice, indicating their tendency to remain in close physical proximity. Using Microsoft Excel and Prism 9 (GraphPad Software), we calculated CCR values as well as the proportionate distribution of all four distance categories (‘Same’, ‘Close’, ‘Intermediate’ and ‘Away’) every 2 h and separately for light and dark periods. All metrics were computed from output files generated by the ‘IP_general.R’ script.

Network analysis

Network analyses were performed for groups of 4, 8 and 15/16 mice using Cytoscape 3.9.155. For network construction, we prepared a tab-delimited summary table with three columns: Source, Target and Edge betweenness. This table lists all mouse pairs along with their associated interaction strengths, calculated as

$$\mathrm{Edge}\,\mathrm{betweenness}=\frac{1}{10}\times {\mathrm{CCR}}^{(i,\,j)}.$$

This downscaled CCR value was used to modulate edge thickness in Cytoscape visualizations55. To represent interaction topology, we applied the Edge-weighted Spring Embedded Layout, which facilitates intuitive interpretation of social interactions among mice based on their proximity metrics.

PCA

PCA was performed using Python 3 (Version 3.9.7) on four datasets derived from long-term behavioral recordings of mice in large groups during light and dark periods, focusing on relative activity levels and CCR. Three types of PCA visualizations were generated:

  1. (1)

    PCA contribution vectors displayed directly on the PCA plot (implemented in ‘IP_PCA.py’);

  2. (2)

    K-means clustering analysis, with the optimal number of clusters determined using the elbow method and silhouette method, applied to the PCA plot (implemented in ‘IP_Elbow_Silhouette.py’);

  3. (3)

    PCA plots color-coded by gender and genotype to facilitate group comparisons (implemented in ‘IP_PCA.py’).

All PCA computations and visualizations were performed using custom Python scripts (IP_PCA.py’ and ‘IP_Elbow_Silhouette.py’), which are available in the public GitHub repository (see ‘Code availability’ section).

Figure visualization

Graphical representations were primarily created using Prism 9 (GraphPad Software). Time-series line graphs and heat maps of travel distances or cumulative CCRs, as well as transitions in the proportionate of social distances (‘Same’, ‘Close’, ‘Intermediate’ and ‘Away’) were generated. Pie charts illustrating the distribution of social distances were also prepared. PCA plots were created in Python 3, and the social network graphs for the groups were constructed using Cytoscape version 3.9.155.

Statistical analysis

Statistical analyses were conducted with Prism version 9 (GraphPad). Two-way ANOVA followed by Holm–Šidák’s multiple comparisons test was used for all bar and line graphs and box plots evaluating locomotor activity and CCR to assess differences between groups. This statistical approach was based on the methodology described in a previously published study56, with minor adaptations for the present analyses. For social interaction analyses based on categorical distance distributions, the chi-square test was used. Data in bar or line graphs are presented as mean ± s.d., with statistical significance indicated as *P < 0.05, **P < 0.01, ***P < 0.001. Exact P values, F values and degrees of freedom for all results are provided in Supplementary Data 1. All experiments were performed once (single repetition).

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
