The neuroendocrine transition in prostate cancer is dynamic and dependent on ASCL1

Romero, Rodrigo; Chu, Tinyi; González Robles, Tania J.; Smith, Perianne; Xie, Yubin; Kaur, Harmanpreet; Yoder, Sara; Zhao, Huiyong; Mao, Chenyi; Kang, Wenfei; Pulina, Maria V.; Lawrence, Kayla E.; Gopalan, Anuradha; Zaidi, Samir; Yoo, Kwangmin; Choi, Jungmin; Fan, Ning; Gerstner, Olivia; Karthaus, Wouter R.; DeStanchina, Elisa; Ruggles, Kelly V.; Westcott, Peter M. K.; Chaligné, Ronan; Pe’er, Dana; Sawyers, Charles L.

doi:10.1038/s43018-024-00838-6

Download PDF

Article
Open access
Published: 11 October 2024

The neuroendocrine transition in prostate cancer is dynamic and dependent on ASCL1

Nature Cancer volume 5, pages 1641–1659 (2024)Cite this article

34k Accesses
49 Citations
89 Altmetric
Metrics details

Subjects

Abstract

Lineage plasticity is a hallmark of cancer progression that impacts therapy outcomes, yet the mechanisms mediating this process remain unclear. Here, we introduce a versatile in vivo platform to interrogate neuroendocrine lineage transformation throughout prostate cancer progression. Transplanted mouse prostate organoids with human-relevant driver mutations (Rb1^−/−; Trp53^−/−; cMyc⁺ or Pten^−/−; Trp53^−/−; cMyc⁺) develop adenocarcinomas, but only those with Rb1 deletion advance to aggressive, ASCL1⁺ neuroendocrine prostate cancer (NEPC) resistant to androgen receptor signaling inhibitors. Notably, this transition requires an in vivo microenvironment not replicated by conventional organoid culture. Using multiplexed immunofluorescence and spatial transcriptomics, we reveal that ASCL1⁺ cells arise from KRT8⁺ luminal cells, progressing into transcriptionally heterogeneous ASCL1⁺;KRT8⁻ NEPC. Ascl1 loss in established NEPC causes transient regression followed by recurrence, but its deletion before transplantation abrogates lineage plasticity, resulting in castration-sensitive adenocarcinomas. This dynamic model highlights the importance of therapy timing and offers a platform to identify additional lineage plasticity drivers.

Temporal evolution of cellular heterogeneity during the progression to advanced AR-negative prostate cancer

Article Open access 07 June 2021

Advances in neuroendocrine prostate cancer research: From model construction to molecular network analyses

Article 22 December 2021

Circulating tumor cell heterogeneity in neuroendocrine prostate cancer by single cell copy number analysis

Article Open access 12 August 2021

Main

Prostate cancer is the leading cause of cancer death globally in men¹. Survival has improved with next-generation androgen receptor signaling inhibitors, but patients eventually progress to castration-resistant prostate cancer². Although men receiving androgen receptor signaling inhibitors live longer, an increasing fraction display features of lineage plasticity at relapse, characterized by reduced or absent expression of luminal lineage markers such as the androgen receptor (AR) and prostate-specific antigen^3,4. In its extreme form, lineage plasticity manifests as a transition to neuroendocrine (NE) histology called NEPC, with expression of synaptophysin (SYP) and chromogranins⁴. Patients with NEPC often have soft tissue metastases (for example, liver) rather than bone, suggesting a role of the tumor microenvironment (TME) in this transition^5,6. Similar lineage transitions are observed in other cancers treated with targeted therapies, for example, EGFR-, ALK- and KRAS^G12C-mutant lung adenocarcinoma, underscoring the broad relevance of lineage plasticity in tumor progression and therapy resistance^7,8,9,10,11.

The molecular details underlying these lineage transitions are poorly understood, owing to a shortage of model systems that accurately replicate these processes. Autochthonous models of prostate cancer have been valuable, but few capture the transition at all stages or are amenable to intervention in a timely and cost-effective manner^{12,13,14,15,16,17,18}. Studies using prostate tumor cell line transplant models are easier to implement but limited in number and fail to replicate all transition stages observed in patients. To better understand NEPC and develop intervention strategies that curtail lineage plasticity, models that accurately reproduce the longitudinal molecular and morphologic features of these lineage transitions are needed.

Organoid technology has greatly expanded our ability to model epithelial biology, including prostate cancer^19,20. Previously, we described a strategy to assess genetic drivers of prostate adenocarcinoma (PRAD), as well as cells of origin using mouse prostate organoids coupled with orthotopic transplantation²¹ (OT). Here, we optimize this approach into a robust platform for rapid, side-by-side assessment of cancer initiation and progression using multiple combinations of human-relevant cancer drivers in vivo. Using multiplexed spatial techniques, we detect isolated NE cells emerging from luminal epithelial cells, which subsequently evolve to fully penetrant NEPC, together with temporal changes within the TME, and perform functional perturbations that dramatically impact the lineage plasticity program.

Results

Organoid allelic series and tumor phenotype characterization

We sought to develop a platform to interrogate prostate cancer drivers rapidly and comprehensively at larger scale compared to traditional genetically engineered mouse models (GEMMs), focusing on the need to dynamically model the PRAD-to-NEPC transition. Using multiplexed editing and lentiviral oncogene delivery, we established organoids with six combinations of cancer drivers selected based on their co-occurrence in human prostate cancer (Fig. 1a, Extended Data Fig. 1a–c and Supplementary Table 1; hereafter: Pten^−/−; Trp53^−/− = PtP, Rb1^−/−; Trp53^−/− = RP, Pten^−/−; Rb1^−/− = PtR, Pten^−/−; Trp53^−/−; cMyc⁺ = PtPM, Rb1^−/−; Trp53^−/−; cMyc⁺ = RPM, Pten^−/−; Rb1^−/−; cMyc⁺ = PtRM). Consistent with previous work, histological assessment of edited mouse organoids grown in three-dimensional (3D) culture revealed a mixture of KRT5⁺ basal and KRT8⁺ luminal cells, with both populations staining for nuclear AR (ref. ¹⁹ and Extended Data Fig. 1d,e). All organoids lacked expression of NE transcription factors achaete-scute family bHLH transcription factor 1 (ASCL1) and neuronal differentiation 1 (NEUROD1), despite prolonged in vitro culture (Extended Data Fig. 1d,e).

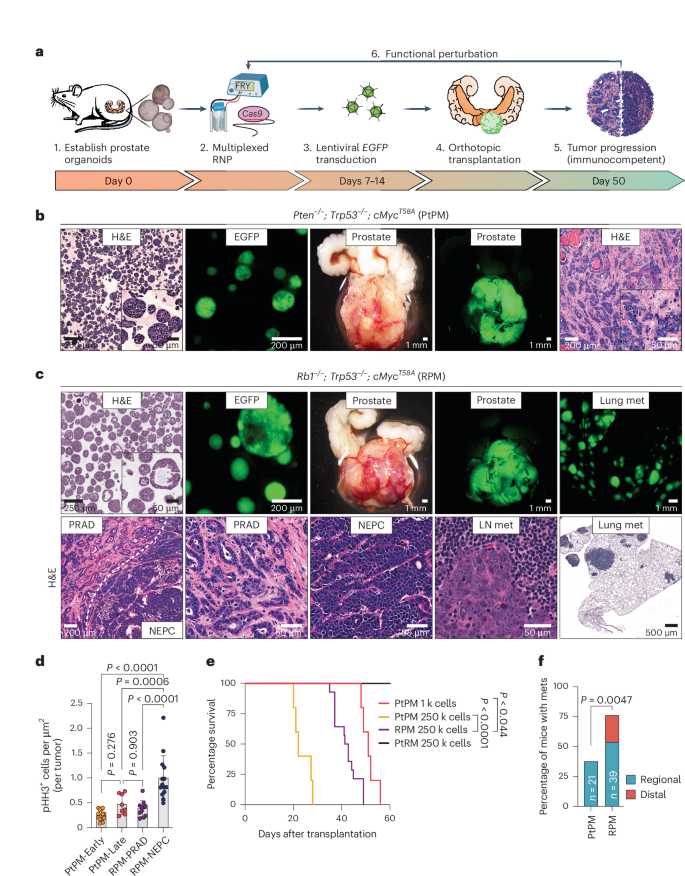

**Fig. 1: Rapid establishment of genetically defined prostate cancer with prostate organoids transplanted into immunocompetent syngeneic hosts.**

We next evaluated tumorigenicity following OT (Fig. 1a). Because expansion of organoids grown in 3D is labor intensive, we compared 3D expansion to short-term (5 day) monolayer expansion as a simpler alternative (Extended Data Fig. 2a–c). Although monolayer expansion was faster and generally yielded highly penetrant tumor growth (PtP, RP, PtPM and RPM), tumors invariably formed sarcomatoid-like histology uncharacteristic of human prostate tumors²² (Extended Data Fig. 2d–g). In contrast, tumors arising from organoids expanded exclusively in 3D culture consistently had histological phenotypes and lineage marker expression that remarkably mirrors human disease, particularly for the PtPM and RPM genotypes (Extended Data Fig. 2d–h). Phenotypes of each of the six combinations of genetic drivers, expanded using 3D or monolayer culture, are summarized in Supplementary Table 2. Due to the sarcomatoid-like histology seen following monolayer culture, all subsequent experiments used 3D expansion only. In summary, this faithful recapitulation of the complex histopathological features of advanced human prostate cancer represents a significant advance relative to traditional GEMMs and xenograft models.

Rb1 loss is a critical gatekeeper event for NEPC transition

Having established highly penetrant PRAD using PtPM and RPM organoids, we comprehensively evaluated disease progression across both models (hereafter, PtPM and RPM mice). Histological assessment revealed that PtPM tumors consistently showed moderately to poorly differentiated PRAD histology during the first 2–3 weeks after transplantation. In contrast, RPM tumors displayed pockets of small cell-like nests with ‘salt-and-pepper’ chromatin and a mixture of trabecular or diffuse architecture suggestive of NEPC (Fig. 1b,c). The mitotic index in RPM tumors, particularly in NEPC regions (8–10 weeks) was greater than PtPM tumors, consistent with the rapid disease progression seen in patients with NEPC transformation (Fig. 1d and Extended Data Fig. 2i). Despite this difference in proliferation rate, the overall survival of PtPM mice was shorter, likely due to higher tumor engraftment potential as a 250-fold reduction in the number of injected PtPM cells results in comparable survival to RPM mice (Fig. 1e).

Early RPM tumors displayed more KRT8⁺ cells compared to KRT5⁺ cells, markers of luminal and basal identity, respectively (Extended Data Fig. 2j). Moreover, ASCL1 expression was observed by 4 weeks and increased by 8–10 weeks (Extended Data Fig. 2k). Regions with NEPC histology expressed canonical NE markers (FOXA2, DLL3, SYP and NCAM-1) and rarely NEUROD1 (refs. ^4,5,23 and Fig. 2a,b). In contrast, tumors in PtPM mice contained rare ASCL1⁺ cells and never progressed to NEPC (Fig. 2a, Extended Data Fig. 2l and Supplementary Fig. 1). We conclude that functional Rb1 loss is required for NEPC transformation, consistent with preclinical and clinical datasets demonstrating enrichment of RB1 pathway mutations in small cell lung cancer (SCLC) and NEPC^23,24.

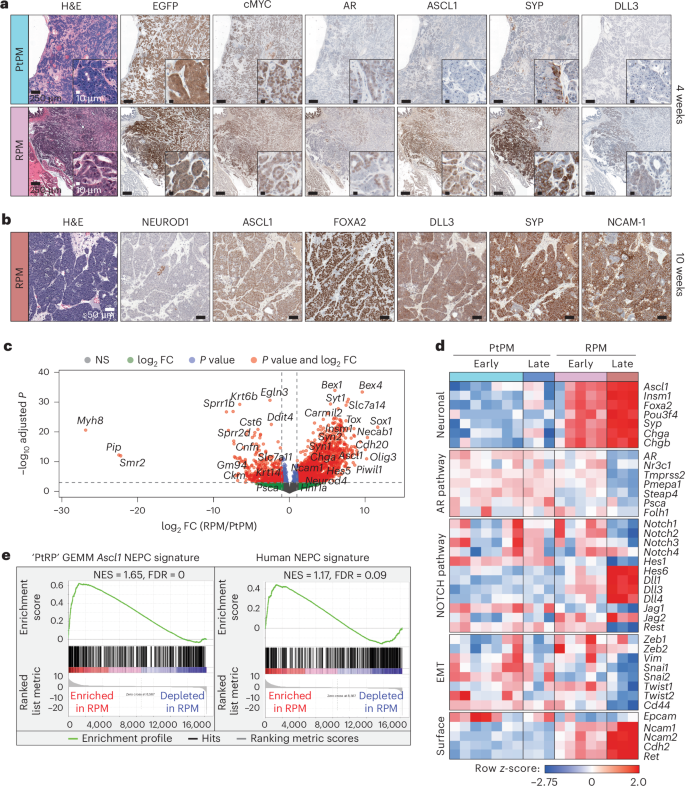

**Fig. 2: Molecular characterization of PtPM and RPM primary prostate tumor transplants demonstrates emergence of neuroendocrine carcinoma marker expression.**

PtPM and RPM mice developed regional metastases in the draining iliac lymph nodes, but RPM mice also established distant metastases (primarily liver and lung; Fig. 1b,c,f), which retained the same NEPC profile observed in primary tumors, except for rare patches negative for ASCL1, SYP, NCAM-1 and NEUROD1 but occasionally positive for vimentin (VIM), a marker of mesenchymal-like cells (Extended Data Fig. 3a–d). Whether these ASCL1-negative regions reflect ongoing plasticity after metastasis of ASCL1⁺ cells, or independent metastatic events before NEPC transformation, requires further investigation. Notably, lung metastases in RPM mice contained a higher proportion of ASCL1⁺/KRT8⁺ cells compared to liver metastases. AR expression was absent in tumor cells at both metastatic sites (Extended Data Fig. 3e,f).

To further benchmark the PtPM and RPM models relative to autochthonous prostate cancer models and human samples, we performed bulk RNA sequencing of tumors collected early (PtPM ≤ 4 weeks and RPM ≤ 6 weeks) and late (PtPM = 5 weeks and RPM = 10 weeks). Consistent with the immunohistochemical findings, we observed progressive upregulation of genes involved in neuronal differentiation in RPM compared to PtPM tumors, including Ascl1, Foxa2, Sox1, Chga and Olig3, NOTCH pathway ligands and select transcription factors^4,25 (for example, Dll1, Dll3 and Hes6), as well as downregulation of AR and AR-target genes (for example, Tmprss2, Pmepa1 and Folh1; Fig. 2c,d, Extended Data Fig. 4a,b and Supplementary Table 3). RPM tumors showed enrichment for NEPC transcriptional signatures from GEMMs and human specimens, demonstrating that RPM transplants recapitulate key molecular features observed in other preclinical models and clinical samples¹⁶ (Fig. 2e, Extended Data Fig. 4c and Supplementary Table 4). Further highlighting the critical role of the in vivo TME in initiating NEPC transformation, Ascl1 transcript levels were ~2,000-fold higher in RPM tumors compared to long-term cultured RPM organoids. Moreover, the in vivo TME is required for maintenance of the NEPC state as Ascl1 expression progressively declined in RPM tumors explanted to organoid culture (Extended Data Fig. 4d).

The TME dynamically shifts throughout the NE transition

Given the requirement of the in vivo setting for lineage plasticity, we developed a 20-marker multiplexed immunofluorescence (mIF) panel to visualize prostate tumor cells in the context of adjacent immune populations, vasculature and stroma throughout tumor progression (Fig. 3a–g and Supplementary Tables 5 and 6). We focused on the later stages of tumor progression within the RPM model to identify changes in the TME within large NEPC regions (Fig. 3b). We used GFP, together with KRT8 and AR or ASCL1 coexpression to distinguish PRAD from NEPC (Methods and Extended Data Fig. 5a). After mapping these regions across multiple tissue sections from RPM tumors containing NEPC patches, we looked for selective changes in cell type composition within the TME.

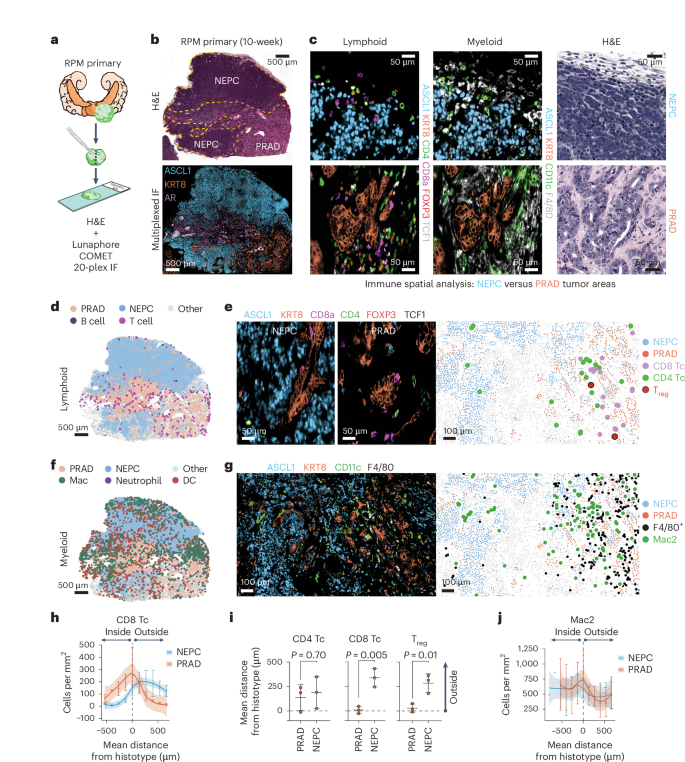

**Fig. 3: Multiplexed immunofluorescence identifies unique spatial distribution of immune cells within RPM prostate tumors, with local depletion of immune cell types in NEPC areas.**

Focusing initially on stroma, we noted that mesenchymal cells were abundant in PRAD but depleted in NEPC regions. We observed a similar trend for LYVE1⁺ lymphatics although this did not reach statistical significance. CD31⁺ endothelial populations remained unchanged (Extended Data Fig. 5b–d).

Turning to immune cells, we noted striking depletion of CD8⁺ and FOXP3⁺;CD4⁺ regulatory T (T_reg) cells as well as F4/80⁺ macrophages in NEPC regions, consistent with reports of immune exclusion within human NE cancers^24,26,27. Conversely, FOXP3⁻;CD4⁺ T cells were equally distributed within PRAD and NEPC, with many located at PRAD boundaries, suggestive of differential recruitment and retention of T cell subsets between histologies (Fig. 3d,e,h,i and Extended Data Fig. 5e–g). Most (~96%) CD8⁺ T cells in PRAD regions were TCF1-negative, aligning with previous findings demonstrating downregulation of TCF1 and upregulation of effector programs in tumor infiltrating compared to draining lymph node resident CD8⁺ T cells²⁸ (Extended Data Fig. 5h,i).

We identified five distinct myeloid populations, which we labeled Mac1 (CD11b⁺;F4/80⁻), Mac2 (CD11b^lo;CD11c⁺;F4/80⁺), Mac3 (CD11b⁺;F4/80⁺), neutrophil (CD11b⁺;Ly6G⁺;S100A9⁺) and dendritic cells (DCs; CD11c⁺;F4/80⁻; Extended Data Fig. 6a and Supplementary Table 6). Neutrophil infiltration was confined to PRAD boundaries (Fig. 3f and Extended Data Fig. 6a,b). Mac1 and Mac3 populations were largely absent in NEPC; however, Mac2, which harbors similar marker expression as alveolar and wound-healing macrophages was present within NEPC²⁹ (Fig. 3f,g,j and Extended Data Fig. 6c–e). We were surprised to also see many CD11c⁺;F4/80⁻ cells within NEPC regions of primary tumors, raising the possibility of DC infiltration (Fig. 3f and Extended Data Fig. 6a,b).

To determine whether the differences in PRAD versus NEPC immune infiltrates in RPM mice are seen in human prostate cancer, we examined a published human single-cell RNA sequencing dataset that includes PRAD and NEPC samples¹⁶. Both histologies had myeloid infiltration, but NEPC harbored fewer tumor-associated macrophages (TAMs) relative to PRAD (Extended Data Fig. 6f and Methods). CD11c (ITGAX) expression was evident across TAM populations within both PRAD and NEPC, and highest in IL1B⁺ TAMs (Extended Data Fig. 6f–h). A decrease in immune infiltration was also observed in NEPC regions of a prostatectomy specimen from a patient with mixed PRAD/NEPC histology, with CD11c⁺;CD68⁺ TAMs present within ASCL1⁺ tumor areas (Extended Data Fig. 6i,j). Whether these CD11c⁺ myeloid populations correspond to professional antigen-presenting cells requires further phenotypic (for example, MHC-II, CD103 and BATF3 expression) and functional characterization. Nonetheless, early CD8⁺ T cell infiltration in PRAD and persistence of potential DCs in late-stage NEPC in this model suggest that deeper analysis may be informative in addressing the disappointing clinical results seen with conventional immune checkpoint blockade therapy in prostate cancer.

We next profiled RPM metastases, a clinically relevant site of NEPC histology (Fig. 4a–c). Lymph node metastases showed prominent exclusion of CD45⁺ cells within ASCL1⁺ tumor nests, highlighting the capacity of NEPC to promote immune exclusion within lymphocyte-dense microenvironments (Fig. 4a,d). Distant metastases (liver and lung) showed exclusion of T_reg, CD4⁺ and CD8⁺ T cells, but retention of IBA-1⁺ macrophages that co-stain with markers consistent with Mac1, Mac2 or Mac3 identities, a finding confirmed by neighborhood composition analysis (Fig. 4b,c,e–i and Methods). Taken together, primary tumors and metastases displayed T cell exclusion in NEPC but retained subsets of myeloid cells such as Mac2 and those with DC-like cell surface marker expression (CD11c⁺F4/80⁻). Critically, our syngeneic models are suitable for studies using model antigens to evaluate strategies to overcome the immunosuppressive prostate TME.

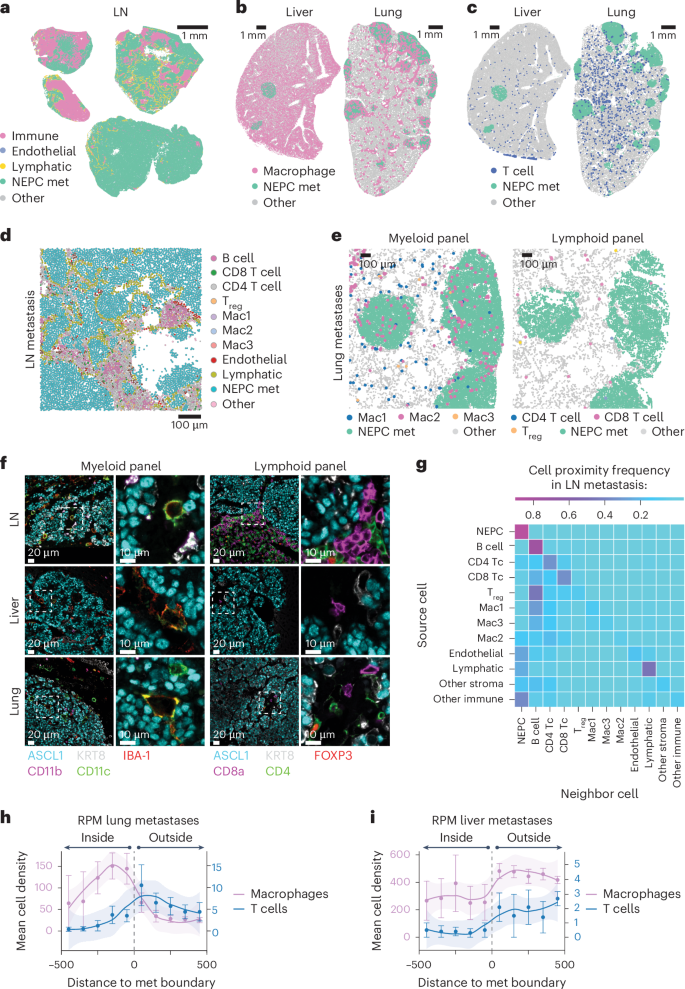

**Fig. 4: NEPC metastatic lesions are T cell excluded but retain macrophage infiltrates.**

NEPC arises from tumor cells with luminal features

The dynamic nature of the RPM model also allows for careful examination of the earliest stages of NEPC transformation. ASCL1, a marker of emerging NE cells, was detected at 4–6 weeks, appearing as EGFP⁺;KRT8⁺;ASCL1⁺ tumor cell clusters (Fig. 5a and Extended Data Figs. 2k and 5a). By 10 weeks, larger homogeneous clusters of ASCL1⁺;KRT8⁻ tumor cells with NEPC histology were visible. The observation that the earliest detectable ASCL1⁺ cells coexpress KRT8 suggests that NE cells may arise from KRT8⁺ luminal cells. Indeed, KRT8⁺;ASCL1⁺ cells were 4–5-fold more abundant than KRT5⁺;ASCL1⁺ cells at 6 weeks (P = 0.025, two-tailed Student’s t-test, Fig. 5b). These findings are consistent with previous human basal prostate organoid transplantation studies^30,31, although our murine platform has the advantage of culturing and transforming both basal and luminal subsets in vitro before expansion of a luminal tumor population in vivo (Extended Data Figs. 1e and 2j). By 8–10 weeks, primary and metastatic tumor cells were mostly AR⁻ and ASCL1⁺ with heterogenous KRT8 and E-cadherin expression (Figs. 3b and 5b and Extended Data Figs. 3e,f and 5a).

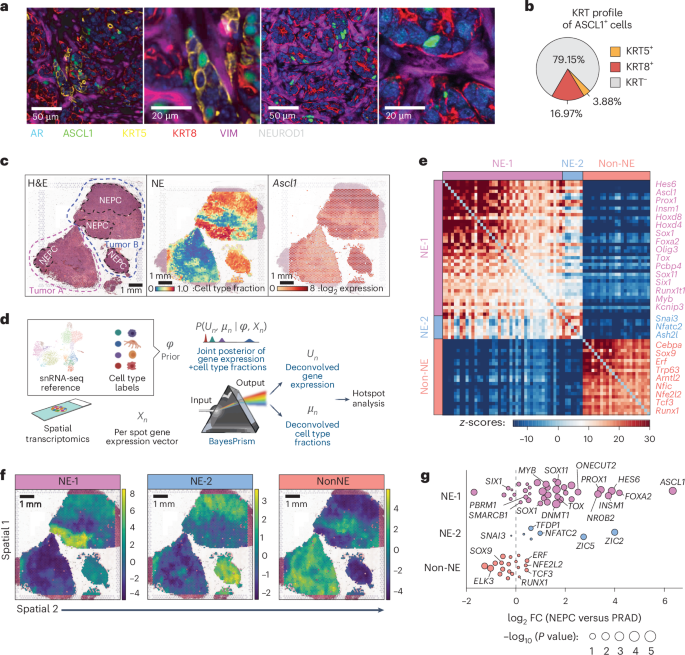

Fig. 5: PrismSpot reveals spatial transcriptomic heterogeneity within NEPC marked by Ascl1 coexpressed with distinct NE-related TFs. — **Fig. 5: PrismSpot reveals spatial transcriptomic heterogeneity within NEPC marked by *Ascl1* coexpressed with distinct NE-related TFs.**

The appearance of histologically homogeneous, spatially separate clusters of highly proliferative NE cells within weeks of detecting isolated ASCL1⁺;KRT8⁺ cells is consistent with rapid clonal expansion. To characterize the degree of tumor heterogeneity, we performed spatial transcriptomics (10x Visium) and single-cell nuclear RNA sequencing (snRNA-seq) from 10-week RPM tumors containing mixed PRAD-NEPC histology (Fig. 5c). We observed distinct NE tumor cell clusters from snRNA-seq with variable KRT8 expression (Supplementary Fig. 2a,b), consistent with the heterogeneity observed in NEPC by mIF.

Given the mixture of multiple cell types within individual tissue spots used for spatial transcriptomic sequencing, we applied BayesPrism^32,33 to deconvolve tumor cell from nontumor cell transcripts using snRNA-seq data as the reference (Fig. 5d). BayesPrism integrates a single-cell genomics reference with spatial transcriptomics data to deconvolve each spot into the cell type fractions present and provide a cell-type-specific count matrix for each spot^32,33. Before deploying BayesPrism for further downstream analysis, we assessed the robustness of the inferred deconvolution by comparing BayesPrism on technical replicates profiled from adjacent tissues and found strong correspondence of inferred cell type fraction (Extended Data Fig. 7a,b), for example, recapitulation of NEPC distribution observed by histology (Fig. 5c).

We next investigated the expression of transcription factors (TFs) within histologically confirmed and BayesPrism inferred NEPC regions. All NEPC regions showed Ascl1 expression with minimal Neurod1 and Pou2f3 expression (Supplementary Fig. 3). Conversely, other TFs previously implicated in NEPC (for example Mycn, Onecut2, Pou3f2 and Pou3f4) and cerebellar development (Olig3) were expressed in subsets of NEPC regions^{12,34,35,36,37} (Supplementary Fig. 3). The spatial heterogeneity in expression of these selected TFs, as well as similar TF heterogeneity reported in SCLC^38,39,40,41 led us to examine the structure underlying this heterogeneity using Hotspot⁴², which identifies patterns in spatially-varying genes. The limited resolution of Visium technology makes identification of gene modules associated with a single cell type of interest challenging due to colocalization of genes expressed within multiple cell types or between a pair of colocalized cell types. To overcome this, we leveraged a powerful feature of BayesPrism: inference of cell-type-specific count matrices, thereby associating each transcript with its respective cell type (Methods). As input to Hotspot, we used the deconvolved tumor count matrices, a strategy we term ‘PrismSpot’, a combination of BayesPrism and Hotspot (Fig. 5d). Compared to directly applying Hotspot on un-deconvolved Visium data, the spatial auto- and pairwise correlation computed by PrismSpot showed significantly stronger signal-to-noise for tumor-specific gene modules (Supplementary Fig. 4a–g) over marker genes derived from a GEMM scRNA-seq dataset (Supplementary Fig. 5a–c). Upon iterative subsampling of the Visium data (Methods), we narrowed our gene list to 71 TFs defining two NEPC states (NE-1 and NE-2) and a single PRAD state (Non-NE; Fig. 5e,f and Supplementary Table 7).

NE-1, whose leading genes include coordinated expression of Ascl1 and other TFs implicated in neuronal biology⁴³ (Hes6, Prox1 and Insm1), was enriched across all NEPC regions and corresponded to regions with high Mycn and Olig3 expression as well as KRT8⁺;ASCL1⁺ tumor cells (Fig. 3b and Supplementary Fig. 3). NE-2, defined primarily by Nfatc2 (a regulator of Tox expression within lymphocytes^44,45,46) and the epithelial-to-mesenchymal (EMT) TF Snai3 was enriched in some but not all NEPC regions (Fig. 5f and Extended Data Fig. 7c). Nfatc2 expression has been linked with an EMT-like state in melanoma⁴⁷. Both NE spatial modules were selectively enriched in a previously reported NEPC GEMM signature¹⁶ (Extended Data Fig. 7d) as well as human NEPC⁴⁸ (NE-1, P = 1.17 × 10⁻⁷; NE-2, P = 5.50 × 10⁻⁴; Non-NE, P = 0.742, two-sided Wilcoxon test; Fig. 5g and Supplementary Table 8). Collectively, mIF and spatial transcriptomics implicate KRT8⁺ luminal epithelial cells as the source of NEPC, which evolves into spatially distinct ASCL1⁺ subpopulations with heterogeneous expression of NE-associated TFs.

Ascl1 is essential for NEPC transformation

In addition to its role as a master TF in neural lineage specification^49,50, several human SCLC cell lines and at least one human NEPC xenograft model are dependent on ASCL1 for proliferation^51,52,53. Whether ASCL1 upregulation is required during the transition from PRAD to NEPC progression is unknown. The reliable kinetics of disease progression in the RPM model, coupled with the flexibility to perform multiplexed genome editing, allowed us to assess the requirement of Ascl1 for NEPC transformation through CRISPR-mediated loss of function in RPM organoids (hereafter Ascl1^KO; Supplementary Table 9). We compared the growth and histological features of Ascl1^wt versus Ascl1^KO RPM tumors following OT or subcutaneous (SQ) transplantation (Fig. 6a–d). Ascl1^wt RPM mice developed PRAD which progressed to NEPC over 6–10 weeks. This transition also occurred following SQ transplantation, indicating that the in vivo signal that triggers lineage plasticity is not restricted to the prostate microenvironment. The TME of these SQ tumors shared similar features seen in OT tumors by mIF (Supplementary Fig. 6a–c). In stark contrast, all Ascl1^KO RPM tumors (OT and SQ) developed PRAD with moderate to well-differentiated glandular histology, slower growth kinetics than Ascl1^wt RPM tumors and, most notably, no evidence of NE transformation (Fig. 6b–f and Extended Data Fig. 8a–f). Additionally, metastases were absent in Ascl1^KO RPM mice, compared to 50% incidence in Ascl1^wt RPM mice, despite comparable end-stage primary tumor weights at the OT site in intact and castrated hosts (Fig. 6g and Extended Data Fig. 8g). Thus, Ascl1 is obligately required for the NEPC transition and metastasis in the RPM model.

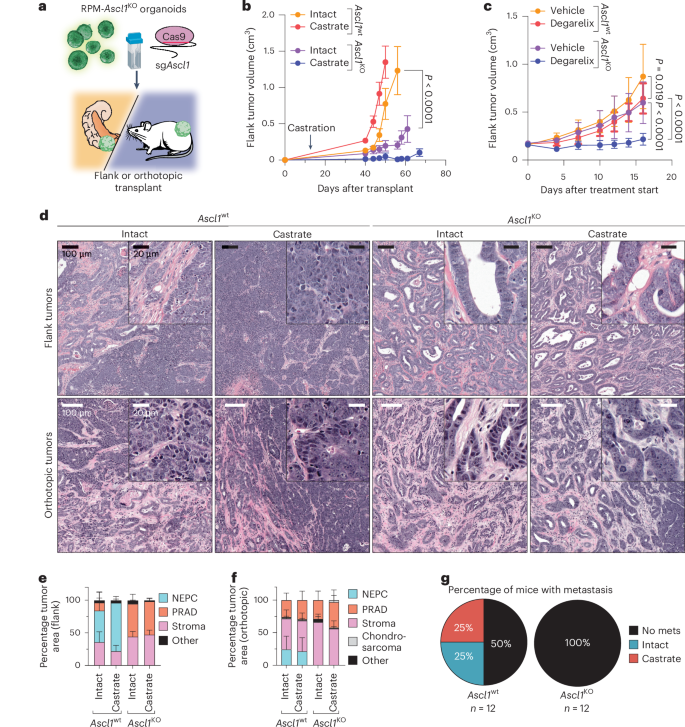

Fig. 6: Loss of Ascl1 results in abrogated NEPC establishment and castration-sensitivity. — **Fig. 6: Loss of *Ascl1* results in abrogated NEPC establishment and castration-sensitivity.**

We and others previously found that perturbations preventing lineage plasticity may restore sensitivity to androgen deprivation therapy in prostate cancer^16,53. To address whether this is true in the context of Ascl1 loss, we compared the tumorigenicity and histologic features of Ascl1^wt and Ascl1^KO RPM tumors following OT or SQ injection into intact versus castrated mice. Ascl1^KO tumors grew slower in castrated versus intact hosts in both the OT and SQ settings, despite the link between RB1 and TP53 loss and castration-resistance in multiple prostate models and in patients (Fig. 6b and Extended Data Fig. 8a–f). To distinguish between effects of castration on tumor engraftment versus tumor maintenance, we initiated chemical castration therapy (degarelix) in established SQ tumors (≥150 mm³). Notably, one castrated Ascl1^KO RPM mouse developed a tumor with chondrocyte-like histology, reminiscent of phenotypes in RPM-driven Ascl1^KO SCLC mouse models⁵² (Extended Data Fig. 8j). Degarelix treatment abrogated the growth of Ascl1^KO RPM tumors and extended survival, whereas Ascl1^wt RPM tumors were marginally impacted (Fig. 6c and Extended Data Fig. 8h,i). Degarelix treatment increased the fraction of NEPC tumor area and ASCL1⁺ tumor cells and decreased the fraction of AR⁺ tumor cells relative to vehicle treated RPM SQ tumors (Extended Data Fig. 8k).

To investigate why tumors with Rb1 and Trp53 loss display increased androgen dependence in the context of Ascl1 loss, we examined the expression of AR and luminal (KRT8) and basal (KRT5) cytokeratins. Consistent with their well-differentiated glandular morphology, RPM-Ascl1^KO tumors were dominated by AR⁺;KRT8⁺ tumor cells (Fig. 7a and Extended Data Fig. 9a–c). Furthermore, nuclear AR staining intensity was significantly elevated in Ascl1^KO relative to Ascl1^wt RPM tumors (Fig. 7b–d and Extended Data Fig. 9d–f). Taken together, these data suggest that Ascl1^KO RPM tumors are constrained to a luminal AR-dependent state.

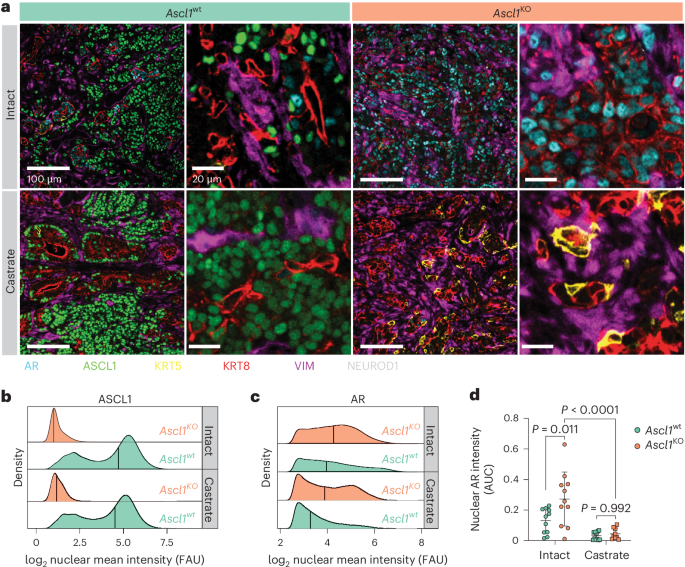

Fig. 7: Loss of Ascl1 results in enhanced AR expression and proportion of KRT8+ tumor cells. — **Fig. 7: Loss of *Ascl1* results in enhanced AR expression and proportion of KRT8+ tumor cells.**

Ascl1 loss in established NEPC promotes tumor heterogeneity

Given the crucial role of Ascl1 in the NEPC transition, we next asked whether Ascl1 is also required for the maintenance of established RPM-NEPC. To address this, we introduced a doxycycline (Dox) regulatable Ascl1 cDNA (with a cis-linked mScarlet reporter allele) into RPM-Ascl1^KO organoids and performed OT in mice receiving Dox (Fig. 8a and Extended Data Fig. 10a). As expected, mScarlet⁺ OT primary tumors developed rapidly (within 5 weeks) in mice transplanted with RPM-Ascl1^KO organoids harboring the Dox-Ascl1 allele (hereafter Ascl1^ON), whereas tumors in mice transplanted with RPM-Ascl1^KO organoids containing the Dox-mScarlet allele (Ctrl^ON) were delayed (Fig. 8b and Extended Data Fig. 10b,c). Ascl1^ON mice also developed metastases, whereas Ctrl^ON mice did not (Extended Data Fig. 10d), fully recapitulating the findings reported earlier (Fig. 6g).

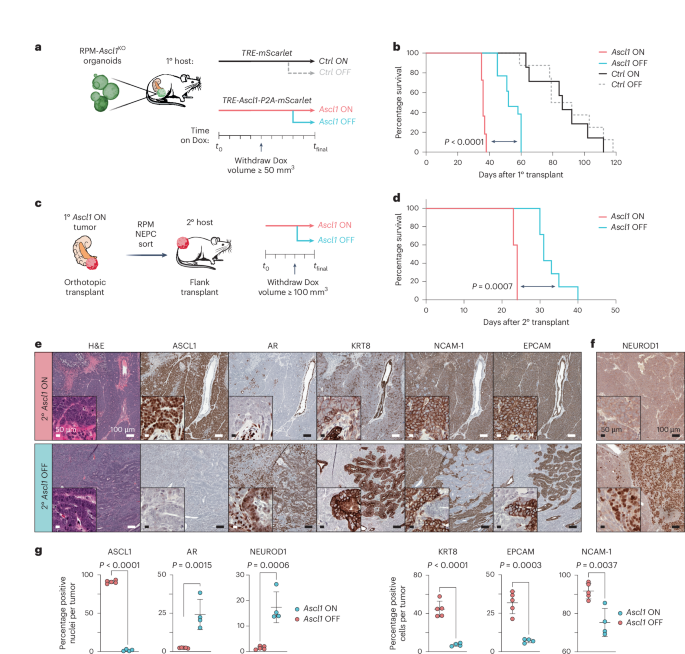

Fig. 8: Loss of Ascl1 in established NEPC results in modest tumor control and increased tumor heterogeneity. — **Fig. 8: Loss of *Ascl1* in established NEPC results in modest tumor control and increased tumor heterogeneity.**

After confirming the fidelity of the Dox-Ascl1 rescue allele, we asked whether ASCL1 is required for sustained growth of Ascl1^ON tumors in a second cohort of Ascl1^ON and Ctrl^ON mice. These mice received Dox until tumors were established (≥100 mm³) followed by Dox withdrawal (hereafter Ascl1^OFF and Ctrl^OFF; Fig. 8a and Extended Data Fig. 10b). Consistent with evidence that ASCL1-knockdown delays the growth of human NEPC xenografts⁵³, most Ascl1^OFF tumors regressed within 1 week of Dox withdrawal but resumed growth within 2–3 weeks. Although short lived, Dox withdrawal provided a statistically significant survival benefit (log-rank Mantel–Cox test, P < 0.0001; Fig. 8b and Extended Data Fig. 10e, f).

To understand the mechanism of relapse after Dox withdrawal, we examined the histologic features and lineage of relapsed Ascl1^OFF tumors. To avoid PRAD contamination within RPM primary transplants (recall that RPM tumors retain mixed PRAD and NEPC histology), we focused solely on NEPC cells by isolating a pure population of RPM-NEPC from primary Ascl1^ON OT tumors, then retransplanting these cells SQ into secondary recipients (Fig. 8c, Supplementary Fig. 7a and Methods). As expected, the SQ transplants mirrored OT results: Ascl1^ON tumors grew rapidly, whereas Ascl1^OFF tumors grew slower with a significant increase in survival (log-rank Mantel–Cox test, P = 0.0007; Fig. 8d and Extended Data Fig. 10g). Ascl1^OFF tumors lacked nuclear ASCL1 expression, as expected (Fig. 8e). While some regions reacquired PRAD histological features (moderate-to-well-differentiated adenocarcinoma harboring KRT8 and AR expression), the predominant histology was high-grade ASCL1⁻ NEPC with sarcomatoid-like features (Fig. 8e–g, Extended Data Fig. 10h and Supplementary Fig. 7b–d). In contrast to NEUROD1⁻ RPM tumors discussed earlier (Fig. 2b), we now observed several NEUROD1⁺ NEPC regions (Fig. 8f, g and Extended Data Fig. 10i). In summary, while Ascl1 is critical for initiating NE plasticity, established NEPC can circumvent Ascl1 dependency, revealing unique pathologies and marker profiles not seen previously in RPM or RPM-Ascl1^KO tumors, indicative of selective pressure to maintain the NE state through upregulation of NEUROD1 and potentially other unidentified TF programs.

Discussion

Lineage plasticity in cancer is a dynamic process that evolves over time. To gain a precise understanding of the underlying molecular events, a model amenable to repetitive interrogation and rapid perturbation is needed, ideally with reconstitution of the full repertoire of cells found within the TME. By integrating organoid techniques, genome engineering and in vivo transplantation, we generated a scalable, flexible and robust platform that mirrors the PRAD-to-NEPC transition with high fidelity. As with human NEPC, the mouse NEPC transition is accelerated by castration. At least two steps are required for plasticity to develop: Rb1 loss, which we postulate primes cells for lineage transformation, followed by a second TME signal that ‘triggers’ upregulation of Ascl1 and other lineage-defining TFs needed to complete the NEPC transition. Detailed characterization of the chromatin state of tumor cells before and during the lineage transition should shed light on the underlying molecular events driving NEPC fate⁵⁴.

Application of spatial methods to this model provided insight into the origin of NEPC and its subsequent evolution. For example, the earliest detectable ASCL1⁺ cells often coexpress KRT8 or are adjacent to KRT8⁺ epithelial cells. In addition to implicating luminal cells as a likely cell of origin, this may provide a clue as to the source of the TME signal. Spatial analysis also allowed us to track expansion of ASCL1⁺ cells following the initial lineage transformation event, where NEPC regions gain expression of additional neural lineage development-associated TFs. NEPC evolution is associated with substantial changes in the TME, including near complete loss of mesenchymal cells, infiltrating CD8⁺ T cells and CD4⁺ T_reg cells.

The platform is amenable to multiplexed gene editing at the time of tumor initiation, allowing us to establish the critical role of ASCL1 in NE transformation in a matter of months (versus 1–2 years required for multigenic crosses using GEMMs). ASCL1 is a known dependency in SCLC, likely a consequence of tumor initiation in pre-existing ASCL1⁺ NE cells^51,52. By contrast, ASCL1 is not expressed in prostate cancer until initiation of the NE fate transition. Previous work has shown delayed growth of ASCL1-expressing human xenograft models following ASCL1 knockdown⁵³. The dynamic nature of our platform documents an essential role of Ascl1 in initiating the transformation of PRAD to NEPC. Through use of a Dox-inducible rescue alleles, the model can also address dependencies once NEPC is fully established. Unlike the transition phase, Ascl1 extinction within established NEPC resulted in transient tumor regressions followed by ASCL1⁻ NEPC progression, underscoring the importance of early pharmacological intervention to prevent plasticity. Though direct inhibition of ASCL1 is challenging, therapies targeting the downstream target gene DLL3, including bispecific T cell engagers and other radioligand-based approaches, show clinical promise^55,56,57.

The immunocompetent setting used in this model allows unresolved topics regarding the immunobiology of prostate cancer to be addressed. In contrast to cell lines derived from tumors that have escaped immune suppression, the immune-evasive mechanisms in the current model develop without any pre-transplantation immune-mediated selective pressure. This scenario allows deeper analysis of the earliest steps in immune escape and may shed light on novel immunity-bolstering strategies before tumors become depleted of T cells. Indeed, our spatial analysis shows that CD8⁺ T cells are present early in PRAD but absent in NEPC. The biology of these cells can be explored using model tumor antigens, combined with tetramer-based monitoring of T cell responses and selective depletion of specific myeloid and T_reg subpopulations.

Though our focus is on prostate cancer, the platform can be adapted to other epithelial lineages in which short-term organoid culture and OT methods have been developed. One disease that closely approximates the lineage transitions observed in prostate cancer is EGFR- or ALK-mutant lung adenocarcinoma, where NE transition is a mechanism of escape from EGFR or ALK inhibition^7,8,11,58,59. KRAS^G12C-mutant lung adenocarcinoma is a second example where transition to squamous histology can occur under the selective pressure of RAS inhibitor therapy^10,60. Applications in bladder, pancreas, breast and gastrointestinal cancer can also be envisioned. In closing, we report a robust, scalable platform for studying lineage plasticity in a format amenable to deep molecular interrogation and perturbation and identify Ascl1 as a critical gatekeeper of NE transformation and tumor heterogeneity in prostate cancer.

Methods

Ethics statement

All animal studies and procedures were approved by the Memorial Sloan Kettering Cancer Center (MSKCC) Institutional Animal Care and Use Committee (IACUC, protocol 06-07-012). MSKCC guidelines for the proper and humane use of animals in biomedical research were followed. The maximal tumor burden permitted by MSKCC IACUC of 2 cm³ was not exceeded in this study. Informed consent was obtained for all patient samples and approved by MSKCC’s Institutional Review Board (ref. 21-005; ClinicalTrials.gov NCT01775072).

Animals

Male, 8–12-week-old C57BL/6J mice were maintained under pathogen-free conditions with a 12-h light–dark cycle, temperature controlled (20–25 °C) and 30–70% relative humidity. Food and water were provided ad libitum. Transplantation into immunocompetent hosts was performed on mice harboring conditional EGFP alleles to tolerize against EGFP-derived antigens (Jax, 026179). For organoids harboring Dox-inducible constructs, Prkcd^KO mice (Jax, 001913) were used to avoid rtTA-mediated rejection. All mice received pre- and postoperative analgesia (meloxicam and buprenorphine) and were monitored for signs of discomfort. At the end point, euthanasia was performed by CO₂ asphyxiation followed by cervical dislocation.

Orthotopic prostatic organoid transplantation

For RPM and PtPM organoid transplants, 8–12-week-old EGFP-tolerized male mice were randomized for surgical implantation into a single dorsal prostatic lobe as described previously²¹. For Ascl1-inducible organoids, 1 × 10⁵ RPM-Ascl1^KO organoids harboring Dox-inducible Ascl1-P2A-mScarlet or mScarlet alone were injected into the prostates of Prkcd^KO mice. Dox chow (Inotiv, 0.625 g kg⁻¹) was started 1 week before transplantation. Mice were randomized into Ascl1^ON (Dox maintained) or Ascl1^OFF (Dox withdrawn) cohorts when tumor volumes reached ≥50 mm³, as measured by small animal ultrasound (Fujifilm-Visualsonics, Vevo2100). Tumor volumes were calculated using Vevo Lab Software (v.5.9.0).

Subcutaneous prostatic organoid transplantation

For allograft experiments, 2.5 × 10⁵ single-cell suspension of organoids in 100 μl 50% Matrigel were injected into the depilated flanks of EGFP-tolerized mice. For secondary transplants, 5-week Ascl1^ON OT tumors were processed to a single-cell suspension (FACS buffer: 0.5% BSA and 1 mM EDTA) and sorted (Sony MA900, 100-μm sorting chip, Sony Biotechnology, LE-C3210) for 4,6-diamidino-2-phenylindole (DAPI)⁻, EGFP⁺, mScarlet⁺, EPCAM⁺ and NCAM-1⁺ cells (for gating strategy, see Supplementary Fig. 7a). Antibodies used for flow cytometry listed in Supplementary Table 10. After sorting, 1 × 10⁵ cells were injected into the flanks of secondary Dox chow pre-fed Prkcd^KO mice as described above. Mice were randomized into Ascl1^ON or Ascl1^OFF groups when tumors reached ≥150 mm³. At the experimental end point, secondary tumors were collected for formalin-fixing paraffin-embedding (FFPE) or processed for flow cytometry (Supplementary Fig. 7b–d). Subcutaneous tumor volumes were measured by caliper and calculated as previously described⁶¹.

Castration studies

Mice with orthotopic prostate tumors were randomized to castration or sham surgeries 2 weeks after surgery. Then 1 × 10⁶ RPM-Ascl1^wt or RPM-Ascl1^KO organoids were injected into the flanks of immunocompetent mice. Mice were randomized into vehicle (5% d-mannitol, Sigma M4125) or Degarelix (15 mg kg⁻¹, Sigma SML2856) groups once tumors measured ≥150 mm³, with treatments given subcutaneously every 14 days (100 μl). Tumor volumes were measured as described above. At time of euthanasia, serum testosterone levels were assessed by ELISA (Abcam, ab285350).

Human specimens

Informed consent was obtained for all patients and approved by MSKCC’s Institutional Review Board 21-005 (NCT01775072). A prostate tumor specimen was collected from a 62-year-old male with localized PRAD undergoing XRT followed by salvage prostatectomy after ADT and docetaxel. The tumor in the bladder arose by extension of a prostate tumor recurrence in the surgical bed. Pathological review revealed small cell carcinoma arising from PRAD, with tumor cells showing focal positivity for SYP, CHGA (patchy) and weak focal PSA and PSMA. Tumor sample was sectioned and processed for COMET-based mIF using the antibodies listed in Supplementary Table 10.

Lentiviral production

Lentiviruses were produced by co-transfection of 293T cells (Takara, 632180) with lentiviral backbone constructs and packaging vectors (psPAX2 and pMD2.G; Addgene, #12260 and #12259) using TransIT-LT1 (Mirus Bio, MR 2306) and concentrated by ultracentrifugation as previously described⁶¹.

Molecular cloning

Lentiviral vector (LVt-UBC-cMYC-P2A-EGFP) was generated using Gibson assembly. PCR fragments were amplified containing UBC promoter, cMyc^T58A codon optimized cDNA (geneblock, IDT) and a P2A-EGFP sequence, mixed within a Gibson master mix reaction and transformed into Stbl3 chemically competent Escherichia coli (Thermo, C737303). All plasmids were purified (QIAGEN, 12943) and sequence-validated through long-read sequencing (SNPsaurus). Lentiviral construct UT4GEPIR (Addgene, #186712) was used for cloning Dox-inducible Ascl1 and mScarlet constructs. Ascl1-T2A-mScarlet and mScarlet geneblocks were cloned with BamHI and SceI overhangs.

Organoid culture

Organoids were derived, cultured, and infected as previously described^19,20. Ribonucleoprotein (RNP) electroporation was performed as previously described²¹. Sequences for sgRNAs used can be found in Supplementary Table 11. For monolayer adaptation, 2 × 10⁶ single-cell organoid suspensions were seeded into 10-cm collagen-coated plates (Corning, 356450) and expanded in standard mouse prostate organoid medium supplemented with 10 μM Y-27632 (Tocris, 1254) for 5 days and then collected for transplantation or western blot validation. Of note, FBS was avoided throughout all steps of organoid culture, as FBS promotes differentiation and cell death.

RNA isolation from organoid cultures and bulk tumors

Tumors were isolated and validated for EGFP fluorescence (Nikon, SMZ18). and lysed in 250–500 μl RLT buffer supplemented with β-mercaptoethanol using ceramic beads (MP, 6910500) and loaded onto a Fisher Bead Mill 24 (1-min intervals on ice until fully lysed). RNA was isolated using QIAGEN RNeasy kit (QIAGEN, 74106). Organoids were similarly dissociated, resuspended in RLT buffer with β-mercaptoethanol, and disrupted with a Qiashredder (QIAGEN, 79656) before RNA isolation using the same kit. For qPCR, purified RNA was reverse transcribed (Thermo, 4368814) and quantified (Applied Biosystems, QuantStudio 6) with SYBR green reagent (Thermo, A46110). See Supplementary Table 11 for primer sequences used for qPCR.

Immunohistochemistry

Samples were fixed followed by hematoxylin and eosin (H&E) or chromogenic immunohistochemistry (IHC) staining as previously described⁶¹. Antibodies used for IHC are listed in Supplementary Table 10. Slides were scanned on a Pannoramic Scanner (3DHistech) with a ×20/0.8 NA objective and visualized in ImageJ or QuPath (v.0.4.2).

Multiplexed immunofluorescence

Samples were pretreated with EDTA-based epitope retrieval (ER2, Leica, AR9640) for 20 min at 95 °C. Staining and detection were conducted sequentially using antibodies listed in Supplementary Table 10. After 1 h incubation, Leica Bond Polymer anti-rabbit HRP was applied, followed by Alexa Fluor tyramide conjugate 488 and 647 (Life Technologies, B40953, B40958) or CF dye tyramide conjugate 430, 543, 594, and 750 (Biotium, 96053, 92172, 92174 and 96052) for signal amplification. Epitope retrieval was repeated between rounds to denature antibodies before applying the next primary antibody. Slides were counterstained with DAPI (5 μg ml⁻¹, Sigma Aldrich), rinsed in PBS and mounted in Mowiol 4–88 (Calbiochem). Slides were scanned on a Pannoramic Scanner (3DHistech) with a ×20/0.8 NA objective and visualized in ImageJ or QuPath. Confocal microscopy was performed on a Leica Stellaris 8. For sequential immunofluorescence (Lunaphore COMET), the tissue was cut to 4 μm onto positively charged glass slides. Slides were baked at 64 °C for 1 h. Dewaxing and antigen retrieval was performed on the Leica Bond RX with 30-min retrieval in ER2 solution. Slides were washed 3× for 1 min in DI water and loaded onto instrument. The 20-plex antibody panel can be found in Supplementary Table 5.

Immunoblotting

Single-cell organoid suspensions or monolayer cells were lysed in 125–250 μl ice-cold RIPA (Pierce, 89900) supplemented with 1× Complete Mini inhibitor mixture (Roche, 11836153001) and processed further for SDS–PAGE as previously described⁶¹. Antibodies used for western blots are listed in Supplementary Table 10. Blots were developed in Amersham ECL western detection region (Cytiva, RPN2236) and imaged on a Cytiva Amersham ImageQuant 800.

Isolation and validation of Ascl1 knockout organoid clones

Ascl1 sgRNA-targeted RPM organoids with Cas9 RNP were expanded for 5 days, then gently triturated in 0.5% BSA in PBS. Intact spheres were isolated using a 20 μl pipet, expanded, and genomic DNA was extracted (QIAGEN, 69506) for Ascl1 target locus amplification with the KAPA mouse genotyping kit (Fisher Scientific, 50-196-5243; see Supplementary Table 11 for PCR primers sequences). The 170-bp PCR product was purified (QIAGEN, 28706) and submitted for library preparation and sequencing at the Integrated Genomics Operation at MSKCC. Barcoded libraries were pooled and sequenced on NovaSeq 6000 (PE150, Illumina NovaSeq 6000 S4 Reagent kit, 300 cycles) with an average number of 1.3 M reads per sample. Alignment and modification quantification were performed with CRISPResso2 (http://crispresso.pinellolab.org/) using default parameters. Six sequence-validated biallelic RPM-Ascl1^KO clones were pooled and expanded for transplantation experiments.

snRNA sequencing and sample preparation

Dissected tumor samples were sliced into ~5 × 5-mm pieces and flash frozen. Nuclei were isolated using the Singulator 100 (S2 Genomics) and standard nuclei-isolation protocol supplemented with 3.5 μl 1 M dithiothreitol (Sigma, 43816) and 87.5 units of Protector RNase inhibitor (Sigma, 3335402001). The suspension was cleaned with sucrose density gradient (Sigma, NUC201-1KT) and centrifuged at 500g for 5 min. Nuclei were resuspended in wash buffer (10 mM Tris-HCl, pH 7.4, 10 mM NaCl, 3 mM MgCl₂, 1 mM dithiothreitol, 1% BSA and 1 U μl⁻¹ Protector RNase inhibitor), filtered through a 35-μm strainer and sorted (7-AAD⁺) to obtain a single-nuclei suspension. Nuclei were processed (Single Cell Analytics Innovation Lab, MSKCC) on a Chromium instrument (10x Genomics) for 3′ v.3.1 snRNA-seq, following manufacturer protocols. After capture, complementary DNA was purified with Dynabeads (Thermo, 37012D) and amplified per manual instruction. Libraries targeting ~10,000 cells per sample were sequenced on an Illumina NovaSeq S4 (R1, 28 cycles; i7, 8 cycles; R2, 90 cycles; Integrated Genomics Operation, MSKCC). FASTQ files were processed using 10x Cell Ranger v.6.1.2 to align reads to the mm10/GRCm38 reference genome, including Myc-P2A-EGFP transgene sequences (Extended Data Fig. 1b). Introns were included to account for the higher rate of intronic reads in snRNA and feature-barcode matrices were generated for subsequent analysis.

Bulk RNA-seq and analysis

RNA was quantified and quality controlled via Agilent BioAnalyzer and 500 ng total RNA followed by poly-A selection library preparation (RIN 8.3–10, TruSeq Stranded mRNA LT kit, RS-122-2102). Sequencing was performed on a NovaSeq 6000 (PE100, Illumina SX Reagent kit), yielding an average of 24 million paired reads per sample. Bulk RNA-seq analysis was performed using the Seq-N-Slide pipeline (https://github.com/igordot/sns), through rna-star followed by rna-star-groups-dge routes with quality control assessment (MultiQC⁶², Python/cpu v.2.7.15) and adaptor trimming (Trimmomatic⁶³, v.0.36). Reads were aligned to the mm10/GRCm38 mouse reference genome with a splice-aware⁶⁴ (STAR v.2.7.3a) alignment, followed by featureCounts⁶⁵ (subread v.1.6.3) to generate an RNA counts table. Counts were normalized and tested for differential mRNA expression using negative binomial generalized linear models as implemented in DESeq2 (ref. ⁶⁶) (v.1.40.1). The log₂ fold changes of contrasts (c^tβ/√c^tΣc) were shrunken following ‘lfcShrink(type = ‘ashr’)’ to stabilize genes with low or variable counts. Differential expression was assessed by principal-component analysis or unsupervised hierarchical clustering and visualized by a volcano plot and TPM expression heatmap. Differentially expressed genes (DEGs) were analyzed for gene set enrichment analysis (GSEA) with R packages: fgsea v.1.26.0 and msigdbr v.7.5.1 via the pre-ranked method with 10,000 permutations, based on the adaptive multilevel splitting Monte Carlo approach. DEGs were further analyzed for GSEA using curated NEPC signatures¹⁶ with variance-stabilized log₂ fold changes calculated by DESeq2 as ranking metric. All P values were adjusted with the Benjamini–Hochberg method.

Reclustering of the public scRNA-seq dataset

To derive gene sets for benchmarking BayesPrism, we used an independent scRNA-seq dataset from prostates derived from Pten^fl/fl; Rb1^fl/fl; Trp53^fl/fl; Probasin-Cre (PtRP) GEMMs¹⁶. This dataset was generated using a mouse model that similarly transitions from PRAD to NEPC covering a broad diversity of cell types. We reclustered the data to improve the granularity of mesenchymal cells. To improve mesenchymal cell granularity, we reclustered GFP⁻ mesenchymal cells. We selected the top 3,000 highly variable genes using Scanpy’s pp.highly_variable_genes with raw counts, flavor seurat_v.3 and span = 1. Raw counts were normalized by the library size of each cell/10⁴, followed by log₂(X + 1) transformation. We selected the top 30 principal components using scanpy.tl.pca, followed by clustering with Phenograph (k = 30, clustering_algo = ‘leiden’), generating 20 clusters. Clusters were annotated by markers from Niec et al.³³, with endothelial, lymphatic, glial cells and pericytes/myofibroblasts clearly distinguishable (Supplementary Fig. 5a). The remaining clusters were annotated as Mes-1 and Mes-2 (Supplementary Fig. 5b,c).

snRNA-seq analysis

For mouse snRNA-seq datasets, ambient RNA molecules were removed using CellBender⁶⁷ with –expected-cells 5000 and –total-droplets-included 20,000. All downstream processing of snRNA-seq data and scRNA-seq data was performed in Scanpy⁶⁸. Low-quality cells, unexpressed genes and potential doublets were excluded. Genes detected in fewer than three cells, cells with fewer than 200 genes or 1,000 unique molecular identifiers (UMIs) and cells with a mitochondrial fraction >10% were removed. Mitochondrial and ribosomal protein-coding genes were also omitted from downstream analysis. Doublets were identified using Scrublet⁶⁹ retaining 4,872 cells with a median of 7,055.5 UMIs per cell. We selected the top 3,000 highly variable genes using Scanpy’s pp.highly_variable_genes with raw counts, flavor = ‘seurat_v3’ and span = 1. Raw counts were normalized by the library size of each cell/10⁴, followed by log₂(X + 1) transformation. We selected the top 30 principal components using scanpy.tl.pca, followed by clustering with Phenograph⁷⁰ (k = 30, clustering_algo = ‘leiden’), generating 19 clusters. Marker genes (Supplementary Figs. 2a and 5a–c) were used for cell typing. Malignant and nonmalignant cells were distinguished based on copy-number analysis inferred using inferCNV⁷¹ with myeloid and endothelial cells as the normal cell reference. Clusters were annotated based on copy-number variant alterations and marker gene expression, identifying them as normal epithelial and mesenchymal cells, as well as tumor subtypes, including NE, EMT and tumor luminal/basal (Supplementary Figs. 2a,b and 5a–c).

Visium preparation

We generated Visium data from two adjacent sections as technical replicates from 10-week RPM tumors (n = 2 mice). Spatial gene expression slides were prepared using FFPE sections (Molecular Cytology Core, MSKCC) following the manufacturer’s recommended protocol (10x Genomics, 1000337). After real-time PCR evaluation, sequencing libraries were prepared with 11–14 PCR cycles, pooled equimolar and sequenced on a NovaSeq 6000 in (PE28/88 run, NovaSeq 6000 SP Reagent kit, 100-cycles, Illumina). FASTQ files were processed using spaceranger count (v.2.0.0) to align reads to the GRCm38 (mm10) reference genome and generate count matrices. Each sample yielded an average of 74 million paired reads, corresponding to 37,000 reads per spot.

Analysis of Visium data

Visium data from two replicates were deconvolved using BayesPrism with the snRNA-seq data from the 10-week RPM tumor as the reference, following setups similar to those previously reported^33,72,73,74.

To enhance the signal-to-noise ratio, we selected marker genes that are differentially upregulated in each of the 19 cell types, as defined by the 19 Phenograph clusters in the snRNA-seq data. We took the union of these marker genes and deconvolved over these genes. We performed a pairwise t-test using the ‘findMarker’ function from the scran package⁷⁵, accessible via the wrapper function ‘get.exp.stat’ from BayesPrism. For each nontumor cell types (four total: mesenchymal, myeloid, normal luminal/basal and endothelial cells), we required the maximum P value to be <0.01 and the minimum log₂ fold change to be >0.1 across comparisons with other cell type. For tumor cell type (15 in total: NE, EMT and tumor luminal/basal), the same thresholds were applied, but comparisons were only made against nontumor cell types to retain the maximum number of tumor-specific genes for PrismSpot analysis. This was achieved by defining a coarse-level cell-type labeling, where 15 tumor cell types were grouped into a single tumor cell type and using it as the ‘cell.type.labels’ argument, while setting the original 19 cell types ‘as cell.state.labels’ in BayesPrism’s built-in function ‘get.exp.stat’.

To speed up deconvolution we excluded genes expressed in fewer than four spots, resulting in 5,125 genes. Each of the 19 cell states was treated as an individual cell type when constructing the reference. The pseudo.min parameter was set to 0 to maximize the contrast between cell types. Other BayesPrism parameters were left as default, including a flat Dirichlet prior (α = 1), a Markov chain Monte Carlo chain length of 1,000 (with a 500-step burn-in) and a thinning set to 2. Updated Gibbs sampling was used for a robust batch effect correction between the snRNA-seq and the FFPE Visium data.

We benchmarked BayesPrism’s accuracy and robustness in deconvolving cell type fractions from Visium data. To estimate ground truth, we used marker genes and histology with H&E. BayesPrism’s inferred NEPC fractions showed strong concordance with histological regions (Fig. 5c). We assessed robustness by comparing cell type fractions across histologically defined regions between two technical replicates, adjusting regions manually to accommodate shifts on the x–y plane between technical replicates. For each region, we compute the average fractions for each cell type. We then computed both cell type-level and region-level Pearson’s correlation coefficients (Extended Data Fig. 7a,b).

PrismSpot analysis

For the Hotspot analysis, we used spot-specific tumor gene expression by summing the posterior mean of cell type-specific gene expression (z) across all tumor clusters (n = 15) output by BayesPrism. We rounded up the posterior mean of z because Hotspot models raw count data using a negative binomial distribution. To define the neighborhood structure for spatial coexpression, we performed a single Hotspot analysis for all Visium spots while restricting neighborhoods within each mouse and technical replicate. We adjusted Visium spot coordinates for each tumor sample to prevent overlap among spots from different samples. Genes with zero count in all spots and spots with fewer than 1,000 genes or 1,000 UMIs were excluded. We set ‘n_neighbors = 6’ in Hotspot’s ‘create_knn_graph’ and treated all adjacent spots equally. We selected genes with a false discovery rate (FDR) of < 0.01 for spatial autocorrelation z-scores (Fig. 5). The TFs were clustered into modules using the ‘create_modules’ function, with parameters ‘min_gene_threshold = 15’, ‘core_only = True’ and ‘fdr_threshold = 0.05’, which performs a bottom-up clustering procedure by iteratively merging two genes/modules with the highest pairwise z-score.

To ensure robustness, we implemented a subsampling strategy, drawing 60% of the reads for each mouse tissue on each Visium slide 100 times. We reclustered genes into modules and a consensus score for each gene, representing the frequency of co-occurrence in the same module across subsampled datasets. Genes with an average consensus score ≥0.8 were selected as representative genes, resulting in 71 out of 181 genes from three out of the original five spatial modules (Fig. 5e and Supplementary Table 7).

Benchmarking PrismSpot

We compared Hotspot results between PrismSpot and ‘standard’ Hotspot (using un-deconvolved raw counts), hereafter referred to as Hotspot, by analyzing autocorrelation and pairwise local correlation coefficients for marker genes from different cell types. Marker genes were derived from the GEMM scRNA-seq dataset¹⁶ mentioned above, grouped to match the granularity of the snRNA-seq reference. Specifically, we grouped Mes-1 and Mes-2 as mesenchymal; Tff3, mutant L1, mutant L2, mutant B1, NEPC-Pou2f3 and NEPC as tumor; macrophages, neutrophils and DC as myeloid. We performed differential expression using a pairwise Student’s t-test between tumor, stromal, myeloid and endothelial cells, selecting markers with a maximum P value < 0.01 and minimum log₂ fold change >0.1.

We performed one-sided paired Student’s t-tests to compare autocorrelation z-scores between PrismSpot and Hotspot, with null hypothesis tailored for tumor and nontumor cell types. For nontumor cell types (for example endothelial, myeloid and mesenchymal) we define null hypothesis H₀: PrismSpot z > Hotspot z, while for tumor cells we define H₀: PrismSpot z < Hotspot z. To ensure statistical power was similar in the comparison of autocorrelation scores for each cell type, we selected the top 100 genes that pass the threshold mentioned above based on log₂ fold change. The P values were 4.0 × 10⁻³, 2.1 × 10⁻⁶, 6.0 × 10⁻⁹ and 3.8 × 10⁻³ for endothelial, myeloid, mesenchymal and tumor cells, respectively (Supplementary Fig. 4c).

Likewise, we performed one-sided paired Student’s t-tests to compare local pairwise correlation z-scores between PrismSpot and Hotspot across three categories: (1) between a pair of tumor marker genes; (2) between a tumor marker gene and a marker gene for nontumor cell types; and (3) between a pair of marker gene for nontumor cell types. As pairwise local correlation can be both positive and negative, we performed statistical tests on the absolute value of z-scores. For tumor versus nontumor and nontumor versus nontumor categories, we define null hypothesis H₀: |PrismSpot| > |Hotspot|, whereas for the tumor versus tumor category, we define H₀: |PrismSpot| < |Hotspot|. The P value of the tumor versus tumor category was 3.3 × 10^–5. For the tumor versus nontumor and nontumor versus nontumor categories, P values were less than the numeric limit 2.2 × 10⁻¹⁶ (Supplementary Fig. 4g).

Pathology annotation and spatial immunofluorescence analysis

Sections processed for H&E and mIF were reviewed by a board-certified genitourinary pathologist (A.G.). Graded histological areas were used to identify regions of PRAD and NEPC on serially sectioned samples processed for 10x Visium and mIF.

Cell segmentation

We utilized Mesmer⁷⁶ (standard model), to identify cell boundaries in COMET images. The input to Mesmer is a single nuclear image (DAPI) and single membrane and/or cytoplasm image. To demarcate cell types, we merged images from multiple cell-type-specific membrane and/or cytoplasmic markers by applying min–max normalization (‘MinMaxScaler’, ‘sklearn.preprocessing’ package with default parameters) to each channel before summation. We combined CD45, CD20, CD4, CD8, CD11b, CD11c, Ly6G (immune cells), CD31 (endothelial cell), GFP, KRT8 (tumor epithelial cells), VIM and α-SMA (stromal cells). We ran Mesmer on these images with standard parameters to predict cell boundaries (modified to exclude cells ≤36 pixels) and calculated the cell size, eccentricity and centroid of each cell boundary. Images were preprocessed to half their size (to 0.46 µm per pixel) to accommodate system memory constraints (128 GB).

Normalization

We quantified raw per-cell marker expressions by aggregating pixel brightness within each cell boundary. To neutralize cell size variance, expressions per channel were normalized against cell boundary area. We found bimodal distributions of cell size and DAPI expression in our dataset. The lower mode of DAPI contained primarily empty regions and the upper mode of cell size contained cell segmentation errors. We then filtered all cells with DAPI values less than 2,096 (estimated from distribution) and cell size larger than 2,500 (estimated from distribution). The marker intensity signals then underwent logarithmic transformation.

Cell type identification

We used a clustering-based approach for tumor cell identification within our dataset. We constructed a 20-dimensional count matrix based on the computed per-cell normalized marker expression and then constructed a k-nearest graph (k = 30) based on similarity of marker expression using the Leiden algorithm⁷⁷, yielding 27 distinct clusters. These clusters were labeled as stromal, tumor (marked by GFP, ASCL1 and KRT8) or artifacts (characterized by low marker expression), with artifact cells excluded from further analysis. Cell types were classified based on marker intensity distributions: lymphatic endothelial cells (LYVE1 > 7.5), blood vessel endothelial (CD31 > 8) and immune (CD45 > 8). The distribution patterns of this coarse classification are reported in Fig. 4a. With the same approach, we identified subpopulations in immune cells: CD4⁺ T cell (CD4 > 7), B cell (CD20 > 8), CD8⁺ T cell (CD8 > 8.3), T_reg (FOXP3 > 8), CD11b F4/80⁺ myeloid (Mac3; CD11b > 7 and F4/80 > 7), CD11b F4/80⁻ myeloid (Mac1; CD11b > 7 and F4/80 < 7), CD11c F4/80⁺ myeloid (Mac2; CD11c > 8.5 and F4/80 > 7).

Spatial analysis

To examine cellular organization within lymph node tissue, we constructed a spatial neighborhood graph by linking cells within a 20-pixel radius (~2.5 times the median cell radius). This graph contained an average of 4.5 neighbors per cell. A neighborhood enrichment matrix was generated to map enriched proximity between cell types, with axis labeling indicating source and neighboring cell types and matrix values representing total neighboring counts. Normalizing these counts by the total number of neighbors per cell type produced a cell proximity frequency matrix (Fig. 4g), showcasing the likelihood of each cell type neighboring another. Both were implemented using Squidpy⁷⁸.

For infiltration analyses, we used HALO and HALO A.I. v.3.6.4134 (Indica Labs) for nuclear and cytoplasmic segmentation, trained on a set of control tumor slides. Segmentation was performed using the DAPI channel, with manual review and vetting to ensure high-quality segmentation across slides. Due to high cellular density in some tissues, we employed Mesmer-based segmentation for more robust results. Marker thresholding was kept consistent across slides, and DAPI-based criteria filtered single cells, including (1) nuclear DAPI measurements above user-input threshold; and (2) the nuclear/cytoplasmic ratio DAPI measurement was above a user-input threshold. Cells were assigned to cell types based on marker coexpression in a layered fashion (Supplementary Table 6). Infiltration metrics were calculated by binning tumor regions and normalizing cell counts per bin area. Tumors within an individual metastatic tissue sample were pooled for infiltration analysis. Cells within each bin were quantified and normalized to the bin area, and the mean cell density per bin was averaged across mouse samples. Replicate samples (n = 3 tumors) were used to calculate the standard error. Data were visualized in R using ggplot2 with Loess function smoothing. For histological characterization, a Random Forest tissue classifier was refined (HALO) using n = 10 primary and metastatic RPM tumors containing examples of NEPC, PRAD and stroma. An RPM (n = 1) tumor derived from a castrated host was used for chondrosarcoma histology training. Tissue classification was validated by pathologist, A.G.

Analysis of human scRNA-seq PRAD and NEPC myeloid subsets

FASTQ files from a previously published single-cell dataset¹⁶ (histologically verified CRPC-PRAD (n = 9) and NEPC (n = 3)) was mapped to human reference genome GRCh38 using Cell Ranger v.7.0.1 to generate count matrices (transcripts and/or genes × cells). Downstream analyses were performed using the Seurat R package (v.4.4.0). Cells were removed if genes were not detected in at least ten cells. Cells were filtered based on the following: (1) fewer than 500 genes; and (2) ≥30% mitochondrial counts and ≤500 UMI counts. Putative doublets were removed using scDblFinder⁷⁹. Combining samples from all CRPC-PRAD and NEPC sampled yielded 63,834 cells × 30,519 genes. To normalize the data, the ‘LogNormalize’ method was used with a pseudocount = 1 and scale factor = 10,000. The top 2,000 highly variable genes were identified using the ‘FindVariableFeatures’ function. fastMNN was utilized across all cell types to perform batch correction (using all 30,519 genes). A k-nearest neighbor graph was constructed using the ‘FindNeighbors’ function with the first 30 ‘MNN’ dimensions on the batch-corrected count matrix. Clustering was performed using the ‘FindClusters’ function based on the Louvain algorithm with a resolution of 0.3. The resolution value was determined to be 0.3 as it best matched the expression patterns of all lineage markers. The clustered cells were visualized using ‘RunUMAP’ with the first 30 dimensions from the dimensional reduction ‘MNN’, and the clusters expressing myeloid lineage markers (CD14, LYZ and IL1B) were identified with these cells being subsetted for downstream analysis (n = 7,004 myeloid cells). Reclustering with a resolution of 1 was then conducted these putative myeloid cells using the batch-corrected matrix (from the upstream correction) yielded 17 clusters. DEGs for each cluster were identified using ‘FindMarkers’ with the MAST algorithm (v.1.24.1) and thresholds of Bonferroni-adjusted P value <0.05 and log₂fold change > 0.5. Of note, four clusters (n = 1,282 cells) had low UMI counts, one cluster (n = 382 cells) showed top DEGs possibly indicative of doublet cell types expressing markers for both epithelial cells and myeloid cells (KLK3 and CD14) and one cluster (n = 42 cells) expressed high levels of proliferation-related genes (MKI67, TOP2A and STMN1) and therefore, were removed. This yielded a total of 5,298 myeloid cells (4,348 CRPC-PRAD and 950 NEPC cells). To identify the subtypes of TAMs, module scores from predefined gene sets for each TAM⁸⁰ were used and scores were calculated using ‘AddModuleScore’. Cells were labeled based on the median and maximum signature scores per cluster.

Analysis of human prostate SU2C dataset

The FPKM-normalized RNA-seq from Abida et al. was downloaded from https://github.com/cBioPortal/datahub/tree/master/public/prad_su2c_2019 (ref. ⁴⁸). We selected patient samples sequenced by the poly-A enrichment protocol, as it contains more samples with histologically verified NEPC. n = 9 NEPC samples and n = 50 PRAD samples. We performed differential expression analysis to derive the log₂ fold change and P values between NEPC and PRAD samples for each gene independently. We computed log₂ ((mean expression of NEPC samples + 1)/(mean expression of PRAD samples + 1)). The statistical significance was computed using a two-sided Wilcoxon test.

Statistics and reproducibility

Statistical analyses were performed using GraphPad Prism (v.9.5.1) or R (v.4.3.1). A P value < 0.05 was considered significant. Exact P values are reported in each figure unless P < 0.0001. Variance between compared groups was similar. A two-tailed Student’s t-test was used for comparisons between untreated to treated samples or between genotypes or tumor cell types. A one-way analysis of variance (ANOVA) with Sidak’s or Tukey’s correction was used for comparisons across multiple groups. For time-course experiments, a two-way ANOVA with multiple comparisons correction was applied. Figure legends denominate statistical analysis used. Sample sizes were not statistically predetermined but were similar to those in previous studies with the same type of experiments and readout^16,26,33. Blinding was applied during group allocation, data collection and analysis. Animals without detectable tumors or with severely ulcerated tumors were excluded from the analysis; no other exclusions were made.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

Bulk RNA-seq, snRNA-seq and spatial transcriptomic data that support the findings of this study have been deposited in the Gene Expression Omnibus (GEO) under accession codes GSE246251 and GSE246770. Human prostate cancer bulk RNA-seq data were derived from ref. ⁴⁸ and downloaded from GitHub at https://github.com/cBioPortal/datahub/tree/master/public/prad_su2c_2019. Publicly available mouse and human single-cell RNA-seq datasets were used and can be found in refs. ^16,80 and under GEO accession numbers GSE210358 and GSE264573, respectively. CRISPR-targeted locus sequencing datasets have been submitted to the Sequence Read Archive and are available under BioProject ID PRJNA1031236 at https://www.ncbi.nlm.nih.gov/bioproject/PRJNA1031236. Uncropped western blots have been provided as an Extended Source Data file. Source data for Figs. 1–4 and 6–8 and Extended Data Figs. 1–6 and 8–10 have been provided as Source Data files. Segmented (HALO) mIF (7-plex) tumor-cell-centric datasets from Ascl1^wt and Ascl1^KO RPM tumors have been uploaded to figshare at https://doi.org/10.6084/m9.figshare.c.7470099.v1 (ref. ⁸¹). TME segmentation data (COMET) in this study cannot be deposited in a public repository due to size constraints but are available from the corresponding author upon request. All other data supporting the findings of this study are available from the corresponding author upon request. Requests will be processed within 14 days. Source data are provided with this paper.

Code availability

Bulk RNA-seq analysis, spatial transcriptomics and spatial immunofluorescence analyses were performed using open-source software as described in Methods. Available code from these analyses has been deposited at GitHub at https://github.com/igordot.sns, https://github.com/dpeerlab/PrismSpot and figshare at https://doi.org/10.6084/m9.figshare.c.7470099.v1 (ref. ⁸¹).
