Introduction

Preeclampsia is a hypertensive disorder of pregnancy that affects 5–10% of pregnant people, and it continues to be a significant contributor to both maternal and neonatal mortality worldwide1. The origin of preeclampsia remains elusive but is thought to arise from shallow placentation in pregnancy2. After embryo implantation, the developing placental cells called trophoblasts attach to the maternal uterine lining (endometrium of pregnancy (“decidua”)). The trophoblasts organize into small finger-like villi projections that interdigitate within the decidua cells and the underlying stromal matrix3. Trophoblast cells that extend beyond the villi into the decidua are extravillous trophoblasts, and these play a key role in remodeling the maternal spiral arteries that serve to facilitate nutrient and gas exchange in pregnancy. These extravillous trophoblasts within the vasculature take on an endothelial-like phenotype, migrating in close proximity to the maternal endothelial cells that line the spiral arteries. Abnormalities in the orchestration of placentation are thought to result in increased maternal vascular resistance, decreased oxygen and nutrient exchange, and the resulting endothelial damage and inflammation of preeclampsia that result in systemic manifestations including hypertension, renal damage, liver damage, pulmonary vascular leakage, and cerebral seizures2,4. Preeclampsia is defined by these secondary clinical features of a primary placental disorder. Early onset preeclampsia, which occurs prior to 34 weeks of gestation, occurs more rarely but is associated with more severe disease and increased maternal and perinatal morbidity5,6.

In stark contrast, placenta accreta spectrum is a placental disorder in which there is such deep villous attachment to the uterus that the placenta does not separate at the time of birth. There is deep remodeling of spiral arteries and neovascularization, leading to the complexity of the condition, requiring preterm delivery via cesarean hysterectomy7. Although multiple clinical epidemiologic studies have described opposite clinical manifestations of preeclampsia and placenta accreta8,9, these two disorders historically were not believed to share underlying biology. However, we recently conducted a single-cell transcriptomic analysis of placenta accreta and found that many of the genes upregulated in our placenta accreta extravillous trophoblasts, decidua, and endothelial cells are downregulated in preeclampsia studies10. This curious molecular parallel was corroborated by Bartels et al.11, whose placenta accreta spatial transcriptomic analysis similarly found many significant genes and pathways in accreta that were inversely regulated compared to preeclampsia. However, no prior studies have directly compared the full preeclampsia versus the placenta accreta transcriptome and instead have focused on each disease in isolation with a literature review highlighting a few overlapping genes. Therefore, a comprehensive meta-analysis of both obstetric syndromes is needed to define a reproducible and robust placental signature.

In this study, we sought to compare in silico the transcriptomic signatures of early onset preeclampsia and placenta accreta. We targeted early onset preeclampsia due to both its more clinically severe phenotype and its similar preterm birth timing as that of placenta accreta spectrum. The goal of this analysis was to test the hypothesis that these disorders lie on the opposite ends of the spectrum of a shared process of physiologic placentation. We hypothesized that a comparative analysis would narrow down the transcriptional landscape of early onset preeclampsia to a more precise set of genes and pathways relevant to disease etiology or progression12. Using publicly available microarrays, we defined an early onset preeclampsia signature and compared to both placenta accreta microarray data and our previous single-cell accreta sequencing data to identify hyper-enriched gene sets and oppositely regulated genes across individual cell types. We found a consistent pattern of enriched and inversely regulated genes when comparing early onset preeclampsia to placenta accreta, identified extravillous trophoblast and decidual genes relevant for cell invasion and antioxidation, and found evidence to support that disorders of placentation are highly dependent on the antecedent uterine environment as a driver of pathologic placentation in pregnancy.

Results

Early onset preeclampsia transcriptomic signature and pathway analysis

Using publicly available data, we collated a set of four preeclampsia microarray datasets (GSE2590613, GSE7434114, GSE7501015, GSE9383916) across 151 samples meeting our inclusion criteria, see “Methods” (Fig. 1). Out of 44 preeclampsia microarrays, 16 were of placental tissue, 10 of these included an appropriate sample size, seven of these included meta-data on mode of delivery, and four of these utilized comprehensive human genome probes to allow for full transcriptomic analysis. We specifically conducted a differential gene expression analysis comparing early onset preeclampsia and preterm controls within these four datasets, as these patients present with earlier and more severe clinical findings with different molecular signatures and maternal morbidity compared with late onset preeclampsia6,17. Clinical characteristics of the included patients are detailed in Table 1. In total, our study included 86 early onset preeclampsia samples and 65 preterm controls, and we identified 2600 differentially expressed genes at an adjusted p-value of <0.05, of which 1239 were upregulated and 1361 were downregulated for early onset preeclampsia, as shown in the heat map for Fig. 2a. A volcano plot in Fig. 2b demonstrates that genes with the highest differential expression (adjusted FDR p-value < 0.05, log2FC > 0.5) included leptin (LEP), high-temperature requirement A-4 (HTRA4), follistatin-like 3 (FSTL3), type 2 deiodinase (DIO2), corticotropin releasing hormone (CRH), hexokinase-2 (HK2), serpin family A member 3 (SERPINA3), transmembrane protein 45A (TMEM45A), and SAM and SH3 domain containing 1 (SASH1).

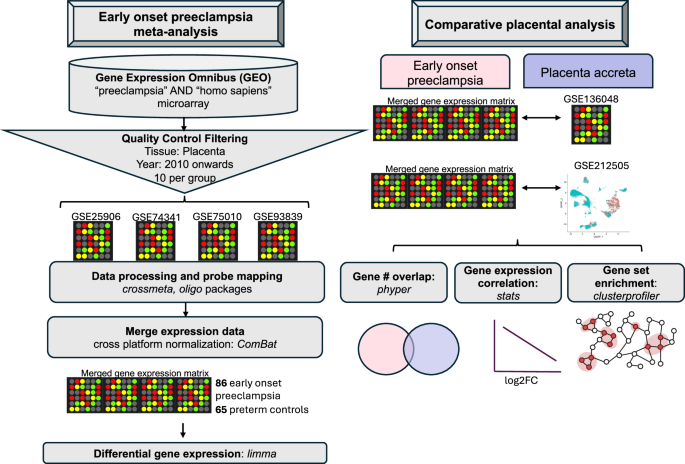

Fig. 1: Study methodology overview.
Fig. 1: Study methodology overview.
Full size image

Left panel: Schematic representation of methodology for Gene Expression Omnibus microarray dataset search, individual microarray data processing, expression matrix merging, and downstream analyses. Right panel: Schematic representation of the comparative analysis in microarray gene expression between early onset preeclampsia and placenta accreta, comparing the merged preeclampsia expression matrix with that of one preterm accreta microarray (GSE136048) and one placenta accreta single-cell RNA sequencing dataset (GSE212505).

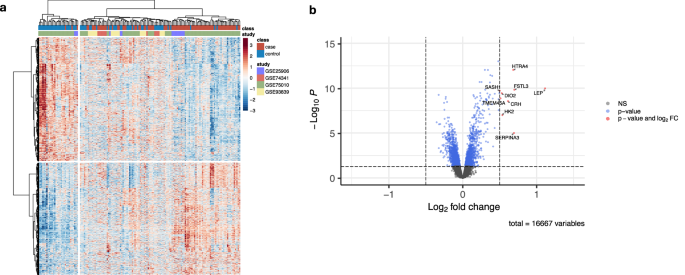

Fig. 2: Early onset preeclampsia disease signature.
Fig. 2: Early onset preeclampsia disease signature.
Full size image

a Heat map depicting differential gene expression by case (early onset preeclampsia) and control (preterm control) of the 4 merged microarray studies at an adjusted p-value of <0.05. Analysis demonstrated 2600 differentially expressed genes, of which 1239 are upregulated and 1361 are downregulated. The color gradient legend represents normalized gene counts. b Volcano plot of differential gene expression for early onset preeclampsia, with genes labeled in blue for an adjusted p-value of <0.05 and red for both an adjusted p-value of <0.05 and a log2FC difference of 0.5. NS indicates non-significant.

Table 1 Included microarrays for early onset preeclampsia and placenta accreta with associated metadata
Full size table

Pathway analysis (Fig. 3a, b) of early onset preeclampsia showed significant activation in biologic processes related to response to hypoxia, regulation of angiogenesis, phosphatidylinositol 3-kinase signaling, and developmental processes involved in reproduction. In contrast, suppression was seen in aerobic and cellular respiration and anabolic pathways of purine ribonucleotide biosynthetic process and sulfur compound metabolic process (Fig. 3a, c). An analysis of significantly enriched hallmark pathways additionally found activation of immunologic pathways including tumor necrosis factor-α (TNF-α) signaling, mammalian target of rapamycin complex 1 (mTORC1) signaling, and interleukin2 (IL2) signal transducer and activator of transcription 5 (STAT5) signaling and activation of estrogen response (Fig. 3d, e), with suppression of MYC proto-oncogene transcription factor targets (Fig. 3d, f) (all p-adjust <0.05).

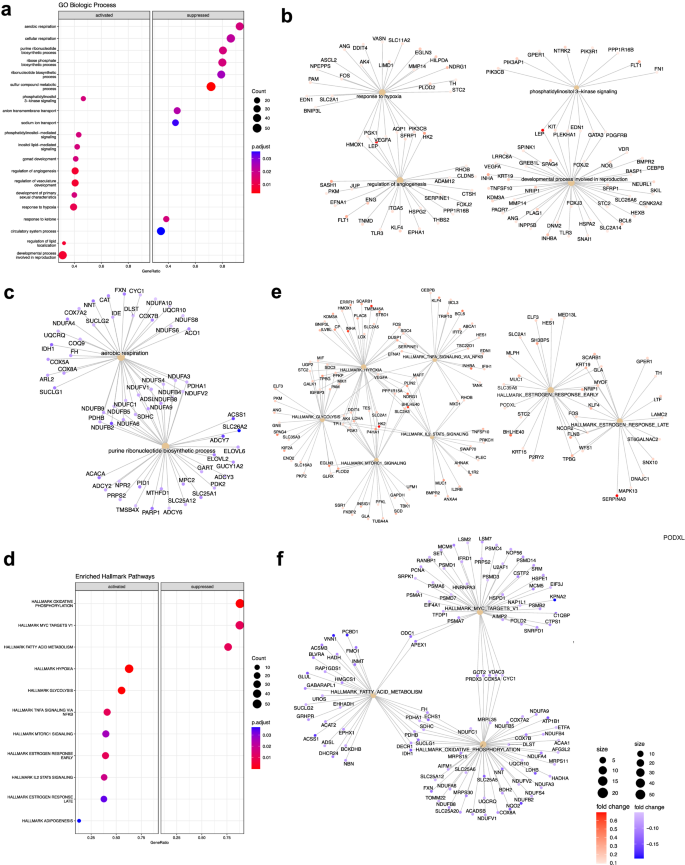

Fig. 3: Early onset preeclampsia gene set enrichment analysis.
Fig. 3: Early onset preeclampsia gene set enrichment analysis.
Full size image

a Gene Ontology Biological Process in early onset preeclampsia. b Gene-concept network depicting upregulated Gene Ontology Biological Process pathways which are upregulated: response to hypoxia, regulation of angiogenesis, developmental process involved in reproduction, phosphatidylinositol 3-kinase signaling. c Gene-concept network constructed for the following Gene Ontology Biological Process pathways which are downregulated: aerobic respiration and purine ribonucleotide biosynthetic process. d Gene set enrichment analysis was performed on Hallmark pathways, with the dotplot indicating significantly enriched pathways in early onset preeclampsia. e Gene-concept network constructed for the following Hallmark pathways which are upregulated: estrogen response early, estrogen response late, hypoxia, glycolysis, MTORC1 signaling, TNFA signaling via NFKB, IL2 STAT5 Signaling. f Gene-concept network constructed for the following Hallmark pathways which are downregulated: fatty acid metabolism, oxidative phosphorylation, myc targets.

Comparative transcriptomic analysis of early onset preeclampsia and placenta accreta

Microarray

We next compared our early onset preeclampsia signature with a placenta accreta transcriptome from McNally et al. (GSE136048)18, which included 6 accreta placentas and 3 preterm control placentas. To compare the disorders at the same thresholds, we repeated the preeclampsia analysis and the placenta accreta differential gene expression analysis at an unadjusted p-value of <0.05, as described in “Methods”. For early onset preeclampsia, this resulted in identification of 4903 differentially expressed genes, of which 2439 were upregulated and 2464 were downregulated (Fig. 4a). For placenta accreta, we identified 416 differentially expressed genes, of which 71 were upregulated and 345 were downregulated (Fig. 4b). Comparative analysis of the merged early onset preeclampsia dataset (Fig. 4a) with the placenta accreta microarray GSE136048 (Fig. 4b) resulted in 120 shared differentially expressed genes (Fig. 4c). The shared genes did not demonstrate hyper-enrichment for early onset preeclampsia genes (p = 0.62). Probing only these shared genes in our early onset preeclampsia dataset and exploring pathway analysis demonstrated that these shared genes are critical in activating catalytic activity and protein metabolic process, while downregulating response to endogenous stimulus, nervous system process, and transmembrane transport (Fig. 4d, e).

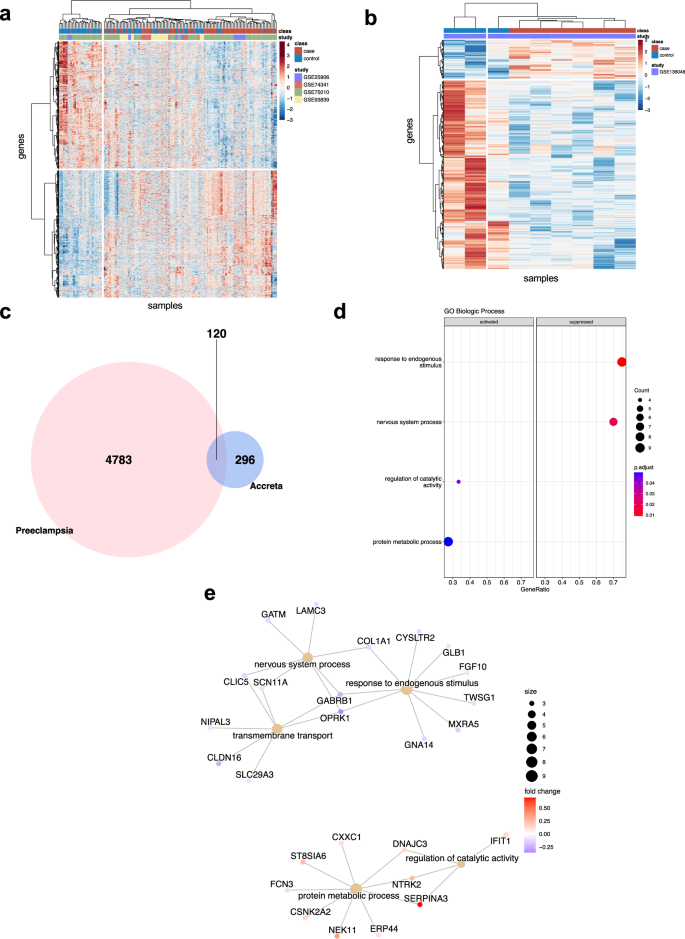

Fig. 4: Comparative microarray analysis of early onset preeclampsia and placenta accreta.
Fig. 4: Comparative microarray analysis of early onset preeclampsia and placenta accreta.
Full size image

a Early onset preeclampsia: limma analysis demonstrated 4903 differentially expressed genes, of which 2439 are upregulated and 2464 are downregulated. Heat map depicting differential gene expression at an unadjusted p-value of <0.05. The color gradient legend represents normalized gene counts. b Preterm Accreta: limma analysis demonstrated 416 differentially expressed genes, of which 71 are upregulated and 345 are downregulated. Heat map depicting differential gene expression at an unadjusted p-value of <0.05. The color gradient legend represents normalized gene counts. c Venn diagram depicting number of differentially expressed genes that overlap (120 genes) between early onset preeclampsia and preterm accreta, with no hyper enrichment (p = 0.62). The total number of genes analyzed was 16,667. d Gene Ontology Biological Process in early onset preeclampsia for the 120 overlapping genes. e Gene-concept network constructed for the following Gene Ontology Biological Process pathways which are upregulated: protein metabolic process, regulation of catalytic activity and downregulated: transmembrane transport, nervous system process, response to endogenous stimulus.

When mapping out the log2FC in gene expression among these 120 shared genes, there was a negative correlation in the direction of gene expression (r = −0.39, p < 0.01) (Fig. 5a). In addition, when filtering for genes with an absolute difference of at least log2FC of 0.5 between early onset preeclampsia and placenta accreta, we detected nine genes of interest, eight of which demonstrate high expression in early onset preeclampsia but low expression in placenta accreta (ankyrin repeat domain 37 ANKRD37, aldehyde oxidase 1 AOX1, ceruloplasmin CP, guanylate-binding protein 3 GBP3, interferon induced protein with tetratricopeptide repeats 1 IFIT1, Insulin-like growth factor binding protein 6 IGFBP6, NIMA related kinase 11 NEK11, and SERPINA3) and one with low expression in preeclampsia and high expression in accreta (opioid receptor kappa 1 OPRK1) (Fig. 5b).

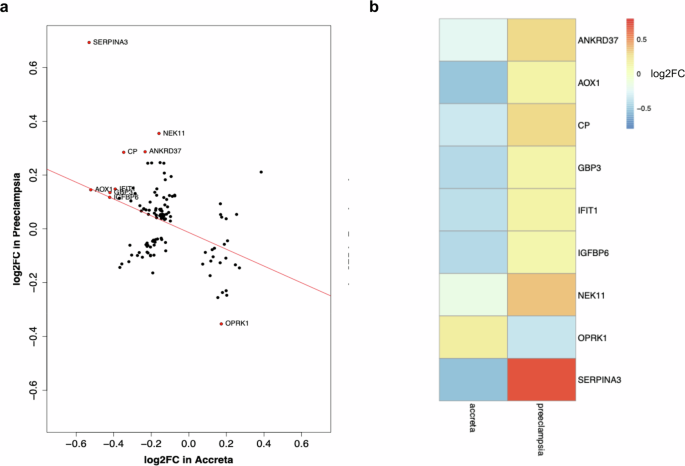

Fig. 5: Gene directionality and significant gene comparison for early onset preeclampsia and placenta accreta.
Fig. 5: Gene directionality and significant gene comparison for early onset preeclampsia and placenta accreta.
Full size image

a The log2FC in gene expression for early onset preeclampsia is plotted against the log2FC in gene expression for placenta accreta, with r = −0.39, p = 8.06e-6. Genes highlighted in red have an absolute difference in log2FC of 0.5 between preeclampsia and accreta. b Heat map comparison of 9 most significantly oppositely regulated genes between early onset preeclampsia and placenta accreta.

Comparative transcriptomic analysis of early onset preeclampsia and placenta accreta

Single-cell

We extended our transcriptomic analysis by comparing our early onset preeclampsia gene signature to a single-cell placenta accreta gene signature, derived from our prior transcriptomic atlas of placenta accreta spectrum (GSE212505)10 (Fig. 1). In this study, three placenta accreta samples were collected at the time of cesarean hysterectomy at the site of most adherence into the uterine interface and compared to three control placentas collected at the time of cesarean. After isolation of cells from the maternal-fetal interface, the 10x Chromium platform was used to generate libraries for single-cell RNA sequencing and differential gene expression analysis performed using Seurat. In Table 2, we show the results of comparing the early onset preeclampsia transcriptomic signature with that of the placenta accreta transcriptome by cell type. Decidua type 1, decidua type 3, endothelial cells, and extravillous trophoblasts from placenta accreta demonstrate hyper enrichment and negative correlation of shared differentially expressed genes with early onset preeclampsia. We previously identified decidua type 1 as perivascular decidua cells, mapping close to endothelial cells (Supplementary Fig. 5), while decidua type 3 are decidua cells at the decidua-myometrial interface10. The consistent pattern of negative correlation in gene expression when comparing early onset preeclampsia and placenta accreta shared genes, by cell type, is visualized in Fig. 6. Uncorrelated cell types are included in Supplementary Fig. 6.

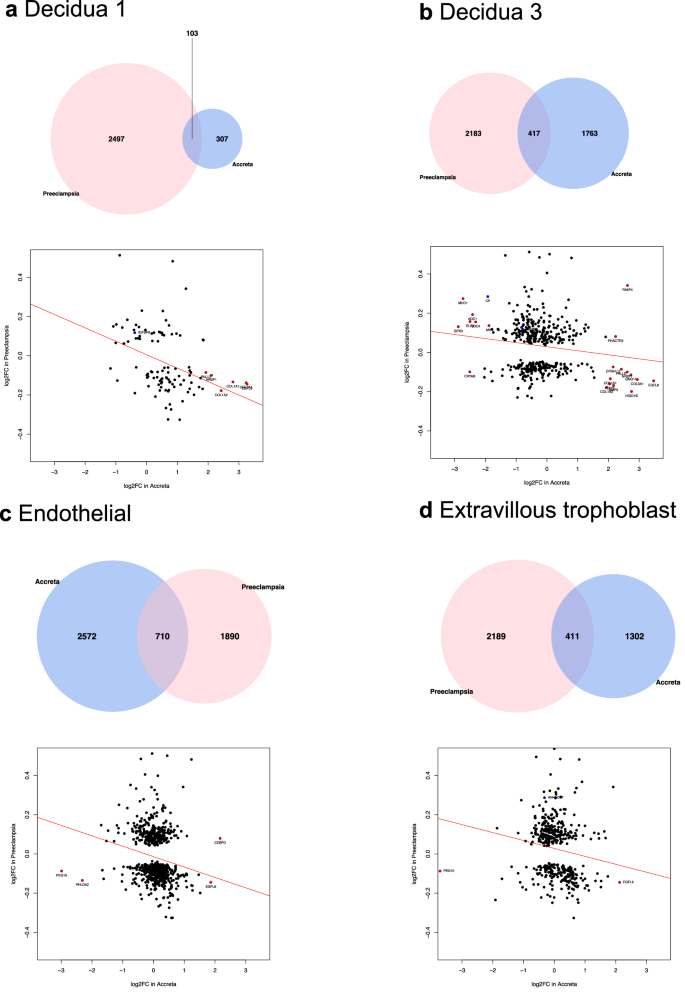

Fig. 6: Comparative transcriptomic analysis of early onset preeclampsia and placenta accreta, by cell type.
Fig. 6: Comparative transcriptomic analysis of early onset preeclampsia and placenta accreta, by cell type.
Full size image

a Decidua 1: Overlap of 103 genes. Significant genes with a log2FC of >2 between preeclampsia and accreta include COL1A1, COL1A2, COL3A1, EGFL6, NR2F1, PALLD (red). IGFBP6 is graphed and represents the overlap between the significant microarray data and this single-cell analysis (blue). b Decidua 3: Overlap of 417 genes. Significant genes with a log2FC of >2 between preeclampsia and accreta include AOC1, BMP5, COL1A1, COL1A2, COL3A1, CP, CRYAB, EGFL6, ELF3, EPB41L2, FABP4, GNG11, GPX3, HIGD1B, MIF, MUC1, NR2F1, PALLD, PHACTR2, SDC4, and TCF21 (red). CP and IGFBP6 is graphed and represents the overlap between the significant microarray data and this single-cell analysis (blue). c Endothelial: Overlap of 710 genes. Significant genes with a log2FC of >2 between preeclampsia and accreta include CEBPD, EGFL6, PEG10, and PHLDA2 (red). No overlap between the significant microarray data and this single-cell analysis (blue). d Extravillous trophoblast: Overlap of 411 genes. Significant genes with a log2FC of >2 between preeclampsia and accreta include EGFL6 and PEG10 (red). ANKRD37 is graphed and represents the overlap between the significant microarray data and this single-cell analysis (blue).

Table 2 Comparative analysis of early onset preeclampsia merged dataset compared to single-cell placenta accreta differential gene expression, by cell type
Full size table

Of the microarray shared genes from Fig. 5b, IGFBP6 in decidua type 1 and decidua type 3 cells (Fig. 6a, b), CP in decidua type 3 cells (Fig. 6b), and ANKRD37 in extravillous trophoblasts (Fig. 6d) demonstrated higher expression in early onset preeclampsia bulk tissue than placenta accreta single-cell analysis.

Other genes of interest with a log2FC difference of at least 2 between early onset preeclampsia and placenta accreta included a number of collagen genes which were downregulated in preeclampsia (COL1A1, COL1A2, COL3A1) compared to placenta accreta decidua cells (Fig. 6a), epidermal growth factor-like domain multiple-6 (EGFL6) which was downregulated in preeclampsia compared to all accreta cell types (Fig. 6), and paternally expressed gene 10 (PEG10) which was relatively upregulated in preeclampsia compared to accreta endothelial and extravillous trophoblast cells (Fig. 6c, d). Overall, decidua type 3 had the highest number of genes that show highly disparate and negatively correlated expression values compared to early onset preeclampsia.

Pathway analysis of the shared genes between early onset preeclampsia and decidua type 3 (Fig. 7a) and endothelial cells (Fig. 7b) demonstrate overlapping pathways between preeclampsia and accreta that may govern normal decidual signaling and endothelial migration at the maternal-fetal interface. These include the hallmark pathways of hypoxia, glycolysis, and early estrogen response. We also noted downregulation of oxidative phosphorylation that may be due to exposure of decidua cells to a low oxygen environment in the setting of reduced placental attachment or decidual resistance.

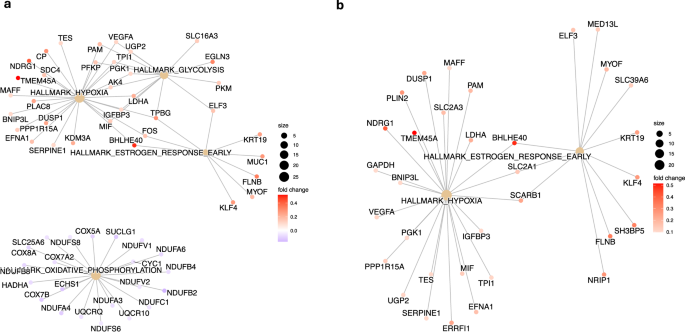

Fig. 7: Pathway analysis of overlapping genes between early onset preeclampsia and placenta accreta.
Fig. 7: Pathway analysis of overlapping genes between early onset preeclampsia and placenta accreta.
Full size image

a Decidua 3: Gene-concept network constructed for the Hallmark pathways. b Endothelial: Gene-concept network constructed for the Hallmark pathways. Other cell types of interest (decidua 1, extravillous trophoblast) did not demonstrate gene set enrichment.

Discussion

Early onset preeclampsia and placenta accreta, despite their distinct clinical manifestations, may represent opposite extremes of the physiologic placentation process. To explore this hypothesis, we leveraged bulk and single-cell placental transcriptomic signatures and performed a comparative analysis of early onset preeclampsia with placenta accreta to identify the key gene sets and pathways for these conditions. We computationally merged four early onset preeclampsia datasets, using their respective meta-data to understand and account for clinical covariates. Our differential gene expression analysis of 86 early onset preeclampsia and 65 preterm control placentas resulted in identification of multiple genes and pathways of interest. Candidate genes including LEP, HTRA4, DIO2, and CRH were significantly upregulated in our study and these same genes were also identified in a separate study by Ma et al.19, who compared preterm preeclampsia to preterm controls using independent datasets GSE44711 and GSE66273. Their study validated ANKRD37, CRH, and LEP as diagnostic markers with AUC values of >0.9 when tested in a third dataset (GSE4707) and confirmed both mRNA and protein expression of these genes in separate human placental samples. The reproducibility of our findings in an independent study using distinct and smaller datasets highlights their robustness, broad biological relevance, and their ability to translate into actionable diagnostic tools in clinical practice.

Extending our comprehensive early onset preeclampsia meta-analysis, we then proceeded with a comparative analysis of early onset preeclampsia with placenta accreta and propose several candidate genes for further exploration that may regulate the spectrum of normal placentation, given that they were both shared in these placental pathologies and oppositely regulated.

The prevailing history of preeclampsia has been a study of trophoblasts, as the placenta is often the easiest specimen to obtain in clinical research. In our study, we identified three trophoblast genes of interest: ANKRD3720 and SERPINA321 which were upregulated and PEG10 which was downregulated in early onset preeclampsia. In vitro studies suggest that ANKRD37 plays a crucial role in the hypoxia response and may contribute to the development of preeclampsia under hypoxic conditions22,23. Moreover, studies of ANKRD37 in extravillous trophoblast cells20 demonstrated that it prevents cell migration and invasion by suppressing matrix metalloproteases, upregulating adhesion molecules such as E-cadherin, and possibly signaling via the NF-ΚB pathway20. Similar upregulation of E-cadherin has been seen in neighboring syncytiotrophoblasts24. In our single-cell analysis, ANKRD37 localized to extravillous trophoblasts with minimal expression in placenta accreta but relatively high expression in early onset preeclampsia, highlighting that this gene may be involved in minimizing the degree of placental attachment to the maternal decidua. SERPINA3 demonstrated the highest preeclampsia expression compared to accreta in our microarray analysis, but while it has been shown to be upregulated in placentas complicated by preeclampsia21,25, its function is paradoxically to promote cell invasion. Since SERPINA3 is induced under hypoxic conditions, its upregulation may be a marker of low oxygen conditions in the late trimester preeclampsia placenta as opposed to serving as a cause of disease pathogenesis. PEG10 expression is decreased in early onset preeclampsia, with negative regulation in settings of hypoxia and TNF-α inflammation, but it has not been shown to affect cell differentiation or proliferation26. Taken together, these genes represent interesting candidates for functional perturbation in both preeclampsia and accreta models.

While much research on preeclampsia has focused on trophoblast populations, emerging data emphasize the importance of decidual resistance in both predisposing to and resulting in a pregnancy with preeclampsia27,28,29. Conversely, in the setting of accreta, there is iatrogenic injury, which leads to absent or defective decidua and therefore is predominantly seen in patients with a prior cesarean delivery and placenta previa30. In our study, the greatest number of oppositely and differentially regulated genes between early onset preeclampsia and placenta accreta were in the decidual cell populations, adding more evidence that it may be the environment of implantation that drives the clinical sequelae of placental disorders. For example, we found that IGFBP6 was upregulated in early onset preeclampsia and downregulated in accreta decidual cells. A recent single-cell study of decidual tissue collected from patients with a history of early onset preeclampsia also defined IGFBP6 as a marker of early onset preeclampsia27. Interestingly, multiple genes identified in our decidual population have been shown to play a role in cell proliferation, invasion, migration, or angiogenesis when studied in trophoblasts, but their function in the decidua are less clear. These include bone morphogenic protein 5 (BMP5)31, mucin 1 (MUC1)32, syndecan-4 (SDC4)33, and nuclear receptor subfamily 2 group F member 1 (NR2F1)34. Instead of studying specific genes in extravillous trophoblast models in isolation, these data suggest that decidua-trophoblast co-culture, placental explants in decidual cell environments, or organoid/assembloid models35 may better recapitulate the biologic niche of the maternal-fetal interface and uncover insights into both preeclampsia and accreta pathology.

Hypoxia pathways and their downstream effects may also be important in trophoblast attachment to the decidua. Previous studies demonstrated a lack of Hypoxia-inducible factor 1-alpha (HIF-1α) expression in decidua cells from invasive placental accreta compared to control, implicating that hypoxia signaling serves to stem placental growth during implantation. We identified multiple activated hypoxia pathways from early-onset preeclampsia placentas and found that CP is upregulated in preeclampsia and downregulated in placenta accreta specifically in the decidual cell population. CP is a copper-containing ferroxidase that reduces oxidative damage under low oxygen conditions. CP levels are increased in placentas of severe preeclampsia, localizing to the intervillous space and syncytiotrophoblasts, and CP increases in blood with worsening clinical features of preeclampsia36,37,38. Further study of CP’s role and the general role of hypoxia in decidual signaling may help define pathways that regulate placentation early in development.

We observed a global decrease in EGFL6 in early onset preeclampsia, with concomitant increase in gene expression for placenta accreta across decidua, endothelial, and extravillous trophoblast cell types. A recent single-cell preeclampsia study similarly noted downregulation of EGFL6 in stromal cells from early onset preeclampsia31, though the role of this gene has not been functionally explored. Finally, we found notable downregulation of collagen (COL1A1, COL1A2, and COL3A1) in early onset preeclampsia and upregulation in placenta accreta, a finding that was also found in single-cell analysis of stromal cells from early onset preeclampsia39. Previous placenta accreta studies have noted a lack of TGF-β staining at sites of excessive decidual and myometrial collagen, indicating that changes in the extracellular matrix may serve to dampen boundary signals and facilitate cell invasion.

In summary, our comparative analysis of early onset preeclampsia with placenta accreta identified trophoblast genes responsible for cell migration and invasion and highlighted the global contribution of EGFL6 and collagen at the maternal-fetal interface. Critically, we defined the most overlapping and inversely regulated genes among the decidua cell populations when comparing preeclampsia to accreta, emphasizing the importance of the environment of implantation as a driver of clinical sequelae in placental disorders. A schematic of our findings is summarized in Fig. 8.

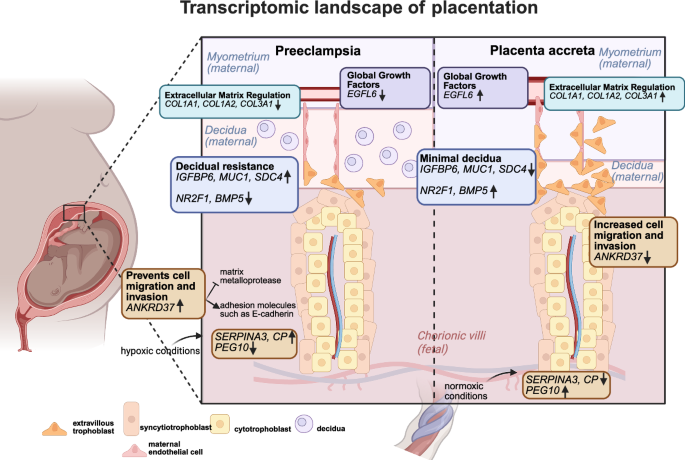

Fig. 8: Summary figure.
Fig. 8: Summary figure.
Full size image

Created in https://BioRender.com.

While our study provides valuable insights into the opposing mechanisms in early onset preeclampsia and placenta accreta, several limitations must be acknowledged. There were a small number of placenta accreta datasets available for comparison (one microarray and one single-cell dataset), with a small number of clinical samples in each of these data (9 and 6, respectively). In particular, the accreta microarray required us to utilize an unadjusted p-value cutoff for analysis, a methodology which may introduce false discovery and therefore all reported genes require further validation. The study focuses primarily on early onset preeclampsia and placenta accreta, which may not capture the full spectrum of these conditions, particularly late onset preeclampsia or cases of placenta accreta spectrum disorders with varying degrees of severity. Our analysis assumes that the etiology of both conditions is primarily related to the placenta and immediately attached decidua cells, without the ability to address potential maternal or systemic factors that may also contribute to the pathophysiology40. This assumption simplifies the complex interplay between maternal and fetal contributions to these disorders and leaves more to be explored in relation to the decidua and deeper uterine layers. The reliance on transcriptomic data, although robust, does not account for post-transcriptional modifications, protein-level changes, or functional validation of the identified pathways, which limits the direct clinical applicability of these findings. Additionally, while we computationally merged datasets to improve statistical power and reduce batch effects, the heterogeneity of patient populations, clinical presentations, and sample collection protocols across datasets may introduce variability that is difficult to fully control.

We should aim to move away from categorizing placental disorders into discrete clinical silos and instead adopt flexibility in seeing placentation, from embryo implantation and miscarriage to placental growth and accreta as a spectrum of obstetric disease to bring more resources and scientists together in defining the fundamental biology of placentation. Future work can extend this analysis by exploring not only the genes discussed, but also those genes identified with no prior data that may be new targets for diagnostic and therapeutic discovery. We plan to explore additional cell-specific comparisons using emerging single-cell datasets27,39 with additional emphasis on the decidua environment in pathologic placentation. Next steps will include testing the pathobiology of the genes identified computationally through preeclampsia cell models such as patient-specific in vitro endothelial cell models41, preeclampsia animal models42, placenta accreta cell invasion assays43, and emerging placenta accreta animal models44.

Methods

An overview of the biocomputational workflow is detailed in Fig. 1. In brief, we utilized publicly available preeclampsia microarrays to create a merged dataset to define differentially expressed genes in early onset preeclampsia compared to preterm controls. We then probed this signature with a placenta accreta microarray dataset and then our previous single-cell placenta accreta data to understand shared genes and pathways between early onset preeclampsia and placenta accreta. We tested for gene set enrichment, gene expression correlation, and utilized gene set enrichment analysis to generate gene-concept maps of the most relevant biologic and hallmark pathways.

Data collection and dataset merging

The NCBI Gene Expression Omnibus (GEO) (http://www.ncbi.nlm.nih.gov/geo/) was searched for all publicly available preeclampsia datasets using the keywords “preeclampsia” AND “homo sapiens”, searching for data types “expression profiling by array, by high throughput sequencing, by sage” by November of 2023. We included transcriptional datasets from 2010 onwards of placental tissue collected at the time of delivery. We excluded datasets with less than 10 samples per group. The results of this search are available in the supplementary data. After additional exclusion of datasets that were poorly annotated or utilized array platforms with limited number of probes, the search yielded four preeclampsia microarray datasets available for analysis that served as ideal comparators to the one microarray dataset available for placenta accreta. Given the lack of quality bulk RNA sequencing data available for placenta accreta, we focused on microarray data for our comparative analysis. No single-cell RNA sequencing data was available for preeclampsia at the time of this data search. We included our prior placenta accreta single-cell dataset. Clinical covariates of age, parity, gestational age, cesarean birth, labor, fetal sex, race, and body mass index (BMI) were collected, as available. Use of these human research participant data from the parent studies did not require an additional ethical committee to approve this meta-analysis research. We have complied with all relevant ethical regulations including the Declaration of Helsinki.

Raw data from each microarray dataset was downloaded and processed using R version 4.2.3. and the Bioconductor version 3.16 with packages crossmeta, oligo45, biomatr46,47, and limma48. Each microarray underwent processing including background correction, log2-transformation, intra-study quantile normalization, and probe gene mapping from respective probe IDs to gene symbols. All Affymetrix, Agilent, and Illumina platforms were processed using crossmeta except GSE75010, which required processing using the oligo package due to its historical array platform (Human Gene 1.0 ST Array).

Merging and cross-platform normalization of the five datasets (four preeclampsia and one accreta) was carried out using ComBat within the R package sva49. The principal component analysis plots before and after normalization are shown in Supplementary Fig. 1. After merging, the total number of overlapping genes was 16,667 (Supplementary Fig. 2).

Clinical covariate selection

We conducted a principal component analysis for each clinical covariate of interest to assess its importance in modifying global gene expression in our merged dataset. We utilized Levene’s test for statistical analysis of equality of variances. The results are shown in Supplementary Fig. 3. Based on these findings, we selected cell type as a covariate in our differential gene expression analysis. While mode of delivery showed significant variance, we further examined whether laboring status prior to birth was different in our cohorts, regardless of whether they achieved a cesarean or vaginal birth. Since there was no difference in expression by laboring status, we decided not to adjust for mode of delivery. Prior studies have also described the lack of significant gene perturbation based on labor status50.

We excluded gestational age from the covariate analysis as previous analyses have demonstrated a strong influence of trimester on gene expression in the placenta51,52. To avoid this confounding effect, we decided to include only early onset preeclampsia patients (delivering at gestational age ≤34 weeks) and corresponding preterm control patients (delivering at <37 weeks) for our merged microarray analysis. Including preterm patients also allowed for a better comparison with the placenta accreta dataset, as accreta patients are recommended to deliver at ≤34 weeks gestation to prevent maternal morbidity53. Studies describing indication for preterm birth in their control group noted that the delivery was spontaneous and for non-infectious causes16,18.

Early onset preeclampsia differential gene expression and pathway analysis

We conducted a differential gene expression analysis using limma on the subset of the merged dataset containing the four preeclampsia microarrays to define the disease signature of early onset preeclampsia. Cell type was used as a covariate in the linear model using an adjusted false discover rate (FDR) p-value of <0.05. pheatmap and EnhancedVolcano were used to generate plots of significant genes, with the volcano plot utilizing a log fold change (log FC) cut-off of 0.5. Gene set enrichment analysis was conducted using clusterProfiler54 and DOSE55. Visualization of enriched terms and gene-concept networks were created using enrichplot.

Comparative gene analysis of early onset preeclampsia and placenta accreta

Microarray transcriptome

Differential gene expression analysis was repeated on the placenta accreta microarray (GSE136048). An unadjusted p-value of <0.05 was used to account for the small number of samples, as analyzed in the original published study, with validation of this methodology in the parent study through quantitative PCR, immunoblotting, and invasion assays18. Differential gene expression on the four preeclampsia microarrays was also performed at an unadjusted p-value of <0.05 to allow for comparative gene analysis. We quantified the number of overlapping genes and performed pathway analysis on the shared genes. To assess statistical significance of gene enrichment between early onset preeclampsia and placenta accreta, we used hypergeometric testing accounting for the 16,667 background genes. Correlation between log2FC in gene expression between preeclampsia and placenta accreta was assessed using Pearson’s correlation testing and included all differentially expressed genes. Genes with a log2FC gene expression difference of at least 2 when comparing preeclampsia and accreta are labeled in red in the graphs.

Single-cell transcriptome

Our placenta accreta single-cell dataset (GSE212505)10 was approved by the institutional review board at the University of California, Los Angeles (UCLA; number: 13-001264). This data was previously processed by applying quality filters and filtering doublets. It was also normalized, scaled, and integrated using Harmony to remove potential batch effects. Previous clusters were found with FindNeighbors and FindClusters (resolution = 0.5). We re-analyzed this previously processed single-cell placenta accreta dataset (GSE212505)10 to include only the comparison between placenta accreta-adherent samples and control samples, excluding the internal control of placenta accreta-non adherent samples. We adjusted our analysis based on sample batch and sample timing of delivery (term vs preterm), as not all controls were preterm in this study (Supplementary Fig. 4). Analysis was performed with Seurat using the FindMarkers function with MAST as the testing method, incorporating batch and time of delivery as latent variables in the differential expression model56. We utilized the same cell markers for cell annotation as in our prior analysis and performed differential gene expression for the placenta accreta disease signature by cell type, with an adjusted FDR p-value of <0.05 (Supplementary Fig. 5). The number of cells and differentially expressed genes are listed in Supplementary Table 1. We then repeated our comparative analysis, comparing each gene signature by cell type for placenta accreta with the merged early onset preeclampsia disease signature with an adjusted FDR p-value of <0.05.
