Metabolic dysfunction-associated steatotic liver disease (MASLD) is a leading cause of chronic liver disease worldwide. We generated single-cell and spatial transcriptomic and metabolomic maps from 61 human livers, including controls (n = 10), metabolic dysfunction-associated steatotic liver (MASL) (n = 17) and metabolic dysfunction-associated steatohepatitis (MASH) (n = 34). We identified microphthalmia-associated transcription factor (MITF) as a key regulator of the lipid-handling capacity of lipid-associated macrophages (LAMs), and further revealed a hepato-protective role of LAMs mediated through hepatocyte growth factor secretion. Unbiased deconvolution of spatial transcriptomics delineated a fibrosis-associated gene program enriched in advanced MASH, suggesting profibrotic crosstalk between central vein endothelial and hepatic stellate cells within fibrotic regions. Mass spectrometry imaging-based spatial metabolomics demonstrated MASLD-specific accumulation of phospholipids, potentially linked to lipoprotein-associated phospholipase A₂-mediated phospholipid metabolism in LAMs. This spatially resolved multi-omics atlas of human MASLD, which can be queried at the Human Masld Spatial Multiomics Atlas, provides a valuable resource for mechanistic and therapeutic studies.

Spatial genomics: mapping human steatotic liver disease

Article 23 April 2024

An unbiased ranking of murine dietary models based on their proximity to human metabolic dysfunction-associated steatotic liver disease (MASLD)

Article Open access 12 June 2024

Autophagy and hepatic lipid metabolism: mechanistic insight and therapeutic potential for MASLD

Article Open access 02 August 2024

Main

Metabolic dysfunction-associated steatotic liver disease (MASLD) is a progressive disease that starts with isolated steatosis (metabolic dysfunction-associated steatotic liver (MASL)) and can evolve to a more severe stage known as metabolic dysfunction-associated steatohepatitis (MASH), during which chronic liver injury, inflammation and varying degrees of fibrosis are superimposed on the initial steatosis. MASH has the potential to advance further toward cirrhosis and hepatocellular carcinoma^1,2.

High-resolution approaches, such as single-cell RNA sequencing (scRNA-seq) and single-nucleus RNA sequencing (snRNA-seq) have provided paradigm shifts in our understanding of the cellular and molecular mechanisms underlying MASLD pathogenesis^3,4,5,6, complementing fundamental elements for the canonical conceptual framework known as the substrate overload liver injury model⁷, where hepatocyte lipotoxicity is regarded as the initiating factor, triggering a cascade of events mediated by diverse non-parenchymal cell (NPC) subpopulations, such as liver endothelial cells (LECs), tissue-resident Kupffer cells (KCs), hepatic stellate cells (HSCs), cholangiocytes and several immune cell types that synergistically escalate hepatic steatosis, inflammation and fibrosis. For example, HSCs are activated by osteopontin (OPN), encoded by SPP1, and Hedgehog ligands secreted by reprogrammed hepatocytes⁸. Activated HSCs function as a central hub of intrahepatic signaling, releasing stellakines, which have a profibrotic role during MASLD progression and may ultimately result in end-stage liver disease³.

Accumulating evidence highlights the pivotal role of lipid-associated macrophages (LAMs), which are marked by increased expression of triggering receptor on myeloid cells 2 (TREM2), in maintaining the immune and metabolic homeostasis within the fatty liver^3,9,10,11. Despite the importance of LAMs in human MASLD pathogenesis, the mechanisms through which LAMs develop a lipid-handling and immune-suppressive phenotype remain poorly understood. A deeper understanding of how blood-derived monocytes differentiate into LAMs could provide therapeutic insights, particularly in modulating their involvement in the onset and resolution phases of chronic liver diseases.

Although single-cell analysis has provided valuable insights into the heterogeneity of liver NPCs and their dynamic changes throughout MASLD progression, it is limited by the lack of spatial organization information. Hepatocytes operate in well-organized repeating anatomical units known as liver lobules. Key liver functions are expressed nonuniformly across the lobule axis because of gradients of oxygen, nutrients and hormones, a phenomenon known as zonation^12,13. The division of metabolic tasks and the spatially polarized immune system reinforces the necessity to interrogate the pathogenesis of MASLD in a spatially resolved context, an area that is relatively underexplored.

Spatial transcriptomics (ST) enables the profiling of the spatial distribution of RNA and cell–cell interactions (CCIs) within individual tissue sections¹⁴. The introduction of ST into liver tissue transcriptome-wide profiling has substantially advanced the understanding of the mechanisms regulating liver regeneration¹⁵ and the niche signals involved in region-specific cholangiopathies¹⁶, while its application to human MASLD remains unexplored. A comprehensive MASLD atlas would also require metabolomic profiling to better elucidate the region-specific metabolic alterations and cell-type-specific metabolic functions. Mass spectrometry imaging (MSI)-based spatial metabolomics (SM) provides a label-free, spatially resolved measurement of metabolite abundance directly from fresh-frozen tissue sections^17,18. Because of experimental constraints, it is currently applied as separate methodologies alongside ST¹⁹. The lack of an in silico spatial multimodal analysis (SMA) pipeline integrating SM and ST data limits our ability to interpret the complex interplay between metabolic dysfunction and hepatic inflammation.

In this study, we used a combination of single-cell gene expression, unbiased ST, SM and spatial proteomics (SP) approaches to decode MASLD-relevant gene and metabolite expression programs within their spatial contexts. Adjacent frozen liver biopsy sections from patients with MASL and MASH, and resection samples from controls, were prepared to perform ST and SM, providing a spatially resolved atlas of metabolite and gene expression patterns throughout disease progression. SMA of ST and SM modalities was achieved by aligning the MSI data points directly to the hematoxylin and eosin (H&E)-stained image used for ST, enabling the simultaneous measurements of mRNA transcripts and metabolites within the same tissue microregions. In total, we obtained high-quality transcriptomes of 540,216 single cells and 47,864 Visium ST spots and metabolomes from 841,534 MSI data points. The processed spatially resolved multi-omics datasets are fully accessible on the browsable web portal of the Human Masld Spatial Multiomics Atlas, providing a resource for data download and spatial visualization of gene and metabolite expression.

Results

Single-cell and spatial transcriptional profiling of MASLD human livers

We applied scRNA-seq, scVDJ-seq, ST (10x Visium) and SM (matrix-assisted laser desorption ionization (MALDI)–MSI) to resected or biopsy liver samples collected from 61 individuals across the different stages of MASLD progression defined by histology as control (CTRL, n = 10), MASL (n = 17) and MASH (n = 34) (Fig. 1a,b and Supplementary Table 1). MSI-based SM was performed on a subset of tissue sections (n = 27) adjacent to those used for Visium ST (n = 35) (Supplementary Notes), enabling integrative SMA.

**Fig. 1: Spatial and single-cell transcriptomic atlas of human MASLD.**

After meticulous quality control and computational doublet calling (Extended Data Fig. 1a and Supplementary Table 2), we obtained single-cell transcriptomes for 540,216 cells across 58 libraries generated from 29 samples (n = 6 CTRL, n = 7 MASL, and n = 16 MASH) for downstream analysis (Fig. 1b,c). Each sample was profiled using two libraries, one for parenchymal cells and another for NPCs (Supplementary Notes). We identified 17 cell types that were manually annotated based on the RNA expression of known markers (Extended Data Fig. 1b), categorized into four broad cell-type groups as follows: hepatic CD45⁻ cells, T lymphoid (T) and natural killer (NK) cells, B lymphocytes and myeloid cells. Neutrophils and mast cells were excluded from the myeloid compartment for subsequent cellular abundance analysis because of their low cell capture efficiency during tissue dissociation and high susceptibility to RNA degradation caused by elevated RNase activity, which collectively introduces higher technical noise and limits their accurate measurement. Within the hepatic CD45⁻ cell compartment (82,011 cells), LECs exhibited marked zonation-related transcriptomic heterogeneity and were subclustered into three subsets based on the expression of canonical gene markers as follows: liver sinusoidal endothelial cells (LSECs), marked by STAB2 and CLEC1B, central vein ECs (marked by RSPO3 and WNT2) and portal vein ECs (marked by SLCO2A1, MECOM, PODXL and JAG1)¹⁶.

To contextualize the cell types and states identified using scRNA-seq within tissue micro-environments, we performed ST analysis using 10x Visium (n = 7 CTRL, n = 10 MASL and n = 18 MASH), adding a key dimension to the field of MASLD. A total of 47,864 spots were ordered along a spatial trajectory annotated as portal, periportal, mid and central based on known lobule zonation markers²⁰ (Fig. 1d–f and Extended Data Fig. 1c).

MASLD remodels immune cell composition and repertoires within the liver microenvironment

Within the T and NK compartment (258,618 cells), we used canonical lineage markers to identify seven major cell types: mucosal-associated invariant T (MAIT) cells, regulatory T (T_reg) cells, CD8⁺ effector T (T_eff) cells, CD4/CD8 naive T cells, circulating natural killer T (NKT) cells, resident NK cells and circulating NK cells (Fig. 2a and Extended Data Fig. 2a). To reveal the compositional changes between MASLD and CTRLs in this compartment, we performed Milo differential abundance testing²¹ (Fig. 2b). We found a prominent increase in all five T cell clusters and a decrease in resident NK cells in patients with MASLD compared to CTRLs, yet no cluster exhibited a significant difference in abundance between MASH and MASL (Fig. 2c–e). To investigate the clonal relationship among individual T cells across three disease conditions²², we performed T cell receptor (TCR) analysis for five T and NK cell subsets except for resident and circulating NK cells. We examined whether expanded clonotypes were shared among each sample, across disease conditions and among cell types. Large clonal expansions were observed particularly in CD8 T_eff cells and MAITs from patients with MASLD (Fig. 2f). While most expanded clonotypes in CD8 T_eff cells were unique to individual patients, the large expanded clonotypes in MAITs were shared among individuals. Notably, circulating NKT cells exhibited clonal expansion predominantly under diseased conditions (Fig. 2f), suggesting that the clonal expansion of circulating NKT cells may contribute to the progression of MASLD.

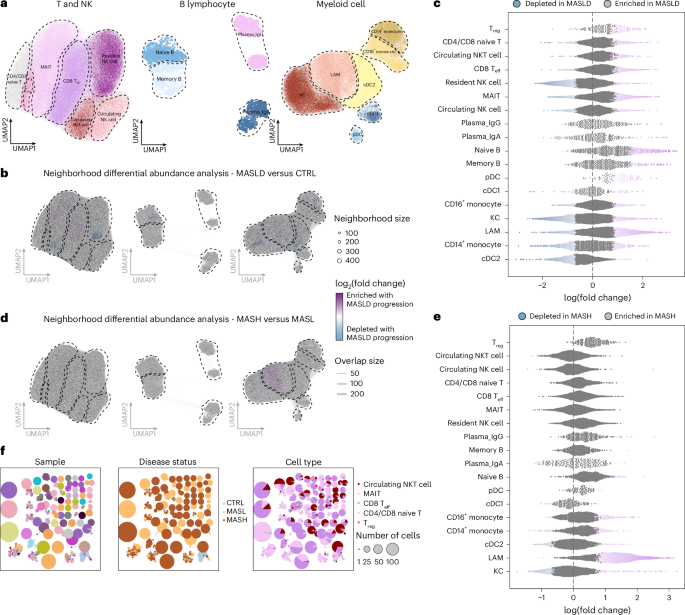

**Fig. 2: MASLD progression affects the homeostatic cellular state of the liver microenvironment.**

We subclustered 17,576 cells, manually annotated as B and plasma cells, obtaining four subsets based on their expression of canonical markers: naive B cells, memory B cells, IgG plasma (plasma_IgG) cells and IgA plasma (plasma_IgA) cells (Fig. 2a and Extended Data Fig. 2b). The proportions of naive B and memory B cells increased in patients with MASLD compared to CTRLs. Like the T and NK compartment results, no cluster of B cells showed a significant difference in abundance between MASH and MASL (Fig. 2b–e). However, B cell receptor (BCR) analysis revealed a trend toward a larger clonal expansion of plasma_IgA and plasma_IgG cells in MASH compared to the MASL group, with minimal clonotypes sharing between patients with MASLD and CTRLs or among individual patients (Extended Data Fig. 2d,e).

To characterize the transcriptome dynamics in 130,671 cells of the myeloid compartment across disease conditions, we further subclustered monocytes into two subsets and dendritic cells (DCs) into three subsets based on the expression of canonical gene markers as follows: CD14⁺ monocytes, CD16⁺ monocytes, plasmacytoid DCs (pDCs), conventional type 1 DCs (cDC1s), conventional type 2 DCs (cDC2s) (Fig. 2a and Extended Data Fig. 2c). The proportions of pDCs and LAMs increased, whereas the proportion of cDC2s declined predominantly in patients with MASLD compared to CTRLs (Fig. 2b,c). Differential abundance analysis based on disease severity revealed a decrease in KCs and an increase in CD14⁺ and CD16⁺ monocytes, alongside a marked expansion of LAMs in MASH compared to MASL (Fig. 2d,e).

Together, these findings delineated how MASLD progression reshapes the immune cell composition and repertoires within the liver microenvironment. The clonal expansion of circulating NKT cells emerged as a distinct feature among patients with MASLD. While most immune cell types showed no significant differences in abundance between MASH and MASL, LAMs exhibited a pronounced increase with disease severity, particularly within the pericentral area (Extended Data Fig. 2f), underscoring their potential role in MASLD progression.

Microphthalmia-associated transcription factor shapes the lipid-handling phenotype of LAMs

LAMs can be distinguished from tissue-resident KCs by their distinct lipid-handling features, which emerge largely from monocyte-derived precursors^23,24. However, the mechanisms governing the differentiation of recruited monocytes into LAMs rather than adopting a KC-like phenotype remain poorly explored. To identify potential transcription factors (TFs) regulating the expression of lipid metabolism-associated genes in LAMs, we used pySCENIC²⁵ to reconstruct cell-type-specific gene regulatory networks (GRNs) from our single-cell transcriptome data.

The specificity of the regulons (that is, TFs and their target genes) was quantified and ranked from high to low across different cell types separately²⁶. Validating this approach, several well-established macrophage lineage TFs such as NR1H3 (ref. ²⁷) and MAFB²⁸ were simultaneously identified as the most specific TFs for both LAM and KC (Fig. 3a and Extended Data Fig. 3a). Of note, a regulon regulated by the melanocyte lineage TF microphthalmia-associated transcription factor (MITF)²⁹ was exclusively activated in LAMs (Fig. 3b,c and Extended Data Fig. 3b), which is consistent with the LAM-specific MITF gene expression (Extended Data Fig. 3c), suggesting a pivotal role for MITF in the regulation of LAM differentiation. Furthermore, elevated activity of the MITF regulon was observed, particularly in LAMs from patients with MASH (Fig. 3d), correlating with their increased severity of steatosis within the hepatic microenvironment.

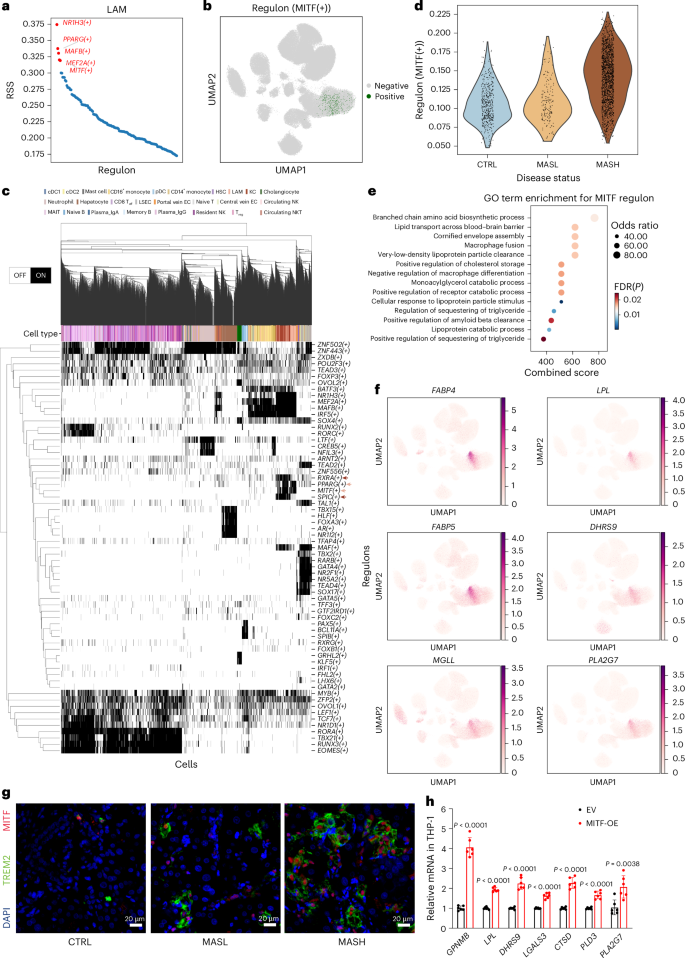

**Fig. 3: Identification of MITF as a LAM-specific TF.**

Gene ontology (GO) enrichment analysis of the top 100 predicted MITF target genes revealed significant enrichment for lipid-metabolism-associated processes, including low-density lipoprotein particle clearance and triglyceride (TG)-rich lipoprotein particle clearance (Fig. 3e). Among these, canonical LAM markers, including TREM2, CD9 and GPNMB, along with genes involved in lipid transport and metabolism (for example, FABP4, LPL, FABP5, DHRS9, MGLL and PLA2G7), were identified as MITF-regulated targets and exhibited a LAM-specific expression pattern (Fig. 3f and Extended Data Fig. 3d). For instance, lipoprotein lipase (LPL), encoded by LPL, serves as a pivotal enzyme in TG metabolism, catalyzing the hydrolysis of TGs carried by plasma very-low-density lipoprotein and circulating chylomicrons³⁰.

We further confirmed the LAM-specific expression of MITF at the protein level through immunofluorescence (IF) across three disease conditions (Fig. 3g). To examine the effects of the MITF on LAM phenotype transformation, we induced MITF-OE in the THP-1 cell line using lentivirus transduction (Methods). As expected, MITF-OE in THP-1 cells led to a significant upregulation of several LAM signature genes¹⁰, including GPNMB, LPL, DHRS9, LGALS3, CTSD, PLD3 and PLA2G7 (Fig. 3h). Conversely, MITF knockdown via small interfering RNA (siRNA) for 24 h resulted in downregulation of these genes (Extended Data Fig. 3e). All together, these results indicate that the MITF-regulated GRN has a critical role in determining the lipid-handling phenotype of LAMs.

MITF enhances fatty acid oxidation in LAMs via the PGC1α–PPARγ signaling axis

To deepen the understanding of how LAMs diverge from tissue-resident KCs in their roles in coordinating local lipid metabolism, differential gene expression and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway analyses were conducted between these two macrophage subtypes (Fig. 4a,b). We found enrichment for the peroxisome proliferator-activated receptor (PPAR) signaling pathway in LAMs, which is consistent with the LAM-specific activation of the PPARγ regulon (Fig. 4c and Extended Data Fig. 3f). By constructing a GRN consisting of the top five cell-type-specific regulons for both LAMs and KCs, alongside common TFs such as NR1H3, MAF, MAFB and MEF2A, we observed that differentially expressed genes (DEGs) upregulated in each cell subset were predominantly regulated by their respective key TFs: ETV5, RXRA and SPIC for KCs, and MITF and PPARγ for LAMs (Figs. 3c and 4d and Extended Data Fig. 3a). Based on these findings, it is tempting to speculate that MITF could drive the activation of the PPAR signaling pathway in LAMs.

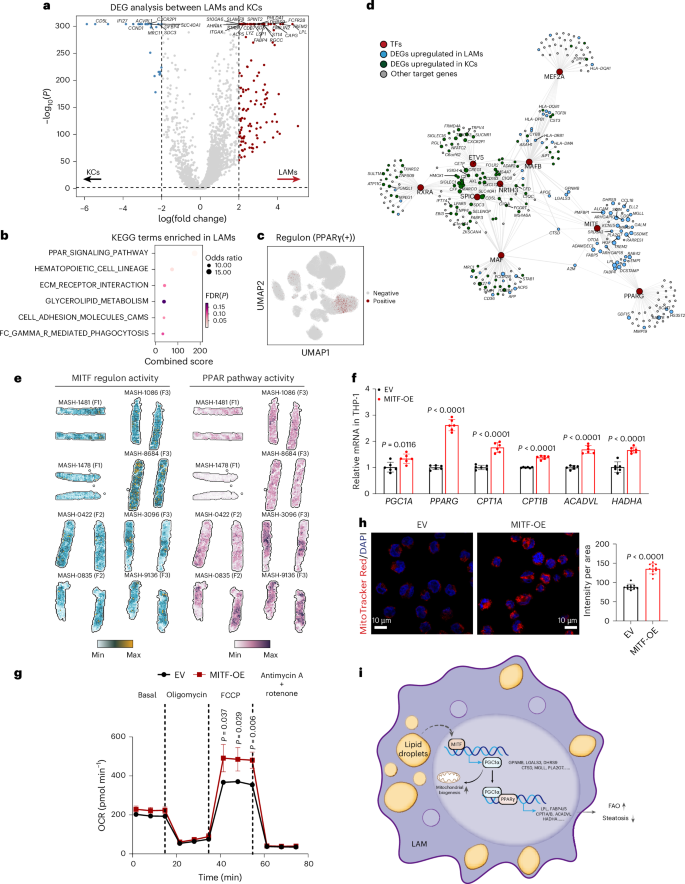

**Fig. 4: MITF–PGC1α–PPARγ–FAO signaling axis in LAMs.**

Therefore, we scored the activity of both the MITF regulon and the PPAR signaling pathway and found a strong correlation between their spatial distribution observed in each Visium ST section from our cohort with MASLD (Fig. 4e). Consistent with this, a previous study showed that MITF directly regulates the expression of PPARγ co-activator 1α (PGC1α), which acts as a master regulator of mitochondrial biogenesis and oxidative phosphorylation³¹. Additionally, the PGC1α–PPARγ axis transactivates several genes to control lipid metabolism and induce a spike in fatty acid oxidation (FAO) to control myogenesis³². Supporting this, our results showed that MITF-OE in THP-1 cells significantly upregulated PGC1A, PPARG and several key PGC1α–PPARγ target genes involved in FAO, including CPT1A, CPT1B, ACADVL and HADHA (Fig. 4f). On the other hand, MITF knockdown using siRNA for 24 h resulted in significant downregulation of these genes (Extended Data Fig. 3g). Furthermore, the oxygen consumption rate (OCR), an indicator of oxidative phosphorylation, was significantly higher in MITF-OE THP-1 cells (Fig. 4g), probably because of increased mitochondrial mass upon MITF-OE (Fig. 4h). Collectively, these results underscore the central role of MITF in modulating mitochondrial function and lipid-handling capacity in LAMs, mediated by the PGC1α–PPARγ–FAO axis (Fig. 4i).

Differential intercellular flow analysis indicates a hepatoprotective role for LAMs

To capture the intercellular signaling dynamics associated with MASLD progression, we applied FlowSig³³ to the scRNA-seq data, revealing differentially inflowing and outflowing signals across the MASLD spectrum (Fig. 5a,b and Extended Data Fig. 4a,b). We constructed 30 gene expression modules (GEMs) using PyLIGER³⁴, which captured differences across cell types (Extended Data Fig. 4c,d). Compared to CTRLs, MASL exhibited increased inflow of interleukin-6 through leukemia inhibitory factor receptor and interleukin-6 cytokine family signal transducer, vascular endothelial growth through kinase insert domain receptor, interleukin-13 through interleukin-13 receptor subunit alpha-2, calcitonin gene-related peptide type 1 receptor and the chemokine receptor CXCR3 (Extended Data Fig. 4a), along with elevated outflow of migration inhibitory factor (originating from cholangiocytes and cDC1s), interleukin-33 (LSECs, central vein ECs and portal vein ECs) and angiopoietin-related protein 1 (cholangiocytes and HSCs) (Fig. 5c). Progression to MASH involved minimal additional inflow alterations (Extended Data Fig. 4b), but a marked amplification of outflowing mediators, notably hepatocyte growth factor (HGF) from LAMs, CXCL3 (LAMs, KCs, cholangiocytes and CD14⁺/CD16⁺ monocytes), protein Wnt-10a (plasma_IgA, plasma_IgG and pDCs) and interleukin-1A from the broader myeloid compartment (Fig. 5b–d). To reveal the regulatory architecture underlying augmented outflow signaling, we constructed global intercellular flow networks by mapping significantly upregulated inflowing signals that form directed paths toward one or more elevated outflows, along with their associated GEMs (Extended Data Fig. 4e,f).

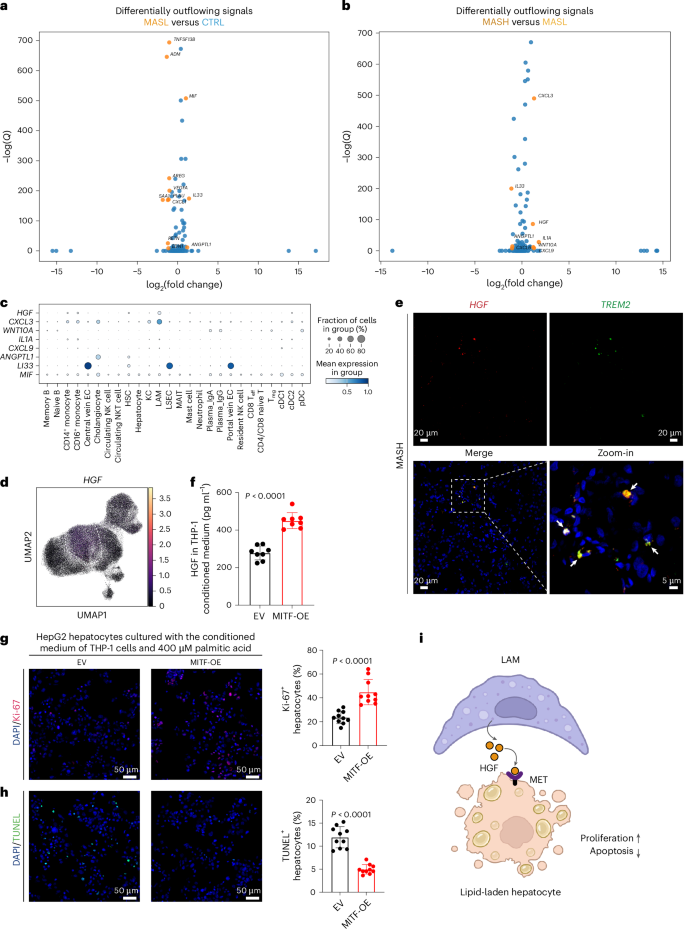

**Fig. 5: LAMs exert hepatoprotective function via the HGF–MET axis.**

The pronounced elevation of HGF outflow from LAMs in patients with MASH is of particular interest, as a previous study by Kroy et al.³⁵ demonstrated that hepatocyte-specific deletion of c-Met, the receptor for HGF, in a mouse model of MASH, resulted in an exacerbated phenotype marked by higher fatty acid accumulation and increased apoptosis³⁵, suggesting that LAMs have a hepatoprotective role during MASLD progression via the HGF–MET axis, most probably within hepatic crown-like structures^11,24. To corroborate that LAMs serve as an additional critical source of HGF, alongside the well-established role of HSCs, we examined the localization of HGF mRNA in LAMs using RNAscope (Fig. 5e). To explore the potential impact of LAMs on hepatocyte functions, we observed that hepatocytes in proximity to LAMs exhibited a proliferative phenotype (Extended Data Fig. 4g). To investigate this further, we cultured human hepatocytes (HepG2 cells) with conditioned medium from THP-1 cells with or without MITF-OE. Notably, MITF-OE in THP-1 cells significantly increased ex vivo production of HGF (Fig. 5f) and enhanced the ability of THP-1 conditioned medium to stimulate HepG2 cell proliferation (Fig. 5g) and reduce apoptosis (Fig. 5h). Collectively, our intercellular flow analysis suggests a hepatoprotective role of LAMs via the HGF–MET axis during MASLD progression (Fig. 5i).

ST analysis with topic modeling uncovers a spatial gene topic of MASLD-associated fibrosis

To uncover MASLD-related gene signatures within a spatial context, our human MASH datasets including 16,000 Visium spots were deconvoluted into 20 ‘spatial topics’ using ST analysis with topic modeling (STAMP)³⁶ (Methods and Extended Data Fig. 5a). Further examination of the distribution of spots with the highest topic activity (99th percentile) across all ST sections revealed six non-parenchymal spatial topics that were more prevalent in MASLD than in CTRLs (Fig. 6a and Extended Data Fig. 5a–c). These spatial topics corresponded to MASLD-relevant cell populations and signaling pathways. For example, Topic3 featured markers of KCs (CD5L, VSIG4 and TIMD4), while Topic4 presented a LAM-specific gene expression module (FABP4, SPP1, TREM2 and LPL).

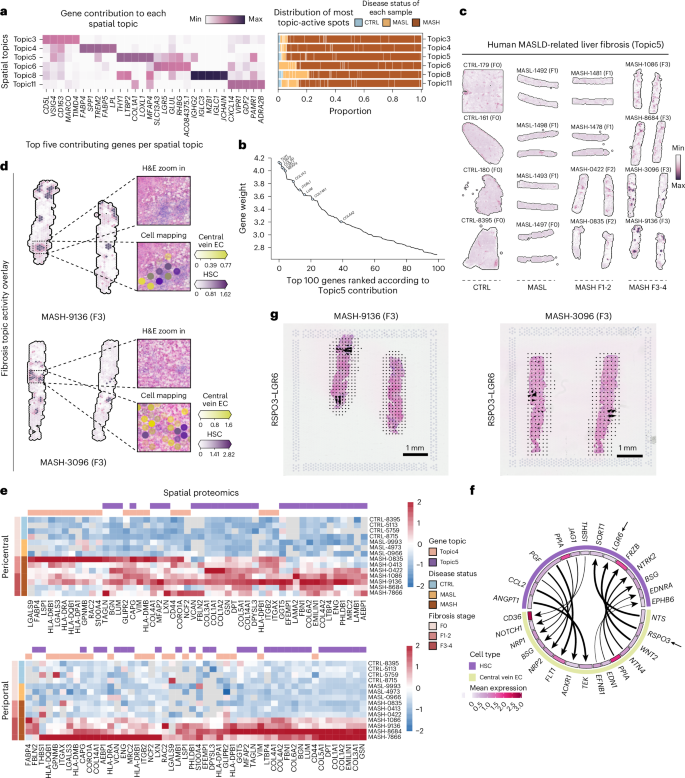

**Fig. 6: MASLD-associated fibrosis gene signatures revealed by STAMP.**

The Topic5 profile reflects a pathological extracellular matrix/fibrogenesis pathway marked by collagen-related (COL1A1, COL1A2 and COL14A1) and fibrosis-related (THY1, LTBP2, LOXL1, MFAP4, ITGBL1 and LUM) genes³⁷ (Fig. 6b), which was particularly enriched in patients with MASH with fibrosis stages 3–4 (Fig. 6c). Zoom-in visual inspection confirmed that spots with high Topic5-activity spatially aligned with the histology of fibrotic foci and its activity correlated with the abundance of HSCs and central vein ECs, as inferred by cell2location³⁸ (Fig. 6d and Extended Data Fig. 5d), suggesting the involvement of their potential crosstalk in MASLD-related fibrogenesis.

To determine whether elevated RNA levels resulted in concordant increases in protein, we applied high-sensitivity mass spectrometry on pathologist-defined regions of interests (ROIs) across three disease conditions (n = 4 CTRL, n = 3 MASL and n = 7 MASH). Two ROIs (~100 × 200 µm²) from the pericentral and periportal areas were isolated using laser-capture microdissection from each tissue section for proteomics profiling (Supplementary Notes). Genes specific to Topic4 (including FABP4, GPNMB, LSP1 and LGALS3) and Topic5 (including TAGLN, LUM, COL1A1 and COL1A2) were elevated in MASH pericentral ROIs, aligning with the transcriptomic data (Fig. 6e). In contrast, few Topic4 and Topic5 genes showed appreciable upregulation in the periportal ROIs from patients with MASL and MASH with mild fibrosis (F1–2). However, in patients with MASH with advanced fibrosis (F3–4), the periportal regions displayed marked upregulation of these genes, suggesting a more extensive dysregulation as the disease progressed.

To explore the cell–cell interactions within the Topic5-active area, we implemented CellPhoneDB³⁹ on our scRNA-seq dataset. Notably, RSPO3 (R-spondin 3)¹⁶, a pro-proliferating factor from central vein ECs, was predicted to interact with LGR6 on HSCs (Fig. 6f), potentially driving HSC proliferation and liver fibrogenesis⁴⁰. Consistently, we observed an enrichment of the RSPO3–LGR6 interaction signal in fibrotic regions of liver biopsies, particularly from patients with MASH F3–4, using communication analysis by optimal transport⁴¹ (Fig. 6g and Extended Data Fig. 5e). Moreover, RSPO3 was highly elevated in active fibrotic lesions from patients with idiopathic pulmonary fibrosis and MASLD⁴², specifically expressed in central vein ECs⁴³. These data indicate the RSPO3–LGR6 interaction as a candidate signaling axis potentially involved in fibrogenesis, warranting further experimental validation.

Identifying MASLD-associated metabolic programs in situ using MALDI-MSI

To elucidate the metabolic landscape of MASLD, we applied Hotspot⁴⁴ to our MALDI-MSI datasets (n = 6 CTRL, n = 9 MASL and n = 12 MASH), including 841,534 high-quality spatially indexed metabolomes. The original spatial coordinates of each MALDI-MSI SM dataset were transformed and aligned into a unified two-dimensional coordinate system, enabling integrative analysis across all SM samples (Extended Data Fig. 6a and Methods). The transformed spatial distances served as the basis for feature selection and similarity quantification. A total of 1,528 metabolites and lipids with significant spatial autocorrelation (false discovery rate (FDR) < 0.01) were identified and decomposed into 20 spatially dependent metabolic modules based on their spatial distributions (Fig. 7a). Among these, three modules (modules 3, 5 and 13) were identified as MASLD-specific, with module 5 exhibiting the strongest correlation with disease severity (Fig. 7b), suggesting its role in disease progression from healthy to MASL and from MASL to MASH. Spatial analysis revealed that module 5 metabolites are predominantly minimally produced in the pericentral region under healthy conditions but are markedly upregulated in MASLD (Figs. 1e and 7c). Validating our approach, TG species such as TG(16:1(9Z)/18:0/18:1) and TG(16:1/18:0/18:1(9Z)), previously reported as key lipid species associated with fat accumulation in MASH⁴⁵, were found in modules 5 and 13, respectively (Fig. 7d and Extended Data Fig. 6b,c).

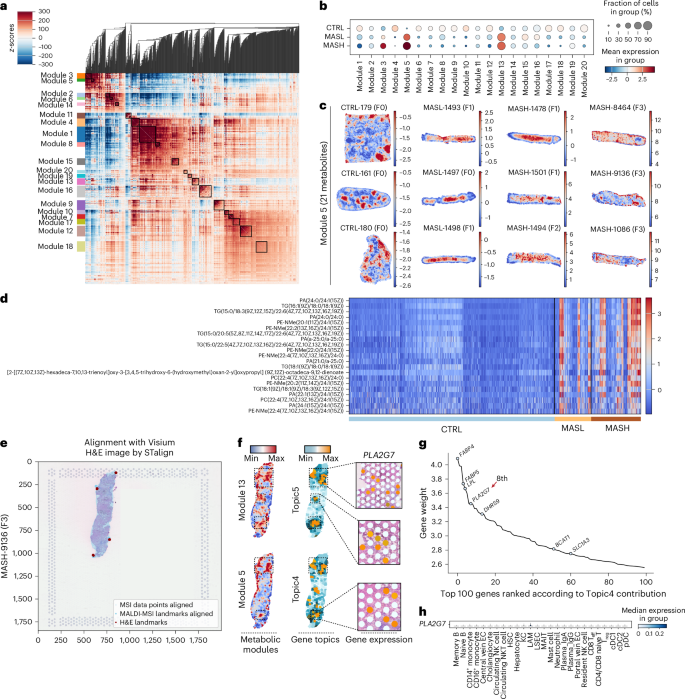

**Fig. 7: MASLD-associated metabolic modules revealed by Hotspot.**

Beyond TGs, module 5 was primarily enriched in phosphatidylethanolamine (PE), phosphatidylcholine (PC) and phosphatidic acid (PA) species containing very-long-chain fatty acids (C ≥ 22), such as PA(24:0/24:1(15Z)), PC(22:4(7Z,10Z,13Z,16Z)/24:0), PA(24:0/24:0), phosphor-(N-methyl)-ethanolamine (PE-NMe)(20:1(11Z)/24:1(15Z)) and PE-NMe(22:2(13Z,16Z)/24:1(15Z)) (Fig. 7d). These findings implicate phospholipid (PL) metabolism in MASLD pathogenesis. To integrate the MSI-based SM data with the ST data, we aligned the MSI data points directly to the corresponding H&E images of Visium ST using STalign⁴⁶ (Fig. 7e and Extended Data Fig. 6d,e). We found that MASLD-specific metabolic modules spatially aligned with the spatial gene topics of the LAM feature (Topic4) and HSC-driven fibrogenesis (Topic5) (Fig. 7f).

To deepen the link between LAM-driven lipid metabolism and MASLD-specific metabolic alterations, we extracted metabolism-associated genes from Topic4 (Fig. 7g) using STAMP analysis. Among these, we focused on PLA2G7, which encodes lipoprotein-associated phospholipase A₂ (lp-PLA₂), a regulator of PL metabolism that was exclusively expressed in LAMs (Fig. 7h). Lp-PLA₂ is upregulated in macrophages in response to oxidized PL stimulation, promoting lipoprotein uptake⁴⁷. Interestingly, elevated oxidized PL levels in KCs could lead to iron deposition and subsequent KC ferroptosis, correlating with more severe histological features of fibrosis and steatohepatitis⁴⁸. Conversely, lp-PLA₂ OE reduces lipid peroxidation levels and strongly suppress ferroptosis⁴⁹. Therefore, the MITF-regulated expression of PLA2G7 in LAMs (Figs. 3f,h and 4d), may confer ferroptosis resistance, thereby sustaining robust consistent lipid metabolism capacity in LAMs.

Discussion

In this study, we used single-cell RNA expression analysis of liver parenchymal and NPC types alongside ST, metabolomics and proteomics on adjacent tissue sections to generate comprehensive molecular and cellular profiles across the spectrum of MASLD. These data can be interactively explored using the Human Masld Spatial Multiomics Atlas portal.

We focused on LAMs because of their pivotal role as major cellular responders to inflammation and metabolic dysfunction during MASLD progression, as evidenced by their increased populations and enhanced presence within steatotic lesions^10,20. We compared TFs operating in LAMs and KCs to elucidate the mechanisms driving LAM development, revealing distinct regulatory networks. Specifically, pySCENIC analysis of scRNA-seq data highlighted a skin pigmentation gene, MITF, as a master regulator of LAM differentiation, endowing them with enhanced lipid-handling capacity. MITF orchestrates the metabolic reprogramming of LAMs through the PGC1α–PPARγ–FAO axis. The clinical relevance of the MITF regulon is supported by prior evidence that imatinib, a PI3K/Akt inhibitor that activates MITF in monocyte-derived DCs⁵⁰, significantly ameliorates MASLD in obese mice⁵¹. Notably, 3 months of imatinib treatment reduced hepatic steatosis, systemic and adipose tissue inflammation, and improved insulin sensitivity. These findings highlight the therapeutic potential of manipulating LAM phenotypes and abundance either through molecular drug interventions or direct injections of bone marrow-derived macrophages⁵².

The spatial gene topic of MASLD-related fibrosis spatially delineated fibrotic regions in each Visium ST section, thereby facilitating the identification of a candidate profibrotic cell–cell interaction between central vein ECs and HSCs via the RSPO3–LGR6 ligand–receptor pair, which serves as a potentially druggable target. However, HSCs may not be the sole responders to RSPO3 secreted by central vein ECs as NK-like cells have also been implicated in mediating antitumor immunity via the RSPO3–LGR6 axis, which involves NK cell biology through MYC upregulation and ribosomal biogenesis⁵³. Accordingly, the clonal expansion of circulating NKT cells observed in patients with MASL and MASH in our cohort could, at least in part, be attributed to their response to RSPO3 secreted by central vein ECs. Thus, the RSPO3–LGR6 axis appears to have roles in both inflammation and fibrogenesis, presenting a promising therapeutic target.

Our SMA pipeline provided a framework to integrate the MSI-based SM and ST data profiled on adjacent tissue sections. However, it has not been applied across the entire spatially resolved multi-omics MASLD datasets because precise alignment requires a high histological similarity between tissue sections from these two spatial modalities and a time-intensive landmark selection process. Application of MASLD-associated metabolites could inform molecular pathology-based patient stratification⁵⁴, particularly for noninvasive diagnosis of MASH in patients with MASLD, where liver biopsies are necessary. Notably, the relationship between very-long-chain fatty-acid-containing PL species and lp-PLA₂-mediated LAM-driven PL metabolism remains to be elucidated.

A limitation of this study is the sex imbalance in the scRNA-seq cohort, with all control samples derived from female donors and the MASLD group consisting predominantly of male patients. Thus, we cannot fully exclude the potential influence of sex on the observed cellular changes during disease progression. Future studies incorporating sex-balanced cohorts will be essential to delineate any sex-associated contributions to MASLD-relevant cellular programs more precisely.

In summary, these dense single-cell and spatial reference maps of the human MASLD, in conjunction with the recently developed spatiotemporal atlas of liver homeostasis and regeneration¹⁵, and cholestatic injury and repair¹⁶ in mouse liver, constitute a large-scale resource for generating hypotheses on chronic liver disease pathology and for further functional validation.

Methods

Access to human tissue and ethics oversight

This study involving human participants adhered to the ethical standards outlined in the Declaration of Helsinki (2013) and the Declaration of Istanbul (2018). The study protocol was reviewed and approved by the Ethics Committees of the First Affiliated Hospital (Southwest Hospital) of the Army Medical University (approval nos. (A)KY2021061 and (B)KY2023050)) and the First Affiliated Hospital of Wenzhou Medical University (approval no. 2016-246). Additionally, the export of human genetic information and materials received authorization from China’s Ministry of Science and Technology. Before study commencement, written informed consent was obtained from all participants. Control liver samples were procured from ten patients at the Institute of Hepatobiliary Surgery of Southwest Hospital, who had no evidence of fatty liver disease, primary biliary cholangitis, autoimmune hepatitis, liver cancer, viral hepatitis or other liver diseases. Samples from patients with MASLD were obtained through biopsy procedures. The diagnosis of MASLD was based on an integration of clinical features, laboratory tests and pathological diagnosis, while excluding other known hepatic conditions. The histological characteristics of the liver samples were evaluated using the NAFLD Activity Score, which assesses steatosis, lobular inflammation and hepatocyte ballooning, along with fibrosis assessment to evaluate the severity of liver disease. The diagnosis of MASH is based on the presence of hepatocyte ballooning and lobular inflammation, along with steatosis and varying degrees of fibrosis. All histological sections were examined in blinded fashion by an experienced hepatopathologist.

Multiplex IF staining

Cellular colocalization and expression of proteins were validated using a multiplex immunohistochemistry/IF staining kit (cat. no. abs50012, Absin) according to the manufacturer’s instructions. Briefly, 4-µm-thick liver paraffin sections were initially deparaffinized, followed by antigen retrieval. Subsequently, sections underwent multiple rounds of blocking, primary antibody incubation at 4 °C for 12 h, secondary antibody incubation at 37 °C for 10 min and fluorescent dye (TSA 520, 570, 620 or 650) incubation at 37 °C for 10 min. Each antibody and dye incubation step was followed by washing with Tris-EDTA buffer. Finally, nuclei were stained with DAPI for 10 min at room temperature. Fluorescence was visualized using a laser scanning confocal microscope (LSM 880, ZEISS). The antibody application details are provided in Supplementary Table 3.

Generation of stable THP-1 cell lines and RT–qPCR

To construct the lentivirus needed to infect THP-1 cells, first human MITF complementary DNA (NM-198159) was cloned into pLV-CMV-MCS-EF1-ZsGreen1-T2A-Puro. Together with PSPAX2 and PCMV-VSV-G, these three plasmids were transfected into the 293T cell line. THP-1 cells were grown in Roswell Park Memorial Institute (RPMI) 1640 basic medium with 10% FCS, 1% penicillin-streptomycin and 0.05 mM 2-mercaptoethanol at 37 °C in 5% CO₂. THP-1 cells were infected with either human MITF or EV lentivirus; stable cells were then selected for their ability to grow in the presence of puromycin (Hunan Fenghui Biotechnology Co., Ltd). Total RNA was extracted from THP-1 cells using RNAiso Plus (Takara Bio) according to the manufacturer’s instructions. Complementary DNA was synthesized using the PrimeScript FAST RT Reagent Kit with gDNA Eraser (Takara Bio). RT–qPCR was performed using the TB Green Premix Ex Taq II FAST qPCR kit (Takara Bio). The primers used in this study were selected from the Harvard PrimerBank; we used GPADH as the reference gene for normalizing gene expression (primer sequences are described in Supplementary Table 4a).

siRNA transfection

MITF siRNAs were purchased from Sangon Biotech. Nontargeting oligonucleotides were used as the negative control. siRNAs were delivered to the THP-1 cell lines according to the manufacturer’s instructions (ProteanFect Max, Nanoportal Biotech). The knockdown efficiency of target genes was evaluated using RT–qPCR 24 h after transfection (primer sequences and siRNA oligonucleotides are described in Supplementary Table 4b).

OCR assay and mitochondrial staining

THP-1 cells infected with either an EV or MITF-OE lentivirus were used to assess cellular OCR with the Seahorse XFp Cell Mito Stress Test Kit (cat. no. 103010-100, Agilent Technologies) according to the manufacturer’s protocol. Briefly, cells were resuspended in prewarmed Seahorse assay medium and seeded at a density of 60,000 cells per 50 μl per well into Cell-Tak-coated Seahorse XFp Cell Culture Microplates. After cell attachment, 130 μl of Seahorse assay medium was added to each well and plates were incubated for 40 min in a 37 °C, non-CO₂ incubator before the assay. Basal OCR was then measured, followed by injection of oligomycin (3.5 μM), FCCP (2 μM) and rotenone/antimycin A (2.5 μM) through the hydrated probe plate. Real-time OCR (pmol O₂ min⁻¹) was measured using the Agilent Seahorse XFp Analyzer. Data were analyzed using the WAVE software. To assess the total mitochondrial mass, cells were stained with MitoTracker Red (cat. no. MB6046-1, Meilunbio) for 20 min, followed by fluorescence detection using a ZEISS LSM 880 laser scanning confocal microscope. Ten randomly selected fields per sample were captured; mean fluorescence intensity quantification was performed using ImageJ (v.1.8.0) (National Institutes of Health) with background subtraction.

RNAscope in situ hybridization

To colocalize HGF and TREM2, an RNAscope assay was performed using an RNAscope Multiplex Fluorescent Reagent Kit v2 (cat. no. 323100, Advanced Cell Diagnostics) according to the manufacturer’s instructions. Briefly, 4-µm-thick liver paraffin sections were prepared and processed through deparaffinization, hydrogen peroxide treatment, target retrieval and RNAscope Protease IV treatment. Sections were then hybridized with the target probes HGF (cat. no. 310761-C2) and TREM2 (cat. no. 420491-C3) for 2 h. This was followed by sequential signal amplification using AMP1, AMP2 and AMP3 for 30 min, 30 mins and 15 min, respectively. For signal labeling in the C2 channel, sections were incubated with HRP-C2 for 15 min, followed by Opal 570 dyes for 30 min and HRP blocker for 15 min. This signal labeling procedure was then replicated for the C3 channels using Opal 520 dyes. Finally, sections were counterstained with DAPI at room temperature. After each step, sections were washed with RNAscope 1× Wash Buffer. Fluorescence was visualized using a laser scanning confocal microscope (LSM 880). The colocalization signals were analyzed using the ZEN software (v.2.3).

Conditioned medium experiment

Conditioned media were collected from the THP-1 EV or MITF-OE cell lines after 48 h of culture. Cells were seeded at a density of 1 × 10⁶ cells per T75 flask containing 15 ml of RPMI 1640 basic medium (cat. no. C11875500, Thermo Fisher Scientific) supplemented with 10% FCS (cat. no. S711-001S, Lonsera). After incubation, cellular debris was removed by centrifugation at 4,000g for 10 min at room temperature. Human HGF concentrations in the conditioned media were quantified using a Quantikine ELISA Kit (cat. no. DHG00B, R&D Systems), according to the manufacturer’s instructions.

Computational analysis

Mapping of the gene expression libraries

For the scRNA-seq data, raw reads were processed to generate gene expression profiles using Celescope (v.1.15.0) (Singleron Biotechnologies) with default parameters. Space Ranger (v.3.1.1) (https://support.10xgenomics.com) was used to preprocess the sequencing data, with the default settings for the ST data. Both types of libraries were mapped to the 10x GRCh38 reference.

scRNA-seq data processing

The scRNA-seq libraries were analyzed using the standard SCANPY (v.1.10.3)⁵⁵ workflow. We discarded (1) cells with fewer than 200 genes and fewer than 400 unique molecular identifiers (UMIs), (2) cells with more than 30% of counts mapped to ribosomal or mitochondrial genes, (3) cells with more than 1% of counts mapped to hemoglobin genes, (4) cells with more than 40,000 UMIs, (5) cells with more than 6,000 genes and (6) doublets as estimated using Scrublet⁵⁶ with default parameters. Additionally, doublet clusters, identified by observing the expression of markers from multiple cell types in scRNA-seq, were removed. Gene expression values were normalized for library size and log-transformed. Principal component analysis was carried out using the top 6,000 highly variable genes. Neighbors were identified using the first 30 principal components corrected using Harmony⁵⁷; clustering was done using the Leiden algorithm with the ten nearest neighbors per cell. UMAP projections were calculated using default parameters.

Zonation annotation of Visium ST data

To identify groups of spots in different ST samples that shared similar gene expression patterns, we integrated and clustered the 10x Visium spots of all sections using the intersection of 14,000 spatially variable genes identified from each section after batch correction using a deep learning-based STAligner (v.1.0.0) method⁵⁸. These groups of spots were manually annotated into four liver lobular zones (portal, periportal, mid and central) using marker genes and location information from the literature. Spot clustering was performed by first creating a spatial network using the Cal_Spatial_Net function with the following parameters: model = kNN and k_cutoff = 6. The number of clusters was constrained to four by specifying the num_cluster parameter during the execution of the mclust_R function of the STAligner package.

Spatial mapping of cell types in Visium ST using cell2location

Deconvolution of the abundance information of each cell type in each 10x Visium spot was performed with cell2location (v.0.1.3)³⁸. Cell2location estimates the gene expression signatures of the cell types identified from reference scRNA-seq datasets using negative binomial regression, which accounts for batch effects. The inferred signatures are used to estimate the absolute spatial abundance of corresponding cell types across each Visium ST section separately. ST data were processed to untransformed and unnormalized mRNA counts filtered to genes shared with scRNA-seq data, while excluding mitochondrial and ribosomal genes. Hyperparameters in the cell mapping step based on tissue feature and experiment quality are as follows: (1) expected cell abundance per location = 8 and (2) regularization of within-experiment variation in RNA detection sensitivity = 20. The model achieved convergence after 30,000 iterations. Evidence lower bound loss function scaling according to locations × genes was used. Results were visualized according to the cell2location tutorial.

Differential abundance analysis

We used miloR²¹ (v.2.0.0) to test for the differential abundance of cells within defined neighborhoods between two conditions (that is, MASL/MASH versus CTRLs or MASH versus MASL). We first used the buildGraph function to construct a kNN graph with the following parameters: k = 30, d = 30 and reduced.dim = X_pca_harmony. Next, we used the makeneighborhoods function to assign cells to neighborhoods based on their connectivity over the kNN graph. For computational efficiency, we subsampled 10% of T and NK cells and monocytes and DCs and 30% of B lineage cells, respectively. The testNhoods function was used to conduct the differential neighborhood abundance testing over samples with the scRNA-seq library (that is, collected after the first or second centrifugation step) as the covariate. To control for multiple testing, we adapted the spatial FDR implemented in Milo and used a 0.05 spatial FDR as the threshold for significance. The spatial FDR and log₂(fold change) of the number of cells between two conditions in each neighborhood were used for visualization.

TCR and BCR analysis from scVDJ-seq

Droplet-based sequence data for the scTCR and scBCR sequences were aligned and quantified using Celescope multi_flv_CR against the GRCh38 human VDJ reference genome. Filtered annotated contigs were analyzed using Scirpy⁵⁹ (v.0.19.1). For the scTCR analysis, we selected T cells that were annotated as the following five cell types via the scRNA-seq analysis: MAIT cells, T_reg, circulating NKT cells, CD4/CD8 naive T cells and CD8 T_eff cells. Only T cells with both TCR-α (TRA) and TCR-β (TRB) chains were kept for further analysis. Each unique TRA–TRB pair was defined as a clonotype. The scBCR analysis was conducted on cells that were annotated as the following four cell types using the scRNA-seq analysis: naive B, memory B, Plasma_IgG and Plasma_IgA. Only B cells with both heavy (IGH) and light (IGL or IGK) chains remained for the downstream analysis. Each unique IGH–IGL/IGK pair was defined as a clonotype. For the TCR data, clonotype clusters were defined based on CDR3 amino acid sequences with receptor_arms = ‘all’, dual_ir = ‘any’ and a default cutoff of ten. For the BCR data, the cutoff parameter of the clonotype_network function used for calling clonotype clusters was set to five, with other parameters remaining the same as in the TCR analysis.

Analysis of GRNs

The SCENIC workflow^60,61 (pySCENIC v.0.12.1) was used to predict TFs and their target genes regulated from our scRNA-seq dataset. We set the broad cell type as the group identity and downsampled 5% of cells from each identity because of the limitation of the computing resources. Gene regulatory interactions for 30,499 genes were calculated based on coexpression across the scRNA-seq datasets with GRNBoost2 (ref. ⁶²) (arboreto_with_multiprocessing–method grnboost2). This was followed by pruning interactions, which involved incorporating established TF binding motifs and constructing dataset-specific regulatory regulons⁶³ (pyscenic ctx–mask_dropouts). With the dropout masking set to True, the correlation between a TF and its target genes was calculated using only cells with nonzero expression values during regulon creation. Additionally, as input, we used the curated list of 1,390 human-specific TFs (https://raw.githubusercontent.com/aertslab/pySCENIC/master/resources/hs_hgnc_curated_tfs.txt), an annotation file for motif to TF mapping (https://resources.aertslab.org/cistarget/motif2tf/motifs-v9-nr.hgnc-m0.001-o0.0.tbl) (human, v9, mc9nr) and the ranking database of regulatory features (https://resources.aertslab.org/cistarget/databases/homo_sapiens/hg38/refseq_r80/mc9nr/gene_based/hg38__refseq-r80__500bp_up_and_100bp_down_tss.mc9nr.genes_vs_motifs.rankings.feather) (hg38, mc9nr, +500 bp and −100 bp transcription start site). Then, the activity of regulons was inferred for each cell using AUCell (pyscenic aucell with default parameters). The RSS was calculated for each cell type separately. The differentially activated TF regulon analysis was conducted using a Wilcoxon rank-sum test. The final network was constructed with igraph (v.2.0.3) (https://CRAN.R-project.org/package=igraph), integrating node and edge attributions according to the scRNA-seq data and visualized using ggraph (v.2.1.0).

Identifying differentially flowing signal variables

When inferring intercellular flows from unique ligand–receptor interactions identified using the CellChat (v.2.1.2)⁶⁴ analysis, we used FlowSig³³ (v.0.1.2) to prioritize the informative outflowing and inflowing signal variables. Differentially inflowing and outflowing variables were identified using two separate Mann–Whitney U and Wilcoxon rank-sum tests. Variables were considered significant if they met the criteria of P_adj < 0.01 and an absolute log(fold change) > 1.0.

Differential expression and gene set enrichment analysis

Differential gene expression was performed using the rank_genes_groups function of Scanpy with the following parameters: tie_correct = ‘TRUE’ and method = ‘wilcoxon’. To reveal the function of upregulated DEGs or to assign them to biological terms, we used the get_ora_df function with the default parameters of decoupler (v.1.6.0)⁶⁵.

Cell–cell interaction analysis

The interactions between cell populations identified in our scRNA-seq dataset were identified using CellPhoneDB (v.5.0.0)³⁹. First, we retrieved the interacting pairs of ligands and receptors, which met the criteria that all members were expressed in at least 10% of cells within relevant clusters. Then, to identify the most relevant interactions between cell types, we randomly permuted the cluster labels of all cells 1,000 times and determined the mean of the average receptor expression level in a cluster and the average ligand expression level in the interacting cluster, generating a null distribution for each ligand–receptor pair in each pairwise comparison between two cell types. By calculating the proportion of the means, which are equal to or higher than the actual mean, we obtained a P value for the likelihood of cell-type specificity of a given receptor–ligand complex. Only ligand–receptor pairs with P ≤ 0.01 were visualized using CCplotR (v.0.99.3)⁶⁶. Communication analysis of ST datasets was performed using COMMOT (v.0.0.3)⁴¹ with default parameters.

Disease-associated spatial gene module analysis

Deconvolution through topic modeling was applied to the 10x Visium gene expression using sctm (v.0.1.3)³⁶. The human MASH dataset was deconvolved into 20 spatial topics using the STAMP function with the following parameters: mode = ‘sign’, dropout = 0.1, n_layers = 1, gene_likelihood = ‘nb’ using the 4,000 most variable genes. To quantify the activity of each spatial topic, the top 100 contributing genes for each topic were used to evaluate topic-specific scores. The distribution of each topic in the human samples (CTRL, MASL and MASH) was assessed by calculating the frequency of spots in the 99th percentile of topic activity versus the total number of spots across all tissue sections.

MALDI-MSI data analysis

Raw MALDI-MSI data files were processed into a tabular format as .CSV using the pyimzML tool (https://github.com/alexandrovteam/pyimzML); files were further transformed into individual anndata objects compatible with the ST analysis pipeline based on SCANPY⁵⁵. Pixels with fewer than 700 metabolites or fewer than 40,000 counts were excluded from the downstream analysis, as well as metabolites expressed in more than 95% of pixels. Each metabolite feature was normalized on the total ion count within individual MSI data points. All 27 individual MSI-based anndata objects were integrated into a combined anndata containing 841,534 pixels, with the original spatial coordinates of each dataset staggered to differentiate the samples. To reveal disease-associated spatial metabolite expression patterns, we applied the Hotspot (v.1.1.1)⁴⁴ analysis framework to the merged anndata object. First, an unweighted kNN graph was constructed with the six nearest neighbors (a hyperparameter) of each MSI data point in the two-dimensional space using the create_knn_graph function. Next, pairwise evaluation was performed between the post-filtered 1,528 metabolites detected using MALDI-MSI to construct a scoring matrix based on coexpression between nearby spots using the compute_local_correlations function. Finally, an agglomerative clustering procedure was applied to group metabolites with similar spatial expression patterns into modules. This began with every module represented by a single metabolite and proceeded by merging individual modules with the highest pairwise z-scores. Merging was restricted if the FDR-adjusted P between two branches exceeded 0.01 or if either branch contained fewer than 20 metabolites.

Spatial alignment of MALDI-MSI to the Visium ST data

To spatially align MALDI-MSI to the Visium data, we used STalign (v.1.0)⁴⁶. A rasterized density image was created from the positions of the MALDI-MSI data points and served as the source image. Before alignment, MSI data points located outside the tissue sections were identified based on the marked expression of Hotspot-identified module 11 and subsequently removed. The source image was first aligned to the corresponding target H&E image of Visium ST based on four manually assigned landmark points through affine transformation. The alignment was further optimized using a large deformation diffeomorphic metric mapping framework⁶⁷. Once the MSI data were aligned with the RNA data, we selected the nearest Visium spot for the MSI data.

Statistics and reproducibility

No statistical method was used to predetermine sample size. No data were excluded from the analyses. All in vitro experiments were repeated independently at least three times. The investigators were not blinded to allocation during the experiments and outcome assessment. Experimental data were analyzed and visualized using Prism (v.10.4.2) (GraphPad Software). All quantitative data are presented as mean values ± s.d.; statistical significance was determined using an unpaired two-sided Student’s t-test.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

All raw data for scRNA-seq and 10x Visium generated in this study are deposited in the Genome Sequence Archive⁶⁸ at the National Genomics Data Center⁶⁹, the National Center for Bioinformation/Beijing Institute of Genomics and the Chinese Academy of Sciences (GSA for Human: HRA007511), which are available at https://ngdc.cncb.ac.cn/gsa-human. The spatial metabolomic data have been deposited in the OMIX, the China National Center for Bioinformation/Beijing Institute of Genomics and the Chinese Academy of Sciences under accession no. OMIX009098 (https://ngdc.cncb.ac.cn/omix). The processed scRNA-seq and Visium ST data are available from OMIX under accession no. OMIX010136. The spatial proteomic data is also available from OMIX under accession no. OMIX009117. All processed data can be visualized and downloaded at the HMSMA website (https://db.genomics.cn/stomics/hmsma). Source data are provided with this paper.

Code availability

The code required to reproduce the analyses in this paper is available through GitHub at https://github.com/OMIC-coding/Spatial_multiomics_analysis_MASLD and Zenodo (https://doi.org/10.5281/zenodo.17192831)⁷⁰.
