Tumour acidosis remodels the glycocalyx to control lipid scavenging and ferroptosis

Bång-Rudenstam, Anna; Cerezo-Magaña, Myriam; Horvath, Marton; Talbot, Hugo; Gustafsson, Emma; Jonathan, Stevanus; Chakraborty, Chaitali; Nissen, Itzel; Gonçalves de Oliveira, Kelin; Boukredine, Axel; Beyer, Sarah; Perez, Julio Enriquez; Johansson, Maria C.; Kjellén, Lena; Tykesson, Emil; Malmström, Anders; van Kuppevelt, Toin H.; Forsberg-Nilsson, Karin; Esko, Jeffrey D.; Remeseiro, Silvia; Bengzon, Johan; Governa, Valeria; Belting, Mattias

doi:10.1038/s41556-026-01879-y

Download PDF

Article
Open access
Published: 11 February 2026

Tumour acidosis remodels the glycocalyx to control lipid scavenging and ferroptosis

Nature Cell Biology (2026)Cite this article

Subjects

Abstract

Aggressive tumours are defined by microenvironmental stress adaptation and metabolic reprogramming. Within this niche, lipid droplet accumulation has emerged as a key strategy to buffer toxic lipids and suppress ferroptosis. Lipid droplet formation can occur via de novo lipogenesis or extracellular lipid-scavenging. However, how tumour cells coordinate these processes remains poorly understood. Here we identify a chondroitin sulfate (CS)-enriched glycocalyx as a hallmark of the acidic microenvironment in glioblastoma and central nervous system metastases. This CS-rich glycocalyx encapsulates tumour cells, limits lipid particle uptake and protects against lipid-induced ferroptosis. Mechanistically, we demonstrate that converging hypoxia-inducible factor and transforming growth factor beta signalling induces a glycan switch on syndecan-1—replacing heparan sulfate with CS—thereby impairing its lipid-scavenging function. Dual inhibition of CS biosynthesis and diacylglycerol O-acyltransferase-1, a critical enzyme in lipid droplet formation, triggers catastrophic lipid peroxidation and ferroptotic cell death. These findings define glycan remodelling as a core determinant of metabolic plasticity, positioning the dynamic glycocalyx as a master regulator of nutrient access, ferroptotic sensitivity and therapeutic vulnerability in cancer.

Main

Aggressive tumours are defined by their ability to adapt to microenvironmental stress^1,2. Within the tumour microenvironment (TME), cancer cells encounter intersecting pressures, including hypoxia, nutrient limitation, oxidative imbalance and extracellular acidosis, that reprogram cellular metabolism and promote therapy resistance^3,4. A consistent feature of this adaptation is the accumulation of lipid droplets (LDs), which buffer toxic lipids, modulate the immune cell compartment^5,6, and promote survival under hostile conditions^7,8,9. LD formation may result from de novo lipogenesis or from scavenging extracellular lipid sources such as free fatty acids (FAs), lipoproteins and extracellular vesicles (EVs)¹⁰. Although individual mechanisms of lipid uptake and storage have been described, how these processes are coordinated under chronic metabolic stress remains incompletely understood.

Glycosylation plays critical roles in cell–cell communication, immune modulation and nutrient scavenging^11,12,13. Accumulating evidence supports an important role of heparan sulfate proteoglycans (HSPGs) in cancer cell uptake of lipoproteins and EV lipid particles^14,15,16,17, yet little is known about how glycan reorganization integrates with metabolic pathways under stress conditions. Glycans are synthesized through the orchestrated activity of glycosyltransferases and sulfotransferases, enabling rapid and context-dependent structural diversity¹⁸, suggesting glycosylation as a sensitive mediator of environmental adaptation.

In this Article we aim to elucidate the molecular underpinnings of metabolic adaptation in the stressed TME. LD accumulation has been well documented in glioblastoma (GBM), a prototypical high-grade brain malignancy characterized by severe metabolic stress^5,19. Unexpectedly, we observed prominent glycocalyx modification in the LD-rich niche of patient tumours, and explored how glycan remodelling intersects with lipid metabolism during tumour stress adaptation. Our results highlight an acidosis-induced glycan program with potential as a metabolic vulnerability, offering alternative therapeutic avenues for targeting the lipid-stressed TME.

Results

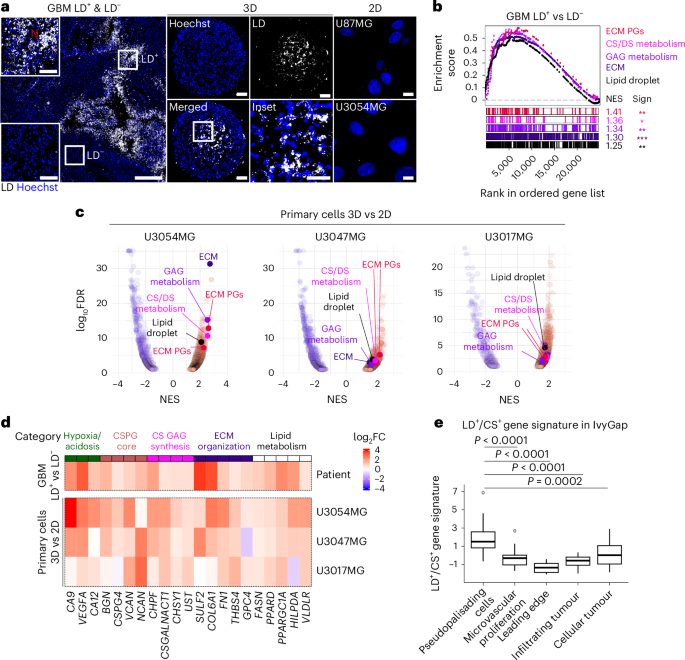

CS-enriched glycocalyx defines the lipid-rich, stressed tumour niche

We initially assessed the LD phenotype that was found in perinecrotic/pseudopalisading regions of patient GBM sections (Fig. 1a, left) and three-dimensional (3D) spheroid cultures (Fig. 1a, middle), but was largely absent in primary, patient-derived 2D cultures (Fig. 1a, right). Laser capture microdissection of tumour sections (excluding vasculature and CD68⁺ immune cells) and transcriptome profiling (Extended Data Fig. 1a) revealed a striking enrichment of pathways related to glycocalyx within the LD⁺ niche, particularly those involving CS and dermatan sulfate (DS) glycosaminoglycans (GAGs) and proteoglycan (PG) remodelling (Fig. 1b). Consistent with the LD⁺ phenotype, we also observed an enrichment of genes involved in lipid storage and LD biogenesis in LD⁺ versus LD⁻ regions (Fig. 1b). This transcriptional signature was recapitulated in 3D (LD⁺) compared to 2D (LD⁻) cultures (Fig. 1c). Glycans, unlike nucleic acids or proteins, are synthesized without a template, relying on a complex enzymatic ‘sugar machinery’²⁰ (Extended Data Fig. 1b), and we sought to further explore the functional relevance of this signal. Based on consistent overexpression across both LD⁺ tumour regions and spheroids, we identified a 21-gene signature comprising markers of metabolic stress (for example, CA9, CA12, VEGFA), CS biosynthesis (CHPF, CSGALNACT1, CHSY1, UST), CSPG core proteins (BGN, CSPG4, NCAN, VCAN) and lipid metabolism and LD formation (FASN, HILPDA, PPARD, PPARGC1A, VLDLR) (Fig. 1d). Spatial transcriptomics from the Ivy Glioblastoma Atlas Project (IvyGAP)²¹ confirmed that this LD⁺/CS⁺ signature was enriched in pseudopalisading regions (Fig. 1e).

We could validate the CS signature at the phenotypic level, as immunostaining showed a prominent CS-rich glycocalyx in LD⁺ spheroid cores (Fig. 2a and Extended Data Fig. 1c), where it co-localized with CA9, a canonical marker of hypoxia and acidosis (Extended Data Fig. 1d)²². The pH (low) insertion peptide (pHLIP)²³ was employed to directly assess the pH distribution (Extended Data Fig. 1e,f), showing preferential pHLIP signal in the central, CA9-positive regions of 3D spheroids (Extended Data Fig. 1g–i). In GBM tissue, we also observed CS enrichment in CA9⁺/LD⁺ versus CA9⁻/LD⁻ regions (Fig. 2b,c), and we consistently identified a subpopulation exhibiting both LDs and a robust CS-glycocalyx in freshly isolated, patient-derived cultures (PDCs; Fig. 2d and Extended Data Fig. 1j). In contrast, low-grade gliomas lacked this phenotype (Extended Data Fig. 1k), suggesting an association with high-grade malignancy. Moreover, the LD⁺/CS⁺ phenotype was preserved in a patient-derived GBM xenograft (Extended Data Fig. 1l). Also, central nervous system (CNS) metastases from kidney, melanoma and lung primaries harboured CS-rich cells in perinecrotic (CA9⁺/CD31⁻/LD⁺/CS⁺) and perivascular (CA9⁻/CD31⁺/LD⁻/CS⁺) compartments (Extended Data Fig. 2), showing that the LD⁺/CS⁺ phenotype was not restricted to primary brain tumours. These findings highlight CS-glycocalyx accumulation as a hallmark of metabolically challenged regions in aggressive tumours.

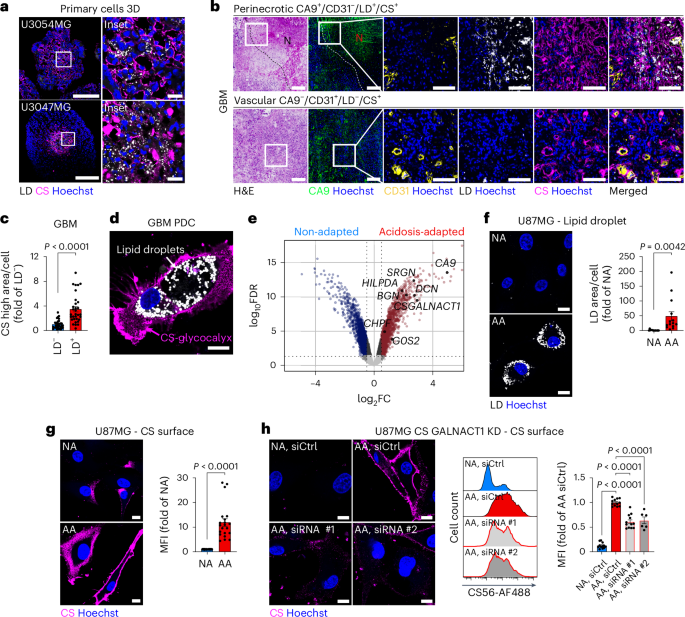

**Fig. 2: CS-glycocalyx encapsulation is an adaptive response to tumour acidosis.**

CS-glycocalyx encapsulation as an adaptive response to tumour acidosis

Acidosis and hypoxia are central stressors of the TME, driving aggressive phenotypes and therapy resistance^1,24. To model acidosis adaptation, we cultured glioma cells at pH 6.4 for 10 weeks, generating acidosis-adapted (AA) lines. Compared to non-adapted (NA, pH 7.4) controls, AA cells showed induction of genes and pathways involved in CS biosynthesis and PG remodelling (Fig. 2e and Extended Data Fig. 3a,b). We found strong upregulation of the CS-initiating enzyme CSGALNACT1 (~10-fold) and CSPG core proteins, such as SRGN, BGN and DCN (Fig. 2e and Extended Data Fig. 3a). AA cells also displayed elevated expression of LD-related genes (HILPDA, G0S2; Fig. 2e) and increased LD accumulation (Fig. 2f). Interestingly, confocal imaging and flow cytometry confirmed a pronounced CS-glycocalyx in AA cells (~10-fold increase compared to NA cells), corroborated by antibodies recognizing distinct CS epitopes (Fig. 2g and Extended Data Fig. 3c,d), as well as by biochemical CS disaccharide analysis (Extended Data Fig. 3e–g). This response may be conserved, as acidosis-adapted PANC1 pancreatic cancer cells were similarly enriched for PG-related pathways, PG-related genes and cell-surface CS (Extended Data Fig. 3h–j). To isolate the specific contribution of hypoxia, we next employed short-term (48 h) stress conditions, as long-term hypoxia triggers acidosis and metabolic rewiring²⁵. Short-term acidosis was sufficient to activate lipid and PG-related pathways, induce expression of CSGALNACT1 and other CSPG biosynthetic genes, and to increase cell-surface CS levels (Extended Data Fig. 4a–d), although this was less pronounced than in AA cells (compare with Fig. 2g). In contrast, hypoxia did not upregulate PG-related pathways or CS biosynthetic genes, and failed to induce cell-surface CS (Extended Data Fig. 4e–g). CSGALNACT1 was consistently upregulated in LD⁺ tumour regions and spheroids, as well as in AA cells and short-term acidosis, but not in hypoxia. Notably, CSGALNACT1 operates at a critical decision point in PG biosynthesis by catalysing the first committed step toward CS polymer elongation on a common tetrasaccharide linker (Xyl–Gal–Gal–GlcA) shared by CSPGs and HSPGs (Extended Data Fig. 1b)^26,27. We performed siRNA-mediated knockdown of CSGALNACT1 in AA cells (Extended Data Fig. 4h), resulting in a marked reduction of cell-surface CS (Fig. 2h). Together, these data reveal acidosis adaptation and CSGALNACT1 as important drivers of the CS-glycocalyx phenotype.

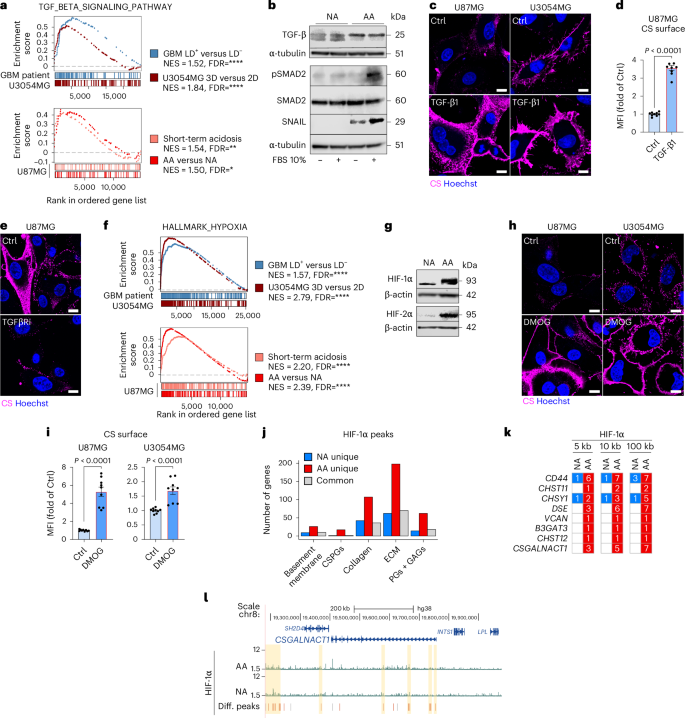

Cooperative TGF-β and HIF signalling induces CS-glycocalyx remodelling during acidosis adaptation

Transforming growth factor beta (TGF-β) is a known mediator of CSPG remodelling in fibrosis^28,29, and regulates adaptation to tumour acidosis³⁰. We found significant enrichment of TGF-β signalling in acidosis as well as in LD⁺ tumour regions and spheroids, and AA cells showed increased levels of active TGF-β, SMAD2 phosphorylation and SNAIL (Fig. 3a,b and Extended Data Fig. 5a–c). Conditioned media from AA cells, but not NA cells, as well as recombinant TGF-β1 and TGF-β2, induced surface CS in parental GBM cells (Fig. 3c,d and Extended Data Fig. 5d,e). Moreover, inhibition of TGF-β receptors limited acidosis-driven CS-glycocalyx formation (Fig. 3e).

We also found an enrichment of hypoxia-inducible factor (HIF)-associated gene signatures in acidosis as well as in LD⁺ tumour regions and spheroids (Fig. 3f and Extended Data Fig. 5f). Although, HIFs are central mediators of the hypoxic-acidic TME and cooperate with TGF-β in TME remodelling³¹, their direct role in CS-glycocalyx formation remains unexplored. AA cells showed increased HIF-1α and HIF-2α protein expression (Fig. 3g), and cell-surface CS expression was induced by pharmacologic HIF stabilization with dimethyloxalylglycine (DMOG; Fig. 3h,i and Extended Data Fig. 5g,h). Co-stimulation with DMOG and TGF-β further amplified CS levels, comparable to those observed in AA cells (Extended Data Fig. 5i). Moreover, CUT & RUN analysis revealed a genome-wide increase in HIF-1α binding sites in AA versus NA cells, comparable to DMOG treatment (Extended Data Fig. 5j and Supplementary Table 1). Notably, HIF-1α binding sites were primarily gained at promoter regions (<5 kb from the transcription start site, TSS; Extended Data Fig. 5k). Importantly, both acidic adaptation (Fig. 3j) and DMOG treatment (Extended Data Fig. 5l) redirected HIF-1α binding toward promoters of genes related to CS, PG and GAG pathways. This included key genes in CS biosynthesis, where HIF-1α also occupied distal promoter regions (<10 kb from TSS) and other regulatory regions (Fig. 3k,l and Extended Data Fig. 5m,n). Together, these data position CS-glycocalyx remodelling as a key feature of acidic stress adaptation, mediated by cooperative TGF-β and HIF signalling.

CS-glycocalyx limits lipid scavenging via SDC1 glycan remodelling under acidosis

LD formation is increasingly recognized as a protective sink against toxic lipids in the stressed TME⁷, but how lipid influx is modulated to balance de novo lipogenesis and lipid availability to prevent overload remains poorly understood. FA synthase (FASN) expression was increased in LD⁺ tumour regions and spheroids (Fig. 1d). However, FASN inhibitor (FASNi) treatment had no effect on acidosis-driven LD accumulation (Extended Data Fig. 6a). Importantly, supplementation with serum, low-density lipoprotein (LDL) or EV lipid particles was essential to sustain LD formation under acidosis (Extended Data Fig. 6b–e). Similarly, CS-glycocalyx induction under acidosis depended on extracellular lipid availability (Extended Data Fig. 6d,f–h), indicating that the CS⁺/LD⁺ phenotype is independent of FASN and instead relies on extracellular lipids. To further dissect how lipid storage and CS-glycocalyx induction may be linked functionally, we blocked LD formation using the DGAT1 inhibitor A922500 (DGAT1i; Fig. 4a and Extended Data Fig. 6i). LD disruption resulted in a further, compensatory increase in CS-glycocalyx expression in both acidic 2D cultures (Fig. 4b and Extended Data Fig. 6i) and spheroids (Fig. 4c,d). This suggested that CS-glycocalyx may represent an adaptive response to excess or unmetabolized lipids in the acidic microenvironment. In support of this, AA cells displayed reduced binding (Fig. 4e) and uptake of EVs and LDL (Fig. 4f,g), as well as apoE-containing high-density lipoprotein (HDL; Fig. 4h and Extended Data Fig. 6j). This phenotype was also observed after short-term acidosis (Extended Data Fig. 6k,l), and patient tumour samples showed an inverse correlation between CS-glycocalyx levels and lipid uptake (Fig. 4i). Notably, overall endocytic activity was increased in AA versus NA cells (Extended Data Fig. 6m,n), and overall expression and sulfation of HSPGs, widely recognized as key mediators of lipoprotein and EV scavenging^{15,32,33,34,35}, remained intact in AA cells (Extended Data Fig. 6o,p). Finally, inducing the CS-glycocalyx with TGF-β or DMOG in cells cultured at pH 7.4 mimicked the lipid uptake defect observed under acidosis (Fig. 4j,k and Extended Data Fig. 6q–s). These data support a model in which CS-glycocalyx encapsulation restricts access to extracellular lipids during metabolic stress.

**Fig. 4: CS-glycocalyx is induced in response to exogenous lipid particles and restricts their uptake under acidic conditions.**

To directly assess the role of the CS-glycocalyx as a barrier to lipid scavenging, we first treated AA and NA cells with sodium chlorate, which inhibits the HS and CS sulfation essential for ligand binding (Extended Data Fig. 7a). Consistent with compromised HSPG function in NA cells, sodium chlorate treatment diminished EV binding and uptake to levels observed in AA cells (Fig. 5a). However, in AA cells, sodium chlorate had no impact (Fig. 5a), indicating that residual lipid particle uptake proceeds via HSPG-independent mechanisms. We next employed enzymatic, genetic and pharmacological strategies to specifically dismantle the CS-glycocalyx. Surface CS chains were effectively removed either by exogenous application of chondroitinase ABC/AC1 lyases (CS’ase) (Fig. 5b, left, and Extended Data Fig. 7b) or by U87MG cells stably expressing chondroitinase ABC (ChABC) (Fig. 5c, left, and Extended Data Fig. 7c). Both approaches restored EV binding in acidic cells (Fig. 5b,c, middle panels); intriguingly, this did not translate into similarly enhanced EV uptake (Fig. 5b,c, right panels). These findings suggest that, although the CS-glycocalyx imposes a barrier to lipid particle binding, specific HSPG-mediated scavenging functions are not reinstated upon CS-glycocalyx removal alone. Strikingly, inhibition of CS biosynthesis by CSGALNACT1 knockdown restored lipid scavenging in AA cells (Fig. 5d,e and Extended Data Fig. 7d). Similarly, treatment with the CSPG inhibitor 4-nitrophenyl β-D-xylopyranoside (CSi), which competes with CS substitution onto core proteins³⁶, fully restored lipid uptake, matching the levels observed in NA cells (Fig. 5f,g).

**Fig. 5: Acidosis-induced CS-glycocalyx restricts lipid uptake through encapsulation and SDC1 glycan remodelling.**

These findings prompted us to focus on syndecan-1 (SDC1), a key cell-surface HSPG implicated in lipid particle scavenging^33,37,38. High-resolution imaging revealed robust co-internalization of SDC1 with lipid particles into endocytic vesicles in NA cells (Extended Data Fig. 7e). Moreover, consistent with SDC1-dependent scavenging^14,39, EV uptake by NA cells mainly followed membrane raft-mediated endocytosis (Extended Data Fig. 7f). Conversely, residual EV uptake in AA cells was predominantly routed through macropinocytosis (Extended Data Fig. 7f). Notably, SDC1 is a hybrid PG that can variably carry CS chains, particularly under TGF-β signalling⁴⁰, raising the possibility of perturbed HS substitution of SDC1 in AA cells. Indeed, despite comparable total SDC1 levels between NA and AA cells (Extended Data Fig. 7g), HS-substituted SDC1 was nearly absent in AA cells (Fig. 5h), which was associated with decreased SDC1 surface presentation and internalization (Fig. 5i,j and Extended Data Fig. 7h,i). Additionally, SDC1 localization shifted from vesicular compartments in NA cells to a diffuse distribution in AA cells (Extended Data Fig. 7j). Notably, CSi treatment both restored SDC1 internalization (Fig. 5j) and reinstated its vesicular localization in AA cells (Extended Data Fig. 7j). Collectively, these data delineate a dual mechanism by which CS induction impairs lipid scavenging under acidic stress: (1) by establishing a barrier to lipid particle binding and (2) by disrupting the SDC1-HS scavenging function (Extended Data Fig. 7k).

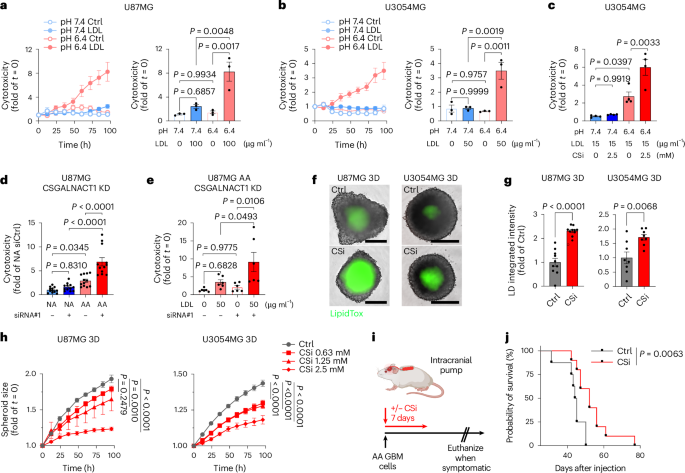

CS-glycocalyx functions as a protective shield preventing lipid overload and cytotoxicity during acidosis adaptation

We hypothesized that the CS-glycocalyx, by restricting lipid scavenging, serves to maintain lipid homeostasis and prevent lipotoxicity in acidosis. To test this, we initially challenged U87MG and primary GBM cultures to high concentrations of lipid particles simultaneously with the introduction of acidosis, that is, prior to a fully established CS-glycocalyx. This led to a progressive cytotoxic response over time (Fig. 6a,b), as well as growth arrest (Extended Data Fig. 8a,b). Notably, these effects were specific to the combination of acidosis and high-dose lipids, as neither acidosis alone nor lipids at pH 7.4 induced comparable cytotoxic effects (Fig. 6a,b). Inhibition of CS-glycocalyx formation using the CS biosynthesis competitor CSi further sensitized cells to the early antiproliferative effects of lipid particles (Extended Data Fig. 8c). Moreover, CSi enhanced lipid-induced cytotoxicity at acidic pH, with lower lipid doses being sufficient to trigger cell death (Fig. 6c and Extended Data Fig. 8d). Again, these effects were not observed at pH 7.4, underscoring a context-dependent protective role of CS-glycocalyx. Supporting this, CSGALNACT1 knockdown resulted in enhanced lipid-induced cytotoxicity in AA cells, a response absent in NA cells (Fig. 6d and Extended Data Fig. 8e), and dependent on extracellular lipids (Fig. 6e and Extended Data Fig. 8f). To further investigate the role of CS-glycocalyx in a model where acidosis progressively develops, we examined the effects of CSi treatment in 3D cultures. We first could confirm a striking reduction in CS-glycocalyx in the acidic spheroid core with CSi treatment (Extended Data Fig. 8g,h). Interestingly, in parallel, we found a significant LD induction in the spheroid core (Fig. 6f,g and Extended Data Fig. 8i,j). This compensatory upregulation of LDs led us to speculate that the CS-glycocalyx shield and the LD intracellular sink cooperatively mediate lipid homeostasis during acidosis adaptation, preventing lipotoxicity. Consistent with this, CSi treatment led to dose-dependent inhibition of spheroid growth (Fig. 6h and Extended Data Fig. 8k), although the response was predominantly cytostatic.

We next aimed to understand whether acidosis-induced CS-glycocalyx was associated with a more aggressive phenotype, and whether this could be targeted in vivo. AA compared to NA spheroids exhibited enhanced invasiveness (Extended Data Fig. 8l), and AA cells displayed accelerated growth and reduced survival relative to NA cells in a mouse xenograft model (Extended Data Fig. 8m,n). Similarly to patient GBM, AA-derived tumours displayed prominent CS-glycocalyx enrichment that overlapped with CA9 and LDs (Extended Data Fig. 8o). Given its physicochemical properties and high polarity, CSi is unlikely to cross the blood–brain barrier (BBB). To enable local delivery, we employed osmotic pumps for continuous intracerebral administration over seven days (Fig. 6i). Notably, this treatment was sufficient to prolong survival in mice bearing AA xenografts (Fig. 6j). Together, these findings reveal that the CS-glycocalyx functions in concert with LDs to prevent lipid overload and associated cytotoxicity during acidosis adaptation.

Dual targeting of CS-glycocalyx and LD formation synergistically disrupts lipid homeostasis and compromises survival of acidic cancer cells

We next explored whether combined targeting of the CS-glycocalyx and LD formation could provide a strategy to effectively destabilize the acidic tumour niche (Extended Data Fig. 9a). DGAT1i treatment alone induced some cytotoxicity under acidosis, which was markedly potentiated by concomitant CSi treatment (Fig. 7a,b and Extended Data Fig. 9b). This synergistic effect was strictly dependent on acidic conditions and the presence of extracellular lipids (Extended Data Fig. 9c). Supporting these findings, CSGALNACT1 knockdown similarly enhanced DGAT1i-induced cytotoxicity in AA cells (Fig. 7c and Extended Data Fig. 9d, left), while sparing NA cells (Extended Data Fig. 9d, right). siRNA treatment can lead to GPX4 upregulation and sensitization to ferroptotis⁴¹. However, siRNA-mediated CSGALNACT1 knockdown had no apparent stimulatory effect on GPX4 expression (Extended Data Fig. 9e). The combinatorial vulnerability of CS-glycocalyx and LD inhibition extended to several spheroid models (Fig. 7d,e and Extended Data Fig. 9f), as well as AA cell-derived spheroid invasiveness (Fig. 7f). Together, these results suggest that simultaneous disruption of CS-glycocalyx and LD formation creates a metabolic vulnerability in acidic tumour cells by uncoupling lipid uptake control from lipid detoxification.

**Fig. 7: Dual targeting of CS-glycocalyx and LD formation synergistically disrupts lipid homeostasis of acidic cancer cells.**

Combined inhibition of CS-glycocalyx and LD formation triggers ferroptosis in acidosis

Ferroptosis is characterized by excessive lipid peroxidation⁴². We hypothesized that the CS-glycocalyx acts as a critical protective barrier against ferroptosis in the acidic TME. To test this, we employed C11-BODIPY^581/591, a fluorescent lipid peroxidation sensor, and observed significantly increased lipid peroxidation upon combined CSi and DGAT1i treatment in acidic conditions (Fig. 8a and Extended Data Fig. 9g). This was accompanied by pronounced oxidative lipid damage, which was effectively suppressed by alpha-tocopherol (vitamin E), a lipophilic antioxidant (Extended Data Fig. 9h), and associated cytotoxicity in 2D cultures and spheroids (Extended Data Fig. 9i,j). The combined cytotoxicity of CSi and DGAT1i was abrogated by ferrostatin-1 or liproxstatin-1^43,44 (Fig. 8b,c and Extended Data Fig. 10a), confirming ferroptosis as the underlying mechanism. To corroborate these findings, we included inhibitors of apoptosis (QVD), autophagy (3-MA) and necroptosis (Nec-1s)⁴⁵, showing that only QVD reduced cytotoxicity, whereas none of the inhibitors restored cell density (Extended Data Fig. 10b–d). The QVD effects align with recent evidence that caspases can modulate ferroptotic cytotoxicity downstream of lipid peroxidation⁴⁶, and a crosstalk between apoptotic and ferroptotic pathways⁴⁷. Moreover, CSi and DGAT1i combination treatment was associated with extensive mitochondrial fragmentation and oxidative stress, effects that were significantly reduced by ferroptosis blockade (Fig. 8d,e and Extended Data Fig. 10e). Notably, these effects required the presence of extracellular lipids (Extended Data Fig. 10f) and were strictly dependent on acidic conditions (Extended Data Fig. 10g), underscoring the specificity of this ferroptotic vulnerability to the acidic, lipid-rich TME. Finally, we assessed the combination therapy in the aggressive AA cell-derived xenograft model (Fig. 8f). Under these conditions, we examined whether the CSi dosage could be reduced when combined with DGAT1i. CSi monotherapy again had a survival effect, although the lower concentration did not reach statistical significance (P = 0.1421), but DGAT1i alone showed no effect (Fig. 8f). However, the combination of CSi and DGAT1i significantly extended survival compared to controls (Fig. 8f). This was accompanied by increased tumour cell death (Fig. 8g), which overlapped with markers associated with ferroptosis, including malondialdehyde (MDA) and SLC7A11 (Fig. 8h and Extended Data Fig. 10h). Together, these data establish that CS-glycocalyx and LDs cooperatively function to limit ferroptosis in acidic cancer cells. Their combined inhibition unleashes a ferroptotic vulnerability that may be therapeutically exploited to target the lipid-stressed tumour niche (Extended Data Fig. 10i).

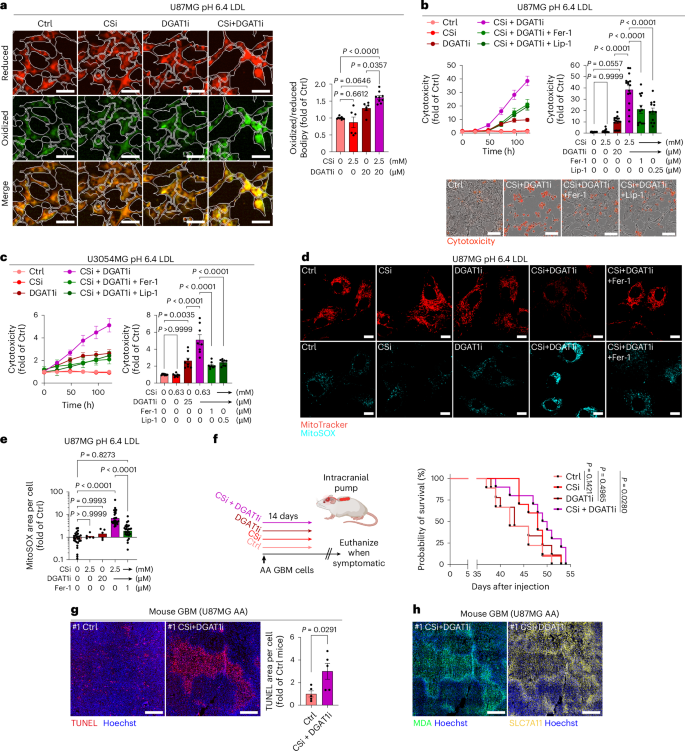

**Fig. 8: Combined inhibition of CS-glycocalyx and LD formation triggers lipid peroxidation and ferroptotic cell death in acidic cancer cells.**

Discussion

We have identified a glycan-mediated response to tumour acidosis in which intracellular LD accumulation is coupled to the formation of a CS-enriched glycocalyx. Together, these features constitute a bipartite adaptation: LDs buffer toxic lipids internally, while the CS-rich glycocalyx forms an external barrier that restricts lipid particle uptake and limits ferroptosis.

CS restructuring may be a more general adaptive response in cancer, as recently supported by CS-glycocalyx-mediated resistance during androgen receptor pathway inhibition in prostate cancer⁴⁸. Importantly, our findings, together with earlier studies, highlight the dynamic and context-dependent role of PGs in regulating lipid uptake. Under acute environmental stress (2–6 h) or perturbed GPX4-mediated antioxidant defences, HSPG-mediated lipid uptake supports cellular adaptation^14,16,17. In contrast, we show that persistent stress triggers a glycan switch that drives the formation of a CS-rich glycocalyx, which acts as a barrier to extracellular lipid access and enables evasion of ferroptosis.

We demonstrate a specific role of CSGALNACT1 that dictates CS substitution on PGs. The choice between HS and CS attachment onto proteins reflects a regulated competition between the initiating enzymes²⁶. The induction of CSGALNACT1 probably outcompetes the more sequence-restricted HS-initiating enzymes in hybrid PGs. Together, acidosis orchestrates a glycan switch in which SDC1, a hybrid CS/HSPG, is depleted of HS to restrict lipid particle influx. We employed EVs, which are physiologically relevant lipid carriers in the CNS⁴⁹, in parallel with LDL and HDL to probe the broader principle of lipid particle uptake in acidosis. Although neither LDL nor HDL cross an intact BBB, increased permeability and abnormal transcytosis, particularly in hypoxic/acidic tumour areas, may be more permissive⁵⁰, as supported by the leakage of GBM-derived EVs into the circulation⁵¹. Our data demonstrate that CS-glycocalyx induction suppresses the uptake of multiple structurally distinct lipid particles that rely on SDC1–HSPG. Notably, SDC1–HSPG also mediates scavenging of apoE-containing lipoproteins^34,38,52, supporting the notion that HDL-like, apoE-containing lipid particles, which dominate in astrocytes and microglia⁵³, use the same uptake machinery. The potential contribution of circulating lipoproteins to the GBM ecosystem as well as astrocyte-derived HDL particles remains an important question for future studies. Moreover, the possibility that other HSPG-dependent ligands⁵⁴ are also hindered by CS-glycocalyx should be further explored. Notably, abnormal insulin and FA exposure of hepatocytes has previously been shown to induce the exchange of CS for HS on SDC1, resulting in decreased affinity for lipoprotein particles⁵⁵. In this Article we provide a direct demonstration that site-specific glycosylation remodelling governs nutrient acquisition in cancer.

We find that CS-glycocalyx formation is driven by the coordinated action of HIF and TGF-β. Cooperative interactions between HIF and TGF-β signalling have previously been reported, driving extracellular matrix (ECM) reorganization and tumour progression^56,57. Notably, renal cell carcinoma, which exhibits constitutive HIF activation and LD accumulation, also overexpresses TGF-β as well as CSPGs^58,59,60. However, a direct role of HIFs in the regulation of CS-glycocalyx formation has not been described previously. Our data provide evidence that HIF-1α binds to the promoters of genes related to PG function and GAG biosynthesis in response to acidic adaptation. The precise mechanisms by which TGF-β and HIFs cooperate to remodel the stressed TME remain an important area for future investigation.

We also observed CS enrichment in CA9⁻/LD⁻/CD31⁺ regions, raising the possibility that CS remodelling contributes to the dysfunctional vasculature in GBM. Notably, recent work in mice revealed that the brain endothelial glycocalyx undergoes shifts in GAGs (including CS and HS) during ageing⁶¹. Such glycocalyx alterations may affect barrier leakiness, immune cell infiltration and the perivascular invasion routes of GBM cells. Future studies should determine whether CS accumulates in the endothelial glycocalyx or is associated with perivascular pericytes, potentially under the influence of TGF-β, and whether its abundance distinguishes GBM from healthy brain and low-grade glioma vasculature.

Feron and collaborators reported that LD accumulation can promote a mesenchymal-like invasive phenotype in acidic cancer cells³⁰. Extending this concept, the same group revealed that exogenous polyunsaturated FAs (PUFAs) induce lipid peroxidation and ferroptosis⁶². Others have shown that LDs can mitigate lipid peroxidation and reactive oxygen species (ROS) accumulation in acidic osteosarcoma cells⁶³, and DGAT1 inhibition demonstrated promising effects in a subcutaneous GBM model¹⁹. Although previous studies have demonstrated that peroxidation of n–3 and n–6 PUFAs can promote ferroptosis in acidosis⁶², we introduce the concept that cancer cells fine-tune their balance between environmental lipid supply and intracellular storage into LDs. DGAT1 targeting alone further amplified the insulating effect of the CS-glycocalyx, resulting in compensatory inhibition of extracellular lipid scavenging. Glycocalyx remodelling and lipid detoxification thus act in concert to regulate ferroptotic sensitivity. These insights open alternative avenues for therapeutic strategies whereby concurrent disruption of LDs and the CS-glycocalyx could be particularly effective when combined with interventions that increase the dietary supply and peroxidation of PUFAs.

Extracranial tumour models do not recapitulate the BBB and tissue-specific properties of the brain, posing a general challenge for translational efforts in GBM. We employed orthotopic tumour cell injections but were limited by the technical constraints of achieving sustained, local drug delivery via osmotic pumps. The future development of BBB-permeable CS and DGAT inhibitors or strategies for transient BBB opening will be essential to advance this therapeutic concept in vivo. Nonetheless, the concordance between patient tumour data and human PDC-derived in vitro and primary 3D models provides strong support for the relevance of the CS-glycocalyx in human GBM.

In summary, we uncover a stress-induced glycosylation program that governs lipid uptake, storage and survival in acidic tumours. These findings define glycan remodelling as a core determinant of metabolic plasticity and highlight the glycocalyx as a targetable shield sustaining tumour fitness under hostile conditions.

Methods

Ethical statement

All research involving human and animal materials in this study was conducted in accordance with relevant ethical regulations.

Compounds and antibodies

The following compounds were used: sodium chlorate (044408) from Alfa Aesar; cholera toxin subunit B-Alexa Fluor 488 (C34775), HCS LipidTOX green neutral lipid stain (H34475), MitoSOX (M36008), MitoTracker FM Red (M22425), BODIPY 581/591 C11 (D3861), DiL-labelled LDL from human plasma (L3482), Transferrin-Alexa Fluor 488 (T13342), all from Invitrogen; human TGF-β 1 recombinant protein (100-21C) and human TGF-β2 recombinant protein (100-35B) from PeproTech; IncuCyte Cytotox green dye (4632), IncuCyte Cytotox red dye (4633) from Sartorius; liproxstatin-1 (S7699), quinoline-Val-Asp-difluorophenoxymethylketone (S7311) from Selleck; ferrostatin-1 (SML0583), 4-nitrophenyl β-D-xylopyranoside (2132), chondroitinase ABC (C2905), chondroitinase AC1 (C2780), dextran–FITC (46945), DGAT1 inhibitor A922500 (A1737), dimethyloxalylglycine (D3695), Fasnall benzenesulfonate salt/FASN inhibitor (SML1815), LDL human (LP2), alpha-tocopherol (T3634), albumin-FITC (A9771), heparinase I (H2519), heparinase III (H8891), all from Sigma-Aldrich; Hoechst 33342 (1399) from Thermo Fisher Scientific; TGF-β receptor inhibitor (SB431542, 1614) from Tocris Bioscence; DiL-labelled HDL from human plasma (770330), human LDL (770200) from Kalen Biomedical; necrostatin 1S (HY-14622A), 3-methyladenine (HY-19312) from MedChemExpress.

The acidic pH reporter pH-low insertion peptide variant 3 (pHLIP V3; NH2-ACDDQNPWRAYLDLLFPTDTLLLDLLW-COOH)²³ was prepared by solid-phase peptide synthesis and conjugated with tetramethylrhodamine (TAMRA) by Innovagen. The molecular weight of the peptide was confirmed by mass spectrometry analysis, and the purity was determined by analytical high-performance liquid chromatography (HPLC).

The following antibodies were used: α-tubulin (clone DM1A, ab7291, western blot (WB): 1:10,000), CD63 (clone MEM-259, ab8219, WB: 1:1,000), syndecan-1 (clone EPR6454, ab128936, IF/Flow Cyt: 1:500, WB: 1:3,000), EEA1 (ab2900, WB: 1:1,000), flotillin1 (ab41927, WB: 1:1,000), TSG101 (ab30871, WB: 1:1,000), β-actin (ab8227, WB: 1:10,000), CD9 (clone EPR2949, ab92726, WB: 1:1,000), GPX4 (clone EPNCIR144, ab125066, WB: 1:1,000); all from Abcam; mouse CD31 (clone MEC 13.3, 553371 IF 1:100) from BD Biosciences; CA9 (clone M75, AB1001, IF: 1:200) from Bioscience Slovakia; CD68 (clone D4B9C, 76437, IF 1:800), HIF-2α (clone D6T8V, 59973, WB: 1:1,000), SNAIL (clone C15D3, 3879, WB: 1:2,000), total-SMAD2 (clone D43B4, 5339, WB: 1:2,000), phospho-SMAD2 (Ser465/467) (clone 138D4, 3108, WB:1:2,000), TGF-β (3711, WB: 1:2,000), all from Cell Signaling; human CD31 (clone JC70A, M0823, IF: 1:50) from Dako; HIF-1α (GTX127309, WB: 1:1,000) from GeneTex; malondialdehyde (clone 6H6, MA5-27559, IF: 1:50), SLC7A11 (clone A7C6-R, MA5-44922, IF: 1:200), both from Invitrogen; chondroitinase ABC (ChABC) (clone 1E10, NBP1-96141, IF:100), apoE (clone WUE-4, NB110-60531, WB: 1:500), both from Novus Biologicals; CS (clone CS-56⁶⁴, C8035, IF/Flow Cyt: 1:200) from Sigma-Aldrich; single-chain fragment variable (scFv) HS (clone, AO4B08⁶⁵, IF/Flow Cyt: 1:50), CS (clone GD3G7⁶⁶, IF/Flow Cyt: 1:50), CS (clone IO3H10⁶⁷, IF/Flow Cyt: 1:50) (kindly provided by Dr T. H. van Kuppevelt) and used together with mouse anti-VSV (clone P5D4, V5507, IF/Flow Cyt: 1:500) or rabbit anti-VSV (V4888, IF/Flow Cyt: 1:500), all from Sigma-Aldrich.

The following secondary antibodies were used: horseradish-peroxidase (HRP)-conjugated anti-rabbit (7074, WB: 1:10,000) from Cell Signaling or anti-mouse (a9044, WB: 1:10,000) from Sigma-Aldrich; goat anti-mouse Alexa Fluor 488 (A1100, 1:500), Alexa Fluor 546 (A11030, 1:500), Alexa Fluor 647 (A21235, 1:500) or goat anti-rabbit Alexa Fluor 488 (A11008, 1:500), Alexa Fluor 546 (A11010, 1:500), Alexa Fluor 647 (A21244, 1:500), streptavidin Alexa Fluor 488 (S32354, 1:500), streptavidin Alexa Fluor 546 (S11225, 1:500) or streptavidin Alexa Fluor 647 (S21374, 1:500), all from Invitrogen.

Human brain tumour sample collection and processing

Clinical specimens were collected from patients referred to the Neurosurgery Department at Lund University Hospital, Sweden. The study was carried out according to the ICH/GCP guidelines and in agreement with the Helsinki declaration, and was approved by the local ethics committee, Lund University (Dnr. 454 2018/37). Inclusion criteria were age 18 years or above, WHO performance status 0–4, and ability to give written informed consent. No exclusion criteria related to sex and gender were present for the study. Participation was voluntary, and no financial or other incentives were provided. Patients were diagnosed by routine magnetic resonance imaging (MRI) of the brain, followed by standard surgical and pathological procedures, and received standard oncological treatment and appropriate follow-up according to national recommendations. Tumour specimens obtained from patients with glioma (WHO grade 2–4) or CNS metastasis were cryopreserved by snap-freezing in isopentane for further immunohistochemistry and immunofluorescence (IF) evaluation. Alternatively, fresh tumour tissue was minced with a dissecting scalpel, then dissociated with TrypLE Express (Gibco) and DNase I (Thermo Fisher Scientific) at 37 °C for 20 min on an orbital shaker. After filtration through 70- and 40-μm nylon cell filters, red blood cells were removed using red blood cell lysis buffer (BioLegend). PDCs were allowed to adhere before proceeding with further experiments and were fixed for IF analysis.

Cell lines and patient-derived primary GBM cultures

Human GBM (U87MG, HBT-14) and pancreatic adenocarcinoma cell lines (PANC1, CRL-1469), both newly purchased from ATCC, were routinely cultured in high-glucose Dulbecco’s modified Eagle medium (DMEM; Cytiva HyClone) supplemented with 10% fetal bovine serum (FBS; Sigma-Aldrich), 2 mM L-glutamine (L-Glut; Sigma-Aldrich), 100 U ml⁻¹ penicillin and 100 µg ml⁻¹ streptomycin (PEST; Sigma-Aldrich). Patient-derived primary GBM cell cultures from the Human Glioma Cell Culture Biobank (HGCC)⁶⁸, Uppsala U3054MG, U3047MG and U3017MG, were routinely cultured on surfaces precoated with 10 µg ml⁻¹ poly-L-ornithine (Sigma-Aldrich) and 10 µg ml⁻¹ laminin from Engelbreth–Holm–Swarm murine sarcoma basement membrane (Sigma-Aldrich), in primary cell medium composed of Neurobasal (Gibco) and DMEM/F12 medium (1:1, Gibco) supplemented with 10 ng ml⁻¹ epidermal growth factor (EGF) (Peprotech), 10 ng ml⁻¹ fibroblast growth factor 2 (FGF2) (Peprotech), stem cell supplements 1% N2 (Gibco) and 2% B27 (Gibco) and 1% penicillin/streptomycin (PEST). For 3D spheroid cultures, GBM cells were grown either in poly(2-hydroxyethyl methacrylate) (poly-HEMA; Merck)-coated dishes or in PrimeSurface 3D culture spheroid plates (S-Bio), then placed on an orbital shaker at 90 r.p.m. for 3–14 days.

Acidosis-adapted (6.4/AA) and non-adapted (7.4/NA) culture cells

To investigate the effects of acidosis, cells were cultured for the indicated timepoints in pH 6.4 medium supplemented with 20 mM HEPES (Merck), 20 mM 4-morpholineethanesulfonic acid sodium salt (MES; Sigma-Aldrich) and 20 mM 4-morpholinepropanesulfonic acid (MOPS; Sigma-Aldrich) to obtain stable acidic conditions. Medium pH was adjusted using 1 M HCl and/or 1 M NaOH, and sterile-filtered before use. AA cancer cells were established after 10 weeks treatment in pH 6.4. Control NA cells were grown under the same conditions but at physiological pH 7.4.

All cells were routinely cultured in a humidified atmosphere of 5% CO₂ at 37 °C. For hypoxia experiments, cells were incubated in a humidified Sci-tive NN hypoxia workstation (Ruskinn Technology) set at 5% CO₂, 94% N₂, 1% O₂ and 37 °C for the indicated timepoints. Cells were routinely tested for mycoplasma by Hoechst staining and high-resolution confocal microscopy.

Laser microdissection

Human GBM tumour cryosections (10 μm) were mounted on nuclease DNase and RNase-free membranes (FrameSlidePET; Zeiss). The samples were rapidly stained for nuclei with cresyl violet (Sigma-Aldrich) and dehydrated in ice-cold ethanol. Adjacent sections were mounted on poly-lysine coated slides and stained for nuclei (Hoechst; Thermo Fisher Scientific), HCS LipidTOX (1:500) and the macrophage marker CD68. CD68 was used to identify and exclude LD-loaded macrophages, as described previously⁵. The tumour areas categorized as LD⁺/CD68⁻ and LD⁻/CD68⁻ from different membranes were isolated by laser microdissection (LCM) using the Zeiss PALM system employing a ×5 objective to identify the region of interest and a ×20 objective for precise cutting (n = 5 patients, with a total area of ~10 mm²), pooled by group and then dissolved in 50 µl of lysis solution within specialized AdhesiveCaps. RNA extraction, quality control and mRNA expression analyses are described in the ‘Sample preparation for gene expression analysis’ section.

Sample preparation for gene expression analysis

For 3D versus 2D

Primary GBM cells (U3054MG, U3047MG and U3017MG) were grown at pH 7.4 in routine culture medium as described above. Sub-confluent 2D cultures were lysed 72 h after seeding. For 3D spheroid cultures, cells were cultured in poly-HEMA coated dishes at 2 × 10⁵ cells ml⁻¹ for 14 days before lysis, with medium exchanged every fourth day.

For acidosis/hypoxia treatment

U87MG cells were grown short term (48 h) in serum-free routine culture medium at pH 7.4 or 6.4, or at pH 7.4 in hypoxia, before lysis. U87MG and PANC1 NA and AA cells were grown in serum-free culture medium for 48 h, before lysis. For LCM-isolated GBM samples and primary GBM cell 3D/2D culture samples, RNA was isolated using an AllPrep DNA/RNA micro kit (Qiagen), and for all other samples an RNAeasy mini kit (Qiagen) was used. RNA concentration and purity were determined using a BioAnalyzer to ascertain acceptable RNA integrity number (RIN) values, and mRNA expression was analysed either on an Affymetrix Clariom D Pico gene array (LCM samples; primary cell 3D/2D culture samples; PANC1 NA/AA samples) or on an Illumina HumanHT-12 v4 Expression BeadChip system (U87MG short-term acidosis/hypoxia samples; U87MG NA/AA samples).

GBM-CM and EV isolation

EVs were isolated from parental U87MG cells grown in serum-free medium, supplemented with 1% bovine serum albumin (BSA; Sigma-Aldrich), to exclude contamination with serum lipoproteins. Conditioned medium (CM) was collected after 48 h and centrifuged twice at 400g and 4 °C to remove cell debris. In some cases, CM from U87MG NA and AA cells (U87MG NA/AA CM) was collected in the same way. EVs were pelleted by ultracentrifugation at 100,000g at 4 °C for 2 h and washed with phosphate-buffered saline (PBS), followed by two additional ultracentrifugation steps at 100,000g for 2 h. The final pellet was resuspended in PBS, and protein concentration was determined by a bicinchoninic acid assay (Pierce). EVs were characterized by immunoblotting for EV markers (see ‘Western blot analysis’ section) and by an Exoid system (Izon) for high-resolution measurements of particle size and concentration.

Generation of U87MG ChABC-expressing cell line

A plasmid containing an optimized chondroitinase ABC (ChABC) sequence was generously provided by Dr E. M. Muir⁶⁹. Restriction cloning was used to insert the ChABC sequence into the pLenti-CMV-IRES-puro lentiviral gene expression vector (Addgene). ChABC lentivirus for transduction was produced by PEI transfection with third-generation plasmids and U87MG cells were transduced overnight (multiplicity of infection (MOI)of 10). U87MG ChABC-expressing cells were selected and routinely cultured in puromycin (2 µg ml⁻¹, Sigma-Aldrich).

siRNA transfection

For siRNA-mediated knockdown (KD), U87MG NA and AA cells were transfected with siRNAs targeting CSGALNACT1 (siRNA#1: Hs_ChGn_8 FlexiTube, cat. no. SI04193273; siRNA#2: Hs_ChGn_1 FlexiTube, cat. no. SI00345793; both Qiagen) or a non-targeting control (siCtrl: negative control siRNA, cat. no. 1022076; Qiagen), at a final concentration of 10 nM, using Lipofectamine RNAiMAX (Thermo Fisher Scientific) according to the manufacturer’s instructions in Opti-MEM I reduced serum medium (Gibco). Six hours after the initial transfection, the medium was replaced with fresh culture medium. After 48 h, the transfection procedure was repeated. At 96 h post-initial transfection, cells were collected for downstream experiments and analyses.

Cell treatments

Lipid particles

Exogenous lipid particle treatments in 2D cultures were conducted at either pH 7.4 or pH 6.4 in SF routine culture medium, according to cell line, supplemented with or without EVs (50 or 100 µg ml⁻¹), LDL (15, 50 or 100 µg ml⁻¹) or 10% FBS. Unless otherwise specified in the figures or figure legends, low-dose LDL was applied at 15 µg ml⁻¹ in U3047MG and U3054MG cells, and at 50 µg ml⁻¹ in U87MG cells.

3D treatments

For 3D spheroid culture treatments, cells were first cultured for three days in PrimeSurface 3D culture spheroid plates (S-Bio) under standard culture conditions appropriate for each cell line, at pH 7.4. Treatments were then applied, with specific compounds and treatment durations detailed in the corresponding figures or figure legends. All treatments in 3D cultures were conducted in pH 7.4 medium.

CSPG inhibition

CSPG biosynthesis was inhibited by treatment with 4-nitrophenyl β-D-xylopyranoside³⁶ (CSi; 0.625, 1.25 or 2.5 mM). Cells were either pre-treated (48 h) before proceeding with further experiments or treated continuously. Treatment durations and culture medium conditions are detailed in the corresponding figures or figure legends. For PG sulfation inhibition experiments, cells were pre-treated (24 h) with sodium chlorate⁷⁰ (chlorate; 25 mM) or NaCl (Sigma-Aldrich), to control for osmotic effects of high chlorate concentration, before proceeding with further experiments. For CS enzymatic digestion experiments, cells were cultured in SF routine culture medium (pH 7.4) and treated without or with chondroitinase ABC lyase (60 mU ml⁻¹) and chondroitinase AC1 lyase (30 mU ml⁻¹) for 3 h at 37 °C. Enzyme addition was repeated, then incubation for another 3 h at 37 °C, followed by extensive washing before proceeding with further experiments.

Targeting lipid metabolism

Cells were treated with the FASNi SML1815 (50 µM) or the diacylglycerol O-acyltransferase-1 (DGAT1) inhibitor A922500 (DGAT1i; 12.5, 20, 25 or 50 µM). Treatment durations and culture medium conditions are detailed in the corresponding figures or figure legends.

Treatments inducing and inhibiting ferroptosis

Where indicated, DGAT1i treatment was combined with CSi (as described above) or applied following siRNA-mediated KD of CSGALNACT1. In some experiments, cells were pre-treated for 24 h and subsequently co-treated with alpha-tocopherol (α-Toco; 0.25 or 50 mM), ferrostatin-1 (Fer-1; 1 µM), liproxstatin-1 (Lip-1; 0.25, 0.5 or 1 µM), necrostatin 1S (Nec-1s; 1 or 5 µM), 3-methyladenine (3-MA; 10 or 20 µM) or quinoline-Val-Asp-difluorophenoxymethylketone (QVD; 20 µM). Treatment durations and culture medium conditions are detailed in the corresponding figures or figure legends.

TGF-β and DMOG treatments

Cells were treated with exogenous TGF-β1 or TGF-β2 (1 or 4 ng ml⁻¹) for 48 h, or with the hypoxia mimetic agent dimethyloxalylglycine (DMOG; 0.5 or 1 mM) for 72 h, at pH 7.4 in SF culture medium supplemented with LDL (15 or 50 µg ml⁻¹). TGF-β1 and TGF-β2 treatments were preceded by 24 h of SF starvation. In some experiments, treatments were combined with the TGF-β receptor inhibitor SB431542 (TGFβRi; 5 or 15 µM). Additionally, in some experiments, TGF-β1 and DMOG were co-administered. All compounds used in cell treatments are listed in the section ‘Compounds and antibodies’.

Lipid particle surface binding and uptake experiments

EVs were isolated as described above and, after the second centrifugation step, labelled with PKH67 green or PKH26 red fluorescence lipophilic dyes (Sigma-Aldrich), as previously described and recommended by the manufacturer^5,14,15. For lipid particle uptake experiments, adherent cells were incubated with U87MG-derived PKH-labelled EVs, DiL-labelled LDL or DiL-labelled HDL (15 µg ml⁻¹ or as indicated) in SF routine culture medium (pH 7.4) for 1 h at 37 °C. The cells were extensively washed with PBS and 1 M NaCl, and either fixed in 4% paraformaldehyde (PFA; Sigma-Aldrich) and analysed by confocal microscopy or detached by trypsin (Gibco) and analysed by flow cytometry. For confocal co-localization experiments of EVs and endocytosis markers, cells were co-incubated with PKH-labelled EVs (50 µg ml⁻¹) and either cholera toxin subunit B-AF488 (CtxB; 25 µg ml⁻¹) or dextran–FITC (Dx; 2.5 mg ml⁻¹) before fixation and imaging. For confocal co-localization studies of SDC1 with PKH-labelled EVs or DiL-labelled LDL, the cells were pre-incubated with an anti-SDC1 antibody on ice for 30 min, followed by extensive washing with PBS. Lipid particle uptake was then performed as described above, after which cells were fixed, permeabilized, stained and imaged by confocal microscopy. For surface binding experiments, cells were detached using 0.5 mM ethylenediaminetetraacetic acid (EDTA; Sigma-Aldrich), washed, and incubated with U87MG-derived PKH67-labelled EVs or DiL-labelled LDL (15–50 µg ml⁻¹) in PBS containing 3% BSA for 1 h at 4 °C. The cells were then extensively washed with PBS and analysed by flow cytometry. All compounds, antibodies and dilution factors are listed in the section ‘Compounds and antibodies’.

Tissue section and cell imaging

Human tumour and mouse brain cryosections (6 μm) were rehydrated in PBS for 5 min and fixed in 4% PFA. Plated 2D cells and 3D spheroid cultures were fixed in 4% PFA, and spheroids were subsequently incubated in 0.5 M sucrose at 4 °C overnight before being embedded in optimal cutting temperature (OCT) compound and sectioned (6 µm). For staining of cell-surface antigens, samples were blocked for 1 h at room temperature (r.t.) in PBS supplemented with 3% BSA (for plated cells) or 3% normal goat serum (for tissue and spheroid sections). For intracellular antigen staining, samples were permeabilized with 0.5% saponin for 15 min at r.t. Following blocking and/or permeabilization, samples were incubated overnight at 4 °C with primary antibodies diluted in the respective blocking solution. Samples were washed with PBS and fluorescently labelled with secondary antibodies for 1 h at r.t. All antibodies and dilution factors are listed in the section ‘Compounds and antibodies’. LDs were stained with HCS LipidTOX (1:1,000) for 30 min at r.t. Terminal deoxynucleotidyl transferase dUTP nick end labelling (TUNEL) staining for dead cells was performed using the Click-iT Plus TUNEL Assay Kit and Alexa Fluor 647 (C10619, Thermo Fisher Scientific) according to the manufacturer’s instructions. Nuclei were stained with Hoechst 33342 for 10 min at r.t., and sections were washed and mounted with fluorescent mounting medium (Invitrogen). For imaging of the acidic pH reporter pHLIP peptide in 2D plated cells, live cells were incubated for 30 min on ice with TAMRA-conjugated pHLIP V3 (2 µM) in SF culture medium set to pH 6.0 or 7.4. Cells were washed with PBS, fixed in 4% PFA, and the nuclei were stained with Hoechst 33342 before analyses. For 3D spheroid cultures, four- or nine-day-old spheroids were incubated for 24 h with TAMRA-conjugated pHLIP V3 (2 µM) in SF pH 7.4 medium. Afterwards, the spheroids were collected, fixed in PFA, incubated with sucrose, embedded in OCT, sectioned, and stained as described above. For mitochondrial imaging, live cells were stained with MitoTracker Red FM (200 nM) or MitoSOX Red (2.5 µM) in SF culture medium for 30 min at 37 °C. After staining, the cells were washed and maintained in SF medium without phenol red (FluoroBrite DMEM, Gibco) and immediately imaged live.

Three imaging platforms were used and all samples from the same experiment were imaged with the same gain and exposure settings. The first is an LSM710 Airyscan confocal platform (Carl Zeiss AG), as follows: an inverted Axio Observer Z.1 LSM 710 confocal laser scanning microscope with an Airyscan detector and a photomultiplier tube (PMT) detector (Zeiss), equipped with a ×63/1.4 Plan-Apochromat oil-immersion, a ×40/1.3 EC Plan-Neofluar oil-immersion objective lens (Zeiss) and a diode laser (405 nm), a Lasos argon laser (488 nm), DPSS 561 nm and HeNe laser 633 nm (Zeiss); this system operates under ZEN 2.1 (black). The second platform is an LSM980 confocal platform (Zeiss) as follows: an inverted Axio Observer 7 LSM980 confocal laser scanning microscope (Zeiss), equipped with a 32-channel GaAsP spectral PMT detector, a ×63/1.40 C Plan-Apochromat oil-immersion lens, a ×40/1.20 C-Apochromat water-immersion objective lens (Zeiss) and diode lasers at 405 nm, 488 nm, 561 nm and 633 nm (Zeiss); this system operates under ZEN 3.8.2 (blue). The third platform is an Axio Scan.Z1 slide scanner (Zeiss) set-up as follows: an Axiocan 506 camera, a ×20/0.8 M27 Plan-Apochromat objective lens and a Colibri 5/7 LED light source (all Zeiss), with illumination performed with 385-nm, 475-nm, 555-nm and 630-nm LEDs; this system operates under ZEN 3.1 (blue).

Images were processed for analysis and visualization using ZEN 3.1 (blue), and the brightness and contrast settings were linearly adjusted and kept identical for images intended for comparison. All image analysis was performed using ImageJ software (v1.54p). For image-based quantifications of CS (Fig. 4d and Extended Data Fig. 8h), MitoTracker (Extended Data Fig. 10e,f), MitoSOX (Fig. 8e and Extended Data Fig. 10f,g) or TUNEL (Fig. 8g), the signal fluorescence area was quantified on single-channel images after thresholding and, where indicated, normalized to the corresponding cell number within the same field. For CS quantification in LD⁺ versus LD⁻ regions of patient GBM sections (Fig. 2c), CD31 was used to identify and exclude areas of vessels, and the CS signal fluorescence area was quantified as described above. For image-based LD quantification (Figs. 2f and 4a,d and Extended Data Fig. 6a,e), LD positive area per cell was quantified by particle analysis after thresholding. To quantify the co-localization of internalized EVs with endocytosis markers (Extended Data Fig. 7f), regions of interest (ROIs) from single-cell outlines were saved in ImageJ software (v1.54p) and then converted into images using a custom-made MATLAB script. Endocytosis marker segmentation masks were created using maximum correlation thresholding in CellProfiler (v4.2.1) and were used to create masked objects from the EV channel. Finally, EV pixel intensities were quantified using MATLAB (v2018a) from the entire cell and from the masked EV images. EV-signal co-localizing with endocytosis marker was normalized against total internalized EV signal before plotting to obtain the proportion of co-localizing signal per cell.

Immunohistochemistry

Human tumour and mouse brain cryosections (6 µm) were fixed in 4% PFA in PBS, washed with tap water, and counterstained with haematoxylin and eosin (H&E; Histolab). Slides were then briefly dipped in graded alcohols (70% and 100%) and cleared twice in xylene for 5 min each. Finally, the slides were mounted and imaged using an Axio Scan.Z1 slide scanner (Zeiss).

Flow cytometry analysis

For staining of cell-surface antigens, cells were detached using 0.5 mM EDTA (Sigma-Aldrich), washed with PBS containing 3% BSA, and incubated with primary antibodies diluted in 3% BSA-PBS for 1 h at 4 °C. After incubation, the cells were washed, fixed in 2% PFA, and incubated with fluorescently labelled secondary antibodies for 1 h at r.t. Finally, the cells were extensively washed in PBS before analysis. For antibody uptake experiments, primary and fluorescently labelled secondary antibodies were pre-complexed for 30 min at r.t., then incubated with adherent cells for 1 h at 37 °C. Following incubation, the cells were detached using trypsin and washed in PBS before analysis. All antibodies and dilution factors are listed in the section ‘Compounds and antibodies’. Endocytic activity was assessed by incubating adherent cells with endocytic ligands in SF medium for 1 h at 37 °C. The ligands included cholera toxin subunit B-AF488 (CtxB; 5 µg ml⁻¹), dextran–FITC (Dx; 0.5 mg ml⁻¹) and transferrin-AF488 (Tfn; 10 µg ml⁻¹). Following incubation, the cells were washed with PBS, detached by trypsin, and washed again in PBS before analysis. Cell-surface proteins were biotinylated and internalized for 2 h as described in the ‘Membrane protein biotinylation and endocytosis’ section. The cells were then detached with trypsin, fixed, permeabilized (0.5% saponin, 30 min), blocked with 3% BSA, and stained with streptavidin-AF488 (5 μg ml⁻¹) before PBS washes and analysis. All samples were analysed on an Accuri C6 flow cytometer (BD Biosciences). For each sample, at least 10,000 events were recorded and analysed using BD CSampler Plus software v1.0.27.1 (BD Biosciences) and FlowJo (v10).

IncuCyte live-cell analysis

Cell confluency (2D cultures), 3D spheroid culture growth, cytotoxicity (2D and 3D cultures), spheroid invasion capacity, lipid peroxidation potential, LD accumulation and acidic pH reporter TAMRA-conjugated pHLIP V3 accumulation were monitored using the IncuCyte S3 live-cell analysis system (Sartorius), housed in a humidified 5% CO₂ incubator at 37 °C. Cells and 3D spheroid cultures were treated as described in the ‘Cell treatments’ section. To assess cytotoxicity, treatments were performed in the presence of IncuCyte Cytotox green or red dye (2.5 µM for 2D cultures; 1.25 µM for 3D cultures). For 3D culture invasion assays, spheroids were formed over three days as described above, then embedded in 10% Matrigel (Corning) diluted in SF culture medium for 30 min at 37 °C. Following embedding, treatments were initiated, and the spheroid invasive area was monitored over time. Lipid peroxidation potential was evaluated by adding the fluorescent lipid probe C11-BODIPY^581/591 (2.5 µM) in SF culture medium 24 h after treatment initiation, and incubated for 12 h before image acquisition. LD accumulation was assessed by adding HCS LipidTOX (1:1,000 dilution) in SF culture medium three days after treatment initiation, followed by incubation for 12 h before image acquisition. The acidic pH reporter pHLIP V3 integration was evaluated in 2D cultures by image acquisition 30 min after the addition of TAMRA-conjugated pHLIP V3 (2 µM) in SF culture medium set to pH 6.0, 6.4 or 7.4. For 3D cultures, four- or nine-day-old spheroids were incubated for 24 h with 2 µM TAMRA-conjugated pHLIP V3 in SF pH 7.4 medium before image acquisition. Unless otherwise stated, phase contrast and fluorescent images were acquired at four distinct locations in each well (for 2D cultures) or in one location per well (for 3D cultures) every third hour for four days or longer, as indicated in the figures or figure legends. IncuCyte S3 integrated software (v2022B Rev2 or v2024B) was used for analysis and visualization of the IncuCyte images, and all settings were adjusted and kept identical across images intended for comparison. For statistical analyses, each well was considered an individual data point. For cytotoxicity analyses in 2D cultures, total area (µm² per image) of the Cytotox signal (above a set threshold) was normalized to confluency percent per well. Cytotoxicity is expressed as fold of Ctrl for each time point, or as fold of t = 0, as indicated in the figures or figure legends. For analyses of 3D cultures, spheroid size (brightfield object total area, µm² per image) was normalized to t = 0 for each spheroid. Alternatively, total area (µm² per image) of the Cytotox signal (above a set threshold) was normalized to the brightfield object total area per spheroid and expressed as the cytotoxicity percent of the total spheroid. For spheroid invasion capacity, the largest invading brightfield object area (µm²) was quantified. Data were either presented as largest invading brightfield object area (µm²) over time or expressed as area under curve (AUC) values of invasive capacity over time. For LD accumulation in 3D cultures and pHLIP integration in 2D and 3D cultures, the respective signals are expressed as integrated intensity per cell (for 2D) or per spheroid (for 3D) and, when indicated in the figures or figure legends, normalized to Ctrl samples. Lipid peroxidation potential was calculated based on green integrated intensity (oxidized Bodipy) per well normalized to red integrated intensity (reduced Bodipy) per well and divided by the number of cells per well. The data are presented as fold of Ctrl, as indicated in the figures or figure legends.

Cell metabolic assay

Cell metabolic activity was assessed using the MTT assay (Sigma-Aldrich) following 24 h of treatment, as described in the ‘Cell treatments’ section, according to the manufacturer’s instructions.

Quantitative real-time quantitative PCR

Total RNA was extracted using a GenElute Mammalian Total RNA Miniprep Kit (Sigma-Aldrich) according to the manufacturer’s protocol, and complementary DNA was synthesized with a SuperScript III First-Strand Synthesis System kit (Thermo Fisher Scientific) with random hexamer primers running on a MasterCycler EpGradient 5341 thermal cycler. Real-time (RT) quantitative polymerase chain reaction (qPCR) was performed on a StepOnePlus real-time qPCR system (Applied Biosystems) using SYBR Green JumpStart Taq Readymix (Sigma-Aldrich). All reactions were run in triplicate with n ≥ 2 biological replicates. Gene expression was normalized to the GAPDH housekeeping gene and the relative expression was calculated using the comparative Ct method (2^−ΔΔCt). The primers, previously designed in our laboratory, are as follows (Thermo Fisher Scientific): BGN (Biglycan): Fv: CTCAACTACCTGCGCATCTCAG, Rv: GATGGCCTGGATTTTGTTGTG; CHSY1 (chondroitin sulfate synthase 1): Fv: 5′-GCCCAGAAATACCTGCAGAC-3′, Rv: 5′-GCACTACTGGAATTGGTACAGATG-3′; CSGALNACT1 (chondroitin sulfate N-acetylgalactosaminyl transferase 1): Fv: 5′-TCAGGGAGATGTGCATTGAG-3′, Rv: 5′-AGTTGGCAGCTTTGGAAGTG-3′; DCN (Decorin): Fv: 5′-AATGCCATCTTCGAGTGGTC-3′, Rv: 5′-TGCAGGTCTAGCAGAGTTGTGT-3′; DSE (dermatan sulfate epimerase): Fv: 5′-GTCCAGAGGCACTTCAACATC-3′, Rv: 5′-AGTCCGCAATAGCCACAGTC-3′; GAPDH (glyceraldehyde 3-phosphate dehydrogenase): Fv: 5′-GAAGGTGAAGGTCGGAGTCAAC-3′, Rv: 5′-CAGAGTTAAAAGCAGCCCTGGT-3′.

Western blot analysis

Cells, EVs or DiL-HDL particles were lysed in radioimmunoprecipitation assay (RIPA) buffer supplemented with cOmplete Mini EDTA-free protease inhibitor cocktail (Roche) and PhosSTOP phosphatase inhibitor (Roche). For PG core protein analyses, cells were lysed in 2% Triton X-100 buffer (Sigma-Aldrich), and total PGs were purified using diethylaminoethyl cellulose (DEAE)-cellulose chromatography, desalted with PD-10 columns, and subsequently freeze-dried, as previously described⁷¹. GAG chains were digested (or left untreated) with heparinase III (0.6 mIU ml⁻¹) and chondroitinase ABC (40 mU ml⁻¹) lyases at 37 °C overnight. Proteins were separated on a 4–12% NuPAGE Bis-Tris gel (Thermo Fisher Scientific) and transferred onto polyvinylidene difluoride (PVDF) membranes (Thermo Fisher Scientific). The membranes were blocked for 1 h at r.t. in either 5% skimmed milk or 3% BSA diluted in Tris-buffered saline with 0.1% Tween 20 detergent (TTBS), then incubated overnight at 4 °C with the indicated primary antibodies. After washing, the membranes were incubated with HRP-conjugated secondary antibodies for 1 h at r.t. All antibodies and dilution factors are listed in the section ‘Compounds and antibodies’. Target proteins were detected using ECL western blotting substrate (Thermo Fisher Scientific) according to the manufacturer’s instructions. Blot images were processed for analysis and visualization using ImageJ software (v1.54p) or Image Studio Lite (v5.3.5), and brightness and contrast were linearly adjusted. All unprocessed images of blots are available in the source data.

GAG composition analyses

CS and HS disaccharide composition analyses were performed as previously described^72,73. Briefly, U87MG NA and AA cells were grown to subconfluency, collected by scraping, and freeze-dried. Conditioned medium (48 h) from U87 NA and AA cells was collected in parallel and centrifuged twice at 400g to remove debris. Freeze-dried cell pellets and CM were digested with chondroitinases and heparinases at 37 °C overnight, and the resulting disaccharides were analysed by HPLC.

Membrane protein biotinylation and endocytosis

Cell-surface biotinylation and proteomic analyses were performed as previously described^74,75. Briefly, U87MG NA and AA cells were incubated on ice with 1 mg ml⁻¹ sulfo-NHS-SS-biotin (Thermo Fisher Scientific). Unbound biotin was quenched with 0.1 M glycine in PBS. For endocytosis assays, cells were incubated in pre-warmed SF medium at 37 °C for 2 h, then placed on ice to stop internalization. Surface biotin was removed by treatment with 300 mM sodium 2-mercaptoethanesulfonate (MesNa; Thermo Scientific), followed by quenching with 5 mg ml⁻¹ iodoacetamide (Sigma-Aldrich). For liquid chromatography tandem mass spectrometry (LC-MS/MS) analyses, biotinylated proteins were purified using HiTrap streptavidin HP 1-ml columns (GE Healthcare) and eluted with 150 mM MesNa in PBS containing 0.1% Triton X-100. Proteins were precipitated in 10% trichloroacetic acid, resuspended in 6 M urea, digested with trypsin, desalted, and analysed using a Thermo Easy-nLC 1000 system coupled to a Q-Exactive HF-X mass spectrometer (Thermo Fisher Scientific). Raw data-dependent acquisition (DDA) data were analysed with Proteome Discoverer 2.3 (PD 2.3) software (Thermo Fisher Scientific), in which the peptides were identified with SEQUEST HT paired with the UniProtKB human database (release 2020_05).

CUT & RUN

Genome-wide binding sites of HIF-1α were determined in U87MG AA and NA cells, alongside DMOG-treated and the corresponding Ctrl parental cells, using the CUT & RUN assay kit (active motif, #53180, version 47) following the manufacturer’s instructions. Sample preparation was performed as previously described⁷⁶. Briefly, 5 × 10⁵ cells per line and per CUT & RUN reaction were collected and mildly fixed in 0.1% formaldehyde (Thermo Fisher Scientific) for 2 min at r.t. on a shaker. Crosslinking was quenched by adding glycine (125 mM final concentration) for 5 min, and the samples were then washed in cold 1× PBS, flash-frozen, and stored until used. For normalization purposes, 5,000 Drosophila melanogaster nuclei (Active Motif, #53183) were then added as spike-in before sample nuclei isolation. The isolated nuclei were first incubated with the concavalin beads, followed by overnight incubation with 1 μg of HIF-1α antibody (GeneTex, GTX127309) per CUT & RUN reaction at 4 °C. Thereafter, chromatin-bound beads were mixed with pAG-MNase in cell permeabilization buffer, and the enzyme was activated by adding 1 μl of 0.1 M cold calcium chloride, followed by incubation at 4 °C for 2 h while rotating at 25 r.p.m. Decrosslinking was performed by incubation with Stop Solution containing RNase and glycogen at 37 °C for 10 min. Enriched DNA was purified using the provided DNA purification columns SF and further processed for library preparation using the NEBNext Ultra II DNA library Prep Kit for Illumina (New England Biolabs) and Multiplex Oligos (New England Biolabs), following Active Motif’s CUT & RUN library preparation protocol. Library fragment size distribution was assessed using a TapeStation High Sensitivity DNA Analysis assay, and the libraries were sequenced as PE150 on a NovaSeqX Sequencing System (Illumina).

CUT & RUN data were processed following previously described pipelines⁷⁷. Raw sequencing files (FASTQ) were quality-checked using FastQC (https://www.bioinformatics.babraham.ac.uk/projects/fastqc/). Adapter trimming was performed with Trimmomatic (v0.39), and reads were aligned to both the human genome (GRCh38.p14/hg38) and the D. melanogaster genome (FlyBase r6.62) using Bowtie2 (v2.4.5) with the following parameters:--local--very-sensitive-local--no-unal--no-mixed--no-discordant--phred33 -I 10 -X 700. Duplicate reads were identified and removed using collate, fixmate and markdup functions in samtools. Genome-wide signal coverage was normalized to reads per genomic content (RPGC) per bin (bin size: 50 bp) and scaled using a spike-in-derived factor based on the ratio of D. melanogaster reads per sample to total D. melanogaster reads aligned in IgG controls with deepTools (3.5.5). The fraction of reads in peaks (FRiP) was calculated using the featureCounts subtool from SubRead (v2.1.1). Peak calling was performed using SEACR (1.3) with a stringent cutoff of false discovery rate (FDR) < 0.01. Pairwise comparisons of HIF-1α peaks were conducted for AA versus NA and DMOG-treated versus Ctrl cells using ChIPpeakAnno and ChIPseeker (Bioconductor/3.20) in R. Called peaks annotated as sample-specific or common were assigned to the closest genes using EnsDb.Hsapiens.v86 and TxDb, Hsapiens, UCSC, hg38, knownGene. To quantify HIF-1α binding near key genes, genomic bins within 5, 10 and 100 kb of selected gene promoters were analysed. Gene sets related to CS biosynthesis, PGs and GAG metabolism were retrieved from EnsDb.Hsapiens.v86 and compared to genes associated with sample-specific and common HIF-1α binding sites. Genome coverage files and peak sets for NA versus AA and DMOG versus Ctrl were uploaded to Galaxy (usegalaxy.org, 25.0.rc1)⁷⁸ and visualized using the UCSC Genome Browser (hg38)⁷⁹. Additional quality control metrics and information for CUT & RUN analyses are provided in Supplementary Table 1.

GBM xenograft mouse models

Experiments involving mouse orthotopic xenografts were approved by the Ethical Committee for Animal Research in Lund-Malmö (permit nos. 5.8.18-14006/2019 and 5.8.18-01073/2024) and were carried out according to national care regulations of the Swedish Board of Animal and European Union Animal Rights and Ethics Directives. Mice were group-housed in a specific pathogen-free facility with standard food and water, a 12-h light/dark cycle, 20–26 °C temperature and 30–70% humidity. For all in vivo experiments, female NOD SCID gamma (NSG) mice, aged 5–7 weeks (obtained from the Jackson Laboratory (JAX)), were used. GBM models included (1) a patient-derived xenograft model of U3054MG cells or (2) a cell line-derived human xenograft model of U87MG 7.4/NA or 6.4/AA cells. In all cases, 1 × 10⁵ glioma cells in 4 μl of SF culture medium with 10% Matrigel (Corning) were injected into the brains of mice anaesthetized with isoflurane, then they were placed on a stereotactic frame. A hole was drilled into the skull and cells were inoculated in the right hemisphere, 1 mm anterior and 1.5 mm lateral from the bregma, and 2.5 mm ventral from the dura. In some cases, mice were monitored with T2-weighted MRI scans on a 9.4-T MRI machine (Bruker). For treatment studies, pumps for continuous intratumoral delivery (7- or 14-day mini-osmotic pumps, Alzet model 1007D or 1002) were filled with control sham vehicle (artificial cerebrospinal fluid, aCSF, Biotechne) or active treatments: 4-nitrophenyl β-D-xylopyranoside (CSi; 1.25 or 2.5 mM), DGAT1 inhibitor A922500 (80 µM) or a combination of the two, and implanted subcutaneously into the anaesthetized mice. A catheter delivered the treatment intratumorally into the cerebrum through the original drill hole. The skin incision was closed using metal clips. When treatment duration was ended (after 7 or 14 days), the pumps were removed under general anaesthesia. Tumour burden in orthotopic xenograft models was assessed based on neurological symptoms. The mice were monitored daily and euthanized immediately upon the onset of neurological distress, in accordance with ethical approval. When tumour size was assessed by MRI, only asymptomatic mice were included in the analysis, and ethical permission limits were not exceeded. The primary endpoint was overall survival (OS), with 6–10 mice per group. Mouse brains were dissected and cryopreserved by snap-freezing in isopentane for further immunohistochemistry and IF evaluation.

Gene array processing

Gene array data were processed using the R statistical language (v4.4.2) within RStudio. In the case of the Affymetrix array experiments, data preprocessing steps were executed using the oligo (v1.70.0)⁸⁰ package. First, raw CEL files were loaded into R (oligo::read.celfiles), then transcript abundances were normalized using the Robust Multichip Average (RMA) preprocessing methodology, including background correction and quantile normalization (oligo::rma). Annotation of probe IDs was performed with the affycoretools (v1.78.0) package (affycoretools::annotateEset) with the clariomdhumantranscriptcluster.db (v8.8.0) ChipDb package. Illumina BeadChip data were processed using the limma package (v3.62.1)⁸¹. Probe profile files were imported with limma::read.ilmn, normalized using limma’s background correction method for Illumina BeadChips (limma::neqc) and annotated against the HumanHt12v4 annotation data using the illuminaHumanv4.db (v1.26.0) package. To reduce unannotated probes and update deprecated identifiers, an additional round of annotation was performed using org.Hs.eg.db (v3.20.0). Probes without annotation and, in the case of Illumina data, those lacking confident detection (P < 0.05 in at least three arrays), were excluded from downstream analysis. Differential expression analysis was performed as follows. The design matrix was built with no baseline group, using stats::model.matrix (v4.4.2), treating all groups independently. A linear model was fitted to each gene using the design matrix along with the normalized gene expression matrix (limma::lmFit). This was followed by the construction of a contrast matrix (limma::makeContrasts) and the computation of estimated coefficients and standard errors from the fitted linear model (limma:: contrasts.fit). Empirical Bayes statistics moderation was applied (limma::eBayes) to compute moderated t- and F-statistics and the log-odds of differential expression. Multiple testing correction was performed using the Benjamini–Hochberg method. Significantly differentially expressed genes were extracted using limma::topTable with number set to infinity, to return the full annotated dataset. Visualization of gene expression data was generated with the package ggplot2 (3.5.1)⁸².

Pathway analysis and signature generation

Gene set enrichment analysis (GSEA) was performed with log₂-transformed gene expression change values as input using the clusterProfiler (v4.14.4)⁸³ R package (clusterProfiler::GSEA). Enriched sets were investigated amongst Hallmarks (H), Gene Ontology Biological Processes (C5, GO:BP), KEGG (C2, CP:KEGG) and REACTOME (C2, CP:REACTOME) pathway annotated gene sets from the Molecular Signatures Database (MSigDB) in R with msigdbr::msigdbr (v7.5.1)⁸⁴. GSEA results were further analysed by clustering and network analysis as follows. Cohen’s kappa was calculated between every gene set, and an adjacency matrix was set up with the threshold 0.25, then an undirected network was created from the enriched neighbouring terms, and Louvain community detection was employed to find clusters. For each node within the resulting network, a hub score was computed with igraph::hub_score (2.2.1)⁸⁵ to estimate its influence within the topology. For the generation of an LD⁺/CS⁺ transcriptional signature, 21 genes were selected based on their consistent upregulation (≥0.5 log₂(fold change, FC)) in LCM LD⁺ versus LD⁻ samples and being significantly upregulated (≥0.5 log₂FC, (adjusted P value) adjP_v < 0.05) in at least two out of three 3D versus 2D primary cell cultures (see ‘Laser microdissection’ and ‘Sample preparation for gene expression analysis’ sections). Scoring of the LD⁺/CS⁺ gene signature in the Ivy Glioblastoma Atlas Project (IvyGap) (RRID: SCR_005044)²¹ was performed using the hack_sig function from the hacksig (v0.1.2) R package, with ‘zscore’ as sample-wise signature scoring method. Results were plotted with ggplot2 package combined with the ggpubr package (v0.6.0; RRID:SCR_021139) for Wilcoxon-based unpaired mean comparison between plotted groups (stat_compare_means function) and P value generation. Results were plotted with the ggplot2 package combined with the ggExtra package (v0.10.0) for visualization of the signature score distribution as boxplots (ggMarginal function).

Software

The software used for individual analyses is described in the previous sections. R (v4.4.2) with RStudio and GraphPad Prism (v10.5.0) were used to create figures and perform statistical testing. Schematics were created with BioRender.com and figure composition was performed with Adobe Illustrator v.28.6.

Statistics and reproducibility

Statistical analyses were performed in R with RStudio, or in GraphPad Prism. GSEA statistics for enrichment score (ES), normalized enrichment score (NES), nominal P value and FDR were performed in R using the clusterProfiler (v4.14.4)⁸³ R package. The significance of pathway overrepresentation terms was calculated according to Fisher’s exact test. Significance tests of differentially expressed genes were performed on log₂-transformed expression values (for which normality assumptions are applicable due to the lognormal distribution) using moderated t statistics as per the limma package. Comparisons of tumour region (IvyGap) means were performed with the one-sample Wilcoxon signed-rank test. Statistical analyses of quantitative experimental models were performed using either an unpaired two-tailed Student’s t-test for between two group comparisons, one-way ANOVA tests with Tukey´s post hoc test for multiple group comparisons and two-way ANOVA with Tukey’s post hoc test (multiple groups) or Šidák’s post hoc test (between two groups) for repeated measures. For survival curves, P values were obtained by using the log-rank (Mantel–Cox) test. In vitro experiments were carried out with at least three independent biological replicates in a minimum of two independent experiments, unless otherwise indicated in the figure legends. Both technical and biological replicates were reproducible. Data are represented as mean ± s.e.m., with the level of significance defined as P < 0.05, unless otherwise specified in figure legends.

Sample size determination

No statistical methods were used to predetermine sample sizes, but our sample sizes are similar to those reported in previous publications^5,14,15,16.

Data exclusion

No data were excluded from the analyses.

Randomization

For in vitro studies, experiments were not randomized; however, all cell lines/organoids were treated identically without prior designation. For in vivo mouse experiments involving drug treatment, same-aged female mice were randomly assigned into experimental groups.

Blinding

Data collection and analysis were not performed blind to the conditions of the experiments.

Assumptions for statistical test

Data distribution was assumed to be normal, but this was not formally tested.

Reporting Summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this Article.

Data availability

All data supporting the graphs in this paper, as well as all unprocessed blot images, are available in the source data files. Additional quality control metrics and information for CUT & RUN analyses are provided in Supplementary Table 1. The mRNA array datasets generated have been deposited in the NCBI Gene Expression Omnibus (GEO) under accession codes GES300758, GSE300765, GSE300768 and GSE300771. The CUT & RUN datasets are available in GEO under accession code GSE300142. Imaging files and all other raw data files are available from the corresponding author (due to the size of this material). Source data are provided with this paper.

Code availability

All R code and processed data supporting the findings for Figs. 1b–e, 2e and 3a,f and Extended Data Figs. 3b,h, 4a,e and 6a,f are available from Zenodo at (https://doi.org/10.5281/zenodo.18414879)⁸⁶, which provides the full reproducible analysis pipeline.
