Main

Sensory neurons innervating the skin provide animals with valuable input about their immediate surroundings, including the ability to sense touch and temperature1,2. In keeping with their varied roles, the receptor neurons with cell bodies in dorsal root and trigeminal ganglia have diverse peripheral morphology, central projections and biophysical profiles1,2,8. They differentially express a wide range of marker genes, including receptors, ion channels and neuropeptides2,8,9, and can be divided into about a dozen distinctive transcriptomic classes on the basis of single-cell RNA sequencing10,11,12,13. One key unanswered question is how distinct natural stimuli encoded across these classes allow us to instantaneously localize and discriminate a world of perceptions, for example, distinguish a drop of rain from an insect crawling on the skin, and elicit emotional responses ranging from pleasure to disgust or pain. Equally important would be to understand how this input is altered by injury or inflammation to trigger localized hypersensitivity, allodynia and continuing pain.

Over the past 30 years, identification of thermosensitive7,14,15,16 and mechanosensory17,18 ion channels has established a mechanistic framework for how physical stimuli are transduced to evoke neuronal firing in sensory neurons. These proteins also help explain some aspects of sensory coding but often exhibit complex expression across multiple classes10,11,12,13 and functional redundancy16. Therefore, we applied a platform that we developed for matching in vivo function and transcriptomic class3 to decode how heat and naturalistic mechanical stimuli are differentially represented in the trigeminal system, the role of the capsaicin and noxious heat receptor (TRPV1) and how sensory detection is transformed during inflammation to drive pain.

Peripheral coding of heat

To evaluate how the somatosensory system detects and encodes thermal and mechanical stimuli, we used calcium imaging to record single-cell responses from the trigeminal ganglion while stimulating the cheek3,19. Across 15 mice, brush, pinch and defined heat pulses activated hundreds of neurons (Extended Data Fig. 1a), which could be divided into thermally or mechanically selective and polymodal cells (Extended Data Fig. 1b). We next used post hoc multigene in situ hybridization (ISH)3 to determine how transcriptomic class governs the function of trigeminal neurons (Extended Data Fig. 2) and matched sensory tuning to ten distinct molecular classes. Data from 1,588 neurons (Fig. 1a) revealed clear segregation of gentle touch and heat responses at both the cellular and transcriptomic-class levels. By contrast, nociceptors were often polymodal20 (Fig. 1a,b); nonetheless, their tuning varied according to class (Fig. 1a–d) with very few Aδ-nociceptors (Aδ-NOC) responsive to heat, which instead primarily activated unmyelinated C-fibres.

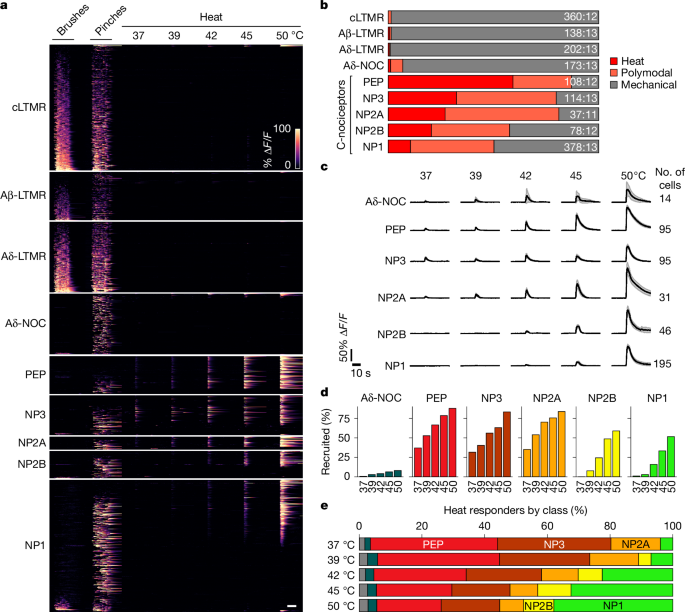

Fig. 1: Detection of heat and differential tuning of somatosensory neuron classes.
Fig. 1: Detection of heat and differential tuning of somatosensory neuron classes.
Full size image

a, Heat maps showing in vivo GCaMP responses from 1,588 transcriptomically classified neurons from 15 mice tested with mechanical stimulation and heat. Heat maps are grouped by neuronal class with changes in GCaMP fluorescence (% ΔF/F) colour-coded as indicated by the scale bar. b, Proportions of heat (red), polymodal (orange) and mechanically tuned neurons (grey) for each class; the number of neurons and mice used for assignment are indicated. c, Mean responses of heat-responsive nociceptors by class (solid trace; numbers of heat-responsive cells indicated); the shaded area represents 95% confidence interval. d, Fractional recruitment of cheek-responsive neurons by class and temperature. e, Fractional representation of heat responses by class across the temperature range. Colour coding is as in d with LTMRs in grey; numbers of mice and cells are detailed in Supplementary Table 1. Scale bars, 10 s.

Many studies have identified peptidergic (PEP) nociceptors that express high levels of the heat- and capsaicin-activated ion channel Trpv1 and the nerve growth factor receptor Ntrk1 as canonical detectors of noxious heat2,8,21,22,23. Our data confirmed that this neuronal class is particularly sensitive and selective for heat over pinch, with about half of the cells in this class responding only to temperature (Fig. 1b–e). However, far from being selectively activated by noxious heat (45–50 °C), PEP neurons typically detected the full temperature range (Fig. 1c–e), exhibiting graded responses that increased in magnitude and duration across both the innocuous (37–42 °C) and noxious ranges (Fig. 1c,d). PEP constituted only a small subset of the heat-responsive cells. For example, just as many itch-related10,24 cells expressing Nppb and Sst (NP3) exhibited responses across the full temperature range (Fig. 1c–e). Moreover, half the noxious heat-responsive cells were in three other non-peptidergic classes (Mrgprd-, Mrgpra3- and Mrgprb4-expressing cells (NP1, NP2A and NP2B, respectively)), which are not generally considered to be thermonociceptors4,5,21,25 despite reports suggesting thermosensitivity22,26 (Fig. 1c–e). In fact, in the noxious temperature range, heat responses were dominated by classes other than the PEP nociceptors (Fig. 1e).

Non-canonical thermosensors

NP1 is a transcriptomically homogeneous class of mouse somatosensory neurons that has been suggested to function primarily in mechanonociception21 and to have a minor role in thermonociception22,27. NP2B neurons are transcriptomically similar to NP2A itch-related cells11 but have been reported to detect brush but not pinch4 and to have a role in affective touch and sexual behaviour5. By contrast, our data (Fig. 1) indicate that NP1 and NP2B neurons innervating the cheek have closely related activity profiles, preferentially responding to high-threshold mechanical stimuli and noxious heat. A recent study also suggested that NP1- and NP2B-lineage neurons have similar receptive tuning28. To better understand these differences and to benchmark our ISH-based approach, we crossed the two Cre lines4,29 that were used in previous studies4,5,28 into the Ai95 (RCL-GCaMP6f) background30.

The well-characterized Mrgprd-CreER line faithfully captures NP1 neurons in adult mice28,29. Functional recordings from these cells (Fig. 2a,b) were consistent with the results of the ISH-based approach (Fig. 1), confirming that NP1 cells respond to noxious thermal and mechanical stimulation. The Mrdprb4-tdT-2a-Cre line that was used to target NP2B cells4,5,28 mediates Cre recombination more broadly (Extended Data Fig. 4). However, although tdTomato (tdT)-positive neurons were a small subset of GCaMP-expressing cells, 99% of tdT cells (396 of 400 neurons from three mice) expressed Mlc1, a marker of NP2B cells (Extended Data Fig. 3a,b). Functional imaging of tdT-positive neurons supported the results from the comprehensive analysis of neuronal function (Fig. 1) by showing that NP2B neurons were not selectively activated by gentle stimulation of the cheek but instead responded most strongly to higher-intensity mechanical stimuli and heating (Fig. 2a). Quantification of responses (Fig. 2c) confirmed close correspondence between ISH and Cre recombination-based datasets. Thus, NP1 and NP2B neurons detect noxious stimuli applied to the hairy skin of the cheek.

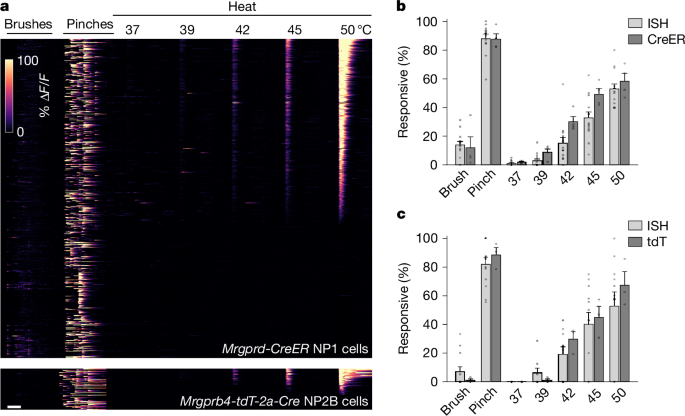

Fig. 2: In vivo functional imaging of Cre lines confirmed that NP1 and NP2B neurons detect noxious mechanical and thermal stimuli.
Fig. 2: In vivo functional imaging of Cre lines confirmed that NP1 and NP2B neurons detect noxious mechanical and thermal stimuli.
Full size image

a, Heat maps showing calcium transients from Ai95 carrying knock-in alleles to label NP1 (upper panel; 561 neurons; four mice) and NP2B (lower panel; 72 neurons; three mice) neurons. Changes in GCaMP fluorescence in response to stimuli applied to the cheek are colour-coded by % ΔF/F (inset scale). b,c, Percentage of neurons (mean ± s.e.m.) responding to each stimulus for cells identified by ISH after functional imaging (pale grey) or Cre-mediated labelling (dark grey). b, NP1 cells: ISH, n = 13; CreER, n = 4. c, NP2B cells: ISH, n = 12; tdT, n = 3. See Supplementary Table 2 for details and statistics. Scale bar, 10 s.

Previous studies of NP2B neurons4,5,28 investigated peripheral targets of dorsal root ganglia (DRG) rather than the trigeminal ganglion, raising the possibility that DRG and trigeminal NP2B neurons are differentially responsive to mechanical stimuli. Therefore, we recorded lumbar DRG responses of Mrdprb4-tdT-2a-Cre labelled neurons to mechanical stimulation of hairy skin (Extended Data Fig. 3d). Responses from the full lineage were consistent with recently published results28 showing a small fraction (approximately 5%) to be brush-sensitive. However, when we analysed NP2B neurons (tdT-positive cells), they exhibited pinch responses but were unresponsive to brushing (Extended Data Fig. 3d), similar to their trigeminal counterparts, further demonstrating that these neurons are not selective gentle touch receptors4.

NP1 neurons are divided into polymodal and pinch-selective functional types, despite their homogeneous transcriptomic profile10,11,12 (Figs. 1b and 2a). We used a series of pinches to provide a naturalistic mechanical stimulus to a broad area of the cheek and applied the thermal probe to a similar area of the skin. However, differences in stimulus location, rather than biological differences, may contribute to the impression that some cells are narrowly tuned. We observed individual pinches that almost exclusively activated polymodal cells and other pinches (at different locations) that selectively recruited heat-insensitive nociceptors (Extended Data Fig. 4). This suggests that differential tuning of NP1 neurons can largely be explained by their small receptive field3,29 coupled with our naturalistic stimulation approach (Methods). Other classes of C-nociceptors also included both selective and polymodal cells but with quite different proportions tuned to heat or pinch (Fig. 1b). We suggest that the long-standing debate about the nature of polymodal and narrowly responsive nociceptors31,32 simply reflects the mode of stimulus application coupled with the relative sensitivity of different classes of nociceptor to thermal versus mechanical stimuli and resultant differences in their effective receptive fields for these two modalities.

Taken together, detailed analysis of how the different types of C-nociceptors respond to heat and noxious mechanical stimulation (Figs. 1 and 2) challenges the view that various transcriptomic classes have distinct and independent roles in thermo- and mechanosensory detection and discrimination4,5,22,24,25,33. Instead, our data suggest that all classes of C-nociceptors are broadly tuned with overlapping but distinct response profiles much like the cones in the human visual system34. By analogy, such tuning should allow efficient and reliable encoding of multiple stimulus features, including modality, position, extent and intensity, which are important for triggering appropriate behavioural responses. Moreover, noxious mechanical stimuli, but not thermal stimuli, recruit an array of low-threshold mechanoreceptors (LTMRs), augmenting the discriminatory power of the system.

Nociceptor activity during inflammation

A crucial role of the somatosensory system is to evoke pain as a protective mechanism for preventing tissue damage and promoting healing2,35. For example, injury and inflammation result in continuing localized pain, alter the evaluation of sensory input and evoke a range of attending behaviours35. It is well known that sensory afferents dramatically change their firing properties under these conditions2,32,36. To better characterize these changes, we carried out longitudinal imaging to track and classify which neurons are affected by injection of the fast-acting inflammatory mediator prostaglandin E2 (PGE2). This paradigm induces swelling, spontaneous pain behaviour, hyperalgesia and allodynia within 10 min of injection with recovery after about 2 h (ref. 37).

Most sensory neurons that respond to stimulation of the cheek were quiescent when held at 30 °C under baseline conditions. By contrast, after PGE2 injection, many cheek-innervating nociceptors became active in the absence of applied stimuli (Fig. 3a,b and Supplementary Video 1). Spontaneous activity developed over the first 5 min and lasted for more than an hour. To quantify the magnitude of spontaneous activity, we assessed both the frequency and amplitude of responses (Fig. 3b). This analysis (Fig. 3c) revealed that spontaneous activity was almost entirely restricted to nociceptors (primarily Aδ-NOC, PEP, NP2A and NP3) but not LTMRs, providing a compelling explanation for localized continuing pain associated with inflammation. PGE2 receptor expression11,12,13 does not match the classes of neurons displaying spontaneous activity, suggesting that indirect inflammatory effectors are probably involved.

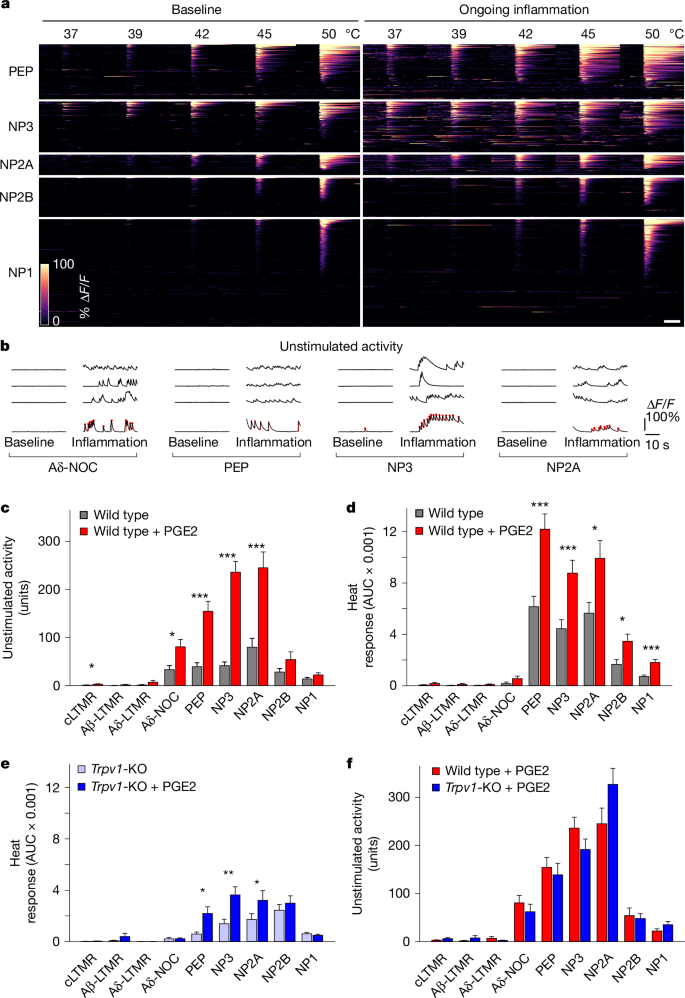

Fig. 3: PGE2-mediated inflammation differentially affects select classes of nociceptors.
Fig. 3: PGE2-mediated inflammation differentially affects select classes of nociceptors.
Full size image

a, Heat maps showing the effect of PGE2-induced inflammation on the thermal sensitivity of 582 C-nociceptors (eight mice) that responded to heat and/or pinch of the cheek (cheek-innervating neurons) grouped by class; for display purposes, baseline (left) and continuing inflammation (right) were independently sorted on the basis of the amplitude of heat response. b, Example of GCaMP traces for individual neurons at baseline (left) and after PGE2 injection (right) for classes with spontaneous activity during inflammation; red points and bars in the lowest example trace identify transients and their amplitudes (see Methods for details). c, Quantification of unstimulated activity (mean sum of transient amplitudes ± s.e.m.) in neuronal classes in wild-type mice before (grey) and after (red) PGE2-induced inflammation. d,e, Heat response for all cheek-innervating neurons of a given class over the full temperature range (mean area under the curve (AUC) ± s.e.m.). Wild-type mice (d) and Trpv1−/− mice (e) before and after PGE2 injection of the cheek. Additional information about heat sensisitization is shown in Extended Data Figs. 5 and 6. f, Unstimulated activity (mean sum of transient amplitudes ± s.e.m.) in neuronal class activity during inflammation in wild-type mice (red) and Trpv1−/− mice (blue). Note that the red bars in c and f show the same dataset for comparative purposes; *P < 0.05; **P < 0.01; ***P < 0.001; for details of statistical tests and number of mice and cells, see Supplementary Tables 1 and 2. KO, knockout. Scale bars, 10 s.

PGE2 injection potentiated heat detection by C-nociceptors (Fig. 3a,d), which is consistent with previous results31. This can be clearly observed in the time-locked temperature responses and is superimposed on the generally lower-magnitude spontaneous nociceptor activity induced by PGE2 (Fig. 3a and Extended Data Fig. 5a). All other classes of neurons remained insensitive to heat (Fig. 3d). A more detailed analysis (Extended Data Fig. 5b) revealed that responses to temperatures in the normally innocuous, warm range were increased in PEP, NP2A and NP3, suggesting a cellular logic for inflammatory thermal allodynia. PGE2 injection also causes heat hyperalgesia at noxious temperatures (45–50 °C) characterized by a variety of exaggerated responses and coping behaviours2. Over this temperature range, our results indicate that NP1 and NP2B also contribute to elevated pain responses (Extended Data Fig. 5b).

PEP, NP2A and NP3 neurons express the ion channel TRPV1, which has widely been reported to have only a minor role in baseline thermal behaviour22,38,39 but is essential for heightened responses to heat after inflammation38,39. Therefore, we next tested how the peripheral representation of heat and inflammatory sensitization was affected by the absence of this ion channel. Trigeminal neuron responses to heat were dramatically reduced in Trpv1−/− mice (Fig. 3e), with smaller proportions of PEP, NP3 and NP2A responsive to temperature and changes in the relative tuning of these neuron classes to heat and pinch (Extended Data Fig. 6a–c). These large-scale changes were surprising given the modest effects of Trpv1 knockout on thermal behaviour22,38,39 and suggest that the small amount of residual nociceptor activity (Fig. 3e and Extended Data Fig. 6), perhaps combined with the inhibition of cooling-responsive neurons40, provides sufficient heat discrimination for many behavioural paradigms. Notably, PGE2-induced inflammation had only modest effects on the temperature sensitivity of nociceptors in Trpv1−/− animals (Fig. 3e), which explains the crucial role of this ion channel in inflammation-related thermal allodynia and hyperalgesia38,39. This was also true for the sensitization of NP1 and NP2B neurons (Fig. 3e), which did not prominently express Trpv1. We suggest that low levels of this ion channel in these cell types or perhaps non-cell autonomous effects, for example, neuroinflammation41, contribute to heat hyperalgesia. Finally, unlike for heat sensitization, where TRPV1 has a major role, the stimulation of continuing nociceptor activity after PGE2 injection was largely unaltered in Trpv1−/− animals (Fig. 3f and Extended Data Fig. 6e,f). Thus, PGE2 must affect more than one signalling pathway in nociceptors, including one that generates spontaneous activity and another that potentiates heat responses through TRPV1.

Logic for inflammatory tactile allodynia

Tactile allodynia, a major consequence of many types of inflammation2, is dependent on signalling through the mechanosensory ion channel PIEZO2 (refs. 42,43). Therefore, we evaluated whether the detection of gentle brushing, a stimulus that elicits pain-related behavioural responses during inflammation2, was affected by PGE2 injection. Qualitatively, there were minimal changes in LTMR calcium transients (Fig. 4a), although quantification revealed a slight decrease in C-LTMR responses but no significant changes in Aδ- and Aβ-LTMR activity (Supplementary Table 2). Thus, although it is possible that small differences in the firing of Aβ-neurons44 contribute to inflammatory mechanical allodynia, such changes are no larger than natural variation in brush responses of LTMRs (Fig. 4a).

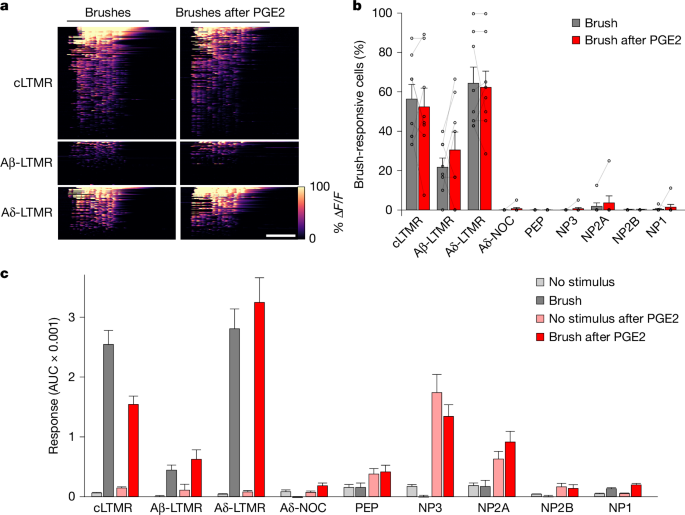

Fig. 4: Stable representation of gentle touch at the periphery during inflammation.
Fig. 4: Stable representation of gentle touch at the periphery during inflammation.
Full size image

a, Heat maps showing the effect of PGE2-induced inflammation on the brush sensitivity of 339 LTMRs (eight mice) that responded to pinch and/or brush of the cheek grouped by class. b, Percentage of neurons responding to at least 50% of individual brushes before (grey) and after (red) PGE2; mean ± s.e.m.; n = 8. c, Brush response magnitude (mean AUC ± s.e.m.) for all cheek-innervating neurons of a given class before (grey) and after (red) PGE2 injection; background and PGE2-induced activity (mean AUC ± s.e.m.) during an equivalent period without stimulation (pale grey and pink) showed no increase in LTMR responses after PGE2 injection and that nociceptor firing during inflammation is largely brush-independent (Extended Data Fig. 7). Supplementary Tables 1 and 2 include full details of statistical tests and numbers. Scale bar, 10 s.

We next analysed whether nociceptors are sensitized to brush after PGE2. Here, inflammation-related continuing activity in nociceptors complicates the analysis. However, unlike LTMRs, very few nociceptors reliably detected brushing, that is, responded during 50% or more brushes, either at baseline or after PGE2 (Fig. 4b). Moreover, comparison of response profiles (Extended Data Fig. 7) and quantification of calcium transients (Fig. 4c) demonstrated that brushing after PGE2 injection did not augment the continuing activity or mechanical sensitivity of any nociceptor class (see Supplementary Table 2 for statistical analysis). Because gentle touch remains largely unchanged during inflammation, the question remains how PGE2 injection changes the behavioural response of mice to this type of stimulation37. Notably, our data (Fig. 4c and Extended Data Fig. 7) showed that inflammation-induced continuing activity alters the population of peripheral neurons that are active during brushing. Therefore, we reasoned that this touch-independent nociceptor activity may transform the central (for example, spinal cord processing) of normal LTMR input to serve as a driver of localized pain. This new model is completely consistent with the crucial role of PIEZO2 (refs. 42,43) and the importance of LTMRs44 in inflammatory tactile allodynia.

The hypothesis that coincident firing of LTMRs with nociceptors is the basis for tactile allodynia during inflammation makes two testable predictions. First, if spontaneous nociceptor firing drives tactile allodynia, silencing these neurons should block sensitization. Therefore, we developed an intersectional approach to express a fragment of the tetanus toxin (TeNT) that potently blocks synaptic transmission in nociceptors (Extended Data Fig. 8a). These mice have no gross motor deficits and exhibit normal baseline von Frey responses (Fig. 5a). Just as predicted, PGE2 injection to the hind paw failed to trigger tactile allodynia in these TeNT-expressing mice (Fig. 5a), whereas littermate controls exhibited strong sensitization. Second, we reasoned that any continuing activity in nociceptors should be sufficient to trigger touch-evoked pain. Here we took advantage of the unique molecular expression profile of NP3 neurons, one of the cell classes most strongly activated by PGE2 injection (Fig. 3e). It was recently reported that LY344864, a synthetic agonist for the serotonin receptor HTR1F, which is specifically expressed in NP3 cells (Fig. 5b), triggers itch through activation of this cell class45. We demonstrated that local subcutaneous injection of LY344864 in the cheek potently activated trigeminal NP3 neurons with high selectivity (Fig. 5c). Using an Sst-Cre driver to target these cells in the DRG, we showed that both LY344864 and PGE2 induced NP3 firing with comparable intensity and duration (Fig. 5d and Extended Data Fig. 8b–d). Notably, LY344864 also induced potent tactile allodynia when injected into the hind paw (Fig. 5e and Extended Data Fig. 9a,b). Moreover, blocking synaptic transmission in these cells (Fig. 5e) or acute inhibition of these cells in adult mice (Fig. 5f) abolished the LY344864-mediated sensitization, confirming the importance of NP3 nociceptors in mediating inflammatory allodynia in this model. Taken together, these results show how touch-independent nociceptor activity can make a normally innocuous mechanical stimulus painful, without changing the way this stimulus is detected at the periphery.

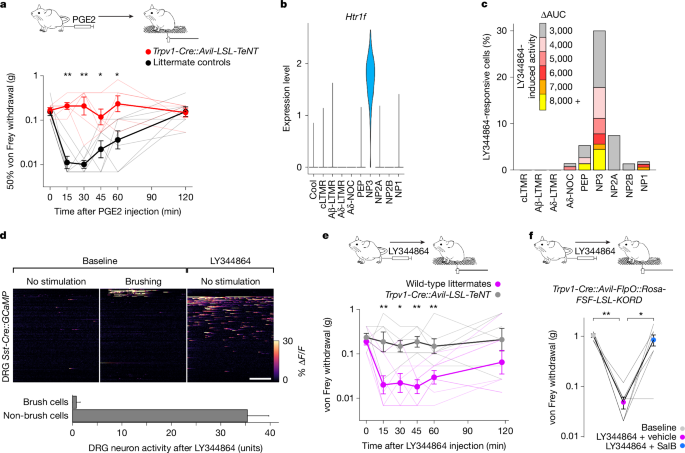

Fig. 5: Continuing nociceptor activity drives tactile allodynia.
Fig. 5: Continuing nociceptor activity drives tactile allodynia.
Full size image

a, Time course of von Frey 50% withdrawal threshold (mean ± s.e.m.) before (time = 0) and after injection of PGE2 into the hind paw of mice with silenced Trpv1-lineage nociceptors (red; n = 6) and littermate controls (black; n = 7). PGE2 injection induced mechanical sensitization in controls but not in mice with silenced nociceptors (P < 0.05) over 60 min. b, Violin-plot analysis of expression level (log-normalized single-cell RNA sequencing data)11,28 showing selective expression of Htr1f in NP3 nociceptors. c, Percentage and level of activation (ΔAUC) of neurons after injection of the selective HTR1F agonist LY344864 into the cheek. d, Heat maps of DRG imaging for mice expressing GCaMP under the control of Sst-Cre. Responses from 200 neurons of six mice showed that Sst-Cre labelled a population of brush cells and a separate population of LY344864-responsive neurons. Below, quantification of LY344864-stimulated activity (mean sum of transient amplitudes ± s.e.m.) for brush and non-brush cells. e, von Frey 50% withdrawal threshold (mean ± s.e.m.) before (time = 0) and after injection of LY344864 into the hind paw of wild-type mice (magenta; n = 7) and littermates with silenced Trpv1-lineage nociceptors (grey; n = 6). LY344864 injection induced mechanical sensitization in wild-type mice for at least 60 min but was ineffective in mice with silenced nociceptors. f, von Frey 60% withdrawal thresholds (mean ± s.e.m.; n = 7) at baseline (grey) and after paw injection of LY344864 in mice expressing KORD53 in Trpv1-lineage nociceptors. Mice received intraperitoneal dimethylsulfoxide (vehicle; magenta) or the selective KORD ligand Salvinorin B (SalB; blue) immediately before paw injection of LY344864. See Supplementary Tables 1 and 2 for full details of statistical tests and numbers; *P < 0.05; **P < 0.01. Scale bar, 10 s.

Finally, we explored whether spontaneous nociceptor firing drives inflammatory pain in the absence of externally applied stimulation. As predicted, hind paw injection of PGE2 evoked typical pain behaviours, including copious paw licking in wild-type mice but not in TeNT littermates in which nociceptors were silenced (Extended Data Fig. 9c,d). When injected in the cheek, PGE2 did not immediately evoke the wiping response typically associated with painful agents46. Instead, within 5 min of injection, face-directed behaviours (wiping, grooming and scratching) were almost completely suppressed (Extended Data Fig. 9e,f), with mice often standing motionless and hunched for extended periods (Supplementary Videos 2–4). Taken together, these results support a role for spontaneous nociceptor firing as a driver for continuing inflammatory pain.

Discussion

One of the most remarkable features of the somatosensory system is its ability to encode and discriminate diverse physical stimuli while also providing information about the position, extent, pleasant versus aversive nature and intensity of the stimulus1,2,8,35. Here we combined functional imaging with transcriptomic classification to dissect the cellular logic by which touch and heat are encoded at the periphery and how this representation is altered during inflammation.

Simultaneously interrogating the response properties of all the major types of cutaneous somatosensory neurons to complex stimuli revealed key features underlying the coding of heat and noxious mechanical stimuli. First, our data show the complete segregation of cell classes that respond to gentle mechanical stimulation from those that detect heat. Second, although Trpv1-expressing neurons are particularly sensitive to temperature and reliably detect warming, several other types of C-nociceptors are prominently activated by noxious heat. Interestingly, Mrgprb4-expressing NP2B cells that have previously been linked to gentle stroking, affective touch and sexual response4,5 have the receptive tuning of nociceptors rather than LTMRs throughout the body. Third, matching receptive tuning to cell class allows differential effects of functionally important molecules in distinct classes of cell to be determined3. Using knockout mice, we showed that the capsaicin receptor TRPV1 is largely responsible for the particular thermosensitivity of PEP, NP2A and NP3 neurons. In keeping with its function in the oral cavity47, TRPV1 mediates almost all responses to innocuous warming but, in contrast to predictions from its in vitro threshold7, has a lesser role in the detection of noxious heat. Together, these data showed that, rather than classes of nociceptor being selectively tuned to a single modality4,5,24,25, there was an inverse relationship between mechanical and thermal sensitivity, such that all types of C-nociceptors responded to heat and noxious mechanical stimulation, albeit with differential graded tuning. The distinct but overlapping response spectra of cell classes imply that the somatosensory system uses combinatorial coding to achieve its remarkable discriminatory power.

Changes in the firing patterns of somatosensory neurons have long been linked to peripheral inflammation and are assumed to drive associated pain2,8,32,36. Our analysis demonstrated that PGE2-mediated inflammation induces stimulus-independent activity in several types of nociceptors and sensitizes these cells to heat but not gentle mechanical stimulation. Inflammatory heat sensitization was greatly reduced in Trpv1−/− mice (Fig. 3d,e), matching behavioural measures of heat allodynia and hyperalgesia during inflammation38,39,48. By contrast, spontaneous activity, which we considered as important for continuing inflammatory pain, was well preserved in the knockout mice (Fig. 3c,f). Thus, TRPV1 antagonists might be expected to alleviate heat sensitization but be less effective for other aspects of inflammatory pain. Our results showed that spontaneous nociceptor firing drives inflammatory tactile allodynia, and eliminating nociceptor input blunts this sensory transformation (Figs. 4 and 5). These findings are consistent with the crucial role of PIEZO2 in this type of pain42, despite its relatively minor role in mechanonociception3,17,43. It also helps to explain how excitotoxic-mediated ablation of nociceptors can be effective in treating several forms of pain without substantially affecting gentle touch or mechanonociception49.

There are limitations to our study. For example, we only studied the functional coding of neurons innervating hairy skin using functional imaging. Calcium transients provide a reliable proxy for neuronal firing3,19 but may miss subtle effects that could contribute to pain44. However, in day-to-day life, subtle variations in LTMR firing provide discriminatory information without normally causing pain, further supporting our hypothesis. We also note that although our dissection of cell classes was as comprehensive as that in a recent study using Cre drivers28, further subdividing the Aβ-LTMRs, Aδ-NOC and PEP populations may reveal more nuances. In the future, extending these findings to glabrous skin and internal targets of somatosensory neurons (bone, muscle and viscera) will also be important. Similarly, we examined a short-term inflammatory model of pain, but there are many longer-term disease states that cause pain in humans, including diabetes, cancer and blood disorders (for example, sickle cell disease). Dissecting the extent to which these pathologies induce similar changes in sensory coding across cell classes should be informative for developing appropriate pain therapies. It will also be interesting to determine how inputs from the various heat-responsive nociceptors converge in the dorsal horn and spinal trigeminal nucleus to support combinatorial coding and how inflammation-dependent spontaneous firing might alter this representation. Finally, all these studies were performed in mice; human somatosensory neurons exhibit differences at the molecular50 and class-based51,52 levels, which may affect the precise details. However, the underlying principles we report, including distributed coding of heat across nociceptor classes and selective effects of inflammation on nociceptor activity and thermal sensitivity, will likely be relevant for human sensation and pain.

Methods

Experimental animals

Experiments using animals were performed in accordance with the guidelines set forth by the National Institutes of Health and approved by the National Institute of Neurological Disorders and Stroke or the National Institute of Dental and Craniofacial Research Animal Care and Use Committees. Mouse lines Ai95(RCL-GCaMP6f)-D (no. 024105)30, Mrgprd-CreERT2 (no. 031286)29, Mrdprb4-tdT-2a-Cre (no. 021077)4, Trpv1-Cre (no. 017769)54, Sst-Cre (no. 013044)55 and Trpv1−/− (no. 003770)38 were purchased from The Jackson Laboratory. Tac1-tagRFP-2a-TVA mouse line was described previously56, and the Avil-Flp line57 was a gift from D. Ginty. We also generated a new Rosa-Cag-LSL-soma-jGCaMP8s line used in crosses with Sst-Cre, an Avil-LSL-2A-TeNT line and a Rosa-CAG-FSF-LSL-KORD line using CRISPR–Cas9-mediated recombination56. Male and female mice were used in all experiments and given ad libitum access to standard laboratory chow and water. The mice were housed in a controlled environment (23 °C and 50% humidity with a 12-h light–dark cycle); no statistical methods were used to predetermine sample size.

Injection of adeno-associated virus in mouse pups and CreERT2 induction

Left intracerebroventricular injection of 1 μl of AAV9-Cag-Cre virus (2 × 1012 to 2 × 1013 virions ml−1; catalogue no. CV17187-AAV9; Vigene) or AAV9-CMV-Cre virus (more than 1 × 1013 virions ml−1; catalogue no. 105537-AAV9; Addgene) in 1- to 3-day-old mouse pups containing Ai95 was used to achieve stochastic expression of GCaMP in neurons of the trigeminal ganglion as described previously42. To induce CreERT2 recombination, tamoxifen (Sigma-Aldrich) was dissolved in corn oil at a concentration of 20 mg ml−1 at 37 °C overnight. Mrgprd-CreERT2 mice were injected intraperitoneally at a dosage of 75 mg tamoxifen per kg of body weight using an insulin syringe at least a week before calcium imaging.

In vivo calcium imaging

For fluorescent calcium imaging of the trigeminal neurons, adult (over 8 weeks old) animals were subjected to one of three experimental regimes. Experimental regime A assessed both mechanical and temperature responses (Figs. 1 and 2 and Extended Data Figs. 1–5). The animals were anaesthetized with isoflurane and surgically prepared for optical access to the trigeminal ganglion as described previously19. The hairy skin of the cheek was mechanically stimulated using a series of manually delivered brushes with a cotton-tipped applicator and pinches with surgical forceps as described previously3. For improved temperature transfer, the mouse cheek was treated for less than 300 s with a depilatory cream (Veet) using a cotton-tip applicator. An eye ointment was applied to prevent damage to the cornea and conjunctiva, fur was removed, the cheek was washed at least three times with saline and dried with Kimwipes and a custom-built 5 mm2 Peltier probe (TCS2; QST.Lab) was applied directly to the skin for thermal stimulation. Peltier application did not induce long-term activity of trigeminal neurons, and LTMRs did not respond to heating (Fig. 1), ruling out major confounding effects related to mechanical stimulation by the probe. The skin was held at 30 °C for baseline non-stimulated activity measurements; temperature stimulation at 37, 39, 42, 45 and 50 °C was for 4 s.

Experimental regime B assessed the mechanical sensitization after inflammation (Fig. 4 and Extended Data Fig. 7). Baseline mechanical stimulation was as in experimental regime A. Inflammation of the cheek was then induced using subdermal injection of 20–30 μl, 0.5 mM PGE2 (Sigma-Aldrich) to three sites. After 10 min of incubation, inflammation was confirmed and mechanical stimulation was repeated.

Experimental regime C assessed the thermal sensitization after inflammation (Figs. 3 and 5 and Extended Data Figs. 5 and 6). Mouse cheek depilation was carried out the day before functional imaging. Skin was subjected to a series of pinches and thermal stimulation as in experimental regime A. PGE2 or LY344864 (20–30 μl; 5 mg ml−1; MilliporeSigma) was injected as in experimental regime B, and stimulation was repeated. To evaluate consistency, responses to common stimuli were compared between experimental regimes A and C (Extended Data Fig. 10).

The functional activity of DRG neurons in the L5 and L6 ganglia was determined using fluorescent calcium imaging. PGE2 and LY344864 were injected as a single injection (volumes and concentrations as above) into the plantar hind paw. Mechanical stimulation was also applied to the plantar surface, which was held at 30 °C for the unstimulated recordings. For Mrgprb4-tdT-2a-Cre mice, the hairy skin of the leg was stimulated as NP2B neurons selectively innervated hairy skin4.

Calcium imaging was performed as described previously3,58 using a custom-built epifluorescence Cerna microscope (Thorlabs) and a pco.panda 4.2 bi CMOS camera; 40-s recording episodes were acquired at 5 Hz. For each experiment requiring post hoc ISH, either red fluorescent tagRFP images were collected or the trigeminal ganglion was briefly superfused with 500 μl of 1 M KCl to activate and visualize all GCaMP-expressing neurons after the experiment to provide alignment guide-posts. In vivo images were aligned and processed as described previously3.

Spatial activity maps and analysis of fluorescence dynamics

Spatial activity maps and regions of interest (ROI) were generated as described previously3. In brief, activity induced by repetitive mechanical stimulation was visualized as standard deviation over time for each pixel. Heat-induced activity was visualized by subtracting the mean fluorescence before stimulation from the mean fluorescence during stimulation. ROI were manually extracted using the ‘Cell Magic Wand’ plugin in ImageJ. Overlapping cell ROI that were contaminated by each other’s responses were excluded from the analysis while blind to transcriptomic information. Relative change in GCaMP fluorescence was calculated as ΔF/F (%) for each cell, and potential contaminant signal from the underlying out-of-focus tissue and neighbouring cells was removed by subtracting the fluorescence of a doughnut-shaped area surrounding each cell using a custom MATLAB script42. Cell category-specific activity maps were generated by overlaying a category-specific mask over the activity map of the cognate stimuli (heat for heat-specific and polymodal cells; brush and pinch for mechano-specific cells).

Whole-mount ISH of trigeminal ganglia

Whole-mount ISH of trigeminal ganglia after in vivo imaging and of tissue sections was performed as described previously3 using combinations of the following hybridization chain reaction probes (Molecular Instruments): Trpm8 (GenBank NM_134252; full length), S100b (NM_009115; full length), Fxyd2 (NM_007503; full length), Scn10a (NM_001205321; coding sequence), Calca (NM_007587; full length), Trpv1 (NM_001001445; full length), Tmem233 (NM_001101546; full length), Mrgprd (NM_203490; full length), Nppb (NM_008726; full length), Sst (NM_009215; full length), Mlc1(NM_133241; full length), tagRFP-TVA, tdT and EGFP (which detects GCaMP expression). Two-dimensional dorsal views of the surface of whole-mount ganglia were collapsed by maximum intensity projection from confocal Z stacks with 10-μm intervals to capture the convex surface of the ganglion.

Aligning whole-mount ISH images to in vivo recordings

Alignment of whole-mount ISH images to in vivo fluorescent images was performed as described previously3 using either tagRFP-positive guide-post cells in Tac1-tagRFP/TVA animals or GCaMP-expressing cells stimulated with high K+ directly applied to the trigeminal ganglion. In brief, multi-channel two-dimensional ISH images were crudely aligned to in vivo fluorescence by scaled rotation using the TurboReg plugin and a custom macro in ImageJ/Fiji. Guide-post cells were then manually matched to their in vivo fluorescent counterparts using a custom ImageJ macro that identified coordinate pairs for each guide-post. The ISH image was morphed to match its in vivo counterpart using these coordinates with a custom Python script that builds on the OpenCV library3. Several rounds of ISH were aligned to each other using probes labelling partially overlapping sets of cells in both rounds to provide guide-posts for morphing. As shown previously3, this type of image alignment does not produce a pixel-to-pixel match but accurately identifies ISH-positive cells that respond functionally (Extended Data Fig. 2).

Analysis of gene expression and transcriptomic classification

Cell ROI (responding cells) were manually analysed for expression (negative, weak or strong) of every gene with diagnostic ISH data3 (Extended Data Fig. 2c). Binary expression patterns were decoded into transcriptomic cell classes using the rules outlined in Extended Data Fig. 2b and Supplementary Table 3, which also explains how transcriptomic class nomenclature10 is related to other classification schemes.

Single-cell sequencing data from DRG28 were obtained from GEO Series GSE254789 and analysed with Seurat v.5 in RStudio. Cells with less than 800 expressed genes or more than 5% of mitochondrial transcripts were excluded, and datasets were combined using canonical correlation analysis integration after principal component analysis reduction to 30 components. Neuronal and non-neuronal cell clusters were identified in UMAP by analysing the expression of Snap25, Mbp, Apoe, Qk, Pecam1, Slc17a7 and Slc17a6. Doublets were identified using DoubletFinder v.3, and doublets and non-neuronal cells were removed from the dataset. After neurons were renormalized, reduced to 40 principal components and reintegrated, neuronal clusters were calculated using the Louvain algorithm with a resolution of 0.2 and identified/combined on the basis of the genes shown in Extended Data Fig. 2.

Behavioural assessment of allodynia

For behavioural experiments, groups of adult C57Bl/6, Trpv1-Cre::Avil-LSL-TeNT and control littermates were tested. RNAscope ISH of fresh frozen sections of DRG12 (Advanced Cell Diagnostics) was used to examine the extent and selectivity of TeNT recombination. The cheek or plantar surface of the hind paw was injected with PGE2, LY344864 or phosphate-buffered saline (PBS) as described above. Mice (male and female; more than 8 weeks old) were habituated to the testing chambers for at least two sessions in the days preceding the behavioural tests. When mice were used for more than one experiment, they were allowed at least 7 days to recover between tests. The experimenter was blinded to the genotype of the animals.

For the data shown in Fig. 5a,e, mechanical thresholds (50% withdrawal threshold) were determined using von Frey stimulation by the simplified up–down method59 at multiple time points up to 2 h after injection of PGE2 or LY344864. The experimenter was blinded to the genotypes of the mice. For Fig. 5f, mechanical threshold (60% withdrawal threshold; three responses in five trials) was determined using von Frey stimulation by a standard up–down method at baseline and a single time point 15–30 min after intraperitoneal injection of vehicle (dimethylsulfoxide) or Salvinorin B (Hello Bio; 10 mg ml−1; 10 mg kg−1) and paw injection of LY344864 (as described above). The experimenter was blinded to the injected compound. The mice were tested twice (opposite paws; 6 days apart), with four receiving Salvinorin B in the first test and the other three in the second round. The assignment of mice to the two groups was pseudorandom. Brush allodynia was determined in the same behavioural apparatus by stimulating C57Bl/6 mice. As shown in Extended Data Fig. 9a, 20 brushes were delivered using a paint brush (7950-5 Round; KINGART) once every minute before and 10–30 min after paw injection. A response was counted as any withdrawal from the stimulation. As shown in Extended Data Fig. 9b, a single brush with a fluffed cotton swab was delivered at baseline and at each time point after paw injection of PBS or LY344864. Pain-like behaviours (repetitive or extended lifting and guarding) and brief response to brushing were scored. The experimenter was blinded to the injected compound; thus, mice were randomly assigned to groups.

Spontaneous pain behaviours following the injection of 500 µM PGE2 (in 20 µl of PBS) or PBS alone into the hind paw or cheek were recorded and scored offline using BORIS60 by an observer blinded to the genotype and/or the compounds used. In mice injected in the hind paw, licking of the injected paw was scored for 15 min and quantified for a 10-min period, starting 5 min after injection to match the development of inflammation37. For cheek injection blinding, the animals were randomly assigned to groups. Following injections, the mice were placed in cylindrical plexiglass chambers surrounded by mirrors. All face-directed behaviours and periods of inactivity greater than 1 s were scored for the first 15 min after injection and quantified for the same 10-min period used for the paw. Although inactivity may represent freezing-like behaviour (Supplementary Video 3), it may also represent sitting or sleeping. The single mouse injected with PBS that displayed considerable inactivity did not appear to enter a freeze-like state, whereas the majority of the PGE2-injected mice did. To avoid judgement errors in scoring at the resolution of the videos, inactivity was analysed without trying to assess whether the mouse was in distress. The right cheek was partially depilated 2 days before behavioural recording to aid injection.

Quantification and statistical analysis

The numbers of animals and responding cells that were tested for each transcriptomic class are listed in Supplementary Table 1. All quantification and statistical analyses were performed using Python v.3.8, Pandas v.1.1.3, Numpy v.1.19.2 and Scipy v.1.5.2.

Spontaneous activity was detected as peaks in ΔF/F traces with a minimum prominence of 4% ΔF/F, a minimum absolute peak of 4% ΔF/F and a minimum interpeak interval of 0.6 s using the Scipy find_peaks function. The amplitude of an event was calculated as the difference between peak height and its preceding minimum. Spontaneous activity was quantified over multiple time windows when the cheek or paw was held at 30 °C (105 s for trigeminal neurons and 40 s for DRG) by summing event amplitudes.

Temperature-induced responses were identified as peaks with a minimum prominence of 5% ΔF/F, a minimum interpeak interval of 0.6 s and an onset during the temperature stimulation window. The end of a response was defined as the time point when signal dropped below 10% peak height. The area under the ΔF/F curve from onset to end of the response was used to quantify response to temperature. A cell was considered responsive to a temperature stimulus if AUC exceeded a defined minimum (corresponding to a mean of 3.5% ΔF/F over the 4-s stimulation window). A cell was mechanosensitive if its peak amplitude exceeded 15% ΔF/F during the stimulus application window. Cells were polymodal if the ratio between the mechanical and temperature stimuli was smaller than 5:1 and larger than 1:5.

Quantification of responses for a given stimulus varies according to the choice of cells included in the analysis. For example, cells may have spontaneous activity but not respond to mechanical or thermal stimulation of the cheek. For consistency and to allow comparison between figures, we report the response magnitudes (and numbers) of cheek-innervating neurons, that is, cells that responded to any stimulus applied to the cheek.

To distinguish brush responses from spontaneous activity after chemical induction, individual time-locked brush responses within a 1-s window of stimulus application were identified as peaks with a minimum prominence of 5% ΔF/F and a minimum absolute peak height of 20% ΔF/F. Bona fide brush cells were identified as cells that responded to at least 50% of brushes, which cover largely but not completely overlapping fields of the cheek.

Percentages of transcriptomic cell classes contributing to a functional cell category were calculated as described previously3 by dividing the number of responding cells positive for a given class by the number of responding cells that were tested with ISH probes for that class. Because not all classes were tested in all individual animals, the summed percentages do not necessarily add up to 100%. To display proportions in stacked bar graphs, the percentages were further normalized to 100% in these graphs.

The effects of PGE2 injection were analysed using two-tailed paired Student’s t-test. Attenuation of heat responses by Trpv1 knockout was analysed using one-tailed Welch’s t-test (allowing for unequal variances between different conditions). The effects of Trpv1 knockout on spontaneous activity were analysed using two-tailed Welch’s t-test.

Holm–Šidák correction was applied to all statistical tests to adjust for multiple comparisons when investigating several transcriptomic classes. One-tailed Wilcoxon signed-rank tests were used for von Frey thresholds and brush-induced behaviour when comparing time points after allodynia induction to paired baseline values. In Extended Data Fig. 9b, data were pooled across time points after injection and compared between experimental groups with a chi-squared test. All other comparisons between behavioural groups used the Mann–Whitney U-test. Detailed statistical information is provided in Supplementary Table 2.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
