Abstract

Neurons exhibit extraordinary precision in selecting synaptic partners. Although cell-surface proteins (CSPs) that mediate attractive interactions between developing axons and dendrites have been shown to instruct synaptic partner matching^1,2, the degree to which repulsive interactions have a role is less clear. Here, using a genetic screen guided by single-cell transcriptomes^3,4, we identified three CSP pairs, Toll2–Ptp10D, Fili–Kek1 and Hbs/Sns–Kirre, that mediate repulsive interactions between non-partner olfactory receptor neuron (ORN) axons and projection neuron (PN) dendrites in the developing Drosophila olfactory circuit. Each CSP pair exhibits inverse expression patterns in the select ORN–PN partners. Loss of each CSP in ORNs led to similar synaptic partner matching deficits as the loss of its partner CSP in PNs, and mistargeting phenotypes caused by overexpressing one CSP could be suppressed by loss of its partner CSP. All CSP pairs are also differentially expressed in other brain regions. Together, our data reveal that multiple repulsive CSP pairs work together to ensure precise synaptic partner matching during development by preventing neurons from forming connections with non-cognate partners.

Rewiring an olfactory circuit by altering cell-surface combinatorial code

Article Open access 19 November 2025

Extracellular matrix dysfunction and synaptic alterations in schizophrenia

Article Open access 27 August 2025

Synaptic signatures and disease vulnerabilities of layer 5 pyramidal neurons

Article Open access 02 January 2025

Main

A fundamental question in neural development is how the vast number of neurons precisely select their synaptic partners to form functional circuits. Neural circuit wiring involves multiple coordinated developmental steps: axon guidance to target regions, dendrite patterning and synaptic partner matching followed by synaptogenesis^5,6,7. Even though axon guidance and dendrite patterning can greatly reduce the number of potential partners a neuron encounters at a given time and region⁸, a developing axon must select specific partners among multiple nearby non-partners^1,2. The mechanisms by which neural systems reduce multiple candidate synaptic partners to a specific one remain poorly understood.

It is well established that axon guidance involves both attraction towards the target region and repulsion away from non-target regions^9,10. Repulsion mediated by CSPs is also used in establishing topographic maps¹¹, subregion target selection¹², and dendritic and axonal self-avoidance². However, most known CSPs that instruct the final steps of synaptic partner selection act through attraction. These include homophilic attraction of teneurins (Ten-m and Ten-a) in Drosophila olfactory and neuromuscular systems^13,14, heterophilic attractions among members of the immunoglobulin superfamily of CSPs in multiple Drosophila circuits^{15,16,17,18,19,20,21,22}, and homophilic attraction mediated by immunoglobulin²³ or cadherin^24,25 families of CSPs in the vertebrate retina. The few examples of repulsion include Drosophila motor axon target selection, controlled by Wnt4 from non-target muscles²⁶, and olfactory neuron target selection by Fish-lips (Fili) from non-cognate partners²⁷. How general repulsion is utilized as a guiding force in synaptic partner matching remains to be examined.

In the Drosophila olfactory circuit, axons of about 50 types of ORNs form one-to-one precise synaptic connections with dendrites of 50 types of PNs in 50 glomeruli in the antennal lobe²⁸. During development, PN dendrites coarsely pattern the antennal lobe first^29,30. While extending across the antennal lobe prepatterned by PN dendrites, each ORN axon sends multiple transient branches along its trajectory. ORN axon branches that contact partner PN dendrites are stabilized and branch further, whereas the rest retract^31,32. Since synaptic partner matching involves retraction of transient ORN axon branches in contact with non-partner PNs, we aimed to identify repulsive CSPs that might function to prevent the formation of misconnections between non-partner PNs and ORNs.

Inverse expression of three CSP pairs

VA1d and VA1v are neighbouring glomeruli that sense distinct pheromones^33,34. Known homophilic attraction molecules that mediate matching between synaptic partners, Ten-m and Ten-a, cannot distinguish VA1d-PNs and VA1d-ORNs from VA1v-PNs and VA1v-ORNs, as they all express Ten-m at high levels and Ten-a at low levels¹³. We hypothesized that additional CSPs are differentially expressed and instruct synaptic partner matching in these adjacent glomeruli. To identify such CSPs, we performed a genetic screen focusing on PN–ORN matching in the VA1d and VA1v glomeruli (Fig. 1a). We first analysed the existing single-cell transcriptome data for developing PNs and ORNs^3,4 at 24–30 h after puparium formation (APF), shortly before matching between ORN axons and PN dendrites occurs. We focused on CSPs (including both transmembrane and secreted proteins³⁵) that are differentially expressed in VA1d-PNs and VA1v-PNs or in VA1d-ORNs and VA1v-ORNs. We identified 36 candidate genes with assistance from existing literature, including the list of top 100 CSPs enriched in developing antennal lobes revealed by proteomic profiling³⁶. We then performed tissue-specific RNA interference (RNAi) against candidate genes selectively in PNs, ORNs and/or all neurons.

In wild-type flies, axons of VA1d-ORNs and VA1v-ORNs only innervated the VA1d and VA1v glomeruli, respectively (Extended Data Fig. 1a,d). Fourteen out of the 36 candidate genes from the screen showed mistargeting phenotypes in either VA1d-ORNs or VA1v-ORNs³⁷ (Extended Data Fig. 1 and Extended Data Table 1; accompanying article³⁷). We note that loss-of-function of single CSP usually resulted in subtle phenotypes: mistargeting of a small fraction of axons or dendrites. In the accompanying article, we show that only by simultaneously manipulating multiple CSPs in ORNs could we substantially change their matching specificity³⁷. Among these candidate genes, three pairs of CSPs—Toll2–Ptp10D, Fili–Kek1 and Hbs/Sns–Kirre (Hbs–Kirre and Sns–Kirre)—exhibited largely inverse expression patterns in ORN-PN synaptic partners based on single-cell transcriptome data, particularly in ORNs and PNs that target the VA1d and VA1v glomeruli (Extended Data Fig. 2a). For example, Toll2 is more highly expressed in VA1v-ORNs than VA1d-ORNs, whereas its partner Ptp10D is more highly expressed in VA1d-PNs than VA1v-PNs (Extended Data Fig. 2a, left). Such inverse expression patterns suggest a potential role for these CSP pairs to promote repulsion during synaptic partner matching. We therefore focused the remainder of this study on these three CSP pairs.

To validate the mRNA-based inverse expression patterns (Extended Data Fig. 2a), we examined the endogenous protein expression levels at 42–48 h APF, when glomerular identities first become identifiable (and the matching between partner ORN axons and PN dendrites is mostly complete). To determine cell-type-specific expression patterns, we knocked into the endogenous loci of the three CSP pairs a modified conditional tag^36,38 (Fig. 1b). In the absence of the FLP recombinase, these proteins were tagged with haemagglutinin (HA), and no MYC signal was detected in the antennal lobe (Extended Data Fig. 2b). We found that all seven CSPs were differentially expressed across the antennal lobe (Supplementary Videos 1–7). With ORN-specific FLP or PN-specific FLP, we could visualize endogenous protein expression only in ORNs or PNs by MYC staining (Fig. 1c,d and Extended Data Fig. 2c). In the VA1d and VA1v glomeruli, Toll2 exhibited higher expression in VA1v-PNs and VA1v-ORNs, whereas Ptp10D had higher expression in VA1d-PNs and VA1d-ORNs (Fig. 1c–e). Similarly, Kek1 exhibited higher expression in VA1v-ORNs than in VA1d-ORNs and low expression in both VA1d-PNs and VA1v-PNs (Fig. 1f and Extended Data Fig. 2c). Fili did not show preferential expression in VA1d-ORNs and VA1v-ORNs, but is more highly expressed in VA1d-PNs than in VA1v-PNs, based on data from a previous study²⁷. For the third CSP pair, Hbs and Sns were minimally expressed in ORNs and exhibited higher expression in VA1d-PNs than VA1v-PNs, whereas Kirre exhibited higher expression in VA1v-ORNs than VA1d-ORNs (Fig. 1g and Extended Data Fig. 2c). Using the same preference index to quantify the relative expression in ORNs or PNs that target VA1d versus VA1v glomerulus, we found that mRNA and protein expression patterns were mostly consistent for all three CSP pairs (Fig. 1e–g). We note that the magnitudes of differential expression for some CSPs, although significant, were modest; nevertheless, our genetic analysis below suggests that such differential expression was used to instruct synaptic partner matching.

In summary, on the basis of the relative expression levels of mRNAs and proteins, the Toll2–Ptp10D, Fili–Kek1 and Hbs/Sns–Kirre pairs are expressed in inverse patterns in PN–ORN partners at the VA1d and/or VA1v glomeruli (Fig. 1h–j). Furthermore, all these CSPs are present at the terminals of ORN axons and/or PN dendrites at the nascent glomeruli, consistent with a role in synaptic partner matching.

Loss of Toll2 or Ptp10D disrupts matching

We first examined the function of Toll2 and Ptp10D in PN–ORN synaptic partner matching. Ptp10D is an evolutionarily conserved member of the type III receptor tyrosine phosphatase family (Fig. 2a) that is involved in axon guidance at the midline, tracheal tube formation and cell competition, and was reported to be a receptor for the CSP Sas^{39,40,41,42,43}. However, single-cell transcriptomic data indicate that Sas is minimally expressed in the antennal lobe^3,4, suggesting the existence of additional Ptp10D-interacting CSPs.

**Fig. 2: Loss of Ptp10D or Toll2 causes similar mismatching between non-partner PNs and ORNs.**

To validate the Ptp10D RNAi phenotypes from our screen (Extended Data Fig. 1b), we labelled VA1d-ORN axons in Ptp10D hemizygous mutant flies and observed similar phenotype as pan-ORN Ptp10D RNAi: VA1d-ORN axons mistargeted to the VA1v glomerulus (Fig. 2b,c,k). Given the high Ptp10D expression in VA1d-ORNs (Fig. 1h), we tested whether Ptp10D is autonomously required in VA1d-ORNs for their axon targeting. Knocking down Ptp10D using a VA1d-ORN-specific-GAL4 driver³² and multiple RNAi lines caused similar mistargeting of VA1d-ORN axons to the VA1v glomerulus and mismatching with VA1v-PN dendrites (Fig. 2d,k, Extended Data Fig. 3a,b and Extended Data Table 2). Additional experiments argued against Ptp10D mediating homophilic attraction (Extended Data Fig. 3f,g). Furthermore, using a sparse VA1d-ORN GAL4 driver (Extended Data Fig. 4a–d) to knock down Ptp10D in single VA1d-ORN also caused axon branches to mistarget to the VA1v glomerulus (Fig. 2e,k), indicating that Ptp10D acts cell-autonomously in VA1d-ORNs to prevent their mismatching with VA1v-PNs.

On the basis of the inverse expression pattern of Ptp10D and Toll2 (Fig. 1h), we tested whether Toll2 has a similar role in VA1d-ORN axon targeting. Toll2 is a single-pass transmembrane protein belonging to the Toll-like receptor family, with leucine-rich repeats (LRRs) extracellularly and a Toll/interleukin-1 receptor domain intracellularly (Fig. 2a). Toll2 has an evolutionarily conserved roles in innate immunity and regulate tissue morphogenesis^44,45,46, but its role in neural development is unclear. We found that both pan-PN RNAi-mediated knockdown of Toll2 and Toll2 heterozygous mutation caused mistargeting of VA1d-ORN axons to the VA1v glomerulus (Fig. 2f,k and Extended Data Fig. 1c).

Given the high expression of Toll2 in VA1v-PNs (Fig. 1h), we hypothesized that Toll2 in VA1v-PN dendrites sends a trans-cellular repulsive signal to VA1d-ORN axons to prevent misconnection between them. To manipulate Toll2 specifically in VA1v-PNs, we identified a VA1v-PN driver that labels VA1v-PNs across developmental stages (Extended Data Fig. 4e–i). Indeed, Toll2 knockdown in VA1v-PNs caused VA1d-ORN axon mistargeting to the VA1v glomerulus (Fig. 2g,k), phenocopying Ptp10D knockdown in VA1d-ORNs. Thus, Toll2 acts in VA1v-PNs whereas Ptp10D acts in VA1d-ORNs to prevent misconnections between VA1d-ORN axons and VA1v-PN dendrites (Fig. 2m).

Since Ptp10D and Toll2 were also highly expressed in VA1d-PNs and VA1v-ORNs, respectively (Fig. 1h), we examined whether they are similarly required for preventing mismatching between VA1v-ORNs and VA1d-PNs. Indeed, cell-type-specific knockdown of Ptp10D in VA1d-PNs and Toll2 in VA1v-ORNs caused similar phenotypes: VA1d-PN dendrites mistargeted to the VA1v glomerulus (Fig. 2h–j,l and Extended Data Fig. 3c). Conversely, no mistargeting phenotype was observed in VA1d- or VA1v-ORN axons when Toll2 was knocked down in ORNs (Extended Data Fig. 3d,e), suggesting that Toll2 does not function cell-autonomously in VA1d-ORNs or VA1v-ORNs and does not mediate axon-axon interactions between VA1d-ORNs and VA1v-ORNs. No mistargeting phenotype was observed when knocking down Toll2 or Ptp10D where they had low expression (Extended Data Table 2). Together, these data suggest that both Ptp10D and Toll2 act in both PNs and ORNs to prevent mismatching between non-partners, with Toll2 sending and Ptp10D receiving a repulsive signal to non-partner neurons (Fig. 2m).

Toll2 and Ptp10D interact trans-cellularly

We next tested whether Toll2 and Ptp10D work together to prevent mismatching between non-partner PNs and ORNs via trans-cellular interactions. To do so, we first overexpressed Toll2 specifically in VA1d-ORNs, where the endogenous Toll2 level is low. This caused some of their partner VA1d-PN dendrites (with high Ptp10D) to mismatch with DA4l-ORN axons (with low Toll2) (Fig. 3a,b,e and Extended Data Fig. 5b); the same manipulation did not cause mistargeting phenotype in VA1d-ORN axons or VA1v-PN dendrites (Extended Data Fig. 5a and Extended Data Table 2). This result supports the repulsion hypothesis: misexpressed Toll2 in VA1d-ORN axons sent a trans-cellular signal to repel the partner VA1d-PN dendrites away from them. Similarly, overexpressing Ptp10D specifically in VA1v-ORNs (whose synaptic partner VA1v-PNs expressed high Toll2) caused their axons to mismatch with VA1d-ORNs (with low Toll2; Extended Data Fig. 5c).

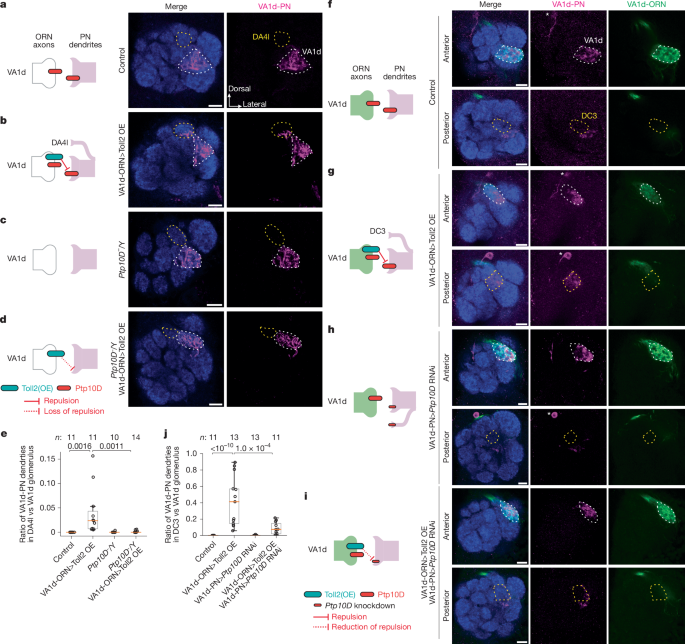

**Fig. 3: Toll2–Ptp10D promote trans-cellular repulsive interactions.**

Next, we tested whether the Toll2 repulsive signal was received by Ptp10D, which was highly expressed in VA1d-PN dendrites. We combined Toll2 overexpression in VA1d-ORNs with loss of Ptp10D. The mistargeting level of VA1d-PN dendrites to the DA4l glomerulus was significantly reduced in Ptp10D hemizygous mutant flies (Fig. 3d,e). Ptp10D hemizygosity itself did not cause VA1d-PN dendrite mistargeting to DA4l, even though some VA1d-PN dendrites mistargeted to VA1v (Fig. 3c,e). This suppression indicates that Ptp10D is necessary to mediate the Toll2 overexpression phenotype, and thus Toll2 and Ptp10D function together to mediate repulsion.

As Ptp10D showed high expression in both VA1d-PNs and VA1d-ORNs, the experiments above did not distinguish whether the suppression by Ptp10D knockout was a result of cis- or trans-interaction between Toll2 and Ptp10D, or a result of loss of Ptp10D in glomeruli other than VA1d. To distinguish between these possibilities, we overexpressed Toll2 in VA1d-ORNs and knocked down Ptp10D in VA1d-PNs simultaneously using two orthogonal binary expression systems. In wild-type flies, dual-labelled VA1d-ORN axons and VA1d-PN dendrites largely intermingled with each other (Fig. 3f,j). Overexpressing Toll2 in VA1d-ORNs caused VA1d-PN dendrites to segregate from VA1d-ORN axons within the VA1d glomerulus and mistarget to the nearby DC3 glomerulus (Fig. 3g,j). Simultaneous knockdown of Ptp10D in VA1d-PNs and overexpression of Toll2 in VA1d-ORNs suppressed the VA1d-PN dendrite phenotypes caused by Toll2 overexpression alone (Fig. 3i,j), whereas Ptp10D knockdown in VA1d-PNs alone did not cause a similar phenotype (Fig. 3h,j). Together with the inverse expression of Toll2 and Ptp10D and their similar loss-of-function phenotypes, these trans-cellular interaction data support a model in which Toll2 sends and Ptp10D receives a repulsive signal to prevent matching between non-partner ORNs and PNs (Fig. 2m).

Non-partner repulsion by Fili–Kek1

To study the function of the other CSP pairs, we performed similar loss-of-function and suppression experiments as with Toll2–Ptp10D. A previous study showed that when Fili is knocked out or knocked down in VA1d-PNs and DC3-PNs (VA1d/DC3-PNs), VA1v-ORN axons mistarget to the VA1d glomerulus whereas VA1d-ORN axons and VA1d/DC3-PN dendrites are unaffected. This result suggests that Fili is required in VA1d/DC3-PNs to prevent mistargeting of VA1v-ORN axons to the VA1d glomerulus²⁷. However, the CSP partner of Fili partner remained unknown. Kek1 was a top candidate on the basis of its high expression in VA1v-ORNs (Fig. 1i and Extended Data Fig. 2) and mistargeting of VA1v-ORN axons to the VA1d glomerulus caused by pan-ORN knockdown of kek1 (Extended Data Fig. 1e). Kek1 and Fili both contain LRRs in their extracellular domain (Fig. 4a). Kek1 inhibits epidermal growth factor receptor (EGFR) activity through the LRRs during eye development⁴⁷ and it is expressed in developing CNS, but its function is poorly defined⁴⁸. We found that homozygous deletion of kek1 or kek1 knockdown in VA1v-ORNs caused VA1v-ORN axons to mistarget to the VA1d glomerulus (Fig. 4b–e), phenocopying the loss of Fili in VA1d/DC3-PNs²⁷.

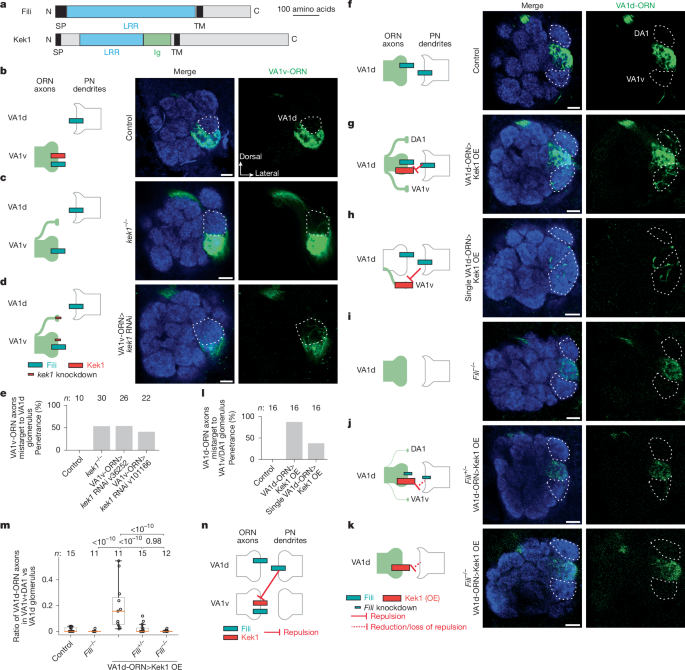

**Fig. 4: Repulsive Fili–Kek1 interactions.**

To further investigate whether Fili and Kek1 work together to prevent misconnections between non-partner PNs and ORNs, we overexpressed Kek1 specifically in VA1d-ORNs, whose synaptic partner VA1d-PNs expressed high Fili²⁷. This caused VA1d-ORN axons to mistarget to the neighbouring VA1v and DA1 glomeruli (Fig. 4f,g,m), whose PN dendrites mostly do not express Fili²⁷. To test whether the Kek1 overexpression phenotype was caused by its interaction with Fili, we overexpressed Kek1 in Fili mutant flies (Fig. 4i,m). The overexpression phenotype was much less severe in Fili heterozygous mutant flies (Fig. 4j,m) and was nearly fully suppressed in Fili homozygous mutant flies (Fig. 4k,m). In addition, overexpressing Kek1 in single VA1d-ORN using the sparse driver produced a similar mistargeting phenotype (Fig. 4h,l), indicating that Kek1 acts cell-autonomously. Although VA1d-ORNs and VA1v-ORNs also expressed Fili (Fig. 1i), a previous study showed that Fili knockout in ORNs does not cause any mistargeting phenotype of VA1d-ORN and VA1v-ORN axons²⁷. Together, these data suggest that Fili and Kek1 work together to prevent the misconnections between non-partner PNs and ORNs, with Fili sending and Kek1 receiving the trans-cellular repulsive signal (Fig. 4n).

Non-partner repulsion by Hbs/Sns–Kirre

Hbs/Sns and Kirre are members of an evolutionarily conserved family of immunoglobulin ligand–receptor pairs with conserved binding sites⁴⁹ (Fig. 5a). Drosophila Hbs/Sns and Kirre regulate myoblast fusion⁵⁰, nephrocytes functions⁵¹ and neural circuit wiring⁵². Whereas previous studies have suggested that this ligand–receptor pair (and sometimes homophilic interactions) mediates attraction^53,54, the expression patterns in the fly olfactory system (Fig. 1j) and RNAi phenotypes (Extended Data Fig. 1f–h) raised the possibility that Hbs/Sns and Kirre might also mediate repulsion. We found that kirre, hbs or sns mutants, as well as VA1v-ORN-specific knockdown of kirre and VA1d-PN-specific knockdown of hbs or sns, all caused a similar phenotype: mistargeting of VA1v-ORNs to the VA1d glomerulus (Fig. 5b–f and Extended Data Fig. 6a–c). Thus, Kirre, Hbs and Sns are all required to prevent VA1v-ORNs from matching with VA1d-PNs, with Kirre acting in VA1v-ORNs and Hbs/Sns acting in VA1d-PNs to prevent VA1v-ORNs to mistarget to the VA1d glomerulus.

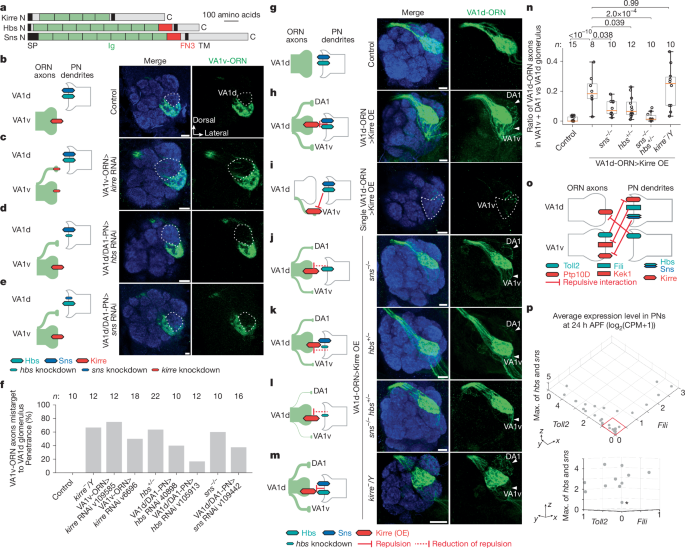

**Fig. 5: Repulsive Hbs/Sns–Kirre interactions and combinatorial expression of three CSP pairs.**

To examine whether Hbs/Sns and Kirre work together to instruct synaptic partner matching, we performed genetic interaction experiments. We first overexpressed Kirre in VA1d-ORNs, whose partner, VA1d-PNs, expressed high levels of Hbs and Sns (Fig. 1j). Kirre overexpression in all VA1d-ORNs or single VA1d-ORN led to mistargeting of some VA1d-ORN axons to the VA1v and DA1 glomeruli (Fig. 5g–i,n), whose PNs expressed low levels of Hbs and Sns, suggesting cell-autonomous function of Kirre as a repulsive receptor. Overexpressing Kirre in hbs mutant, sns mutant or hbs/sns double mutant background reduced mistargeting phenotypes of VA1d-ORN axons (Fig. 5j–l,n). None of the mutants alone had any VA1d-ORN axon mistargeting phenotype in the absence of Kirre overexpression (Extended Data Table 2). Since Kirre can also mediate homophilic binding⁴⁹, we tested whether Kirre homophilic attraction is responsible for the mistargeting phenotype we observed. Overexpressing Kirre specifically in VA1d-ORNs caused the same phenotype in kirre hemizygous mutant flies as in the wild type (Fig. 5m,n), arguing against a contribution for trans-cellular Kirre homophilic interaction in synaptic partner matching. Together, these data support that heterophilic repulsion between Hbs/Sns as the ligands and Kirre as the receptor prevents VA1v-ORNs from mistargeting to the VA1d glomerulus (Fig. 5o).

As the genetic interactions of Fili–Kek1 and Hbs/Sns–Kirre both functions to prevent misconnection of VA1v-ORNs with VA1d-PNs, we tested whether there is crosstalk between these interactions. We found that knocking down sns and hbs did not suppress the mistargeting phenotype caused by Kek1 overexpression (Extended Data Fig. 6d,e), suggesting that Fili–Kek1 and Hbs/Sns–Kirre are likely to act in distinct pathways, and validating the specificity of these genetic suppression experiments. In an additional set of experiments, we co-expressed Bruchpilot-Short, a presynaptic active zone marker, and found that it was enriched in mistargeted ORN axons when we perturbed each of the three CSP pairs (Extended Data Fig. 7). These data suggest that mistargeted ORN axons may form ectopic synaptic connections with new PN partners.

As previous biochemical and structural studies have shown direct binding between Hbs/Sns and Kirre⁴⁹, we also tested whether the other two CSP pairs that we identified directly bind each other. However, we did not detect direct binding between Fili and Kek1, or between Toll2 and Ptp10D, in in vitro (Extended Data Fig. 8) or tissue-based (Extended Data Fig. 9) binding assays. Thus, the biochemical basis for the repulsive interactions mediated by Fili–Kek1 and Toll2–Ptp10D remains an open question. Possibilities include requirements for unidentified co-factor(s), post-translational modifications or specific physiological conditions such as multimerization^55,56 that were not recapitulated in our binding assays.

Broad usage of the three CSP pairs

Our results (Figs. 2–5) and additional control experiments (Extended Data Table 2) suggest that the three repulsive CSP pairs could prevent mismatching between VA1d-ORNs with VA1v-PNs (Toll2–Ptp10D), VA1d-PNs with VA1v-ORNs (Toll2–Ptp10D), and VA1v-ORNs with VA1d-PNs (Fili–Kek1 and Hbs/Sns–Kirre) (Fig. 5o). Thus, the three CSP pairs work in concert, with partial redundancy, to ensure robust repulsion between non-matching ORNs and PNs at the VA1d and VA1v glomeruli.

The antennal lobe has 50 ORN-PN synaptic partner pairs that need to be specified, potentially requiring many CSP pairs to mediate repulsions. One way to alleviate this is to repeatedly use the same repulsive CSP pairs across the antennal lobe in a combinatorial fashion. Indeed, analysis of previously published single-cell transcriptomes during development³ revealed that mRNAs encoding all three CSPs implicated in sending the repulsive cues—Toll2, Fili and the maximum of hbs and sns—are expressed in multiple PN types. Notably, most PN types expressed one or two, but not all three repulsive cues at high levels (Fig. 5p). For each PN type, this property reduces the errors of mismatching with non-partner ORN types (as all PN types express at least one repulsive cue at high levels) while making room for the match with its partner ORN type (as few PN type expresses all three repulsive cues at high levels).

On the basis of their expression patterns, we further investigated whether the repulsions of these three CSP pairs have similar roles in additional ORN and PN types using loss- or gain-of-function experiments. A previous study showed that Fili acts in ORNs to prevent mistargeting of VM5-PN dendrites²⁷. We observed a similar mistargeting phenotype of VM5-PN dendrites when we knocked down kek1 using a pan-PN driver (Extended Data Fig. 10a,b), suggesting that Fili in ORNs and Kek1 in PNs are both required for proper targeting of VM5-PN dendrites. As Hbs is highly expressed in DA1-PNs and DA4l-PNs, we overexpressed Kirre in DA1-ORNs or DA4l/VA1d-ORNs using available drivers with early developmental onset. We observed mistargeting of each ORN group(s) to neighbouring glomeruli, whose PNs expressed low Hbs and Sns (Extended Data Fig. 10c–e), suggesting that Hbs and Kirre mediate repulsions in these PN–ORN pairs. In the accompanying article, we show that all three repulsive CSP pairs have a key role in preventing the mismatch of both VA1d-ORNs and DA1-ORNs with PNs of nearby glomeruli, as manipulating the expression of these CSP pairs is essential in the rewiring of VA1d- and DA1-ORNs to non-cognate PNs³⁷. Together, these data support a model in which these repulsive interactions are used broadly in the antennal lobe to ensure synaptic partner matching specificity.

Finally, to explore the possibility that these three CSP pairs work elsewhere in the fly brain to regulate connection specificity, we used HA staining to examine the expression patterns of the 7 CSPs (Fig. 1b) during the period when many circuits are establishing wiring specificity (42–48 h APF). We found that all CSPs had broad but differential expression across the Drosophila brain (Supplementary Videos 1–7). For example, in the optic lobe, all CSPs showed differential expressions in specific neuropil layers (Extended Data Fig. 11a,c). To better examine the endogenous expression pattern of CSP pairs in brain regions without layer structures, we also produced transgenic flies with endogenous CSPs tagged with V5 and co-labelled each pair of CSPs in the same brain. Extended Data Fig. 11b showcased the differential expression of these CSP pairs in the suboesophageal zone, ellipsoid body and protocerebrum. These data support the notion that combinatorial repulsive interactions serve as a generalizable mechanism in instructing wiring specificity of neural circuits.

Discussion

Previous high-throughput extracellular interactome screenings in vitro have identified novel molecular pairs with direct interactions, including Dpr/DIP and Beat/Side families of immunoglobulin-containing CSPs whose in vivo functions in neuronal wiring have subsequently been validated^{15,16,17,20,21,22,57,58}. Here we took an alternative approach of using transcriptome-informed in vivo genetic screens, which enabled us to identify known binding partners (Hbs/Sns–Kirre) as well as proteins that may not interact directly (Fili–Kek1 and Toll2–Ptp10D). Thus, transcriptome-informed in vivo screening complements in vitro biochemical approach to identify CSP pairs that mediate trans-cellular interactions in neuronal wiring.

The inverse expression patterns of the three CSP pairs that we identified, their cell-type-specific loss-of-function phenotypes, and suppression assays strongly suggest that they mediate repulsion between non-partner PNs and ORNs. Some of the CSPs only show modest differential expression, suggesting that synaptic partner choice is likely to be regulated by the relative levels of repulsive interactions. We note that orthologues of Hbs/Sns and Kirre in other species control synaptic site choice in C. elegans⁵³ and axon sorting in the mouse olfactory bulb⁵⁴ via heterophilic and homophilic attraction, respectively. However, our results suggest they instruct synaptic partner matching in the fly olfactory system via heterophilic repulsion. These different mechanisms could potentially be mediated by engaging distinct intracellular signalling pathways in specific cellular context.

Repulsion could be combined with attraction to enhance the selection process of synaptic partners. For example, for neuron A to match its synaptic partner A′ but not non-partners, one strategy is to express attractive CSP pairs in A and A′. However, as the CSP number on each synaptic partner increases, an attraction-only strategy can cause ambiguity (for example, to distinguish the matching of two versus three attractive pairs), and the addition of repulsion can reduce errors. Repulsion can also increase the searching efficiency by ruling out non-partners during the simultaneous searching process, as in the case of ORN-PN matching^31,32. Conversely, a repulsion-only strategy may have difficulty exploring a larger space owing to excessive branch retraction. In the accompanying article, we showed that only by simultaneously manipulating both attractive and repulsive CSPs in ORNs could we substantially switch their partner PNs³⁷. Thus, attractive and repulsive interactions work in concert to ensure precise synaptic partner matching.

Methods

Fly husbandry and stocks

Drosophila melanogaster were reared on a standard cornmeal medium at 25 °C under a 12 h:12 h light:dark cycle. To enhance transgene expression levels, flies from all genetic perturbation experiments, including control groups, were shifted to 29 °C shortly before puparium formation. Both male and female flies were used. The w[1118] strain was used as wild type, with ages ranging from larva stage to seven days old adults. Detailed genotypes for each experiment are listed in Supplementary Table 1.

Generation of cDNA constructs and transgenic flies

Complementary DNA (cDNA) encoding proteins used in this study were obtained from different resources. Toll2 cDNA was amplified from the cDNA library of w1118 pupal brain extracts using Q5 hot-start high-fidelity DNA polymerase (New England Biolabs) as previously described³²; Ptp10D cDNA was amplified from clone RE52018 (DGRC 9073; https://dgrc.bio.indiana.edu//stock/9073; RRID:DGRC_9073); Fili cDNA was amplified from pUAST-attB-SP-V5-Fili-Flag plasmid²⁷; kek1 cDNA was amplified from clone GH23277 (DGRC 1263019; https://dgrc.bio.indiana.edu//stock/1263019; RRID:DGRC_1263019); kirre cDNA was amplified from genomic DNA extraction of UAS-kirre.C-HA fly⁵⁹ (RRID:BDSC_92196) using DNeasy blood and tissue kit (QIAGEN). Sequence-verified coding regions were assembled into pUAST-attB-mtdT-3xHA⁶⁰, pUAST-attB-SP-V5-Fili-Flag³² or pJFRC19-13XLexAop2-IVS-myr::GFP (Addgene plasmid #26224) backbones using the NEBuilder HiFi DNA assembly master mix (New England Biolabs) to generate pUAST-attB-Toll2-Flag, pUAST-attB-Ptp10D-3xHA, pUAST-attB-kek1-3xHA, pUAST-attB-kirre-3xHA, and pJFRC19-13XLexAop2-IVS-Toll2-Flag plasmids. Transgenic flies for overexpression experiments were generated by BestGene with microinjection of plasmids into the VK5 site.

Generation of conditional tags

Endogenous conditional tag flies were generated using CRISPR knock-in with modifications from a previous strategy³⁸. To increase the efficiency of knock-in, we incorporated the short repair templates flanked by guide RNA (gRNA) target sites⁶¹ and the gRNA into a single plasmid TOPO-HR1-FRT-3xHA-Stop-FRT-3xMyc-Stop-loxP-mCherry-loxP-HR2-pU6-gRNA or TOPO-HR1-FRT-V5-Stop-FRT-Flag-Stop-loxP-mCherry-loxP-HR2-pU6-gRNA. In the plasmid, HR1 and HR2 are the 150-bp genomic sequences of upstream and downstream of the target genes stop codon, respectively; gRNA sequences were designed by the flyCRISPR Target Finder tool that targeting stop codons of the genes, and were cloned into the backbone of pU6-BbsI-chiRNA vector^62,63 to make the pU6-gRNA. The plasmids were synthesized by Synbio Technologies and were microinjected in house into nos-Cas9 flies⁶⁴. All mCherry+ progenies were individually balanced and the loxP-flanked mCherry cassettes were then removed by crossing each line to balancer expressing Cre (Bloomington Drosophila Stock Center, RRID:BDSC 1092). To detect cell-type-specific expression level, we used ey-Flp⁶⁵ for ORNs and VT033006-GAL4;UAS-FLP⁶⁶ for PNs.

Generation of the sparse driver and single-neuron genetic manipulations

The FRT100-Stop-FRT100 element was cloned into the 78H05-p65AD plasmid (in backbone pBPp65ADZpUw) to generate plasmid 78H05-FRT100-Stop-FRT100-p65AD as previously reported⁶⁷. The plasmid was integrated into the VK27 site. To perform the sparse genetic manipulations, flies including VA1d-ORN sparse driver (31F09-GAL4DBD, 78H05-FRT100-Stop-FRT100-p65AD), hsFLP (heat shock protein promoter-driven FLP), reporter (UAS-mCD8-GFP), and knockdown or overexpression transgenes were raised at 29 °C. To induce sparse manipulation, the flies were collected at 0–6 h APF and heat shocked for 1–2 h in a water bath⁶⁷ at 37 °C.

Immunostaining

Fly brain dissection, fixation and immunostaining were performed according to the published protocol⁶⁸. For primary antibodies, we used rat anti-N-cadherin (1:40; DN-Ex#8, Developmental Studies Hybridoma Bank), chicken anti-GFP (1:1000; GFP-1020, Aves Labs), rabbit anti-DsRed (1:500; 632496, Clontech), mouse anti-rat CD2 (1:200; OX-34, Bio-Rad), rabbit anti-HA (1:100, 3724S, Cell Signaling), mouse anti-HA (1:100, 2367S, Cell Signaling), rabbit anti-MYC (1:250, 2278S, Cell Signaling) and mouse anti-V5 (1:250, R960-25, Thermo Fisher Scientific). Donkey secondary antibodies conjugated to Alexa Fluor 405/488/568/647 or Cy3 (Jackson ImmunoResearch or Thermo Fisher) were used at 1:250. For the staining of conditional tag for Hbs and Fili in PNs, the routine protocol described above failed to detect MYC signal from the background, probably owing to low expression of endogenous proteins in vivo. Alexa 488 Tyramide SuperBoost kit (Thermo Fisher) was used to amplify the immunostaining signal by following the manufacture’s protocol.

Imaging, quantification and statistical analysis

Images were obtained using laser scanning confocal microscopy (Zeiss LSM 780 or LSM 900). Fiji was used to adjust brightness and contrast for representative images. Penetrance of phenotypes represents the percentage of antennal lobes showing a given phenotype among the total antennal lobes (two per fly) examined. To quantify the endogenous expression levels of the proteins, we manually outlined VA1d and VA1v glomeruli in Fiji based only on the N-cadherin signal (that is, blind to MYC signals), and use this as filter to calculate mean fluorescent density \((\bar{I})\) in the VA1d and VA1v glomeruli (total fluorescence intensity divided by the volume). The preference index is calculated in Python by \({(\bar{I}}_{{\rm{VA}}1{\rm{d}}}-{\bar{I}}_{{\rm{VA}}1{\rm{v}}})/{(\bar{I}}_{{\rm{VA}}1{\rm{d}}}+{\bar{I}}_{{\rm{VA}}1{\rm{v}}})\). Preference index for proteins was calculated based on MYC staining intensity throughout the glomeruli at 42–48 h APF. Preference index for mRNAs was calculated based on average expression levels in VA1d-ORN/PNs versus VA1v-ORN/PNs based on the single-cell-transcriptome data^3,4 at 24–30 h APF. To quantify the mistargeting ratio of VA1d-PNs or VA1d-ORNs in the trans-cellular assay, we defined PN dendritic or ORN axonal targeting area by smoothening (‘gaussian blur’ with radius = 1 pixels) and thresholding (based on the algorithm Otsu) the images in Fiji. We manually outlined VA1d, VA1v, DA1, DA4l and/or DC3 glomeruli in Fiji based only on the N-cadherin signal (that is, blind to PNs or ORNs signals), and used this as a filter to calculate PN dendritic or ORN axonal targeting volume (V) in each glomerulus. The mistargeting ratio is calculated in Python by \({V}_{\text{other glomerulus}}/{V}_{{\rm{VA}}1{\rm{d}}}\).

Binding assays

For binding assays involving purified proteins with surface plasmon resonance, we expressed and purified Fili, Kek1, Ptp10D and Toll2 extracellular domains using the baculoviral expression system in Trichoplusia ni High Five cells (Thermo Fisher B855-02). Sf9 cells from Spodoptera frugiperda were used for baculovirus production (Thermo Fisher, 12659017). Proteins were tagged with C-terminal hexahistidine tags for purification, and Avi-tags for biotinylation using BirA biotin ligase. Proteins were purified to homogeneity with Ni-NTA metal affinity and size-exclusion chromatography in 10 mM HEPES pH 7.2, 150 mM NaCl. Biotinylated Fili and Toll2 extracellular domains were captured on a Streptavidin sensor chip in a Biacore T200 system (Cytiva) running a buffer containing 10 mM HEPES pH 7.2, 150 mM NaCl and 0.05% Tween-20. We observed no binding responses for Kek1 and Ptp10D extracellular domains flowing on Fili and Toll2 channels, respectively.

For the avidity-based extracellular binding assay (ECIA), we followed the published protocols⁶⁹. In brief, we expressed and secreted each ectodomain as bait and/or prey, where they were tagged with Fc, V5 and His tags (for bait) and Alkaline phosphatase, the COMP pentameric coiled coil region, Flag and His tags (for prey). All proteins were expressed in Drosophila S2 cells (DGRC #6) in Schneider’s medium supplemented with the insect medium supplement (Sigma). Media from bait-expressing cells were incubated with Protein A-coated 96-well plates for capturing of bait onto plates overnight at room temperature, while media from prey-expressing cells were incubated with bait-captured plates for 3 h. Washes were performed with 1× phosphate-buffered saline, supplemented with 1 mM CaCl₂, 1 mM MgCl₂ and 0.1% bovine serum albumin. Binding of prey to bait was detected using the chromogenic alkaline phosphatase substrate BluePhos (KPL) by measuring absorbance at 650 nm after a two-hour incubation. We included the known interactions of Rst dimerization⁴⁹ and EGFR–Kek1 interaction as positive controls⁷⁰. Cell lines (from commercial sources) were not authenticated, as they were only used as an exogenous production source of protein, and not studied for any biological functions. No mycoplasma contamination was observed. The raw data for the western blots are shown in Supplementary Data 1.

The tissue-based binding assays were performed as previously described^58,71,72. In brief, brains or wing discs were dissected in Schneider’s medium, then incubated with the conditioned medium of High Five cells expressing epitope-tagged extracellular domains of a specific protein for 18 h (for pupal brains) or 1 h (for wing discs) at 4 °C on a rotating platform. Medium of High Five cells without expressing any transgenes was used as a negative control. After the incubation, brains or wing discs were washed with the Schneider’s medium and fixed with 4% paraformaldehyde in 1× PBS for 30 min, followed by the immunostaining protocol above using antibodies against the epitope tags.

Statistics and reproducibility

For the representative images in Extended Data Figs. 4b–d,h,i, 5c, 7a–c and 9a–f at least eight samples were examined with similar results. For the representative images in Extended Data Fig. 11a,b, at least three samples were examined with similar results. The western blots in Extended Data Fig. 8d were performed once and utilized the proteins directly used in the ECIA in Extended Data Fig. 8c with the hexahistidine tag common in all constructs. There was a lack of detectable expression for Ptp10D ectodomain, which may be the reason for the lack of binding of Ptp10D in Extended Data Fig. 8c.

Animal study design

No statistical tests were used to determine sample size. We used sample sizes (~4–20 flies per condition) that been shown to have sufficient statistical power in similar experiments in the past. We did not exclude flies or data from any analysis, unless brains stained for imaging appeared unsuitable (for example, broken) at the time of imaging. All experiments discussed in the paper were conducted on multiple flies, with sample size specified. In immunostaining, data across multiple days were collected and all imaged brains showed the same qualitative pattern of staining. Organisms were not allocated to control and experimental groups by the experimenter in this work, rather the flies’ genotype determined their group. Thus, randomization of individuals into treatments groups is not relevant. The investigators were not blind to the flies’ genotypes. All data collection and analyses were performed computationally. During this process, data from control groups and experimental groups were analysed equally using the same well-established protocols, therefore are less prone to investigator influence.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

All data are included in the manuscript and the supplementary materials. Source data are provided with this paper.

Code availability

Code used in the study is available on github: https://github.com/ZhuoranLi97/repulsive_interactions.
